Related Manuals for Dual DMH25
Summary of Contents for Dual DMH25

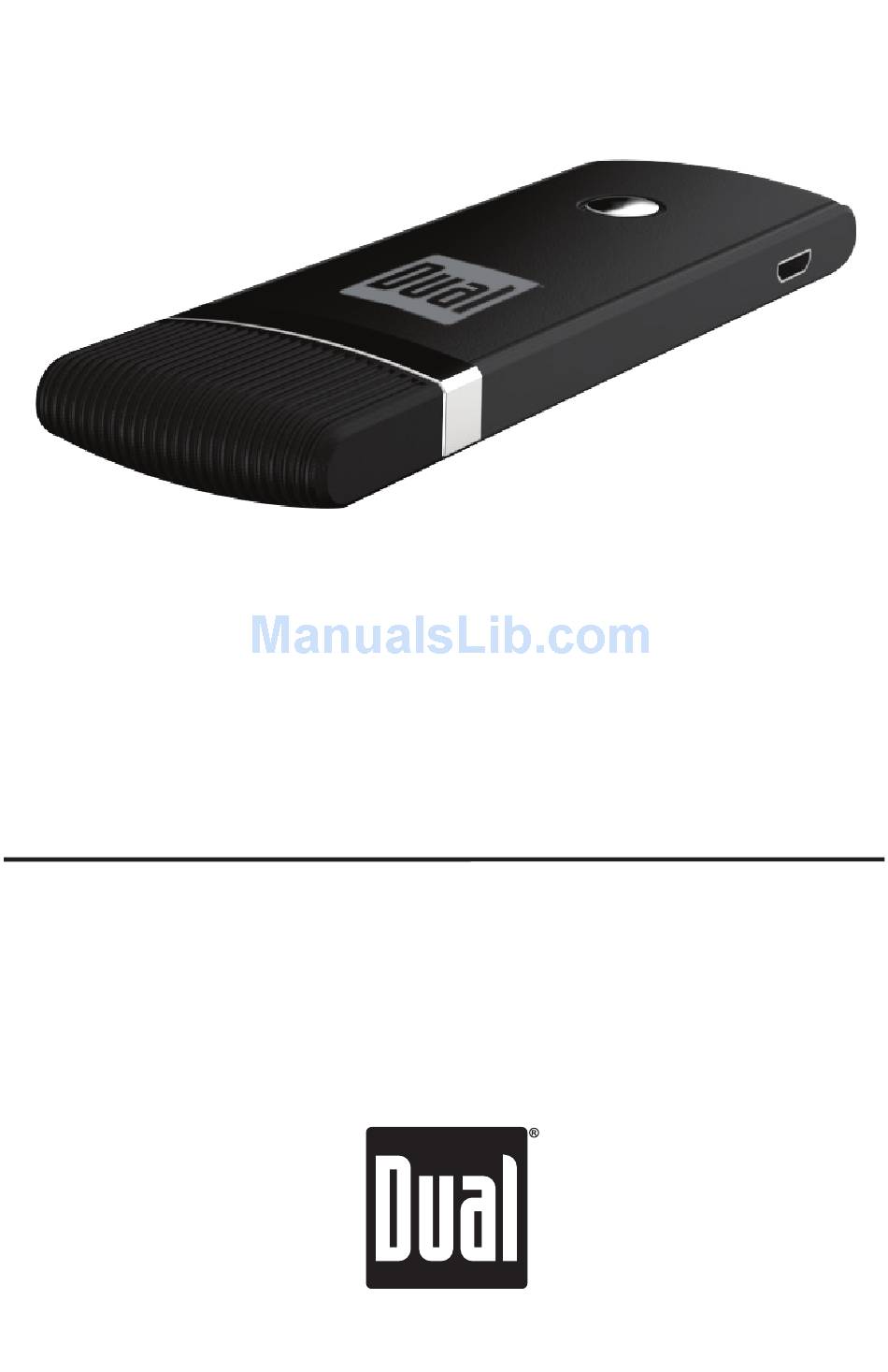

- Page 1 DMH25 DualCast Wi-Fi Audio/Video HDMI Dongle INSTALLATION / OWNER'S MANUAL...
-
Page 2: Contents In The Box
Contents 1. Content in the box. 2. Product Specifications. 3. Connect DualCast Dongle to Dual or Axxera receiver’s with DualMirror . 4. Connect the DualCast Dongle to your smartphone. 5. Update the firmware of the DualCast Dongle. Contents in the Box... -
Page 3: Product Specifications
HDMI-enabled receiver with DualMirror feature. 3. microUSB port Insert the included microUSB cable into this port to provide power for the DualCast Dongle. (Optional) Most of the Dual & Axxera receiver with the DualMirror feature do not require external power. 4. Reset button Press and hold the button for 20 seconds to reset the dongle, external USB power must be connected to reset. - Page 4 (Model Number : DH3CBL, 1m) dongle from the vehicle’s dash. (sold separately) Contact your nearest Dual dealer to purchase the HDMI extension cable. Setting up your smartphone Once you have connected the dongle to the receiver and have selected DualMirror from the menu, the image below will appear on the receiver’s screen.
- Page 5 Miracast devices and display them in a list under Cast Screen. If your MIracast receiver is powered on and nearby, it should appear in the list. Tap the device to connect (DUAL CAST-XXXXXXX) and begin casting your screen. A notification will appear, providing a visible indication that you’re casting your...
-
Page 6: Apple Iphone
Apple iPhone 1. Go to the Settings menu and enter the Wi-Fi menu. 2. Select DualCast-XXXXXX and enter the password 12345678 to connect your iPhone to DualCast Dongle via Wi-Fi. 3. Swipe your finger from the bottom of your iPhone to the top in the main menu and tap on AirPlay. - Page 7 4. Input the Wi-Fi network's password, once connected the dongle will tranmit as a Wi-Fi access point, also the dongle will be updated with the latest firmware automatically if there is an OTA update. Once the update is completed, a message saying “Success! Dongle will reboot”...
- Page 8 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM, EST www.dualav.com ©2015 Dual Electronics Corp. NSC-0115-V01...
