Page 1: Operation Manual

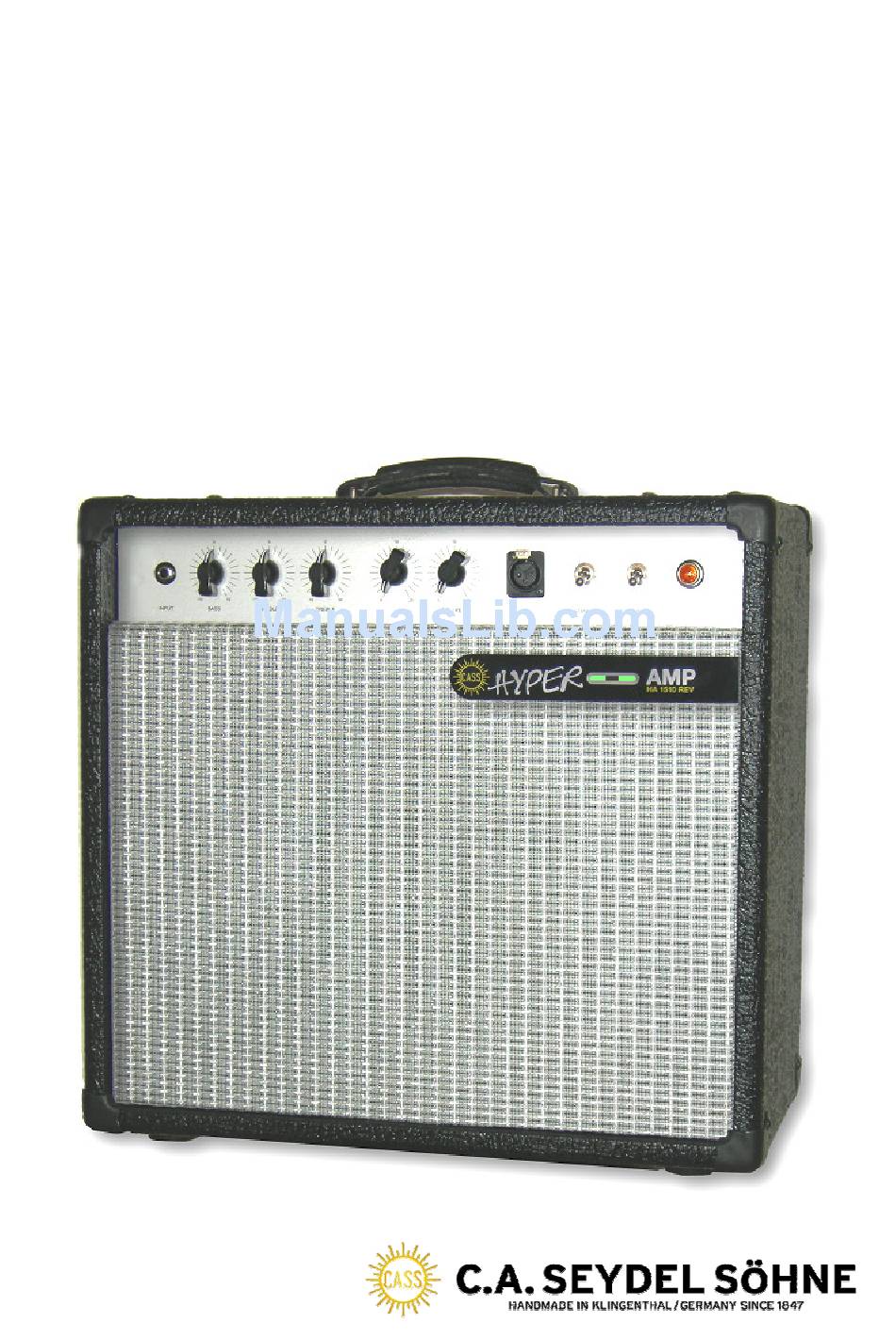

Operation Manual Tube-Amplifier for Harmonica Hyperamp HA1510 and HA1510REV... - Page 2 Have much fun with the SEYDEL-Hyperamp HA1510(REV) – we can help you to find another piece of your sound!
- Page 3 Please note! To make the device operate always reliably, please follow the advice below: - Do not open the chassis (risk of electric shocks!). - Avoid dust and too much humidity, direct sunlight or too low or high temperatures. - Pay attention to ventilate the backside properly. - Do not transport the device until 10 minutes of cooling down, avoid dropping, or rough handling (tubes!).
- Page 4 Control elements at the front 1) INPUT: 6,3mm guitar-connector (mono) to connect a high-impedance microphone 2) BASS/MIDDLE/TREBLE: tone control 3) VOLUME: Main volume control 4) EFF/REV: control to add external effects (Reverb, HA1510REV only) 5) INPUT: XLR-connector to connect a low-impedance microphone 6) STANDBY: Switch to mute the PA (stand-by) 7) POWER: on/off switch 8) Operation lamp...
- Page 5 Speaker jack INTERN: connection to the internal speaker Switch 4 / 8 Ohm: toggle switch for the connection of an additional 8 Ohm speaker – the impedance switch must then be set to 4 Ohm. Under normal operation, without a second speaker it has to be set to 8 Ohm.
- Page 6 Safety instructions 1) The Amplifier can produce very high volumes that may harm your hearing. 2) Depending on the sensitivity of the connected microphone and the chosen volume there is danger for feedback (“squealing” or “skirling”) that may harm your ears or damage the speaker. 3) To replace the fuse always disconnect the power cord.
- Page 7 Playing the harp amplified For playing harmonica amplified the so-called bullet microphones are very popular. These high-impedance microphones often feature a non-linear frequency response - therefore they have unique tone characteristics. The technology used really can be called “out of primitive times”.
- Page 8 amplified sound is recorded by the microphone and re-amplified – the sound is “looped” and as a result of this a nasty squealing sound is produced. Feedback often can be prevented by lowering the volume or by adding fewer effects. Many microphones have a volume control, or on/off switch.
- Page 9 Technical data - Hyperamp HA 1510 REV Output: 15VA an 4 / 8 Ohm (switchable) * Speaker: 10’’ Jensen P10R 8 Ohm “SPECIAL DESIGN“ Power amplifier: Class A (2 x EL84) Level indicator: EM84 (magic eye), at the front Input1: Guitar socket 6,3 mm (mono), -10 dBu at 1 MOhm Input2: XLR-socket, -30 dBu at 200 Ohm ***...
- Page 10 All modifications done to technically improve the device, can be done without any announcement on the part of the manufacturer. Conformance declaration For SEYDEL-Hyperamp HA1510 and HA1510REV We declare that, if operation conditions and environment are those recommended in this manual, the product is in accordance with the following...
