Hardware User Manual
EC1400
NO LCD, with HDMI
EC1403
3.5" LCD with touch screen, NO HDMI
EC1404
4.3" LCD with touch screen, NO HDMI
EC1407
7" LCD and touch screen, NO HDMI
EC1408
8" LCD and touch screen, NO HDMI
EC1410
10.1" LCD and touch screen, NO HDMI
EC1400 ~ EC1410
h* _ Oy>0í 0 ¤ 0 Î 0 ¹
Advertisement
Table of Contents
Summary of Contents for IC nexus EC1400

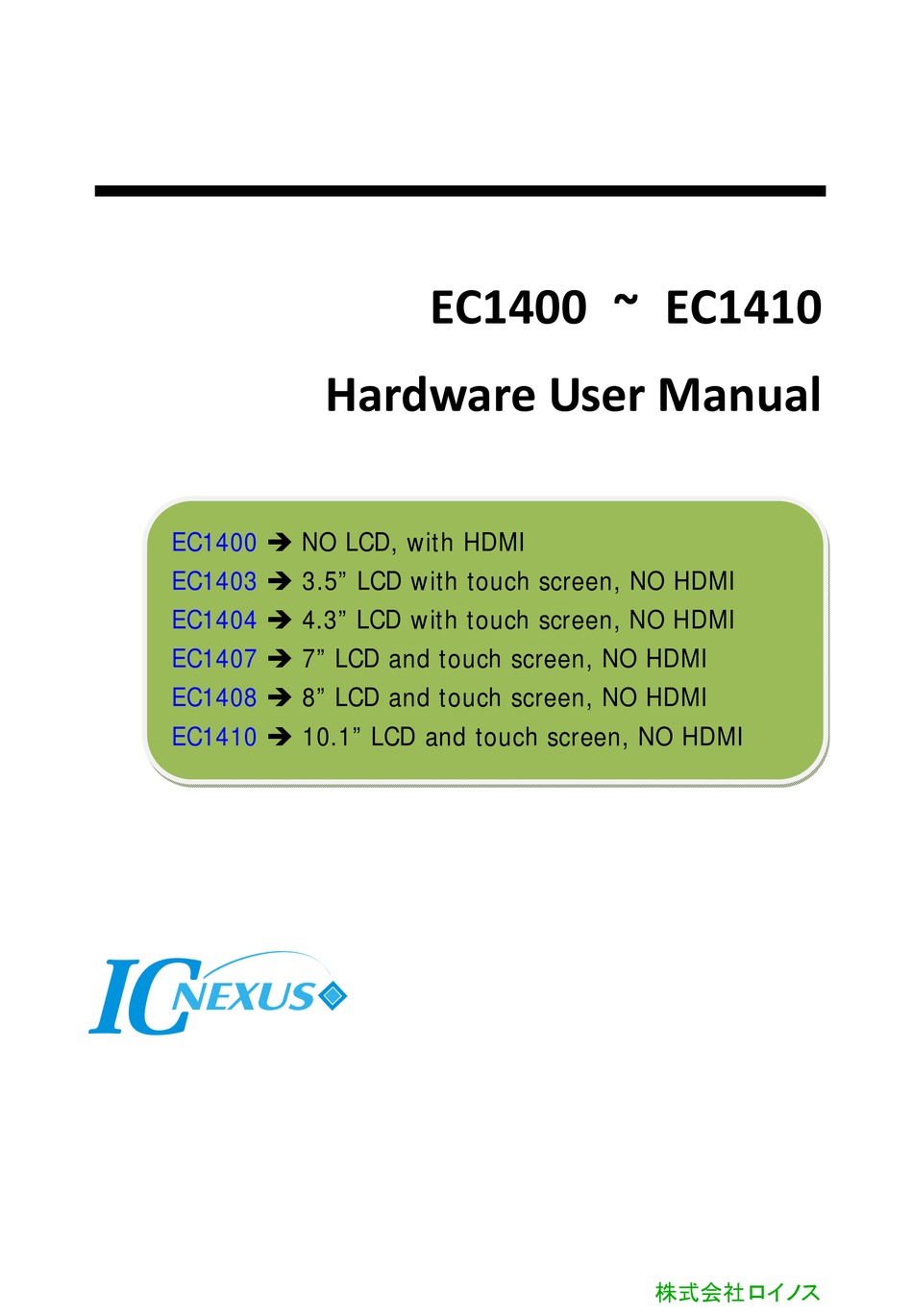

- Page 1 EC1400 ~ EC1410 Hardware User Manual EC1400 NO LCD, with HDMI EC1403 3.5” LCD with touch screen, NO HDMI EC1404 4.3” LCD with touch screen, NO HDMI EC1407 7” LCD and touch screen, NO HDMI EC1408 8” LCD and touch screen, NO HDMI EC1410 ...
- Page 2 Disclaimer This documentation is provided for use with IC Nexus products. No license to IC Nexus property right is granted. IC Nexus assumes no liability, provides no warranty either expressed or implied relating to the usage, or intellectual property right infringement that may result from its use.
-
Page 3: Table Of Contents
1.2 Features and Specifications ................. 9 1.3 Outline Drawing and Dimension ..............10 2. FUNCTION DESCRIPTIONS ..............11 2.1 HDMI Connector (EC1400 only) ..............12 2.2 MicroSD Host Connector ................13 2.3 UART Connectors & Debug Port ..............14 2.4 USB Connectors ..................18 ... -
Page 4: Product Features And Specifications
It is a flexible, high performance and inexpensive computer designed for multimedia applications especially in 1080p video decoding. Each EC1400 device can be pre-installed with Windows CE 6.0, Linux 2.6 OS or Android 2.3 for immediate evaluation. The EC1400 series of products include the following models: EC1400: no LCD, with HDMI output ... - Page 5 200 mm (EC1407 with Linux) Figure 1- 1 EC1407 front panel photo NOTE: EC1400 dimension is the same as EC1407, except that EC1400 has no front panel. h * _ Oy > 0 í 0 ¤ 0 Î 0 ¹...
- Page 6 EC1408 front panel: 177 mm 212 mm (EC1408 with WinCE) Figure 1- 2 EC1408 front panel photo h * _ Oy > 0 í 0 ¤ 0 Î 0 ¹...
- Page 7 EC1410 front panel: 177 mm 263 mm (EC1410 with Android) Figure 1- 3 EC1410 front panel photo h * _ Oy > 0 í 0 ¤ 0 Î 0 ¹...
- Page 8 EC1403/EC1404 Photo: 118 mm 12 mm 93 mm 79 mm 79 mm Figure 1- 4 EC1403/EC1404 photos h * _ Oy > 0 í 0 ¤ 0 Î 0 ¹...
-
Page 9: Features And Specifications
10/100 Mb Ethernet interface RJ-45 connector x1 3.5”, 4.3”, 7”, 8” or 10.1” LCD panel with touch screen x1 HDMI 1.3 transmitter connector x1 (EC1400 only) +12V DC power input connector x1 (EC1407/08/10 only) +5V DC power input connector x1 (EC1403/04 only) ... -
Page 10: Outline Drawing And Dimension
1.3 Outline Drawing and Dimension << TBD >>... -
Page 11: Function Descriptions
2. Function Descriptions The following diagrams show connector positions on EC1400 series of products. The functional details of the connectors are described in subsequent sections. Connector Positions for EC1403 and EC1404: UART0 Debug (RS232) UART4 UART5 SPK L SPK R... -
Page 12: Hdmi Connector (Ec1400 Only)
2.1 HDMI Connector (EC1400 only) The HDMI receptacle connector supports standard HDMI interface. The brief features of the HDMI interface are: HDMI 1.3, HDCP 1.1, DVI 1.0 compliant Supported video format: 480p @59.94Hz/60Hz, 576p@50Hz 720p @50Hz/59.94Hz/60Hz 1080i @50Hz/59.94Hz/60Hz 1080p @50Hz/59.94Hz/60Hz ... -
Page 13: Microsd Host Connector
2.2 MicroSD Host Connector The microSD host connector complies with the following versions of specifications: SD Host Controller Specification Version 2.0 SDIO Card Specification Version 2.0 SD Memory Card Specification Draft Version 2.0 SD Memory Card Security Specification Version 1.0 ... -
Page 14: Uart Connectors & Debug Port
2.3 UART Connectors & Debug Port There are 3 UART ports (UART0, 4, 5) on EC1403/04 and 2 UART ports (UART0, UART4) on EC1407/08/10. The connector type and functions are described in the table below: UART Connector Available Note Type Signals UART0 2x4 box RS232 signal level RS232 port. - Page 15 UART1 connection diagram: EC14xx UART1 UART1 (only TX, RX signals) is dedicated as a debug port. The default setting of UART1 is: 115200 baud rate, 8 data bit, no parity, 1 stop bit and no flow control. A DB9 null modem cable (or adapter) is required when you would like to connect UART1 to a PC that runs terminal emulation software such as TeraTerm.
- Page 16 UART4 connection diagram: ARM11 ZT485E Box Header ZT485E: RS485 transceiver. RS485 works in half duplex mode. UART Box Header (CN16 on PCB) Pin assignment: : 485+ : 485- If you are using an RS232 cable in RS485 connection, please make sure the pin2 and pin 3 are cross connected.
- Page 17 Debug Port Connector: The debug port on EC1400 device is a RS232 port for software development or for Linux console port. Note that EC1403 and EC1404 debug port require a dedicated debug cable which is included in the EC1403/EC1404 product package. See table...
-
Page 18: Usb Connectors
2.4 USB Connectors The USB interfaces on EC1400 include a USB 2.0 OTG port (support 480Mbps speed) and 2x USB1.1 host ports. The USB1.1 host interface is connected to a hub controller to extend host ports. 2 of the USB1.1 hub ports are available for users. -
Page 19: Audio Interface
2.5 Audio Interface The EC1400 audio interface is implemented by a WM8731 audio codec. The data and control interface between CPU and WM8731 is I On EC1407/EC1408/EC1410, the available audio connectors are head phone, line in and MIC. The speaker connectors (left, right) are not available for external connection. -
Page 20: Ethernet Interface
2.6 Ethernet Interface The 10/100Mbps Ethernet interface is available at the standard RJ-45 connector. Ethernet: ARM11 Ethernet RJ-45 Controller Connector h* _ Oy>0í 0 ¤ 0 Î 0 ¹... -
Page 21: Led
2.7 LED On EC1407/EC1408/EC1410, the red LED is connected to 5V power. It is turned on when 5V power is properly supplied. The green LED is user programmable and can be turned on/off by GPIO_A10. USER LED POWER LED The schematic of LEDs is as below: On EC1403/EC1404, the red and green LEDs are connected to user programmable GPIO_E14 and GPIO_E16: h * _ Oy >... -
Page 22: Power Supply (Dc-In Connector)
2.8 Power Supply (DC‐IN connector) The standard DC power adapter included with EC1407/EC1408/EC1410 is +12V at 1.5A or higher. The DC power adapter for EC1403/EC1404 is +5V at 2A. Power input should be applied to the DC-IN connector. h * _ O y > 0 í 0 ¤ 0 Î 0 ¹... -
Page 23: Bm Header
2.9 BM Header The BM header is a 2-pin jumper to be used in EC14xx product firmware update. In normal EC14xx operation, the jumper cap MUST be put on the jumper (that is, 2-pin jumper is short). In firmware update mode, the jumper cap MUST be removed from the jumper. For further information about firmware update on EC14 series product, please refer to a separate firmware update document. -
Page 24: Gpio Connector (Ec1407/08/10 Only)
2.10 GPIO Connector (EC1407/08/10 only) The GPIO connector (note that GPIO connector is available only in certain EC14 models) provides user to connect up to 16 GPIO devices (+3.3V signal level). For further information about the use of GPIO, please refer to the “EC14xx GPIO Application note”. h * _ O y >... -
Page 25: I 2 C Interface
2.11 I C Interface The I C works as a master port by default: The master port is pulled high to +3.3V with 2 resistors internally. The slave devices have to be connected directly without additional power supply on I C bus. C Master Port (EC14xx) C Slave Device +3.3V... -
Page 26: Appendix A: Box Header To Db9 Cable
Appendix A: Box Header to DB9 Cable h* _ Oy> 0 í 0 ¤ 0 Î 0 ¹... -
Page 27: Appendix B: 7-Inch Lcd Brief
Appendix B: 7-inch LCD Brief General Features: The 7-inch LCD panel is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit, touch Panel and a back-light unit. - Page 28 Item Min. Typ. Max. Unit Note Horizontal (H) 165.00 Module Size Vertical (V) 104.00 Thickness (T) Weight (165) Note (1) Not Include Component. Refer to the Outline Dimension Drawing as attached. Environment Rating Item Symbol Min. Max. Unit Note Storage Temperature Operating Temperature Optical Characteristics Item...
-
Page 29: Appendix C: 8-Inch Lcd Brief
Appendix C: 8-inch LCD Brief General Features: The 8-inch LCD panel is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit, touch Panel and a back-light unit. - Page 30 Horizontal (H) Module Size Vertical (V) Thickness (T) Weight (330) Note (1) Not Include Component. Refer to the Outline Dimension Drawing as attached. Environment Rating Item Symbol Min. Max. Unit Note Storage Temperature Operating Temperature Optical Characteristics Item Symbol Min. Typ.
-
Page 31: Appendix D: 10.1-Inch Lcd Brief
Appendix D: 10.1-inch LCD Brief General Features: The 10.1-inch LCD panel is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit, touch panel and a back-light unit. - Page 32 Optical Characteristics Item Symbol Min. Typ. Unit Note Brightness cd/m Contrast Ratio h * _ O y > 0 í 0 ¤ 0 Î 0 ¹...
-
Page 33: Appendix E: 3.5-Inch Lcd Brief
Appendix E: 3.5-inch LCD Brief General Features: The 3.5-inch LCD panel is a TM (Transmissive) type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit, a back-light unit and a touch screen panel (TSP). - Page 34 Optical Characteristics Item Symbol Min. Typ. Unit Note Brightness cd/m Contrast Ratio h * _ O y > 0 í 0 ¤ 0 Î 0 ¹...
-
Page 35: Appendix F: 4.3-Inch Lcd Brief
Appendix F: 4.3-inch LCD Brief General Features: The 4.3-inch LCD panel is a TM (Transmissive) type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit, a back-light unit and a touch screen panel (TSP). - Page 36 Optical Characteristics Item Symbol Min. Typ. Unit Note Brightness (350) (400) cd/m Contrast Ratio (250) (350) h * _ O y > 0 í 0 ¤ 0 Î 0 ¹...
