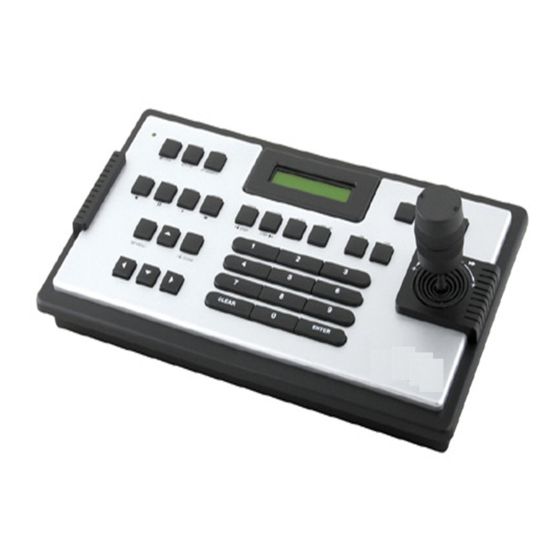

Speed Dome Camera Controller
Operation Manual
15-AU50H / 15-AU50E
Please read this operation manual before using this device and use the device properly.
Also, please keep this manual with care to ensure easy access at any time.
VER: 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15-AU50H and is the answer not in the manual?

Questions and answers

Summary of Contents for SPT 15-AU50H

  • Page 1 Speed Dome Camera Controller Operation Manual 15-AU50H / 15-AU50E Please read this operation manual before using this device and use the device properly. Also, please keep this manual with care to ensure easy access at any time. VER: 1.1...

  • Page 2: Table Of Contents

    INDEX Summary ---------------------------------------------------------------------------------------2 -------------------------------------------------------2 Introduction of the Keyboard Panel --------------------------------2 The Sketch of the Front Panel and Description of Buttons Rear Panel -------------------------------------------------------------------------------------4 Setting of the Keyboard ---------------------------------------------------------------------4 Operation of the Keyboard -----------------------------------------------------------------6 Installation and Connection ----------------------------------------------------------------9 Technical Specifications --------------------------------------------------------------------11 Points for Attention -------------------------------------------------------------------------12 Packing List ---------------------------------------------------------------------------------- 12...

  • Page 3: Summary

    Summary The keyboard controller is used for terminal receivers such as the intelligent speed dome and the decoder etc. It is very easy for operating and setting the speed dome camera. The controller is also to control the terminal receiver to achieve the function of controlling pan/tilt, lens and etc. Taking the EIA/RS-485 electrical interface between the keyboard and the receiver.
  • Page 4 22!4×4#right arrow$ "Show picture of the camera in 16-frame. 23!CLEAR" To clear inputted data. 24!0-9" Number key. 25!Enter"To confirm. 26! joystick"control the upward, downward, leftward and rightward speed motion of the speed dome. 3D Joystick twist to zoom in and out (15-AU50H) 27!Power LED 28!LCD...

  • Page 5: Rear Panel

    Rear Panel (Figure 2) Figure 2 Power Switch: ON/OFF. Power input connector: input DC12V power. Communication connector RS485. Communication connector RS485: twisted-pair. Communication connector for DVR. 6 !MODE "Used to set the protocol in use and the baud rate of communications. Communication connector RS232.
  • Page 6 Some of the ID-Code of the protocols are set as follows: Switching control between speed dome and multiplexer The controller can be operated in two modes: Speed Dome and Multiplexer. When power supply is on it is operated on the default mode, namely, the Speed Dome.

  • Page 7: Operation Of The Keyboard

    Setting termination resistor by the DIP5 of the MODE as follows: Operation of the Keyboard 1. Select Address of the Speed Dome Camera [CAM]+[N]+[Enter] Display: Current CamID 001 Description N –– No. of camera from 0 to 255 Function Select the address of the camera to be controlled. When the value N is in conformity with the address of the Speed Dome Camera, it will be under control.
  • Page 8 After tracks are edited, press OFF to store and exit while push the joystick to exit without storage. 6. Run Cruise Track: [SHOT]+[N]+ [Enter] Display Input Tour No 01 Description N –– No. of the track from 1 to 6. Function Tour the No.
  • Page 9 15. Auxiliary Control of the Camera By combination of [F1] and [ON], [OFF] buttons, you can set some data of the camera, and functions are listed as follows 16. Use the Joystick to control the speed dome camera You can use the speed joystick to control the Pan/Tilt direction and speed of the speed dome randomly. The speed of pan/tilt is decided by the angle of the joystick you operated (Figure 3).

  • Page 10: Installation And Connection

    Menu control press to select the menu you want, " press F2 , to enter the sub menu, press CAM/ID , to return the last menu press ON or OFF , to adjust the parameters. 16-frame pictures (1) press “ ”...
  • Page 11 possible. 1. The marking of wires of the transfer box (Figure 4) GREEN BLACK YELLOW RS485+ BLACK RS485- GREEN YELLOW RS232 OUT Figure 2. Connections of the keyboard controller controlling multiple speed dome cameras (Figure 5) 3. Connections between the keyboard and the speed dome camera (Figure 6) 4.

  • Page 12: Technical Specifications

    Technical Specifications Communication between Speed Dome Camera and Controller Port to multi-port and half duplex function. Communication connector: RS-485. Baud Rate of Communication Four baud rates i.e. 2400bps, 4800bps and 9600bps. Distance of Communication 1200m in maximum Power Supply DC12V/1A ; Over voltage 14.5V 0.5V. Size 330 43 mm Weight 1.62 Kg...

  • Page 13: Points For Attention

    Points for Attention Please read the operation manual of the keyboard carefully before using it. The keyboard takes DC12V power supply. Please confirm the voltage and polarity before the power supply is switched on. Do not place the keyboard under the rain or on wet place so as to avoid short circuit or electrical shock. As the keyboard is a sophisticated electronic device, you should never open the case so as to avoid the occurrence of trouble.
