Summary of Contents for Anaheim Automation SMTNR2-1

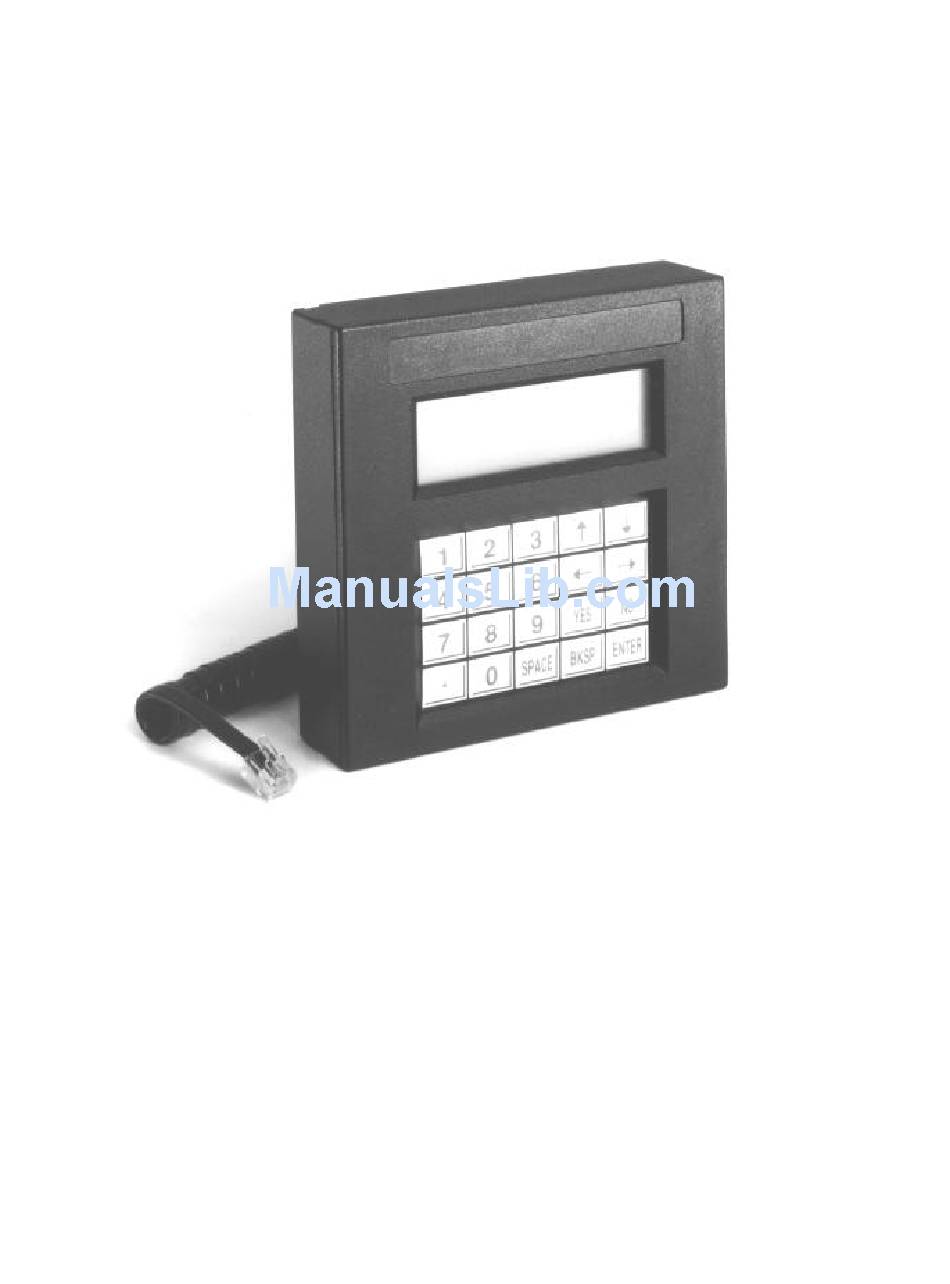

- Page 1 USERS’ MANUAL MODEL SMTNR2-1 PANEL MOUNT TERMINAL ANAHEIM AUTOMATION 910 E. Orangefair Lane Anaheim, CA 92801 Phone: (714) 992-6990 Fax: (714) 992-0471 http://www.anaheimautomation.com email: info@anaheimautomation.com #L010100 August 20, 1998...
- Page 2 SMTNR2-1 Keypad Operation The SMTNR2-1 keypad includes the digits 0 through 9 and Period, Yes and No, Space, Backspace and Enter keys, as well as four user-programmable Function keys. ↑ ↑ ↓ ↓ ← ← → → SPACE BKSP ENTER...
- Page 3 PARITY – When enabled, an extra bit is added to each character sent by the terminal. This bit is used by the receiving device to perform a simple error check on incoming data. The SMTNR2-1 cab be set to transmit an EVEN, ODD, MARK, or SPACE parity bit. With any of these settings, the receiver in the terminal will perform the corresponding check on incoming data.
- Page 4 ALERT ESC Q These commands cause the SMTNR2-1 to emit the indicated sound through an external speaker (when connected). There is no “buffering” of commands which generate sounds. To produce a properly spaced chain of any of these sounds, the host must delay time between issuing these commands.
-
Page 5: Escape Sequences
Key Click Control ENABLE KEY CLICK ESC U DISABLE KEY CLICK ESC V These commands enable and disable the audible keyclick (when an external speaker is connected.) Identify SEND TERMINAL ID ESC Z The command will poll the terminal. The terminal will reply with model number and check sum. Returns: SMT NNNN. -
Page 6: Ascii Table
CURSOR LEFT TO COLUMN 1 DELETE CHAR. AT CURSOR When CTRL + E (DEC 5) is sent to the SMTNR2-1, it will answer with an ASCII Acknowlegde (DEC 6). All other control codes will be ignored. * Extenal speaker must be connected... - Page 7 ASCII TABLE - CONTINUED ASCII PC KEY ASCII PC KEY ‘ ‘...
- Page 8 SMTNR2-1 Sample1 – Program using SMC40 Controller The SMC40 Terminal Commands allow the user to send and receive ascii data. Under the Select a Command Menu of the editor software press the Terminal Commands Button. Step 1: Terminal Commands Step 2: Terminal Commands Write Text –...
- Page 9 Write Text The SMTRN2-1 Handheld Terminal will display text strings on its display. Note that there are 20 Characters per Row and 4 Rows to display your instruction. Limit Your Instruction to 20 Characters per Line (1 Row) Pressing the OK button will insert the command into the program. When executing the program the SMTNR2 –1 will display the instruction : Press 1 for 1 Inch...
- Page 10 The Write Value Instruction is useful for verifying registers. The XMP is a Register that stores the X- Axis Motor Position Value. The SMTNR2-1 allow the user to verify the numerical value of any register that is being updated within a program.
- Page 11 Write ASCII The SMTRN2-1 Handheld Terminal will allow the user to transmit an ASCII character/code to the terminal for character manipulation or placement on the display screen. Control CODE ASCII FUNCTION CTRL + E ENQUIRE CTRL + G SOUNDS BELL* CTRL + H BACK SPACE CURSOR CTRL + J...
- Page 12 Read Value The SMTRN2-1 Handheld Terminal will allow the user to pause the program momentarily until the user enters a numerical value entry – a numerical value entry terminated by a carriage return from the handheld terminal. The SMC40 Controller stores the value in the RV Register. Once the user enters a numerical value the SMC40 Program the numerical entry followed by a carriage return (Pressing ENTER) will be loaded into the RV –...
-
Page 13: Mounting Hardware
FLUSH MOUNT – CLOSED BACK MOUNTING HARDWARE (FLUSH MOUNT – CLOSED BACK) - Page 14 FLUSH MOUNT – OPEN BACK MOUNTING HARDWARE (FLUSH MOUNT – OPEN BACK)
- Page 15 SMTNR2-1 DIMENSIONS...
