Summary of Contents for Risecom Corporation RS-3990

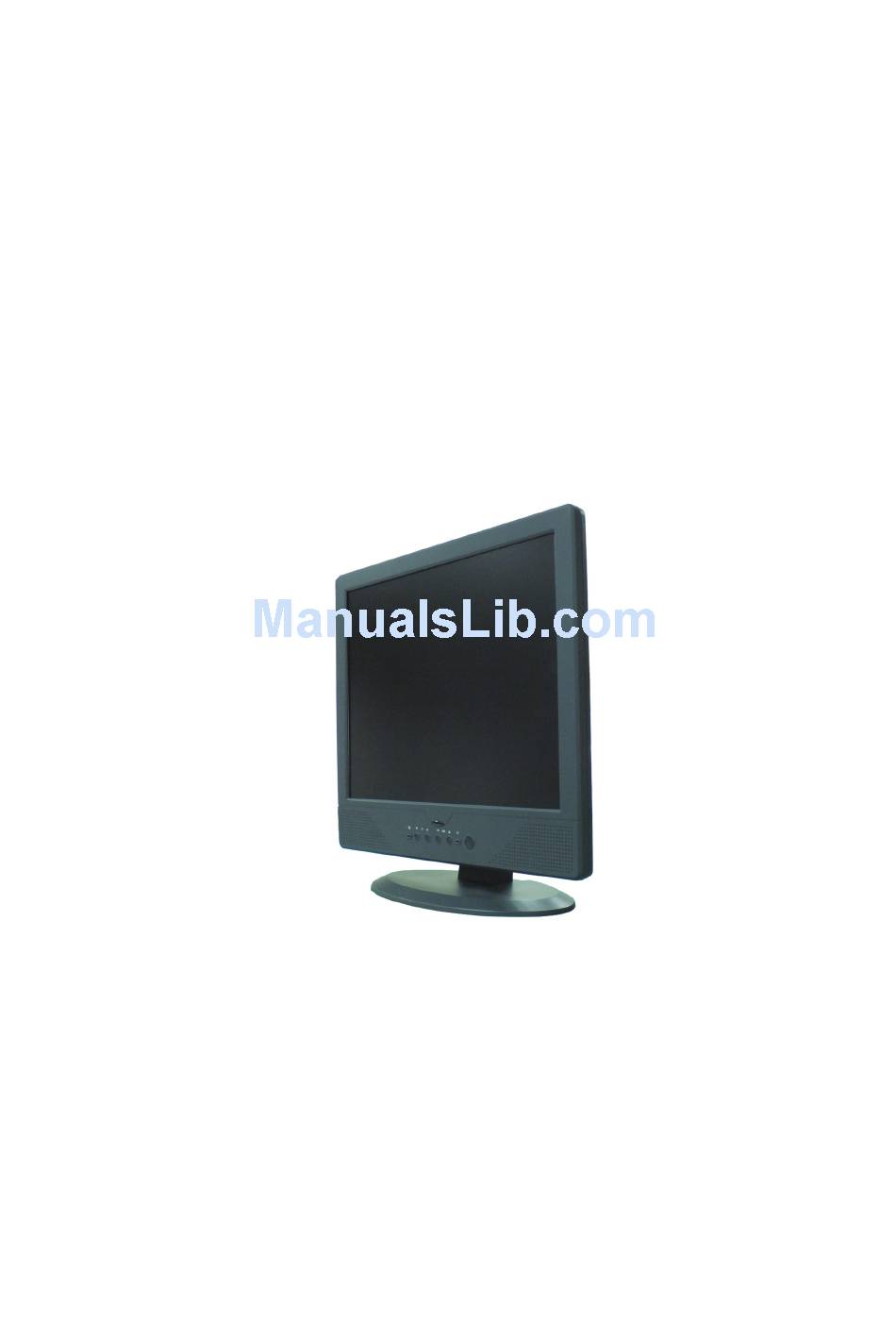

- Page 1 19” All-In-One LCD PC RS-3990 / RS-3990L AIO LCD PC User’s Guide Version: A1.0 Users guide Ver. A1.0 Jun, 2012...
-
Page 2: Notice
RS-3990 / RS-3990L User’s Guide Notice Copyright The copyright of this user’s guide belongs to any authorized company and is protected by copyright law. This means partial or full duplication of this document is prohibited (electronically, mechanically or otherwise) without the permission of the authorized company. -
Page 3: Caution
Notice Caution For safe and proper installation and use of this product, please read this guide carefully. Even though this product is equipped with a safety device to prevent users from getting injured, please follow the instructions carefully. Caution during installation Install on an even and stable place to prevent product damage and injury. - Page 4 RS-3990 / RS-3990L User’s Guide Unplug the power cord before cleaning this product. Please wipe with tissues or fabrics that are sprayed with a PC cleaner and do not directly spray the product. When this product will be idle for an extended period of time, unplug the power cord to prevent damage stemming from power surges.
-
Page 5: Table Of Contents
Table of Contents Table of Contents N o t i c e ....................2 Copyright..............................2 Registered Trademark ..........................2 The permissible level (Class B) of electromagnetic waves ................2... -
Page 6: Chapter 1 Introducing The Aio Lcd Pc
RS-3990 / RS-3990L User’s Guide Chapter 1 Introducing the AIO LCD PC Product features AIO LCD PC is the all-in-one PC that combines a 19” TFT-LCD monitor and a desktop computer, offering an ultra light weight and a modern design that suits any working conditions. -
Page 7: Unpacking
Chapter 1 : Introducing the AIO LCD PC Unpacking This product is packaged with cardboard paper for safe delivery. If there is a defect or missing part, contact the agency where you purchased the product. The box should contain the following items. 19”... -
Page 8: Other Peripherals
RS-3990 / RS-3990L User’s Guide Other peripherals This PC supports the following peripheral devices USB Keyboard and Mouse Printer Serial communication port USB devices (compatible with USB 2.0) External speakers/headphones External microphones External audio devices External monitors Optional : External TV cable input... -
Page 9: Preparing You Aio Lcd Pc
Chapter 1 : Introducing the AIO LCD PC Preparing you AIO LCD PC These are only quick instructions for using you AIO LCD PC. Read the later pages for detailed information on using your AIO LCD PC Connect the AC Power Adapter 1. -
Page 10: Turn On The Aio Lcd Pc
RS-3990 / RS-3990L User’s Guide 2. Insert power adapter cable into “Power Adapter Input” of rear I/O panel 3. Insert power cord into AC power socket Turn ON the AIO LCD PC Power Button 1. Before turn on the LED is Red color. -
Page 11: Chapter 2 . K N O W I N G T H E P A R T
Chapter 2 : Knowing the Parts Chapter 2. Knowing the Parts Front sides : Display Panel The display panel functions the same as a desktop monitor. The AIO LCD PC uses an active matrix TFT LCD, which provides excellent viewing like t hat of desktop monitors. - Page 12 RS-3990 / RS-3990L User’s Guide Instant Keys and Status Indicators Remote Control Window Power button : Turns the computer on and off. Buttons for adjusting the speaker volume : Up( )/Down( Adjusts the sound volume of the internal speaker. Buttons for adjusting the screen brightness...
-
Page 13: Right Sides
Chapter 2 : Knowing the Parts Right Sides : Optical Drive The AIO LCD PC comes in various models with different optical drives. The AIO LCD PC optical drive support Slim COMBO and Slim DVD Multi (RW) capabilities. See the marketing specifications for details on each model. Optical Drive Electronic Eject The optical drive eject has an electronic eject button for opening the tray. -
Page 14: Left Sides
RS-3990 / RS-3990L User’s Guide Left Sides : Side I/O Panel Side I/O Panel Icon Connections USB (2.0/1.1) device connection External speaker or headphone connection External microphone device connection Audio input connections for external audio device connection SD/MS/MMC Card reader support : SD/MS DUO, HG/MMC. -
Page 15: Rear Sides
Connections Power Adapter (DC) Input USB (Universal Serial Bus) Port. USB (2.0/1.1) device connection. LAN (RJ-45) Port. (RS-3990 x2 LAN / RS-3990L x1 LAN) 10/100 /1000 Mbps network (LAN) cable connection Serial communication device connection (RS-3990 x4 COM / RS-3990L x2 COM) (... -
Page 16: Install Tv Cable Step
RS-3990 / RS-3990L User’s Guide Install TV cable step : 1. Install TV connector on TV cable 2. Insert TV cable into “TV Cable Input” of rear I/O panel... -
Page 17: Chapter 3 . S T A R T I N G T H E C O M P U T E R F O R T H E F I R S T T I M
Chapter 3 : Starting the computer for the first time Chapter 3. Starting the computer for the first time This chapter will show you how to register a user ID for Windows and for this computer, and how to set up additional drivers and applications step by step. -
Page 18: Step 1: To Set Up The Computer
RS-3990 / RS-3990L User’s Guide Step 1: To set up the computer To set up the computer that is pre-setup with Microsoft Windows 7 in step 0: 1. Connect the mouse and keyboard that come with the main body and turn on the power of the main body. The following “Install Windows”... - Page 19 Chapter 3 : Starting the computer for the first time 10. When “Review your time and date settings” displayed, please check and click <Next> 11. When “Select your computer’s current location” displayed, please select the one that best suits your connection and press <Next> If your computer is not connected to a network or failed to establish a network connection, a dialog box with “failed to establish an Internet connection”...
-
Page 20: Step 2: The Installation Of Drivers For Other Peripherals
RS-3990 / RS-3990L User’s Guide Step 2: The installation of drivers for other peripherals Skip this step if you do not use other peripherals. To use other peripherals this PC supports such as printers, serial communication devices, USB devices, connect the device to the main body, press the power button and boot the PC. -
Page 21: Chapter 4 . S Y S T E M U P G R A D E
Chapter 4. System Upgrades Chapter 4. System Upgrades System upgrades Hardware upgrades In order to maintain this product’s normal operation and the user’s safety, we do not provide warranty services when users upgrade the system on their own. If you disassemble the computer, it may cause system damage or electrical shock. -
Page 22: Chapter 5 . R E I N S T A L L I N G T H E O
RS-3990 / RS-3990L User’s Guide Chapter 5. Reinstalling the OS Should serious irreparable problems occur, users must reinstall a Windows operating system. This chapter will explain how to do that. To reinstall the OS, you will need the Microsoft Windows installation CD and the Master CD that comes with this product. - Page 23 Chapter 5 : Reinstalling the OS [Caution] In most cases, it is necessary to restart the computer after installing drivers or utilities using the Master CD. [For reference] When the video driver is installed, click [Start]-[Control panel]-[Appearance and themes]-[Display] to bring up the “Display Registration Information” screen and choose the desired color quality or screen resolution from the [setting] tab.
-
Page 24: Appendix 1 . T R O U B L E S H O O T I N
RS-3990 / RS-3990L User’s Guide Appendix 1. Troubleshooting The table below is an outline of general problems that may occur during the use of the PC along with suggested solutions. If any of these problems should occur, proceed with the instructions in the table below or refer to the ‘Troubleshooting”... - Page 25 Appendix 1 : Troubleshooting The monitor appears Adjust the screen brightness using the buttons on the blank or the screen is front panel of the computer monitor. Should problems too dark. persist, contact the Customer Support Center. Mouse is not working. 1. Check if the mouse is properly connected to the PS/2 port located at the rear of the monitor.
- Page 26 RS-3990 / RS-3990L User’s Guide Unable to shut off the This could stem from a number of reasons. First, turn computer. off the computer by pressing the power button for more than four seconds. If this does not work, unplug the power cord.
-
Page 27: Appendix 2 . P R O D U C T S P E C I F I C A T I O N
Integrated Slim DVD Multi RW. Input / Output / Peripherals PS/2 Keyboard and Mouse port Serial port (RS-3990 : COM1~3 : 3xRS232 / COM4 : 1x RS485/422/232 / RS-3990L : COM1~2 : 2x RS232) Microphone in / Speaker out / Line in... - Page 28 RS-3990 / RS-3990L User’s Guide Mini PCI-E x2, Internal wafer connector x3) USB v2.0 compliant Card reader ports for SD/MS/MMC/xD One DB-25F Parallel port VGA / DVI-I Out TV Cable In (optional) Touch screen (optional) NETWORKING & COMMUNICATION Networking RJ-45, TCP/IP, 10/100/1000 Base-T Fast Ethernet Built-in Ethernet Controller: Intel®...
- Page 29 Appendix 2 : Product specifications REGULATORY COMPLIANCE EMC / Safety PHYSICAL CHARACTERISTICS Weight: 9.8 kg (Main Body only) Height: 458.8 mm Width: 437 mm Depth : 82.78 mm WARRANTY 1 year warranty standard MODEL CONFIGURATION Model DDR SDRAM / HDD ODD / OS...
-
Page 30: Appendix 3 . P R O D U C T W A R R A N T
RS-3990 / RS-3990L User’s Guide Appendix 3. Product warranty About the product warranty 1. Keep the product warranty document and complete it with the necessary information when you make the purchase. 2. We do our best to provide the best quality assurance. - Page 31 Appendix 3 : Product warranty Charge-based service The following services are charge-based. Malfunction or damage to the product due to careless handling by the user. Problems caused by software Damage caused by natural disaster Damage or changes to the product that is done by people other than our service representative.
-
Page 32: Appendix 4 . J U M P E R S E T T I N
RS-3990 / RS-3990L User’s Guide Appendix 4. Jumper Setting COM1 / COM2 (Pin9) Clear CMOS JCOM1 JCOM2 JRTC1 CLEAR 1-2 short 1-2 short NORMAL 3-4 short 3-4 short 5-6 short +12V 5-6 short +12V CN COM1 (COM3) COMSEL1 COMSEL2 RS232...
