Summary of Contents for Fedora C2

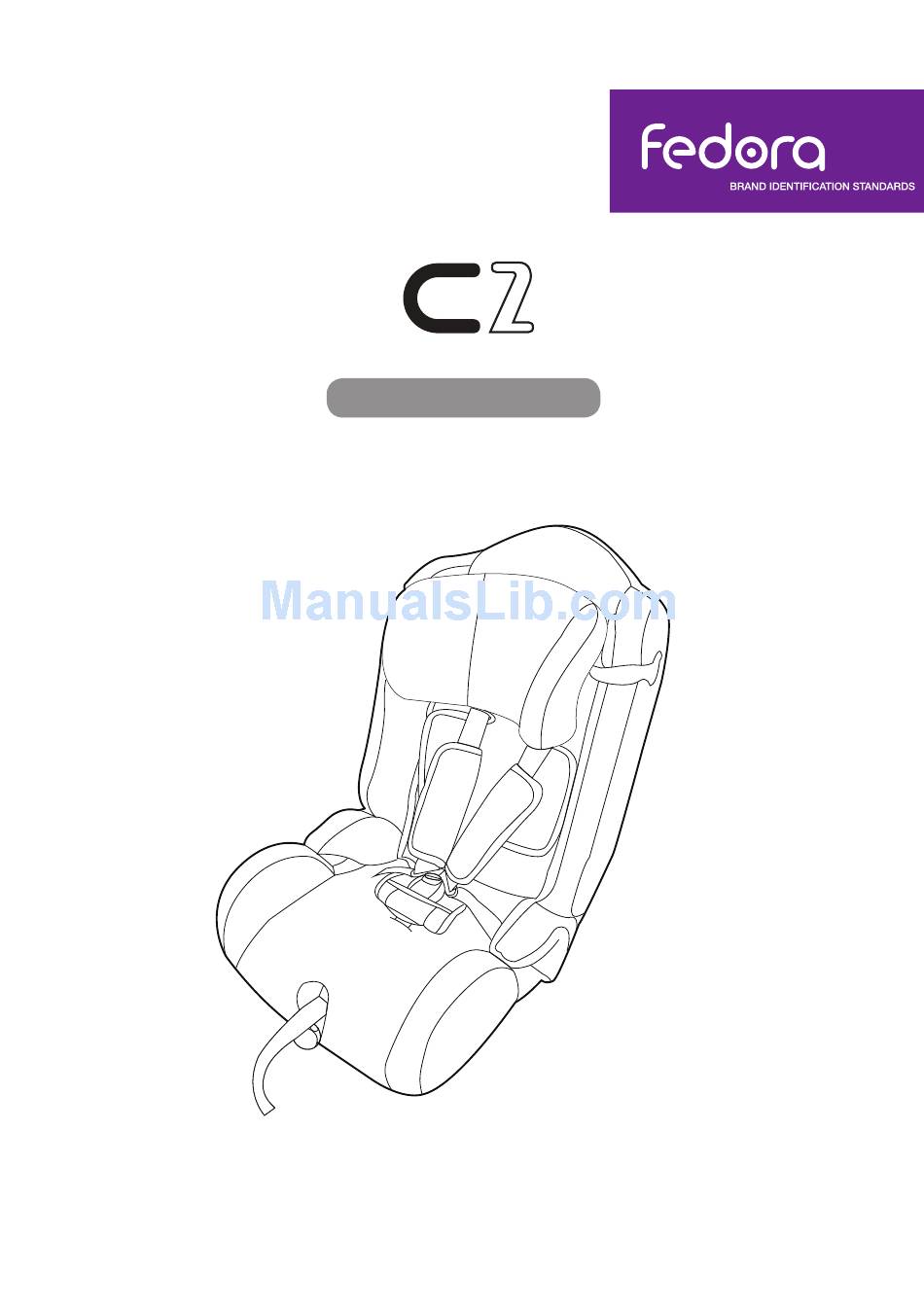

- Page 1 Instruction manual...
-
Page 2: Table Of Contents
Contents 1. Guideline for safe use (1) Symbols for special attention (2) Conditions of child for application (3) Conditions of seat and belt for fitting (4) Cautions 2. Parts list 3. Operation method (1) Buckles (2) Adjusting the back rest angle (3) Headrest (4) Harness belts (5) Adjusting harness belt... -
Page 3: Guideline For Safe Use
1. Guideline for safe use This product is a child protection device to reduce the impact at the time of traffic accident. However, this product cannot protect the child 100% from accident of any case. Safe driving is absolutely required to prevent accident. 1. - Page 4 1. Guideline for safe use 2. Conditions of child for application This safety device is designed to be used for child weighing between 9kg ~36kg. Child that does not meet the following conditions should not use the product. Warning Install the car seat in forwarding facing only using 3-point car safety belt. Mode Conditions of child for application other condition...
- Page 5 1. Guideline for safe use Do not install the product in the following vehicle safety belts and seats. Vehicle seat without safety belt (unable to fit the child restraint) Seat equipped with airbag (Blast of airbag may cause death or serious injury to child) Side seat or seat in reverse direction from the vehicle direction (Shock absorption is difficult in case of collision) Seat with depth of less than 45cm (Child restraint installed becomes unstable.)
- Page 6 1. Guideline for safe use Warning This product is a regular child restraint which is suitable for designated standard form of vehicle seat. However, there are some vehicle belts with which child car seat is unable to be securely fastened, in which case the product should not be used.
- Page 7 1. Guideline for safe use Warning Do not release the child from child seat while driving in order to avoid life-threatening fatal injury to child. Do not allow the child to lean onto the front door in case the vehicle is equipped with SRS side airbag in the front seat.
-
Page 8: Parts List
2. Parts list Back part Head cushion Shoulder belt guide Slot harness strap Child seat base Shoulder pad Harness buckle Buckle pad Lap belt guide Harness adjuster lever Reclining knob Harness adjuster strap Shoulder belt slot Belt guide slot Belt guide slot Harness yoke Fastener Fixed axis... - Page 9 Operation Warning Each function should be operated while the vehicle is stopped. Operating while driving may hinder safe driving and cause accident. 1. Buckles For locking the child seat harness, put the two buckles as shown in the picture ①. Put the combined buckles into the buckle inlet as shown in the picture②, slot in firmly until there is a clicking sound as shown in the picture ③.
- Page 10 3. Operation 2. Adjusting the backrest angle 1. Backrest angle can be adjusted by turning the backrest angle adjusting lever as in the picture ①. Warning Backrest should be tightly adjusted with the vehicle seat.
- Page 11 3. Operation 3. Headrest Headrest can be adjusted by pulling it upward or pushing it downward. Adjust according to height of child. Correct position of headrest correct position too low too high Warning Headrest should be adjusted according to the child’s body. Otherwise it may become ineffective and cause danger in case of an emergency.
- Page 12 3. Operation 4. Harness belt Warning Child harness belts should be adjusted according to the child’ s body size. Incorrect adjustment may cause insufficient effect of child seat followed by fatal injury at the time of collision. (1) Adjusting the length of the belt As a guideline for adjustment, it is ideal to leave the gap that can allow an adult’s palm in between the child’s body and the shoulder belt To extend the length of child belt (after placing child): Press the belt length adjustment...
- Page 13 3. Operation 5. Adjusting belt Release the shoulder belt from the harness yoke on the back of backrest as shown in the picture ①. Release the connection of shoulder pad yoke on the back of the backrest as shown in the picture ②. Push in the shoulder belt and shoulder pad yoke through the belt inlet hole as shown in the picture ③.
- Page 14 3. Operation 6. Separation for use in Junior Mode Release the harness strap combining device on the back of child seat as shown in the picture ①, and separate the right and left straps from the connecting metal yoke at the lower side. Pull out the separated harness straps through the front side of the child seat and pull the shoulder pad as shown in the picture ②.
- Page 15 3. Operation 1. Separate using screwdriver as shown in the picture ①. 2. Separate the fixed bolts from both parts of the base as shown in the picture ②. 3. Separate the bolts at both sides inside the car seat as in the picture ③. 4.
-
Page 16: Installation In The Vehicle
4. Installation in the vehicle This car seat can be used in several mode as below. Child mode Junior Mode Junior Mode (Booster) Weight : 22kg~36kg (w4) Weight : 9kg~18kg (w2) Weight : 15kg~25kg (w3) Age for reference: 7 years~11years Age for reference: 12months~4 years Age for reference: 4 years~7 years When the baby is seated,... - Page 17 4. Installation in the vehicle 1. Child Mode Insert the vehicle shoulder belt through the belt slot as in the picture 1. Belt should not be twisted or folded on the back of car seat while the belt is pulled out through the belt guide slot in the opposite side and fastened to the vehicle safety belt buckle.
- Page 18 4. Installation in the vehicle Pull the harness adjuster strap in the center slowly as in the picture ① for snug fitting so that the baby feels comfortable in it. Constant check is required as in the picture ② in order to avoid possible danger while baby is placed on the seat..
- Page 19 4. Installation in the vehicle 2. Junior Mode Stretch the vehicle safety belt sufficiently as shown in the picture ①. Pass the shoulder belt through the car seat head rest and the arm rest, and pull it to the diagonal direction.
- Page 20 4. Installation in the vehicle 3. Junior (Booster) Mode Position the booster seat facing forward on the vehicle seat where 3-point safety belt is equipped as shown in the picture ①. Stretch the vehicle safety belt sufficiently and pull it so as it passes through the shoulder part of the child and insert to the safety belt in the opposite side as shown in the picture ②.
- Page 21 5. Separating/replacing the seat cover Separate the seat from main body by releasing the 2 fasteners and 4 snap buttons on the back plate as shown in the picture. Separate the shoulder belt and head rest seat cover following the order. Take reverse order for replacement after cleaning.
-
Page 22: Cleaning And Maintenance
For safe and long term use of the product, it is important to check the condition of the fixing nuts and bolts of the frame and other parts. In case of any problem found, stop using the product and contact the customer center of PREBEBE (1688 - 1375), the official sales coporation of FEDORA. Warning... -
Page 23: Warranty
Warranty PREBEBE, the official sales corporation of FEDORA distributes and sells authenticated products that have passed the stringent quality control. PREBEBE warrants the quality of FEDORA products as long as the product is purchased from its official dealers. Warranty service lasts for a year after receiving the product. However, some cost for our service... - Page 24 Customer center Official Sales Corporation for FEDORA 54-13, Unji-ro, Tanhyeon-myeon, Pa ju-si, Gyeonggi-do...
