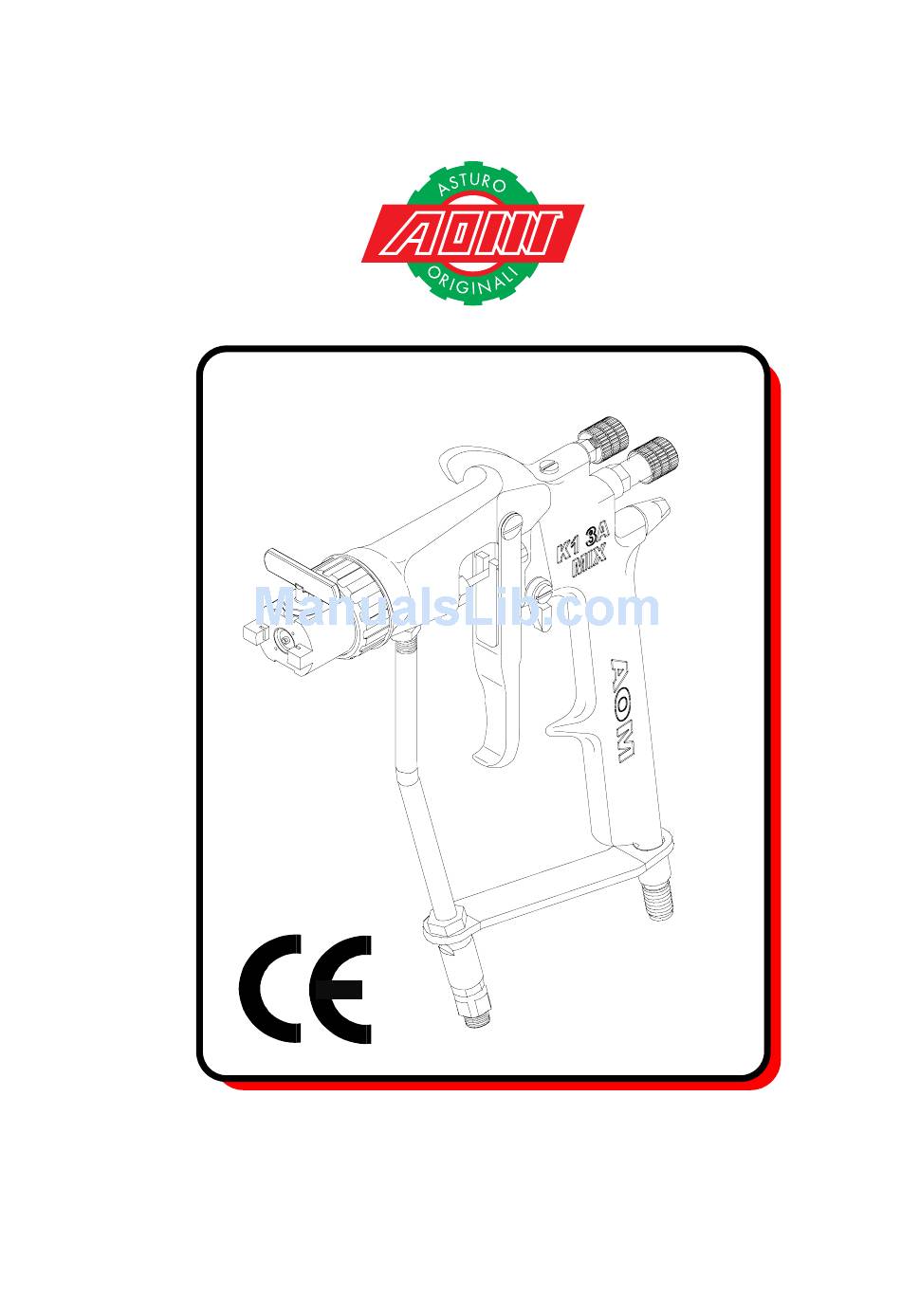

- Page 1 USE AND MAINTENANCE MANUAL ® 3A MIX GUN MOD. (Rev. 4 - 30/08/07) ASTURO ORIGINALI MAVES Spa Via Cascina Venina 20 B/C 20090 Assago (MI) ITALY...
- Page 2 Via Cascina Venina 20 B/C ASSAGO - ITALIA ++39 0289305416 - FAX ++39 0289305497 P.IVA / VAT (registration number) 11164500156 MODELLO / MODEL: 3A MIX N_ di MATRICOLA / SERIAL NUMBER ANNO DI COSTRUZIONE / YEAR OF MANUFACTURE ACCESSORI IN DOTAZIONE / ACCESSORIES SUPPLIED A.O.M spa DICHIARA sotto la sua esclusiva responsabilità...
- Page 3 Dear Customer, We want to thank you for choosing one of ASTURO ORIGINALI MAVES Spa products. ASTURO ORIGINALI MAVES Spa is a leading reference point in the field of painting systems and machinery. The name ASTURO ORIGINALI MAVES Spa has always meant reliability and safety and this is supported by over 70 years of experience and by our Customer satisfaction.
-
Page 4: Table Of Contents
® USE AND MAINTENANCE MANUAL GENERAL CONTENTS HOW TO USE THE MANUAL........................4 SYMBOLS USED...........................4 INFORMATION LETTER.........................5 PACKAGING......................6 IDENTIFICATION DATA........................6 MACHINE DESCRIPTION......................7 TECHNICAL FEATURES......................8 STANDARD AND OPTIONAL COMPONENTS................8 MACHINABLE PRODUCTS.....................9 DIMENSIONS........................9 INSPECTION OF PURCHASED PRODUCT................10 INSTALLATION CONDITIONS....................10 HOW TO USE THE GUN......................10 STRUCTURES TO BE ARRANGED..................11 SAFETY PROCEDURES DURING USE..................11 PRESSURE DISCHARGE PROCEDURES................12... -
Page 5: Information Letter
® USE AND MAINTENANCE MANUAL INFORMATION LETTER The following maintenance and instruction manual is an integral part of the machine and must always be available to the personnel in charge of using and maintaining it. The operator and the personnel in charge of handling the machine must have knowledge of the contents of the manual. -
Page 6: Packaging
USE AND MAINTENANCE MANUAL 1.1 PACKAGING K1 3A MIX gun is packaged in a cardboard box. All optional components are placed in the same box as the gun. While transporting and storing the machine make sure the surrounding temperature remains included between -15 and 40 °C (5°F and 104°F). If transportation or storage operations last no longer than 24 hours do not exceed 50°C (122°F), otherwise the... -
Page 7: Machine Description
USE AND MAINTENANCE MANUAL 2.2 MACHINE DESCRIPTION K1 3A MIX gun is used to spray paints. With this gun it is possible to obtain smooth and even surfaces thanks to its micro-spraying system and reduced overspray. Its main features are lightness (677 g/24 oz.) and easy use. -
Page 8: Technical Features
® USE AND MAINTENANCE MANUAL 2.3 TECHNICAL FEATURES The spray gun must be coupled with a pump with a maximum fluid pressure of 140 bar (2000 psi). ASTURO ORIGINALI MAVES Spa carries out all the necessary tests on the paint unit before delivering it to its customers. -
Page 9: Machinable Products
USE AND MAINTENANCE MANUAL 2.5 MACHINABLE PRODUCTS The K1 3A MIX guns are designed to paint on iron, wood and plastic material. The materials which can be used with the gun are: synthetic paints and enamels, polyutherane, nitre, enamels, varnishes, water based paint, lacquers and primers. -
Page 10: Inspection Of Purchased Product
® USE AND MAINTENANCE MANUAL 3.1 INSPECTION OF PURCHASED PRODUCT Inspect the equipment before its use to check for damages caused by transportation or improper storage. Make also sure that all standard and optional components have been delivered. 3.2 INSTALLATION CONDITIONS The gun must be fed with a maximum fluid pressure of 140 bar (2000 psi). -
Page 11: Structures To Be Arranged
® USE AND MAINTENANCE MANUAL 3.4 STRUCTURES TO BE ARRANGED Painting operations MUST be possibly carried out in an appropriate spray booth equipped with a filtering system. Do not use the gun if the filtering system is not activated. Always wear protection gloves, glasses, breathing filters with active carbon and adequate clothing for the protection of the entire body. -
Page 12: Pressure Discharge Procedures
Pull lever to discharge the product. 4.2 ROUTINE MAINTENANCE The routine maintenance of the K1 3A MIX gun is simple and does not require special operations because its components do not need to be lubricated. Clean the gun daily or at the end of each working session so that product residues will not dry out on its walls, thus guaranteeing long term efficiency. -
Page 13: How To Use The Selfcleaner
USE AND MAINTENANCE MANUAL 4.3 HOW TO USE THE SELF-CLEANER The K1 3A MIX gun is provided with a nozzle self-cleaning system; such system has been designed to prevent expensive production standstills due to the need to disassemble the gun each time the nozzle clogs. -
Page 14: Troubleshooting
® USE AND MAINTENANCE MANUAL 4.3 TROUBLESHOOTING The chapter describes how to solve the most common problems which could affect the unit. The problem is indicated by the following symbol: (6) The possible cause is indicated by the following symbol: (A) The possible solution is indicated by the following symbol: (l) IRREGULAR FAN CLOSING? Clogged cap air holes. -
Page 15: Warranty
WARRANTY All ASTURO ORIGINALI MAVES Spa appliances are guaranteed for a period of 12 months from the date written on the invoice, unless otherwise stated in writing. The warranty covers all manufacturing faults and material defect. Replacements and repair operations are covered only if carried out by our company and at our servicing shops. -
Page 16: Gun Assembling Drawings
® USE AND MAINTENANCE MANUAL GUN ASSEMBLING DRAWINGS K1 3A MIX Rev. 4 2007... - Page 17 Air valve stuffing box needle Air valve spring Or 2037 Base for new mix spring Or 3030 ( 16a) Mix needle pushing spring Complete legend air valve bar 2004 Warning: items not sold separately K1 3A MIX Rev. 4 2007...
