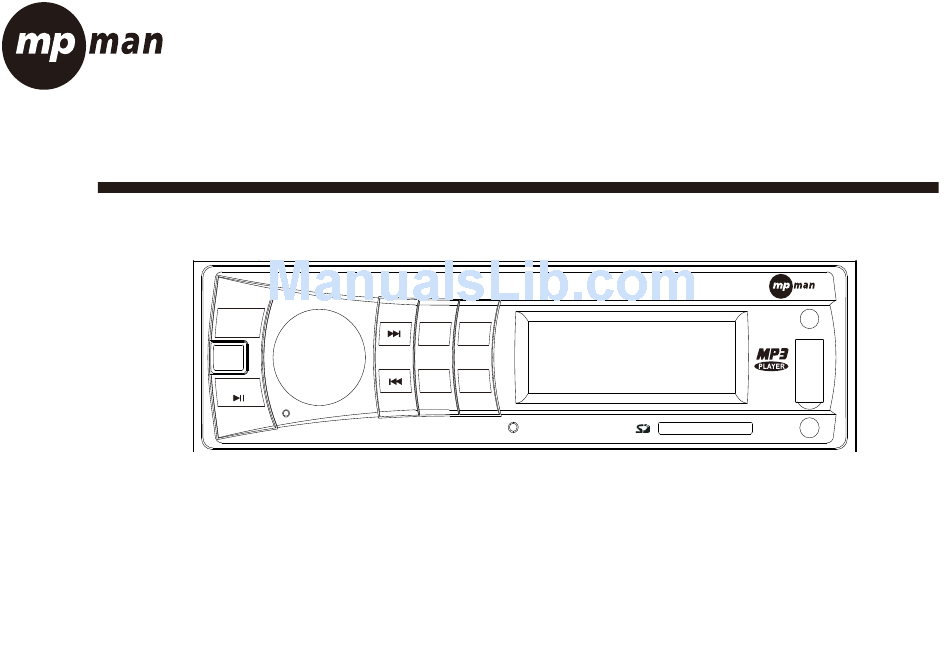

CR50 USER'S MANUAL CR50 USB/SD/RADIO PLAYER A.PS MUTE MODE BAND Please read this manual carfully before operation! - Page 2 Installation Precautions: 1.This unit should be installed by professional personnels, if possible. 2.Please refer to the instruction manual for electrical application, wrong operation will cause damage to the unit. 3.Apply to the power cord after all connections of the unit are set. 4.Insulate all exposed wires to avoid short circuit.
-
Page 3: Wiring Diagram

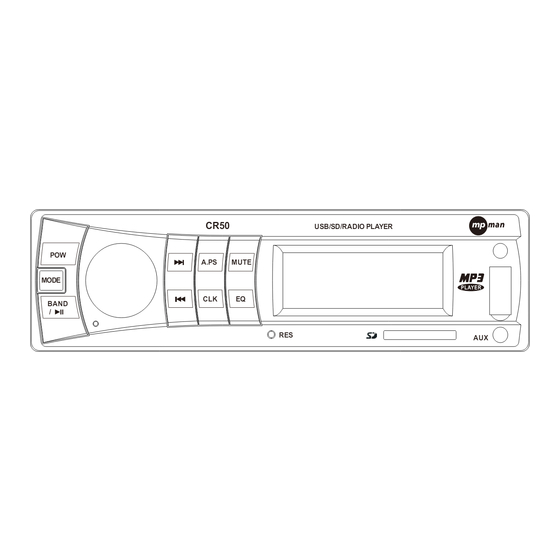

Wiring diagram: SPECIFICATIONS: FM tuner: Frequency range:.....87.5-108MHz ± Medium frequency:....10.7MHz 0.3% Signal/Noise ratio:......50dB White(L) Audio output Antena terminal Red R : .......10dB Radio sensitivity Blue Rear right speaker Blue Black Ground (black) Grey Front right speaker Grey/black Auto antenna light (blue) USB/SD: White Front left speaker... - Page 4 Front panel and functions: CR50 USB/SD/RADIO PLAYER A.PS MUTE MODE BAND 1 Power Power on/off 2. A.PS: *When play USB/SD,short press it to enter track selection,rotate VOL to select track,pres s it for playing. *On radio mode,press it for auto station search and storage.
- Page 5 4.BAND / *When play USB/SD,press it for PAUSE. *On radio mode,press it for band conversion among FM1,FM2,FM3,hold it to store the station you’ve just selected. 5. VOL button:Volume control (rotate the button to adjust it),press the button to select among DH,NON,S7.when play USB/SD,press it to choose the sound effects among “CLASS”,”POP”.
