Midong E&T URIVE i-Shotgun User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

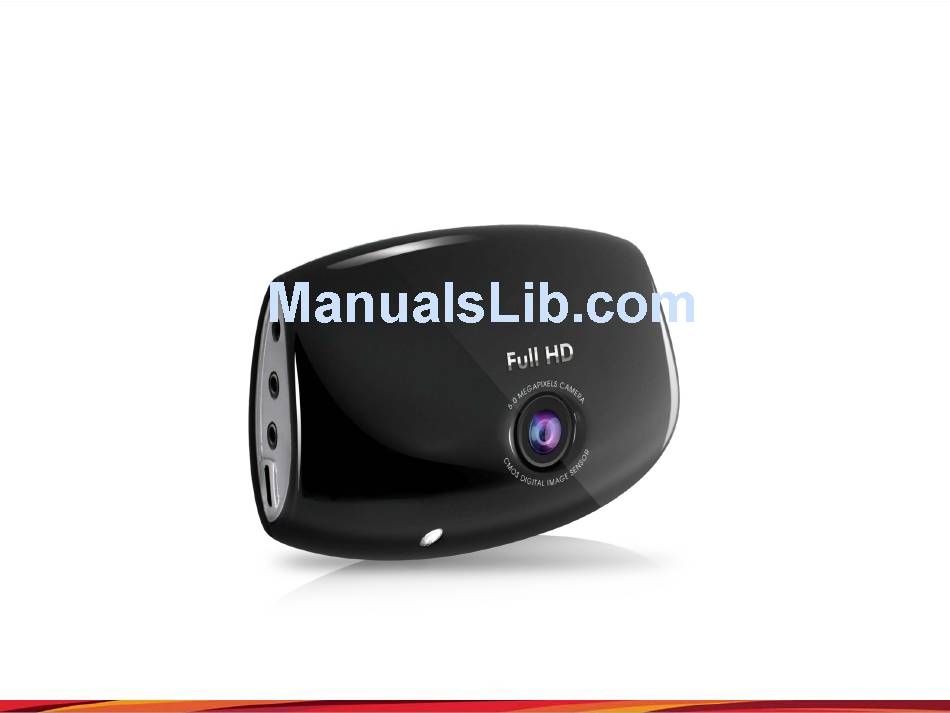

URIVE
i-Shotgun
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the URIVE i-Shotgun and is the answer not in the manual?

Questions and answers

Summary of Contents for Midong E&T URIVE i-Shotgun

  • Page 1 URIVE i-Shotgun User Manual...

  • Page 2: Table Of Contents

    Contents 1. Product Information 24. Checking and recovery of the SD card 2. Precautions before using the product 25. Preparations for using the i-Shotgun Wi-Fi function 3. Precautions when using the product 26. i-Shotgun app downloading and installation 4. Features 27.
  • Page 3 ▶ The manual is based on current conditions and may have technical or editorial errors and omissions. ▶ Some changes can be made in the product to improve the URIVE i-Shotgun’s performance even without notifying the customers in advance.

  • Page 4: Product Information

    1. Product Information The product is designed to store video and audio information coming from the front and rear cameras. It is a product made to assist people in driving safely by recording the front and rear videos as well as by recording the audio, when an accident or a shock occurs.

  • Page 5: Precautions Before Using The Product

    2. Precautions before using the product  Scope of warranty and responsibilities - This product is for assisting people in driving safely. The company will not be responsible for the loss that could occur due to failures, data loss, or while using the product itself. - This product is an ancillary device designed for recording and storing external videos.

  • Page 6: Precautions When Using The Product

    Precautions when using the product Safety precautions must be followed to prevent possible accidents and risks by using the product in a safe and proper manner. The company will not take any responsibilities for the problems that could occur when instructions in using the product is violated. Warning: Serious injuries or death could be caused if violating the instructions.

  • Page 7: Features

    4. Features High-quality video recording with clear images and an optimal viewing angle In order to clearly record the videos including those taken from the accident site or taken while the vehicle is parked, the product provides not only clear resolution (Front: 1920x1080 / Rear: 1280x720) both for day and night but also an optimal viewing angle (Front: 120 degrees / Rear: 110 degrees).
  • Page 8 4. Features ▶ Memory auto management The product supports a memory auto management, which will delete files starting from the oldest ones stored in individual folders in order to keep recording the recent driving videos even when the memory card is out of storage space. ▶...

  • Page 9: Names Of Individual Components And Their Functions

    5. Names of individual components and their functions Stand SD card insertion part Power on/off Embedded microphone Power, storage state, mute, external camera and GPS LED (red/green) socket Full HD camera video output socket Manual-recording GPS socket button Power cable Audio recording on/off socket LED for the mode of monitoring...

  • Page 10: Functions And Buttons

    6. Functions and buttons (1) Buttons Operation State LED Indication Buzzer The blue and red LEDs are turned on after w aiting for about 20 seconds during the bootin Turning it on System preparation Long beep– g process. They will be turned off when the b ooting process ends.
  • Page 11 6. Functions and buttons (2) Buttons Operation State LED Indication Buzzer Continuous recordi The ACC power is turned on whil 1-minute video files will be stored as MDxx in t The red LED will blink every second (the blu Long beep–when the savin e the battery power is on.

  • Page 12: Updating

    2. The current firmware version for the firmware updating can be checked through the Urive i-Shotgun update manager window. 3. It is required to check whether the firmware update file location is the drive to which the memory card is connected.
  • Page 13 8. Updating (2) [Automatic updating] 5. After the power for the black box is turned off, the micro SD card needs to be inserted into the main body of the black box. 6. Supply power to the black box. 7. Wait for about 10–20 seconds. 8.
  • Page 14 7. Updating (3) [Manual updating] The firmware update file needs to be copied into the micro SD card (URIVE download center at www.urive.co.kr). The micro SD card must be formatted first through the specific PC viewer or through the main body of the black box, before copying the update file (main_md8500p_x.xx.xxxx_xxxxxx.bin) into the formatted memory card.

  • Page 15: Components

    8. Components After purchasing the product, it is required to check whether all the components are included in the package. If a component is damaged or has a problem, it is required to contact the selling shop immediately for queries. SD card Main body Dual side tape...

  • Page 16: Socket Pin Arrangement

    10. Socket pin arrangement Sockets Images of sockets Pin arrangement Power socket (DC socket) ① GND ② ACC ③ BAT(B+) GPS socket (2.5 pie) ① VCC(3.6~6V DC) ② Rx ③ GND ④ Tx(GPS Signal Output) Video socket (3.5 pie) ① Video Out ② No use ③...

  • Page 17: Precautions For Installation

    11. Precautions for installation ▶ It is recommended to install the device in an area with a flat surface. The ignition must be turned off while installing. ▶ As the product needs to be built inside a car, it is required to supply the power and check first whether the front and rear videos are stored normally before completing the process of building and installing it.

  • Page 18: Installation Of The Main Body

    11. Installation (main body) The cables for the continuous power Caution: It is recommended that the installation of the black box and the are shown below. wiring of the continuous power cable should be carried out at a shop that specializes in installing black boxes.

  • Page 19: Installation Of The External Camera

    11. Installation (external camera) Caution: After the rear camera is installed, the video from it must be Connect socket checked before building it completely external camera at the port of the black box. Select the installation location and clean the rear window as much as possible.

  • Page 20: Installation Of The Viewer

    14. Installation of the viewer Execute the setup file for the specific viewer (Urive i-Shotgun.msi) for the black box, which is stored in the micro SD card (or the one that is downloaded from the URIVE home page) and then follow the procedures as shown below on installing...

  • Page 21: Execution And Deletion Of The Viewer

    14. Execution and deletion of the viewer 1. Select the icon on the Windows’ wallpaper or the start menu and check whether “Urive i-Shotgun” is installed as shown below. 2. Execute “Urive i-Shotgun”. 3. The viewer can be deleted by selecting “Delete Urive i-Shotgun” on the start program.

  • Page 22: Main Screen Of The Viewer

    15. Main screen of the viewer Individual sectors of the main screen are explained below. Front/Rear full screen Viewer/firmware version information and autoupdating Rear video Front video Google map link Map on/off Playback control File opening. SD formatting Speed/acceleration Latitude/longitude/time graphs List of files Tracking and checking...

  • Page 23: Buttons Of The Viewer

    16. Buttons of the viewer (1) Program version information This provides the version information of the specific viewer and the firmware of the black box and supports the direct link to the home page’s download center. The version information can be checked when the micro SD card is connected to a PC.
  • Page 24 16. Buttons of the viewer (2) Move to the previous/next frame For moving to a video taken in the unit of every 10 seconds before or after an incident. Start playback For starting to play the selected file back from the list. Play the temporarily recorded video back again. Stop playback temporarily For temporarily stopping the file that is being played back currently.
  • Page 25 16. Buttons of the viewer (3) Acceleration/Speed graphs The toggle buttons individually show the acceleration and speed graphs. The speed graph can be displayed only when the GPS module, an optional item, is installed. Driving record tracking For showing the driving record. This function can be supported only when the GPS, an optional item, is installed. Black box environment setting For storing the set environment of the black box in the micro SD card.

  • Page 26: Full Screen View

    18. Full screen view ◆ To view a video in full screen while it is being played back, it is required to click the full screen button on the top of the screen. For shifting between the front/rear full screens 1.

  • Page 27: Digital Zooming

    19. Digital zooming ◆ Clicking the front screen or the rear screen while a video is being played back will bring up a red-colored digital zooming box at the bottom left of the screen [Before digitally zoomed] [When digitally zoomed] 1.

  • Page 28: Playback Of The Recorded Data

    19. Playback of the recorded data ◆ When it comes to the video data that are stored in the micro SD card of the black box, all of the data or the data that are sorted out based on types can be selected and played back. It is also possible to format, recover, and test the micro SD card.

  • Page 29: Driving Record Tracking

    20. Driving record tracking (1) ◆ The driving records will not be stored in parking mode. The driving record will be stored every second during the driving and the 10-second interval will be marked. Up to one month of driving data can be recorded in the log.txt format. The records will be sorted out by date and stored in the driving record list automatically.
  • Page 30 20. Driving record tracking (2) ◆ The following table explains about the icons that are supported by the driving record tracking system. Buttons Explanation Saves the map screen in .jpg file. Prints out the map screen. Shows the date and time of a driving record when the travelling path is being played back.

  • Page 31: Viewing Of The Information Of The Recorded File

    21. Viewing of the information of the recorded file ◈ While a video is being played back, it is possible to see the three-axis gravitational acceleration graphs as shown in the figure on the left. The three-axial directions include the front-rear direction, the left-right direction and the up- [Gravitational acceleration graphs] down direction.

  • Page 32: Black Box Environment Settin7G

    The window shows the tabs for Urive i-Shotgun viewer setting / Environment setting / Time setting / Audio and video setting / Urive i-Shotgun version information. It is required to connect the SD card to a computer before running this function.
  • Page 33 22. Black box environment setting (2) Parking mode motion sensitivity: for adjusting the sensitivity of the sensor that detects a motion (while parked). It is possible to choose among four levels: high, medium, low, and no use. Shock detection sensitivity: for adjusting the sensitivity of the sensor that detects a shock.
  • Page 34 22. Black box environment setting (3) It is possible to set the black box time and the standard time by selecting the time setting tab. Black box time setting: if there is no GPS module in the product, it is possible to set the time inside the black box system. It is required to insert the micro SD card into the black box immediately and supply power to it after setting the time in order to minimize the difference between the set time and the current...
  • Page 35 22. Black box environment setting (4) Selecting the audio/video tab will help perform the setting related to audio recording, buzzer sound, and video quality. Audio recording: the black box is designed to record video and audio simultaneously. When no use (mute) is selected, only the video will be recorded.

  • Page 36: Sd Card Formatting

    23. SD card formatting (1) Take out the micro SD card that is inserted in the black box and connect it to a computer. Selecting the button on the viewer’s main screen will bring up the SD card formatting tab, which will help format the SD card as shown in the figure (1).

  • Page 37: Checking And Recovery Of The Sd Card

    24. Checking and recovery of the SD card (1) ◆ Checking and recovery of the SD card: this process is for correcting errors that the SD card has or for finding and recovering faulty sectors. If other applications are accessing (using) the SD card, they should be ended before continuing this process.

  • Page 38: Preparations For Using The I-Shotgun Wi-Fi Function

    25. Preparations for using the i-Shotgun Wi-Fi function The Wi-Fi function will be automatically turned on when the i-Shotgun black box is booted up if the mini USB Wi-Fi dongle is connected. 1. Connect the mini USB Wi-Fi dongle to the main body of the i-Shotgun. 2.

  • Page 39: I-Shotgun App Downloading And Installation

    26. i-Shotgun app downloading and installation [For Android phones] 1. Execute “Play Store” icon from the smartphone. 2. Search “Urive” or “i-Shotgun” through the search window. 3. Or take a picture of the QR code on the right to download the i-Shotgun app. [For iPhones] 1.

  • Page 40: Stored Data

    File generation Ex.) Blackbox\12\07\30\12\ log.txt: A system information file generated at 12:00:00–12:59:59 on Jul. 30 in 2012. 2. Setup folder: for the user setting. 3. Urive i-Shotgun.msi: a file for installing the specific PC viewer. It is possible to download it from the home page of the Urive homage.
  • Page 41 28. Storage ratio of the memory card by memory [Table 1] Storage assignment for each recording mode by type and memory Unit: MB Type Memory Continuous Parking Driving event 7,780 3,890 3,890 15,565 7,782 7,782 3,890 7,780 3,890 7,782 15,565 7,782 11,670 3,890...

  • Page 42: Product Standards

    29. Product standards • Name: Urive i-Shotgun • Size: 92 x 61 x 32 mm (Main body) 53.6 x 27 x 24.5 mm (Rear camera) • Memory: 16 GB micro SDHC card class 10 exclusively for Urive -iShotgun (Up to 32 GB can be supported) •...

  • Page 43: Warranty

     Be careful about copy products as the company does not provide services for the products that are not authentic. [Contact for the customer center] Customer center: 1599-0141. Home page: http://www.urive.co.kr Product warranty Product name Urive i-Shotgun Manufacturing No. Warranty period 1 year from the purchased date of Name...

  • Page 44: Consumer Compensation Regulations

    31. Consumer compensation regulations A/S service within A/S service after the Cases that require consumer compensation the warranty warranty period period When a major repair work is required within 10 days after purchasing the product Replacement When an important part needs to be repaired within 1 month after purchasing the product. Replacement None When a major repair work is required within 1 month after the product is replaced.

  • Page 45: Before Requesting A/S Services

    32. Before requesting A/S services Users should back up (Separate saving) periodically important data saved in a product that provides storage function. It would be necessary to delete the data in the storage unit inevitably depending on cases. In relation to that, all the data stored in the storage device may be deleted while providing A/S services. Considering that, users must back up all the important data before requesting A/S services.

  • Page 46: Problem Analysis Before A/S Services

    33. Problem analysis before A/S services Symptoms Measures When there is no GPS module, it is required to select the black box The time of the black box not correct. setting menu on the specific viewer in order to set the time through the time setting menu.
