Summary of Contents for Home Controls VistaCam 1100

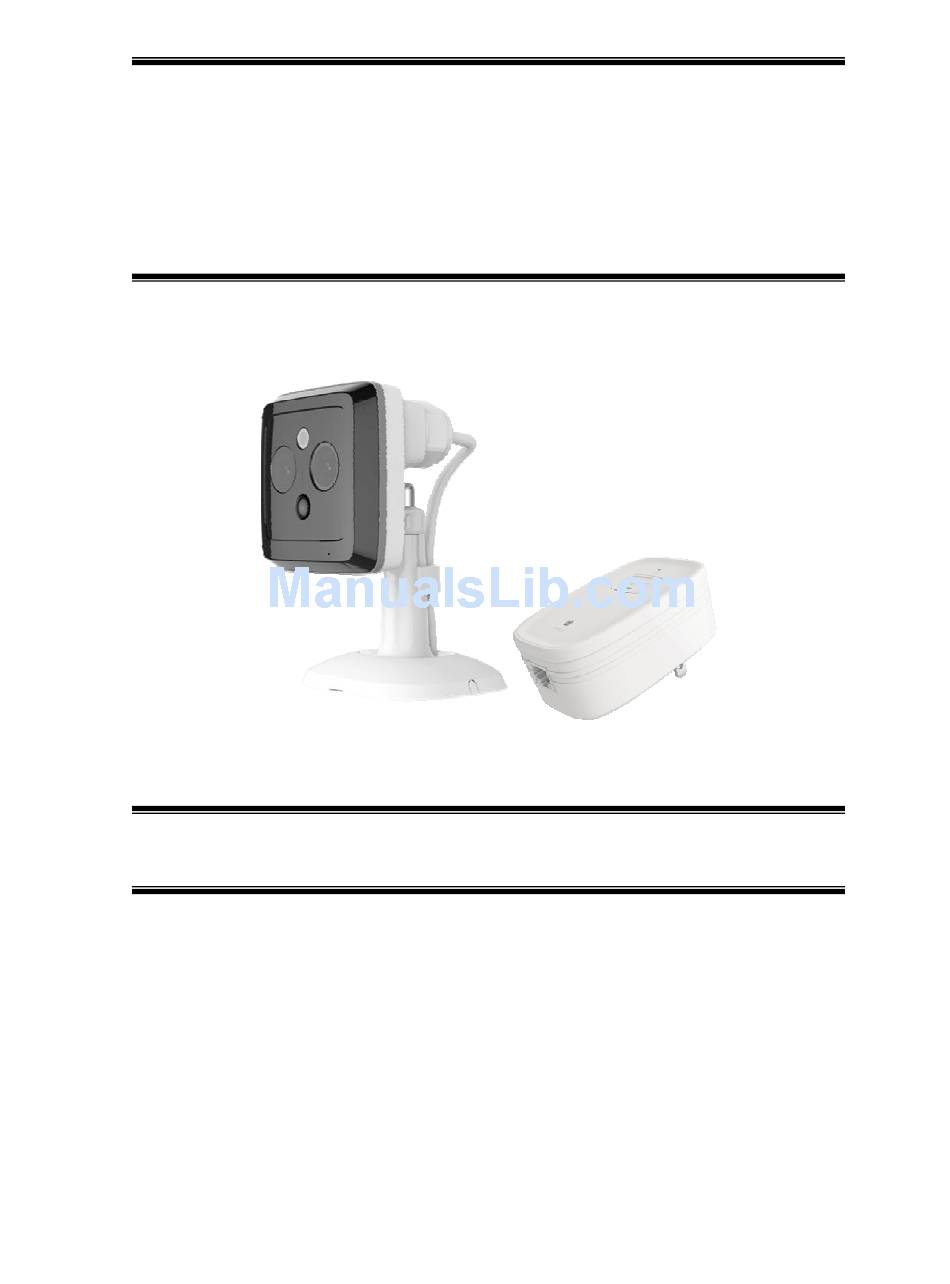

- Page 1 VistaCam 1100 Waterproof HD IP Camera Setup Guide Document Version: 1.0 Copyright 2015. All Rights Reserved. All trademarks and trade names are the properties of their respective owner...
- Page 2 Package Contents The following items should be included: If any of these items are damaged or missing, please contact your service provider immediately. Broad View Camera * 1 Wall-mount Stand * 1 Ethernet cable 8P8C (length 5M) * 1 Y-cable (RJ45) * 1 Cable Clip * 1 RJ45 Rubber Hood * 1 Screw/Anchor * 2...
- Page 3 RP131 (Wireless PoE Adapter) * 1...
- Page 4 This Chapter provides details of the Waterproof HD IP Camera's features, components and capabilities. Overview The VistaCam 1100 Waterproof HD IP Camera has an Integrated Microcomputer and a Mega Pixel OmniVision CMOS sensor, enabling it to display high quality live streaming video.
- Page 5 Internet Features • User-definable HTTP/HTTPS port number. This allows Internet Gateways to use "port mapping" so the Waterproof HD IP Camera and a Web Server can share the same Internet IP address. • DDNS Support. In order to view video over the Internet, users must know the Internet IP address of the gateway used by the Waterproof HD IP Camera.
-
Page 6: Basic Setup
Physical Details – VistaCam 1100 Waterproof HD IP Camera Front Panel - VistaCam 1100 Waterproof HD IP Camera Figure 1: Front Panel – Waterproof HD IP Camera 1. Light Sensor This sensor is used to detect light condition in the environment. - Page 7 Blinking (Blue) - The LED will be blinking rapidly during the FW upgrading. On (Red) - The heater is active. Off (Red) - The heater is off. Rear Panel - VistaCam 1100 Waterproof HD IP Camera Figure 2: Rear Panel – Waterproof HD IP Camera...
- Page 8 1. LAN port The supplied Ethernet cable can provide the power to the Waterproof HD IP Camera and also connect the device to your router. Note: • The Wireless and LAN interfaces cannot be used simultaneously. Recommended to use Y-cable for RP131 configuration only. The LAN cable should be always connected in order to provide electrical power to the camera.
- Page 9 Setup the VistaCam 1100 Waterproof HD IP Camera Step 1 - RP131 Configuration This configuration will set wireless connectivity of the camera via RP131. 1. Assemble the Camera A. Hold the screw of the camera up. B. Attach the back of the camera to the stand and turn the camera clockwise to attach it to the stand.
- Page 10 Step 2 - Installation Portal Server Home Monitor Gateway RP131 Wi-Fi PoE Adapter VistaCam 1100 1. Disassemble the Camera A. Unplug the Y-cable and power off the camera B. Locate the camera and the Wireless PoE Adapter in the desired place.
- Page 11 Mounting the Waterproof HD IP Camera Note: Please ensure camera is configured and added to the network before permanent mounting. Identify the location for mounting the camera. Install and drive two screws 2/3 of the way into the wall. Remove the cover of the stand Align the two mounting holes at the bottom of the camera stand with the two screws, and mount the camera stand onto the wall.
- Page 12 Attach the cover back to the stand. Connect one end of the Ethernet cable to the LAN port of the camera and the other end to Wireless PoE Adapter. Screw/attach the camera onto the camera stand.
- Page 13 Make sure the Waterproof HD IP Camera is firmly fixed on the wall. Adjust the camera to the preferred position.
-
Page 14: Appendix A Specifications
Appendix A Specifications VistaCam 1100 Waterproof HD IP Camera Model VistaCam 1100 Waterproof HD IP Camera Dimensions 83mm (H) * 83mm (W) * 45.5mm (D) Operating -20° C to 50° C Temperature Storage -40° C to 70° C Temperature Network Protocols TCP/IP, HTTP, HTTPS, DHCP, SMTP, FTP,... - Page 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
