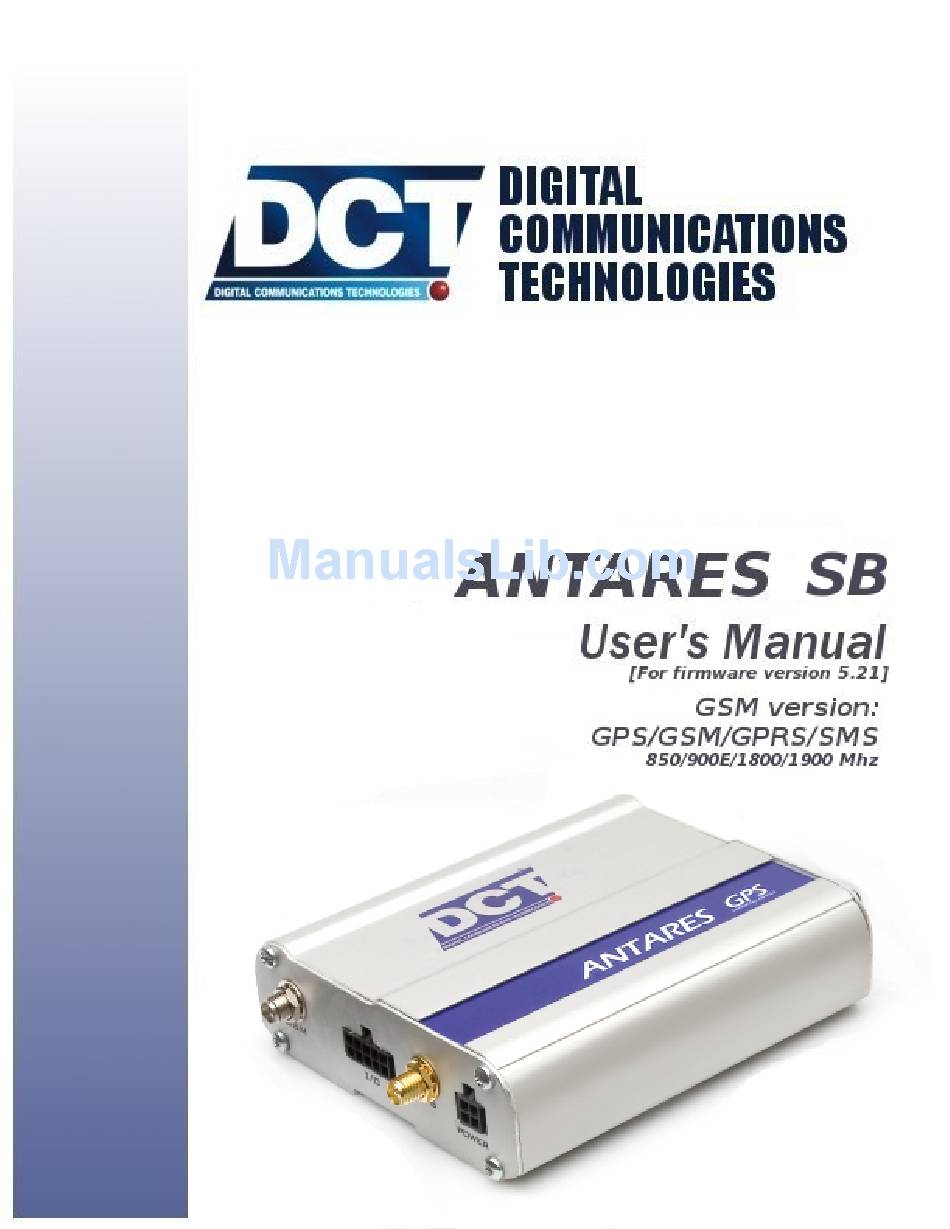

Page 2 Antares SB GSM User’s Manual (FW 5.21) Digital Communications Technologies April 15, 2008...
Page 3 Special Note This manual applies to the GSM version of the Antares SB Firmware version This manual applies to ﬁrmware version 5.21 of the GSM version of the Antares SB . You can consult the unit’s ﬁrmware version with the...
Page 4: Regulatory Compliance
Regulatory Compliance This product operates with Wavecom’s Q24PL transmitter. FCC Parts 22H and 24E are granted to the Wavecom Q24PL under FCC identiﬁer O9EQ24PL001. The antenna gain, including cable loss, must not exceed 3 dBi at 1900 MHz / 1.4 dBi at 850 MHz for mobile operating conﬁgurations and 7 dBi at 1900 MHz / 1.4 dBi at 850 MHz for ﬁxed mounted operations, as deﬁned in 2.1091 and 1.1307 of the rules for satisfying RF exposure com- pliance.
Page 5 LIMITED WARRANTY Digital Communications Technologies warrants the original purchaser that for a period of three years from the date of purchase, the product shall be free of defects in materials and workmanship under normal use. During the warranty period, Digital Communications Technologies shall, at its option, repair or replace any defective product upon return of the product to its facilities, at no charge for labor and materials.
Page 6 Technologies be liable for any special, incidental, or consequential damages based upon breach of warranty, breach of contract, negligence, strict liability, or any other legal theory. Such damages include, but are not limited to, loss of proﬁts, loss of the product or any associated equipment, cost of capital, cost of substitute or replacement equipment, facilities or services, down time, purchasers time, the claims of third parties, including customers, and injury to property.
Page 7: Table Of Contents
0.3 Technical Assistance ....1 About the Antares SB 1.1 Features ......
Page 8 Contents 1.3.1 RS-232 port ....1.3.2 SIM card slot ....1.3.3 LEDs .
Page 9 Contents 3 Operation 3.1 Serial Port ......3.2 LEDs ......3.2.1 Power (Red) .
Page 10 Contents 3.14 Antares Conﬁguration Tool (ACT) ... 3.14.1 Communicating locally with the Antares SB 3.14.2 STEP 2. Read the unit’s version ..3.14.3 Managing regions ....
Page 11 Contents 4.17 Serial port devices ....4.18 Analog to Digital Converter monitoring ..101 4.19 Using a TCP/UDP keep-alive .
Page 12 Contents 5.3 Adding SMS interaction ....114 5.3.1 Query the unit with a SMS ... 114 5.3.2 Set an output with a SMS .
Page 13 Contents 5.9.1 Script ..... . . 130 5.10 Reconnection event for TCP ....133 5.10.1 Script .
Page 14 Contents 6.15 (MS) Memory Session ....167 6.16 (MT) MDT Mode ....168 6.17 (PV) Position-velocity .
Page 15 Contents 6.41 (XAIM) IMEI consult ....198 6.42 (XAIO) Input, Outputs consult ... . 199 6.43 (XAIP) IP address .
Page 16 Contents 10 Appendix D - Quick TAIP reference 10.1 Setting the Antares SB ID ....232 10.2 Setting the APN ..... 232 10.3 Conﬁguring the SIM card PIN .
Page 17: Scope
Preface This document is the Antares SB User’s Guide. On this document you will ﬁnd information on what is the Antares SB , its features, speciﬁcations, installation instructions and explanation on the unit’s conﬁguration and operation. This document is available at: http://www.digitalcomtech.com...
Page 18: Technical Assistance
0.3. TECHNICAL ASSISTANCE The TAIP reference chapter is a compendium of all the conﬁgu- ration and query commands, therefore it is the big complement of the Operation and Conﬁguration chapters. The Quick Start Guide is a very condensed summary to get you started with the unit.
Page 19: About The Antares Sb

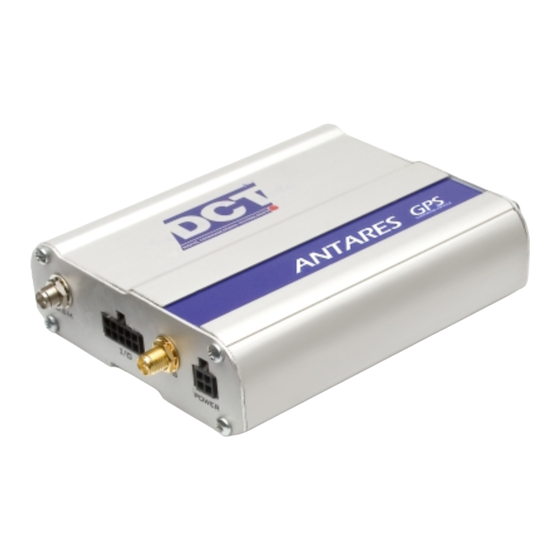

About the Antares SB The Antares SB is a vehicle tracking and controlling device designed to interact remotely with Automated Vehicle Location (AVL) systems or end-users by using the GSM/GPRS cellular network as commu- nication media. The Antares unit is installed on a vehicle whose geographical position and/or state is desired to be remotely moni- tored/controlled.
Page 20: Optional Back-Up Battery
1.1. FEATURES 1.1.3 Optional Back-up Battery The Antares SB may include a built-in back-up battery to be used when the vehicle’s battery is unavailable. Refer to the Operation chapter for more information. 1.1.4 Voice support An audio jack for non-balanced hands-free audio system is provided to initiate and receive phone calls with the unit.
Page 21: Versatile Rs-232 Communication
Destinations. One application for this is attaching an MDT device. Other example includes attaching a satellital modem to be used when no GSM/GPRS signal is detected by the Antares SB 1.1.10 Communication buﬀer Antares SB will start saving event’s reports and incoming serial...
Page 22: Imei As Id
GPS antenna connector. 1.1.18 Event Reporting Antares SB has the ability to interpret complex user-deﬁned report- ing criteria to track normal, as well as exceptional situations. This is called Event Report and it is mainly done via the Event Machine included in the unit’s ﬁrmware.
Page 23 1.1. FEATURES – Main power detection. – 12volts/24volts detector for main power. – GPS Fix state. – GSM roaming state. – GSM registration state. – GPRS registration state. – GPRS attach state. – GPS Antenna short circuit state. – TCP connections’ state indicators. –...
Page 24: Contents Of Package
1.2. CONTENTS OF PACKAGE Contents of package Inside the Antares SB box you will ﬁnd the following content: An Antares SB A GSM Quad-Band antenna ready to work with any GSM car- rier regardless of its operation frequency. An active GPS antenna with magnetic support and reverse- polarity connector.
Page 25: Front Side Description
Use this port to conﬁgure or query the unit and to connect accessories like PDA-like devices or MDTs. The Antares SB ’s works as an RS-232 DCE device. See the Serial Port section in the Operation chapter for more in-...
Page 26: Sim Card Slot
1.3. FRONT SIDE DESCRIPTION 1.3.2 SIM card slot Use this slot to insert the GSM SIM card. Insert the SIM card as described on the next ﬁgure. Use a thin object like a coin to get the SIM card fully inserted until it clicks. The SIM gets locked when it clicks.
Page 27: Audio Jack
1.3. FRONT SIDE DESCRIPTION 1.3.4 AUDIO jack The audio connector is designed to connect a non-balanced hands-free audio system. See the Speciﬁcations section for information on the type of speaker and microphone that can be used. The connector is designed to use a 2.5mm stereo plug with the fol- lowing conﬁguration: A non-balanced speaker-microphone connection must be as follows: Most popular cellular phones’...
Page 28: Back Side Description
1.4. BACK SIDE DESCRIPTION Back side description 1.4.1 GSM Antenna connector This is a SMA (Sub Miniature A) connector with a female center contact. Use this connector for the GSM Antenna provided with the unit. 1.4.2 GPS Antenna connector This is a SMA (Sub Miniature A) connector with a male center con- tact .
Page 29: Power/Ignition Molex-Type Connector
1.4. BACK SIDE DESCRIPTION XP makes reference to Outputs, IP to Inputs. For information on inputs, outputs and ADC see the Operation chapter. The I/O Harness (female molex-type receptacle) supplied with the unit is conﬁgured as follows: Signal Color White and brown White and red White and orange White and yellow...
Page 30 1.4. BACK SIDE DESCRIPTION The Power Harness (female molex-type receptacle) supplied with the unit is conﬁgured as follows: Signal Color Black Ignition (F00) Yellow...
Page 31: Speciﬁcations
1.5. SPECIFICATIONS Speciﬁcations 1.5.1 Dimensions Values shown in millimeters. The depth of the unit is 127mm. 1.5.2 Environment Operating: 20 C to +55 C Storage: 30 C to +85 C Humidity: Up to 95% non-condensing. 1.5.3 Power DC Voltage : 8V - 32 V Current consumption: –...
Page 32: Inputs/Ignition
1.5. SPECIFICATIONS 1.5.4 Inputs/Ignition Input impedance: 50 Kohms. Internal Pull-up: 50 Kohms. Sampling rate: 3 s/sec. Inputs’ detection: Logical State Electrical State Active 0V to 1V Inactive 2.9V to 32V or Open Ignition detection: State Voltage range Ignition ON 5.8V to 32V Ignition OFF 0V to 4.8V or Open 1.5.5...
Page 33: Gsm/Gprs Module
1.5. SPECIFICATIONS 2.5mm Stereo audio jack. Speaker impedance: 32ohms. Microphone: Electret type. 1.5.8 GSM/GPRS module Frequencies: 850/1900 or 900/1800 Mhz. Full duplex communication. Automatic start up. Antenna Impedance: 50 Ohms. SIM Card: 3 Volts. SIM Card PIN: Programmed by user one time, automatically in- troduced onward.
Page 34: Gps Module
1.5. SPECIFICATIONS 1.5.9 GPS module Sensitivity: -152 dBm Tracking, -142 dBm Acquisition. Protocol: TAIP(ASCII). Frequency: L1 type (1575.42 MHz). C/A code. Channels: 12 channel simultaneous operation. Update rate: 1Hz. Accuracy: Horizontal: 3 meters (50%), 8 meters (90%) Altitude: 10 meters (50%), 16 meters (90%) Velocity: 0.06 m/sec.
Page 35: Installation
When the vehicle has a main power switch to cut/restore the battery voltage, some recommendations have to be followed: If the switch disconnects the positive voltage of the vehicle’s battery, the Antares SB can be connected before or after the switch. When connected before it will keep on receiving the vehicle’s power whenever the switch is oﬀ.
Page 36 2.1. POWER SUPPLY If the switch disconnects the negative voltage of the vehicle’s battery, the Antares SB power CAN NOT BE TAKEN BE- FORE THE SWITCH. Doing so will make all of the unit’s con- nections to ground like panic buttons and its chassis serve as current path canceling the vehicle’s main power switch thus...
Page 37 2.1. POWER SUPPLY...
Page 38 2.1. POWER SUPPLY...
Page 39: Inputs Detection
2.2. INPUTS DETECTION Inputs detection For the general purpose inputs the electrical conditions are as follows: Logical State Electrical State Active 0V to 1V Inactive 2.9V to 32V or Open A typical input conﬁguration consists of the input connected trough a switch to GND.
Page 40: Outputs
2.4. OUTPUTS connected to the start position which gives energy to the vehicle’s start engine as this position is ON only for a short period of time. The unit’s ignition sense can be directly connected to the electrical end of this position. See the Connection Diagrams section for an illustration.
Page 41: Connection Diagrams
2.5. CONNECTION DIAGRAMS Connection diagrams The following illustrations show: Panic Button detection. Ignition sense. Engine turn oﬀ Shutting and engine oﬀ without knowing a vehicle’s state is not advised. See the Operation chapter for more information.
Page 42 2.5. CONNECTION DIAGRAMS...
Page 43: Operation
Operation The Antares SB operates on an automatic basis according to an user-deﬁned conﬁguration which can be modiﬁed at any time locally or remotely using the GSM/GPRS network. The unit’s operation in- cludes actions/reports based on interaction with its surroundings like remotely-given commands, input sensing, accessories’...
Page 44: Leds
(9600,8N1). It does not use any ﬂow control method and all of the RS-232 communication lines on the DB9 connector are used. The Antares SB works as a DCE device, meaning that it is connected to a PC with a one-one cable.
Page 45: Signal (Orange)
3.2. LEDS Initializing: This state lasts 15 seconds and is reached any time the unit is recovering from a non-power situation or recovering from a previous system reset. If the unit remains in this state for a longer time you may have a hardware problem. In this state the unit’s TAIP console will not respond to commands.
Page 46: Fix (Yellow)
3.3. INPUTS/IGNITION 3.2.3 Fix (Yellow) As long as the Power LED is solid ON, this LED gives information on the GPS receiver status. There are two possible states: ON: The GPS unit is doing ﬁxes. This indicates a well placed GPS antenna with sky view.
Page 47 3.3. INPUTS/IGNITION Logical State Electrical State Active 0V to 1V Inactive 2.9V to 32V or Open For the ignition input: State Voltage range Ignition ON 5.8V to 32V Ignition OFF 0V to 4.8V or Open For addition Inputs’ state can be consulted locally or remotely at any time with the TAIP console.
Page 48: Outputs
RSSXP31 To deactivate the output: SSSXP30 Example Making the Antares SB automatically drive an output: Use the SS message as an user-action on an event deﬁnition, see the Event Machine section on the Conﬁguration chapter and the ED mes-...
Page 49: Analog To Digital Converter
R05. See the GR message on the TAIP reference for information on how to create regions. Analog to Digital Converter The Antares SB has one ADC whose input voltage is located on the I/O molex-type connector. The input voltage range is 0V to 32V. The ADC value computed...
Page 50: Back-Up Battery
These events will send the report to the serial port. See the Event Machine section on the Conﬁguration chapter for more information. Back-up Battery The Antares SB oﬀers the possibility of a built-in back-up Lithium- Polimer battery to be used whenever the main power source (the ve- hicle’s battery) is lost or sabotaged.
Page 51 3.6. BACK-UP BATTERY The battery state is not an instant value of the battery level, Note: instead it gives an average value computed every 10 seconds. The actual computed value may be consulted at any time with the XABS message, see the TAIP reference for more information. Example Query the actual battery status: QXABS...
Page 52: Sleep Mode
When using UDP nobody initiates a connection. In this case the units responds TAIP queries sent as UDP datagrams from a remote IP address/name deﬁned on an UDP-IP-type Destination. There are Antares SB supports IP numbers as well as domain names.
Page 53 TAIP commands on a ﬁxed, always-available port. No- tice that the UDP server port solution only works when both the server sending the TAIP query and the Antares SB located on the same network (Virtual or Real). This is not the case on the majority of situations where the unit has Internet access.
Page 54 3.8. OVER THE AIR 1. First, the unit tries to match the remote peer address with the UDP Network set with the XAUN command. If the remote peer address does not match the UDP network, or if the UDP network is not deﬁned (default state), the second validation mechanism is performed.
Page 55: Via Sms (Gsm)
Refer to the XAVC, XAVE commands and voice signals for more infor- mation. Refer also to the Operation chapter and Examples chapter. TAIP console The Antares SB TAIP console allows commands and queries to be sent to the the unit by a user or software. The TAIP console is avail-...
Page 56: Taip Message Format
3.9. TAIP CONSOLE may be conﬁgured and/or consulted locally over the serial port or remotely by means of IP communication (GPRS) or SMS interaction (GSM). The console is also used to show the unit’s report messages generated by the Event Machine (i.e EV and ET TAIP messages). The TAIP console is based on a question/command and its answer which can be formed by multiple messages .
Page 57: Reporting Messages
The unit can be conﬁgured to output every message with the vehicle’s ID. This is optional and is controlled by the RM message. The default ID is set to 0000. The Antares SB will check all incoming messages for ID, if no ID is speciﬁed, the unit will accept the message. If the ID is included in messages but does not compare with the ID previously set, the message will be ignored.
Page 58: Interacting
Interacting TAIP communication must be driven by a timeout-retry mechanism. 3.10 Remote host software The Antares SB is designed to interact with Automated Vehicle Location (AVL) servers which have the ability of interpreting TAIP messages. In this document, AVL server, AVL system, AVL host, AVL appli-...
Page 59: Working With Udp
3.10. REMOTE HOST SOFTWARE 5. The server should not use a keep-alive mechanism. Using the unit’s keep-alive option or a periodical report event are the pre- ferred methods. See the XAKA message for keep-alive options. 6. The server should have an association between unit’s ID and corresponding TCP socket so any user-query can be correctly routed.
Page 60: Working With Sms
Then no more sends for about 6 more minutes. After that the mech- anism restarts. 3.10.3 Working with SMS Antares SB may use Telephone Number Destinations to send its report or to give TAIP console access via SMS messages. The Destina- tion may be conﬁgured to send user-deﬁned event messages intended to be read by a person with a cellular phone or similar.
Page 61: Reports' Messages
TAIP command that the user locates on the user- action section of an event deﬁnition. So, the AVL server shall expect two types of reports from the Antares SB : The Events’ Reporting Messages and the Responses to TAIP commands messages.
Page 62: Responses To Taip Commands Messages
3.11. REPORTS’ MESSAGES For detailed information on this message refer to the EV message on the Unit’s TAIP reference chapter When conﬁguring the Event Machine, on each event deﬁnition, the user decides what Reporting Message the event shall generate. For information on events’...
Page 63: Reports' Buﬀer
For more information and examples see the Event Machine section on the Conﬁguration chapter. 3.12 Reports’ buﬀer The Antares SB reserves a memory space to save reports whenever the remote Destination is not available. The buﬀering process for a Destination takes place on any of the following situations: For IP-type destinations: 1.
Page 64: Firmware Upgrade
This process is stared with the XAFU message. See the TAIP reference for detailed information. The message takes a ﬁrmware version number for ex- ample 5.21, a ﬂag that tells which server to use: DCT’s or any deﬁned by the user, and a Destination Address or Destination Point to send the up- grade progress state.
Page 65 (pending events) will be lost. The unit’s conﬁguration is preserved throughout ﬁrmware upgrades Example Initiate an over-the-air ﬁrmware update with DCT’s servers in order to up- grade the unit’s ﬁrmware to version 5.21 having the diagnostic messages sent over the serial port:...
Page 66: Upgrading Locally
The use of this tools is recommended for the creation and writing of conﬁgura- tion scripts on which a complete conﬁguration for the Antares SB can be created or read.
Page 67: Communicating Locally With The Antares Sb
Now a brief instructional on having the ACT communicate with the unit is given. 3.14.1 Communicating locally with the Antares SB In this section you will learn how to communicate with the unit. Power on the unit. Connect a direct serial cable between the unit’s and the PC’s serial ports.
Page 68: Step 2. Read The Unit's Version
3.14. ANTARES CONFIGURATION TOOL (ACT) If at any time you need to liberate the comm port for other ap- Note: plications, select the Disconnect option from this menu. It is not necessary then to close ACT for this purpose 3.14.2 STEP 2.
Page 69: Managing Regions
3.14. ANTARES CONFIGURATION TOOL (ACT) 3.14.3 Managing regions This section assumes you are familiar with the ACT software, you can ﬁnd information on the Antares Conﬁguration Tool User’s Manual. Instructions on how to create regions with scripts are given on the Using Regions section of the Conﬁguration chapter.
Page 70 3.14. ANTARES CONFIGURATION TOOL (ACT) In the illustration there are 4 regions already deﬁned. They are displayed in the Regions’ List as a region’s code and name. The name, code (same as number), point’s list and sketch correspond to the region highlighted in the Regions’...
Page 71 When you create a region you can give it the name you want and whatever code (a number between 0 and 29) that is going to be used later on the Event Deﬁnition as reference. The regions’ names are not relevant for Antares SB , only for Note: Create/edit points (Step 3) Once you create a new region, ACT automatically deﬁnes 3 points that form...
Page 72: Conﬁguration
Conﬁguration The Antares SB conﬁguration is done through the unit’s TAIP console via TAIP commands. The TAIP console can be used with several commu- nication methods: The unit’s serial port. TCP or UDP (GPRS level) communication. 2-way SMS (GSM level).
Page 73: Unit's Id
4.1. *UNIT’S ID are also deﬁned in order to gain remote access to the unit. The sections on this chapter marked with an * are essential to Note: every conﬁguration. This chapter is a complement of the TAIP reference chapter and vice versa.
Page 74: Sim Card's Pin For Gsm Registration
PIN was not given. So it is recommended in those cases to reset the unit after the PIN-set command with the reset message. Or better, have the PIN correctly conﬁgured before the SIM card is inserted. The Antares SB does not block a SIM card when the given PIN Note: is wrong.
Page 75: Access Point Name (Apn) For Gprs Set Up
For example: this.is.an.apn.com internet.carrier-name.com Setting the APN on the Antares SB is also done with the RF message. An “empty” APN may be conﬁgured too. An empty value is used when a GPRS session is not desired.
Page 76: Destinations (Dps And Das)
*Destinations (DPs and DAs) (*)Essential conﬁguration A destination makes reference to the device or user that is receiving and/or sending messages from/to the Antares SB . The possible destination for the unit are: 10 IP hosts. Via TCP and/or UDP.
Page 77: Destination Addresses (Das)
4.3. *DESTINATIONS (DPS AND DAS) an IP address or a server name and a TCP or UDP port number. The Antares SB is a TCP and/or UDP client which always starts the communication. This means that the IP host has to be a TCP or UDP server listening for incoming connections on the same port speciﬁed here.
Page 78: Reporting
DP instead of TAIP reporting messages. See the XADP message for more information on this. The Antares SB reporting messages that have to be interpreted by the AVL software server are the EV and ET messages. See the...
Page 79: Event Machine
4.5. *EVENT MACHINE *Event Machine (*)Essential conﬁguration The unit’s reporting is controlled by an Event Machine which constantly evaluates user deﬁned events. These events allow the user to create a re- porting schema and functionality controlled by triggers and actions. Events can be consulted or conﬁgured at any time with the ED message throughout the TAIP console, enabling the user to alter the Event Machine parameters at any time locally or over the air.
Page 80 4.5. *EVENT MACHINE Now, every time S and P are both true at the same time, C is going to be true too. Whenever S or P become false, C will become false. The situation we just created (named C) is useful for detecting an speed limit violation within a cities’...
Page 81: Actions
Actions Once you have deﬁned a trigger (and/or a set of triggers) the next step for conﬁguring the Antares SB event machine, is to tell the unit what to do when a trigger goes oﬀ. There are two types of actions the unit may take when a trigger goes oﬀ.
Page 82 Activate a led connected to any output whenever a vehicle is out of a polygonal geo-fence. Have the Antares SB safely turn the vehicle’s engine oﬀ whenever this travels too far from the normal working region.
Page 83: Events
The next ﬁgure gives a global description of the TAIP ED mes- sage. For detailed information refer to the unit’s TAIP speciﬁcation chapter. The Antares SB has 50 events available for the user to conﬁgure. They may be deﬁned all at once in a conﬁguration script or they me be individually...
Page 84 4.5. *EVENT MACHINE events’ deﬁnitions of the unit may be consulted with the TAIP message QED . This will have the unit deliver the conﬁguration state of all 50 events. An example of the returned conﬁguration on the TAIP console is: >QED<...
Page 85: Signals
A situations makes reference to a vehicle state which is in fact represented by signals and their state. Antares SB signals are of boolean nature, meaning that they can only take one of two possible values: true or false.
Page 86 4.5. *EVENT MACHINE Signal Description A00 - A09 Destination Points’ state True when the IP address/port deﬁned on the corre- sponding Destination Point’s index is accepting a TCP connection or when using UDP (i.e. the TCP/UDP socket is open). See the XADP message. B00 - B04 Battery Levels(+) True when the unit’s back-up battery level is above the...
Page 87 (*) Antares SB does not have GPIOs. These signals are maintained for backwards compatibility with scripts from other versions. Instead, Antares SB has 4 inputs and 4 outputs. Signals G00-G03 are the same as IP1-IP4 signals and G04-G07 signals are the same as XP1-XP4 signals. The user is encouraged to use IP and XP signals instead of G signals.
Page 88: Examples
4.5. *EVENT MACHINE a “periodic” sort of signal which is suitable for a Time And Distance report. An example of using these messages to deﬁne a signal: Example Deﬁning the speed signal S06 to be true whenever the vehicle’s speed ex- ceeds 55mph and false whenever the speed is below: SGS0610550 Now the speed signal S06 can be used on an event’s deﬁnition to gener-...
Page 89: Using Regions (Geo-Fences)
It is recommended to deﬁne regions with the ACT software and not manu- ally. Using Regions (geo-fences) The Antares SB supports detecting when a vehicle is inside or outside of up to 30 user-deﬁned polygons (50 points maximum each). These polygon- deﬁned regions are deﬁned with the GR message and the associated regions’...
Page 90: Setting Speed Limits
3. Once you are done creating/editing regions on ACT the next step is passing the conﬁguration to an Antares SB . This is diﬀerent than passing an script to the unit as described on the Using Scripts section.
Page 91: The Time And Distance Criteria
4.8. THE TIME AND DISTANCE CRITERIA set the signal low whenever the vehicle’s speed is below the limit. Up to 10 speed limits may be deﬁned, so there are 10 speed signals (S00 - S09) available to be used on an event’s deﬁnition. Example To create the speed limit 00 having a value of 55mph send to the unit: SGS0010550...
Page 92: Using Time Windows
4.9. USING TIME WINDOWS ensures a minimum reporting frequency. One way to see this parameter, is that this time will be the report period when the vehicle is stationary. The Minimum time between reports takes control of the report when the unit exceeds the Distance threshold.
Page 93: Using Counters
4.10. USING COUNTERS 4.10 Using Counters Counters’ conﬁguration/manipulation is controlled by the GC message. Up to 20 counters can be conﬁgured. For detailed information and more exam- ples see the GC message. Next, a brief description of counters’ operation. There are three types of counters: For counting time (TIMERS).
Page 94 4.10. USING COUNTERS Keep on counting (continuous counter). To deﬁne a continuous counter: Set the recycle ﬂag to C. The previous illustration shows a continuous counter. Reset the counter value to zero (recycling counter), creating thus a periodic counter signal. To deﬁne a recycling counter: Set the recycle ﬂag to R.
Page 95 4.10. USING COUNTERS A counter value can also be ”‘manually”’ altered with the GC command. Use the V command on a previously deﬁned counter. The next graph illustrates this. Note that altering a counter’s value does not aﬀect its counting con- ﬁguration: After altering its value, the counter keeps on counting from the given value.
Page 96 4.10. USING COUNTERS The X next to the V on the setting-value command indicates the counter to preserve its recycling ﬂag: If the letters R or C were used instead of X, the counter will not only change its value but its recycling conﬁguration too. A counter value may be consulted at any time.Use the V command in query form ( QGC00V ).
Page 97: Manipulating Signals
4.11. MANIPULATING SIGNALS Unit’s TAIP reference chapter and the Scenarios and Examples sections. 4.11 Manipulating signals Signals marked with a (-) sign on the signals’ list on the Event Machine section can be directly manipulated by the user. These signals are: Outputs (4).
Page 98: Driving Metrics (Acceleration, Max. Speed, Etc)
SED40NV0;J02+ 4.14 Driving Metrics (Acceleration, Max. Speed, etc) Antares SB has the ability of calculating the vehicle’s positive and nega- tive accelerations based on GPS information. The instant acceleration value gives an idea of how a vehicle is being drove. Large positive values indicates...
Page 99 4.14. DRIVING METRICS (ACCELERATION, MAX. SPEED, ETC) situations. A vehicle having large acceleration values indicates unsafe an expensive driving. On the contrary, low values indicate an smooth, eﬃcient driving. The actual acceleration of the vehicle can be known with the XAIT command.
Page 100: Voice Calls
SXAITC For detailed information consult the XAIT message in the TAIP chapter. 4.15 Voice calls To make the Antares SB generate/terminate a voice call refer to the XAVC and XAVE messages. To answer voice calls: If no voice call is being held, the unit can answer incoming calls as long as the remote party number is registered on any Phone number-type Desti- nation and the Destination is authorized to receive phone calls.
Page 101 2. The external device has no idea of TAIP so it talks any byte-based protocol. For the ﬁrst option there are no special conﬁgurations on the Antares SB . It is only necessary to conﬁgure the Event Machine to send reports to the serial port so the attached device has GPS/events information to analyze.
Page 102 Supposing the external device sends the following data: Note: Non-printable data is shown between [ ] symbols in hex value [02]Test message...[03] The Antares SB after receiving the 03 byte will send to Destination 04 the following TX message: RTX 02Test message... 03...
Page 103: Analog To Digital Converter Monitoring
4.18. ANALOG TO DIGITAL CONVERTER MONITORING This will make the Antares SB send the original sequence to the attached device. For more information refer to the TX and MT messages. 4.18 Analog to Digital Converter monitoring The ADC can be monitored with the XAAC message.
Page 104: Using Scripts
Comments are not passed to the unit, they are only saved on the .tmf ﬁle and can not be retrieved when reading an script from an unit. Here it is an example of an script ﬁle: #Antares SB script #Getting Started example #Unit’s ID >SIDEXAMPLE<...
Page 105: Creating An Script From Scratch
If you prefer, you can edit an existing script instead of creating a new one from scratch. Another option for not having to create an script from scratch is mak- ing ACT generate an script ﬁle by reading an Antares SB . See the next section.
Page 106: Writing Scripts
Make sure of following the instructions on the Antares Conﬁguration Tool section of the Operation chapter and have the ACT already connected and communicating with the Antares SB before proceeding. Make sure of using version 1.6.4 or superior of ACT. Contact...
Page 107 4.24. USING SCRIPTS option HW VSP works as the TP Server only box on the software. For more information on these software tools contact Digital Communi- cations Technologies...
Page 108: Scenarios And Examples
Scenarios and examples For this chapter It is assumed that the reader already has access to the unit’s TAIP console trough the unit’s serial port using a terminal software like Windows ’ Hyperterminal . Refer to the Operation chapter for more information.
Page 109: Creating A Destination Point (Dp)
5.1. GETTING STARTED The GSM registration status is indicated by the status LED. This LED is solid whenever the unit is not registered on GSM. Although the unit is not registered, it could be searching for the operator which is a normal con- dition.
Page 110: Creating A Destination Address (Da)
TCP listener. 4. The server is accepting the connection but it is immediately (or a few seconds later) closing it. 5. The Antares SB is behind a cellular carrier’s NAT which has the selected port blocked.
Page 111: Tiding A Signal To An Event
AVL application you can always shut it down an use some popular free TCP listener applications that will show you the RAW data where you can check the TAIP messages generated by the Antares SB Other useful tool is a network sniﬀer that allows you to analyze the traﬃc...
Page 112: Adding An Input Report
Now our unit is generating a 5 minutes periodic report and also a special report whenever the Input 3 goes high 5.1.9 Script This example can be resumed with the following script: #Antares SB script #Getting Started example #Delete any previous configuration >SRT;CONFIG< >SXADP**U<...
Page 113: Adding Sms Reporting
5.2. ADDING SMS REPORTING # server destination >SDA4;P00< #Time-only Time And Distance #signal definition >STD80300< #Event triggered by T&D signal >SED37NV4;TD8+< #Input report event >SED05NV4;IP3+< #end You can copy and paste this script to a new empty text ﬁle and have it save with a .tmf extension so ACT software can pass it to a unit.
Page 114: Change The Input Report Event Deﬁnition
5.2. ADDING SMS REPORTING Now Destination Address 5 holds Destination Points 00 and 10. We can point any event to DA 5 making any report generated by the event to be routed to our AVL server an to the Telephone Number 912345678 at the same time.
Page 115: Script
Signal LED does not have to be solid ON. The cellular carrier has to provide SMS sending capabilities to the cellular line being used by the Antares SB The phone number 912345678 may not be exactly the phone number that should be used for sending SMS messages. A plus sign with country/area code or similar may be required.
Page 116: Adding Sms Interaction
5.3. ADDING SMS INTERACTION #signal definition >STD80300< #Event triggered by T&D signal >SED37NV4;TD8+< #Input report event >SED05NV5;IP3+< #User text message for event 05 >SXATM05Input 3 has been activated!< #end Adding SMS interaction Once a Phone-Number-type destination has been created it is possible to interact with the unit via SMS messages generated from that phone number, as long as the Destination conﬁguration allows TAIP console access to the conﬁgured DP.
Page 117: Adding Voice Interaction
5.4. ADDING VOICE INTERACTION phone number 912345678 the text message: SSSXP21 The unit responds the following via SMS: RSSXP21 Conﬁrming that it accepted the command and the output has been set high. Adding voice interaction The unit may receive or make calls from/to any of the Phone Number-type deﬁned Destinations.
Page 118: Ignition Detection
Ignition ON and OFF events are only going to be sent to the AVL server. 5.5.1 Script The resulting script: #Antares SB script #Getting Started example # + SMS reporting (+SMS interaction + Voice interaction) # + Ignition sense #Delete any previous configuration >SRT;CONFIG<...
Page 119: Speed Violation (With Warning) Report
5.6. SPEED VIOLATION (WITH WARNING) REPORT #The remote AVL server address and port >SXADP0000avl.server.com;2145< #The Phone-Number-type destination #with support for user-messages ON >SXADP1010912345678< #A Destination Address holding the # server destination >SDA4;P00< #A Destination Address holding the # server destination and phone number >SDA5;P00,P10<...
Page 120: Setting The Speed Limit
5.6. SPEED VIOLATION (WITH WARNING) REPORT 5.6.1 Setting the speed limit Up to 10 speed limits can be deﬁned on the unit, for no particular reason we choose the limit 07. Using the GS message we set the limit: SGS0710650 Now any time the vehicle speed is above 65mph the S07 signal is going to be true.
Page 121: Script
LED oﬀ when the speed limits falls below: SED43SV0;S07-;ACT=SSSXP10 5.6.6 Script The resulting script: #Antares SB script #Getting Started example # + SMS reporting (+SMS interaction + Voice interaction) # + Ignition sense # + Speed viol. and warning #Delete any previous configuration >SRT;CONFIG<...
Page 122: Start/Stop Monitoring
5.7. START/STOP MONITORING >SED37NV4;TD8+< #Input report event >SED05NV5;IP3+< #User text message for event 05 >SXATM05Input 3 has been activated!< #Ignition ON event >SED19NV4;F00+< #Ignition OFF event >SED20NV4;F00-< #Set an speed limit of 65mph >SGS0710650< #Start a 15 secs. timer when #speed limit is violated #(silent event) >SED40SV0;S07+;ACT=SGC00TC00015<...
Page 123: Setting A Low Speed Limit
5.7. START/STOP MONITORING + Ignition sense + Speed violation and warning. Now we have to tell the unit what is a STOP and what is a START. There are several ways of doing this, for this example we are going to deﬁne a STOP situation to be when the vehicle’s speed remains below a small speed limit for a given period of time.
Page 124: Create The Start Report
5.7.6 Script The corresponding script of this conﬁguration plus all the examples worked so far is: #Antares SB script #Getting Started example # + SMS reporting (+SMS interaction + Voice interaction) # + Ignition sense # + Speed viol. and warning...
Page 125 5.7. START/STOP MONITORING #The Phone-Number-type destination #with support for user-messages ON >SXADP1010912345678< #A Destination Address holding the # server destination >SDA4;P00< #A Destination Address holding the # server destination and phone number >SDA5;P00,P10< #Time-only Time And Distance #signal definition >STD80300< #Event triggered by T&D signal >SED37NV4;TD8+<...
Page 126: Safe Engine Turn Oﬀ
5.8. SAFE ENGINE TURN OFF #Create the violation report >SED10NV4;C00+< #Drive a LED on output 1 ON #when the speed goes beyond the limit #(silent event) >SED42SV0;S07+;ACT=SSSXP11< #Drive a LED on output 1 OFF #when the speed falls off the limit #(silent event) >SED43SV0;S07-;ACT=SSSXP10<...
Page 127: Create The Speed Limit
5.8. SAFE ENGINE TURN OFF 4. We can also add an event to report when the output is actually set (i.e. the ignition is cut), let’s use event code 13 for this. We continue working on the same example worked so far. 5.8.1 Create the speed limit We set 15mph on the S01 limit:...
Page 128: Script
5.8. SAFE ENGINE TURN OFF 5.8.6 Script Adding a safe-engine-turn-oﬀ option leads to the following script: #Antares SB script #Getting Started example # + SMS reporting (+SMS interaction + Voice interaction) # + Ignition sense # + Speed viol. and warning...
Page 129 5.8. SAFE ENGINE TURN OFF #Event triggered by T&D signal >SED37NV4;TD8+< #------------------------------------------- #--Input sense------------------------------ #Input report event >SED05NV5;IP3+< #User text message for event 05 >SXATM05Input 3 has been activated!< #------------------------------------------- #--Ignition sense--------------------------- #Ignition ON event >SED19NV4;F00+< #Ignition OFF event >SED20NV4;F00-< #------------------------------------------- #--Speed viol.
Page 130: Operation
5.8. SAFE ENGINE TURN OFF #Speed limit for START/STOP detection >SGS0310080< #Start 2 minutes timer >SED38SV0;S03-;ACT=SGC01TC00120< #Stop the time >SED39SV0;S03+ACT=SGC01U< #Create the STOP report >SED30NV4;C01+< #Create the START report >SED31NV4;S03C01&+< #------------------------------------------- #--Safe engine turn off--------------------- #Set the speed limit for the time/speed #condition >SGS0110150<...
Page 131: Improving The Periodic Report
5.9. IMPROVING THE PERIODIC REPORT 2. If you receive a conﬁrmation of this message the turn oﬀ process has initiated. Wait for event 13 to report. When event 13 report is received it means that the given time/speed condition met and the vehicle’s engine has been turned oﬀ.
Page 132: Script
And leave the rest of the script unchanged. 5.9.1 Script Changing only the TD8 deﬁnition, our script ends up: #Antares SB script #Getting Started example # + SMS reporting (+SMS interaction + Voice interaction) # + Ignition sense # + Speed viol. and warning...
Page 133 5.9. IMPROVING THE PERIODIC REPORT #The Phone-Number-type destination #with support for user-messages ON >SXADP1010912345678< #A Destination Address holding the # server destination >SDA4;P00< #A Destination Address holding the # server destination and phone number >SDA5;P00,P10< #A complete Time And Distance criterion #min = 120 secs.
Page 134 5.9. IMPROVING THE PERIODIC REPORT >SED41SV0;S07-;ACT=SGC00U< #Create the violation report >SED10NV4;C00+< #Drive a LED on output 1 ON #when the speed goes beyond the limit #(silent event) >SED42SV0;S07+;ACT=SSSXP11< #Drive a LED on output 1 OFF #when the speed falls off the limit #(silent event) >SED43SV0;S07-;ACT=SSSXP10<...
Page 135: Reconnection Event For Tcp
A00 signal has to be used as the AVL server is deﬁned on the Destination Point 00: SED49NV4;A00+ We chose event 49 for no particular reason. This will have the AVL server receiving event 49 any time a new connection from an Antares SB established. 5.10.1 Script...
Page 136 5.10. RECONNECTION EVENT FOR TCP >SXADP**U< #------------------------------------------- #--Essential configurations----------------- #Units ID >SIDEXAMPLE< #configuring the SIMs PIN >SRFI1234< #configuring the APN >SRFAinternet.carrier-name.com< #The remote AVL server address and port >SXADP0000avl.server.com;2145< #The Phone-Number-type destination #with support for user-messages ON >SXADP1010912345678< #A Destination Address holding the # server destination >SDA4;P00<...
Page 137 5.10. RECONNECTION EVENT FOR TCP >SED20NV4;F00-< #------------------------------------------- #--Speed viol. + warning-------------------- #Set an speed limit of 65mph >SGS0710650< #Start a 15 secs. timer when #speed limit is violated #(silent event) >SED40SV0;S07+;ACT=SGC00TC00015< #Stop the timer when the speed falls #below the limit #(silent event) >SED41SV0;S07-;ACT=SGC00U<...
Page 138: Main-Power-Loss Alarm
5.11. MAIN-POWER-LOSS ALARM #condition >SGS0110150< #Start 16 seconds timer when the speed #falls off the previously set value and #as long as the user signal is set >SED14SV0;S01!U00&+;ACT=SGC02TC00016< #Stop the timer when the speed condition #is violated >SED15SV0;S01+;ACT=SGC02U< #Ignition cut event #Sets output 4 high and #sends a report to DA 5 >SED13NV5;C02U00&+;ACT=SSSXP41<...
Page 139: Conﬁguring/Reading A Distance Counter
5.13. CONFIGURING/READING A DISTANCE COUNTER 5.13 Conﬁguring/reading a distance counter Refer to the XACR message. 5.14 Generating an extended-EV report Related commands: ED, EV, XAEF As mentioned on the Reports’ messages section of the Operation chapter, an EV report can be extended to include extra information tags .
Page 140 ;ID=EXAMPLE REV311447147649+2578440-0802854301000512;AL=00001;AC=+08 ;ID=EXAMPLE And event 32 as REV321447147747+2578440-0802854301000512;AC=-12;CV07=01203;SV=09 ;ID=EXAMPLE Notice that the order of information tags deﬁned with the XAEF is not preserved, Antares SB reports the tags alphabetically. For detailed in- formation see the ED, EV and XAEF messages.
Page 141: Unit's Taip Reference
Unit’s TAIP reference...
Page 142: Al) Altitude
6.1. (AL) ALTITUDE (AL) Altitude Qualiﬁers: Q, R This message gives the vehicle’s altitude and vertical speed. The message has the following format: AAAAABBBBBBCCCCDE Chars Item Format Value Meaning GPS Time AAAAA seconds GPS time of day. Altitude BBBBBB meters Above Mean Sea Level Altitude.
Page 143: Cp) Compact Position
6.2. (CP) COMPACT POSITION (CP) Compact Position Qualiﬁers: Q, R This message gives the position solution. The message has the following format: AAAAABBBCCCCDDDDEEEEFG Chars Item Format Value Meaning GPS Time AAAAA seconds GPS time of day. Latitude BBB.CCCC degrees Latitude in the WGS-84 datum. Positive values indicate a northern latitude.
Page 144: Da) Destination Address
6.3. (DA) DESTINATION ADDRESS (DA) Destination Address Qualiﬁers: Q, S, R A Destination Address is an association of Destination Points. These allows an event deﬁned with the ED message to be routed to multiple receivers at the same time by selecting the Destination Address (or group) that holds all of the desired destinations (IP-types, Telephones, Serial Port).
Page 145: Examples
6.3. (DA) DESTINATION ADDRESS 6.3.1 Examples Creating DAs To create Destination Address 5 as an association of Destination Points 2, 3, 10 and 15 (15 is the unit’s serial port): SDA5;P02,P03,P10,P15 To create Destination Address 0 with only one Destination Point, for example the unit’s serial port: SDA0;P15 To create a Destination Address as a range of DPs:...
Page 146: Dp) Destination Point
6.4. (DP) DESTINATION POINT (DP) Destination Point Qualiﬁers: Q, S, R This command is deprecated and should not be used, use the XADP message instead. A Destination Point deﬁnes the IP address and/or cellular telephone of a destination. An association of Destination Points is used to deﬁne a Des- tination Address which is used in an Event Deﬁnition to route Event Mes- sages.
Page 147 6.4. (DP) DESTINATION POINT AABC[DDD...] Chars Item Format Value Meaning Destination 10-14 Decimal number holding the point’s index. In- Point ID dexes 00 to 09 refer to IP addresses where an AVL software is listening for TAIP messages. Indexes 10 to 14 refer to SMS receptors’ tele- phones.
Page 148: Ed) Event Deﬁnition
Qualiﬁers: Q, S, R This message is used to deﬁne events. These events deﬁne the Event Ma- chine conﬁguration for the Antares SB . An event is created by deﬁning a boolean combination of signals as a trigger, a routing indication for a gener- ated event message (EV or ET) and a possible TAIP message to be executed when the event occurs.
Page 149 6.5. (ED) EVENT DEFINITION AABCD;EEE [EEE][F] G[[;ACT=HH...][;ACT=HH...]...] Chars Item Format Value Meaning Event ID 00-49 Decimal number ranging between 00 to 49 (or ’**’). Event ﬂag Message routing: Handling Normal. Route the Event Message to the speciﬁed Destination Address (DA). Serial Port.
Page 150: Examples
6.5. (ED) EVENT DEFINITION 6.5.1 Examples Single signal triggers Example: Periodic report To deﬁne event 05 to send an EV Event Message every 3 minutes: 1. Use the TD message to conﬁgure a Time & Distance signal to trigger every 3 minutes: STD70180 2.
Page 151 6.5. (ED) EVENT DEFINITION Example: Reporting Following the previous example, create another event that generates an extended-EV report including the state of distance counter 12 whenever the another extended-EV vehicle is turned oﬀ: reporting message SED24NB0;F00-; SXAEFB;CV12; Refer to the Scenarios and examples chapter for more information.
Page 152: Er) Error Report
6.6. (ER) ERROR REPORT (ER) Error Report Qualiﬁers: R This message is generated by the unit whenever the previous command en- tered on the TAIP console generates an error. The message has the following format: AA:[BBB...] Chars Item Format Value Meaning Error Error code: See the table of error...
Page 153: Et) Event Report, Time Only Message
6.7. (ET) EVENT REPORT, TIME ONLY MESSAGE (ET) Event Report, time only message Qualiﬁers: R This message is generated when an event is triggered. This message only contains date and time of the generated event. The message has the follow- ing format: AABBBBCDDDDD Chars...
Page 154: Ev) Event Message
6.8. (EV) EVENT MESSAGE (EV) Event Message Qualiﬁers: R This message is generated when an event is triggered and reported. The message has the following format: AABBBBCDDDDDEEEFFFFFGGGGHHHHHIIIJJJKL[EXTENDED-EV TAGS] Chars Item Format Value Meaning Event 00-49 Event code. code BBBB week Number of weeks since 00:00AM January 6, 1980.
Page 155 6.8. (EV) EVENT MESSAGE Meaning ;AL=AAAAA Altitude is A meters Above Mean Sea Level (AMSL). ;AC=AAA Acceleration is A [Miles] per [Hour per second] ;AD=AAAAA Voltage on the Analog port is A mV. ;AD=AAAAA Voltage on the Analog port is A mV. ;BL=AAAAA Voltage of the back-up battery is A mV.
Page 156: Gc) Counters, Timers, Distancers
6.9. (GC) COUNTERS, TIMERS, DISTANCERS (GC) Counters, Timers, Distancers Qualiﬁers: Q, S, R This message is used to conﬁgure and manipulate internal counters. Each counter can be conﬁgured as a user-controlled counter, a timer, or a dis- tancer (counter updated by the traveled distance). For more information refer to the Operation chapter.
Page 157: Counters' Commands
6.9. (GC) COUNTERS, TIMERS, DISTANCERS 6.9.1 Counters’ commands Value Meaning Sets the counter type to Counter with a threshold value de- ﬁned as DDDDD. The value for this type of counter can only be changed with the increment (I or value (V) command. Set and start a Timer counter with a threshold value deﬁned as DDDDD, time increment 1 or EEEEE seconds.
Page 158 6.9. (GC) COUNTERS, TIMERS, DISTANCERS are not interested on monitoring the C05 signal. We can query the distance counter value at any time: QGC05V Ant the unit shall respond: RGC05V00997 Indicating that the traveled distance since the counter set is 99.7km (997 x 100m).
Page 159: Gf) Gpios' Function (I/O)
An output is deﬁned by setting the bit that corresponds to the GPIO’s index. An input is deﬁned by re- setting this bit. Only the following command works on Antares SB SGFF0 Any other value will make the unit return error 86: SGF00...
Page 160: Gs) Speed Limit
6.11. (GS) SPEED LIMIT 6.11 (GS) Speed Limit Qualiﬁers: Q, S, R This message is used to conﬁgure the speed limits that can be used to trigger events. The message has the following format: AABCCCC Chars Item Format Value Meaning Speed 00-09 Identiﬁcation code assigned to...
Page 161: Gt) Time Window
6.12. (GT) TIME WINDOW 6.12 (GT) Time Window Qualiﬁers: Q, S, R This message is used to conﬁgure the Time Windows that can be used to trigger events. The signal associated with a Time Window becomes active when the actual date and time is between the values set by the TMin and TMax parameters.
Page 162: Gr) Regions
Use 99 to leave this ﬁeld bor 2 empty.Check the explanation after this table. The Antares SB has the ability to detect whether a vehicle is inside or outside of a user deﬁned polygon. In order to achieve this the point’s nu-...
Page 163: Special Cases
6.13. (GR) REGIONS A point is formed by the region’s index, the point’s index, the point’s latitude and longitude and by other two parameters called the left neighbors. The left neighbors of a point are the indexes of the points connected (if any) with a line to the actual point and have a longitude value equal to or less than the actual point’s longitude.
Page 164 6.13. (GR) REGIONS This region is drawn with the north pointing upwards so you can see how the leftmost point has the index 00 and the rightmost has the higher index 06 following the longitude ordering discussed above. Left neighbors Lets examine each point’s left neighbors according to the deﬁnition given.
Page 165 6.13. (GR) REGIONS As you can see points 02 and 03 share the same longitude. As discussed early it is not relevant which point comes ﬁrst, the points could be assigned having the 03 below the 02 instead of the arrangement presented in the ﬁgure.
Page 166 6.13. (GR) REGIONS Another approach would have been counting 02 as left neighbor Note: of point 03 but then we must be careful of not including 03 as left neighbor of point 02. Point 04. Left Neighbor 1 : 00 Left Neighbor 2 : 99 Point 05.
Page 167 6.13. (GR) REGIONS Point 03. Left Neighbor 1 : 00 Left Neighbor 2 : 01 Point 04. Left Neighbor 1 : 01 Left Neighbor 2 : 99 Point 05. Left Neighbor 1 : 06 Left Neighbor 2 : 99 Point 06. Left Neighbor 1 : 99 Left Neighbor 2 : 99 Point 07.
Page 168: Id) Identiﬁcation
6.14. (ID) IDENTIFICATION 6.14 (ID) Identiﬁcation Qualiﬁers: Q, S, R This message is used to set/query unit’s ID. The message has the following format: A[AAA...] Chars Item Format Value Meaning 1 to 10 Vehicle ID A[AAA. . . ] string Identiﬁcation code assigned to the vehicle.
Page 169: Ms) Memory Session
6.15. (MS) MEMORY SESSION 6.15 (MS) Memory Session Qualiﬁers: S, R This message is deprecated and has no eﬀect on the unit.
Page 170: Mt) Mdt Mode
6.16. (MT) MDT MODE 6.16 (MT) MDT Mode Qualiﬁers: Q, S, R This message controls and starts the serial port’s MDT communication mode. The message has the following format: A[BBB[CCCD EE FF GG HH]][;ROUTE=I] Chars Item Format Value Meaning Mode ﬂag MDT mode: P: PAD...
Page 171: Pv) Position-Velocity
6.17. (PV) POSITION-VELOCITY 6.17 (PV) Position-velocity Qualiﬁers: Q, R This message gives the unit’s current position, velocity, heading, source of information and age of the data. The message has the following format: AAAAABBBCCCCCDDDDEEEEEFFFGGGHI Item Format Units Meaning GPS Time AAAAA seconds Time of the generated report.
Page 172: Rf) Radio Frequency Module Conﬁguration
6.18. (RF) RADIO FREQUENCY MODULE CONFIGURATION 6.18 (RF) Radio Frequency module conﬁguration Qualiﬁers: Q, S, R This message is used to conﬁgure Cellular Network parameters. Any RF parameter can be left empty by issuing the command Note: without the B string The message has the following format: A[BBB...] Item...
Page 173: Rm) Reporting Mode
6.19. (RM) REPORTING MODE 6.19 (RM) Reporting Mode Qualiﬁers: Q, S, R This message controls ﬂags used to change the format of the responses and reports, i.e. messages with the R qualiﬁer. The message has the following format: [;ID FLAG=A][;EC FLAG=B][;CR FLAG=C][;ER FLAG=B] Chars Item Format...
Page 174: Rp) Registration Parameters (Cellular Network)
6.20. (RP) REGISTRATION PARAMETERS (CELLULAR NETWORK) 6.20 (RP) Registration Parameters (Cellular Network) Qualiﬁers: Q, R This message reports the unit’s cellular registration state. The message has the following format: ABBCCCC Item Format Units Meaning Registration Values: state registered searching operator. Registered in home network.
Page 175 6.20. (RP) REGISTRATION PARAMETERS (CELLULAR NETWORK) RSSI [-dBm] 0 to 7 113 - 99 Very poor 8 to 13 97 - 87 Poor 14 to 17 85 - 79 Fair 18 to 20 77 - 73 Fair 21 to 24 71 - 65 Good 25 to 31...
Page 176: Rt) Reset Message
6.21. (RT) RESET MESSAGE 6.21 (RT) Reset message Qualiﬁers: S, R When this message is issued alone the unit performs a system reset. When used with qualiﬁers it serves multiple internal initializations purposes. The message has the following format: [;CONFIG][;SIGNALS] Qualiﬁer Meaning Resets almost all the conﬁguration of the unit.
Page 177: Ss) Signal Status
6.22. (SS) SIGNAL STATUS 6.22 (SS) Signal Status Qualiﬁers: Q, S, R This message allows for the inspection of signals’ state and the setting of outputs and other manipulatable signals. See the Signals’ list on the Event Machine section of the Conﬁguration chapter. The message has the following format: AAA[B] Chars Item...
Page 178 6.22. (SS) SIGNAL STATUS SSSXP31 To deactivate it: SSSXP30 See the Conﬁguration and Operation chapters for more examples.
Page 179: St) Status
6.23. (ST) STATUS 6.23 (ST) Status Qualiﬁers: Q, R This message provides information about the unit’s GPS receiver. The message has the following format: AABCDDEFGG Chars Item Format Value Meaning Tracking characters: GPS satellite signal acquisition and tracking Status status. 00-0A Code Doing position ﬁxes.
Page 180: Tm) Time And Date
6.24. (TM) TIME AND DATE 6.24 (TM) Time and Date Qualiﬁers: Q, R This message provides information about the unit’s Time and Data as pro- vided by the GPS service. The message has the following format: AABBCCDDDEEFFGGGGHHIJJKLLLL Chars Item Format Value Meaning Hour...
Page 181: Td) Time And Distance Signals Conﬁguration
6.25. (TD) TIME AND DISTANCE SIGNALS CONFIGURATION 6.25 (TD) Time and Distance signals conﬁguration Qualiﬁers: Q, S, R The Time and Distance signals are set by its corresponding Time and Dis- tance counter which is a counter that follows a Time and Distance criteria. This criteria allows to create a counter that does not follow a time or dis- tance criteria independantely from each other, instead, combines these two variables to generate an intelligent trigger to be used for a more eﬃcient...
Page 182 6.25. (TD) TIME AND DISTANCE SIGNALS CONFIGURATION fast. A Time and Distance counter is created with the following parameters: 1. Distance Threshold. 2. Minimum Time. 3. Maximum Time. The TD message allows to conﬁgure the parameters that control the Time & Distance signals’...
Page 183: Tx) Text Message
6.26. (TX) TEXT MESSAGE 6.26 (TX) Text Message Qualiﬁers: S, R This message is used to transfer messages between the unit and any Des- tination. Printable ASCII characters as well as byte-like messages can be transfered by means of escaping sequences. The message has the following format: [A...] Chars...
Page 184: Vr) Version Number
6.27. (VR) VERSION NUMBER 6.27 (VR) Version number Qualiﬁers: Q, R This message returns the unit’s ﬁrmware version The message has the fol- lowing format: Antares GPS [A]A.AA[B][C] Chars Item Format Value Meaning Version A.AA Firmware version number. number Reserved Reserved...
Page 185: Xaac) Analog To Digital Converter
6.28. (XAAC) ANALOG TO DIGITAL CONVERTER 6.28 (XAAC) Analog to Digital converter Qualiﬁers: Q, R Use this message to consult the actual computed value of the ADC. The message has the following format: AAAAAPBBB Chars Item Format Value Meaning AAAAA millivolts ADC computed value: Average...
Page 186: Xabs) Battery Status
6.29. (XABS) BATTERY STATUS 6.29 (XABS) Battery Status Qualiﬁers: Q, R Use this message to consult the actual state of the built-in back up battery The message has the following format: ABBBBPCCC Chars Item Format Value Meaning Main ﬂag Indicates that the main power Power source (vehicle’s battery) is ON State...
Page 187: Xacr) Counter Report
6.30. (XACR) COUNTER REPORT 6.30 (XACR) Counter Report Qualiﬁers: S, R Use this message to have the unit generate a TX message to a Destination Point (DP) or Destination Address (DA) containing an speciﬁc counter’s (see GC message) value. The message takes a counter’s index, and a DP or DA index.
Page 188 6.30. (XACR) COUNTER REPORT For example: Distancer 2(S) = 1200 x(10m) If no (S) is shown, it means the counter is running. The counter type Counter indicates a user deﬁned counter. See the GC message for more information.
Page 189: Xact) Communication Test
6.31. (XACT) COMMUNICATION TEST 6.31 (XACT) Communication Test Qualiﬁers: S, R Use this message to generate an event code to a Destination Address (DA). This message is used to test the communication with a given destination(s) without requiring for an speciﬁc event to occur. It is also a method for testing a DA deﬁnition and testing the remote host identiﬁcation process of an EV message.
Page 190: Xadm) Diagnostic Message
6.32. (XADM) DIAGNOSTIC MESSAGE 6.32 (XADM) Diagnostic Message Qualiﬁers: Q, R Use this message to query unit’s status. The message has the following format: ABBCCDEFFGHIIJKLMMNN Chars Item Format Value Meaning level Diagnostic level. Only ’0’ is supported. FW family Firmware family. Always return 05 FW version –...
Page 191 6.32. (XADM) DIAGNOSTIC MESSAGE...
Page 192: Xadp) Destination Points
6.33. (XADP) DESTINATION POINTS 6.33 (XADP) Destination Points Qualiﬁers: Q, S, R This message conﬁgures both IP-type and Telephone destinations. 6.33.1 IP-type destinations For IP-type destination, i.e. Destination Points 00 to 09 use the following format and table: AABCD[DDD...];E[EEE...] Chars Item Format Value...
Page 193 6.33. (XADP) DESTINATION POINTS AABCD[DDD...] Chars Item Format Value Meaning Destination 10-14 Telephone destination point. Point index Type of host or DP type/Action: Delete action Delete the Destination Point. Report messages are sent as TAIP messages to this destination. User-deﬁned messages are sent in- stead of TAIP.
Page 194: Xaef) Extended-Ev Message Formats
6.34. (XAEF) EXTENDED-EV MESSAGE FORMATS 6.34 (XAEF) Extended-EV message Formats Qualiﬁers: S, R This message allows the creation and conﬁguration of up to three sets of information tags to be used by an event having the Message ID qualiﬁer set to A, B or C. This will make such an event generate an EV reporting message with extra information tags as described on the EV message section.
Page 195: Xafu) Firmware Upgrade (Over The Air)
ABBBBCCDD Chars Item Format Value Meaning Server Firmware server: Use 0 for DCT’s servers, 1 for user-deﬁned server Firmware Ver- BBBB Firmware Version to download. The ﬁrst two sion letter must always be 05. The last two indicate the ﬁrmware family. For example, to update to FW 5.21, BBBB should be set to 0521.
Page 196: Xaga) Adc Levels
6.36. (XAGA) ADC LEVELS 6.36 (XAGA) ADC levels Qualiﬁers: Q, S, R This message is used to conﬁgure analog-to-digital converter levels associ- ated to ”D” signals. The message has the following format: AABCCCCC Chars Item Format Value Meaning ADC level 00-04 Identiﬁcation code assigned to the ADC level.
Page 197: Xagb) Back-Up Battery Levels
6.37. (XAGB) BACK-UP BATTERY LEVELS 6.37 (XAGB) Back-up Battery levels Qualiﬁers: Q, S, R This message is used to conﬁgure back-up battery levels associated to ”B” signals. The message has the following format: AABCCCCC Chars Item Format Value Meaning Battery 00-04 Identiﬁcation code assigned to the level ID...
Page 198: Xagh) Heading Deltas
6.38. (XAGH) HEADING DELTAS 6.38 (XAGH) Heading deltas Qualiﬁers: Q, S, R This message is used to conﬁgure heading changes to be monitored with J signals. The message has the following format: AABCCC Chars Item Format Value Meaning Index 00-04 Heading delta index.
Page 199: Xaid) Imei As Id
6.40. (XAID) IMEI AS ID 6.40 (XAID) IMEI as ID Qualiﬁers: Q, R This message tells the unit whether to use or not (defaults to not) its IMEI as ID. Chars Item Format Value Meaning action Use 1 to set the unit’s ID with the IMEI. Use 0 to set the unit’s ID to the value set by the user with the ID message.
Page 200: Xaim) Imei Consult
6.41. (XAIM) IMEI CONSULT 6.41 (XAIM) IMEI consult Qualiﬁers: S, Q, R This message is used to consult the unit’s IMEI (International Mobile Equip- ment Identity). AAAAAAAAAAAAAAB Chars Item Format Value Meaning IMEI IMEI. IMEI’s CS IMEI’s Check Sum.
Page 201: Xaio) Input, Outputs Consult
6.42. (XAIO) INPUT, OUTPUTS CONSULT 6.42 (XAIO) Input, Outputs consult Qualiﬁers: Q, R This message is used to consult the actual state of inputs and outputs. ;XABCD;IEFHJ;GKLM Chars Item Format Value Meaning Out 4 ﬂag State of Output 4 (1=active, 0=inactive). Out 3 ﬂag State of Output 3.
Page 202: Xaip) Ip Address
6.43. (XAIP) IP ADDRESS 6.43 (XAIP) IP address Qualiﬁers: Q, R This message is used to consult the actual IP address assigned to the unit by the carrier. IP address 0.0.0.0 is returned when the GPRS session is not up. The message has the following format: AAABBBCCCDDD Chars Item...
Page 203: Xait) Driving Metrics (Acceleration And Maximums.)
6.44. (XAIT) DRIVING METRICS (ACCELERATION AND MAXIMUMS.) 6.44 (XAIT) Driving Metrics (acceleration and maximums.) Qualiﬁers: S, Q, R Use this message to consult the actual vehicle’s acceleration, maximum reg- istered positive acceleration, maximum registered negative (breaking) ac- celeration and maximum registered speed. This command allows to consult also the GPS situation of the vehicle when each maximum occurred.
Page 204: Xaka) Keep Alive
6.45. (XAKA) KEEP ALIVE 6.45 (XAKA) Keep Alive Qualiﬁers: S, Q, R This message is used to activate/deactivate a keep-alive to a given IP-type Destination Point (see the XADP message). A keep-alive option should be avoided as increases the transmission cost. Use this option if you need to be able of interrogating the unit at any time and the unit is working behind a NAT.
Page 205: Xall) Local Lock
6.46. (XALL) LOCAL LOCK 6.46 (XALL) Local Lock Qualiﬁers: S, Q, R This message is used to lock/unlock conﬁguration messages ( S messages) on the TAIP console for the serial port. A locking operation consists of using this message and a user-deﬁned 4-character code. An unlocking operation is performed by entering the message in unlocking mode with the same code deﬁned on the locking operation.
Page 206: Xanb) Network Band Mode
6.47 (XANB) Network Band mode Qualiﬁers: S, Q, R Antares SB is capable of working on 4 diﬀerent cellular bands in the fol- lowing way: With this command the user selects a mode which may be of mono band or dual-band type. On dual-band modes, bands are automati- cally switched by the module according to network discovery information.
Page 207: Xans) Network Status (Gprs)
6.48. (XANS) NETWORK STATUS (GPRS) 6.48 (XANS) Network Status (GPRS) Qualiﬁers: Q, R Use this message to consult the state of the GPRS session and the state of the TCP sockets of every IP-type Destination Point. The message has the following format: ABB[ ;CDEEE x 10] Chars...
Page 208: Xapm) Power Management
6.49. (XAPM) POWER MANAGEMENT 6.49 (XAPM) Power Management Qualiﬁers: S, Q, R This command activates/deactivates the unit’s power saving mode (sleep mode). When power saving mode is activated, the unit will go to sleep after 2 minutes as long as no communication activity is detected on the GPRS or SMS channels.
Page 209 6.49. (XAPM) POWER MANAGEMENT A[[[[BBBBBCDEFGHI]JJJJ]KKKK]LLLL] Chars Item Format Value Meaning Action Action: Activate the power saving mode. End any active power saving mode. Go to power saving mode immedi- ately(*). Flags BBBBB Reserved ﬂags. Should be set to 11111 Power ﬂag Set to 1 to monitor the power detector input when in sleep mode.
Page 210: Examples
6.49. (XAPM) POWER MANAGEMENT (*) When going to sleep immediately using the ’I’ qualiﬁer the saving mode is not preserved. i.e. after the unit wakes up the unit ends the power saving mode. 6.49.1 Examples Activate the power saving mode. Only the vehicle’s ignition may awake the unit, and when awaken, the unit must remain up for 20 minutes: SXAPMA000000010000020m Activate the power saving mode.
Page 211: Xard) Reset Diagnostics
6.50. (XARD) RESET DIAGNOSTICS 6.50 (XARD) Reset diagnostics Qualiﬁers: S, Q, R This messages activates/deactivates the system’s resets’ information dis- played with TX messages to a selected DA or DP. The message has the following format: Chars Item Format Value Meaning DA or DP / Command:...
Page 212: Xasf) Store & Forward Buﬀer
6.51. (XASF) STORE & FORWARD BUFFER 6.51 (XASF) Store & Forward Buﬀer Qualiﬁers: Q, R Use this message to consult the reports’ buﬀer state of a given Destination The message has the following format: AA[BBBBB;CCCCC;DDDDD] Chars Item Format Value Meaning Destination 00-14 Destination Point...
Page 213: Xatd) Current Destination Point
6.52. (XATD) CURRENT DESTINATION POINT 6.52 (XATD) Current Destination Point Qualiﬁers: Q, R Use this message to know the DP index used on the actual communication channel. The command will return the DP index used to generate the QXATD query. The message has the following format: Chars Item Format...
Page 214: Xatm) User-Deﬁned Text Messages
6.53. (XATM) USER-DEFINED TEXT MESSAGES 6.53 (XATM) User-deﬁned Text Messages Qualiﬁers: S, Q, R Use this message to set the user-custom messages to be used when an SMS report is to be generated to a Telephone-type Destination conﬁgured to receive non-TAIP messages. See the XADP message for more information. One user-text message can be created for each event (00 - 49) so that when an event report is to be sent as a user-custom message the sent message is the one deﬁned with this command (XATM) for the event code that generates...
Page 215: Xats) Taip Console Sniﬀer
6.54. (XATS) TAIP CONSOLE SNIFFER 6.54 (XATS) TAIP console Sniﬀer Qualiﬁers: S, R Use this message to activate/deactivate the debugging tool that throws to the serial port all of the TAIP console messages exchanged over any com- munication media. This is useful to check the communication between an IP-host software or Telephone and the unit.
Page 216: Xaun) Udp Network
6.55. (XAUN) UDP NETWORK 6.55 (XAUN) UDP Network Qualiﬁers: S, Q, R An UDP-Network can be set as a validation mechanism for UDP queries originated to the unit’s UDP-Server Port conﬁgured with the XAUP mes- sage. The UDP-Network validation for the UDP-Server port is optional as the validation is also done by looking for a match on the IP-type, UDP Destinations deﬁned as IP-numbers When an UDP-Network is set, the validation for UDP queries received on...
Page 217: Xauo) Udp Origin Port
6.56. (XAUO) UDP ORIGIN PORT 6.56 (XAUO) UDP Origin Port By default Antares SB chooses the value of the UDP-origin-port when sending UDP datagrams. Usually after a GPRS session has been estab- lished, the chosen port is 1024. This value is incremented and reused ac- cording to the unit’s TCP/IP stack.
Page 218: Xaup) Udp Server Port
6.57. (XAUP) UDP SERVER PORT 6.57 (XAUP) UDP Server Port Qualiﬁers: S, Q, R This command is used to conﬁgure a listening UDP port on the unit. If the special value 00000 is used the unit won’t listen for UDP messages on a ﬁxed port, instead it will only use the dynamic port created when it sends reports to a UDP destination.
Page 219: Xavc) Voice Call Start
6.58. (XAVC) VOICE CALL START 6.58 (XAVC) Voice Call Start Qualiﬁers: S, R This command is used to initiate a voice call with a Telephone-type Desti- nation Point (DPs 10 to 14). Two optional ﬁelds are provided to specify a retry number and a time between retries for failing calls.
Page 220: Xave) Voice Call End
6.59. (XAVE) VOICE CALL END 6.59 (XAVE) Voice Call End Qualiﬁers: S, R Use this message to hang-up any current voice call. If no voice call is being held, the command returns and does nothing. The message has the following format: ...No parameters ...
Page 221: Xavi) Voice Call Identiﬁcation Switch
6.60. (XAVI) VOICE CALL IDENTIFICATION SWITCH 6.60 (XAVI) Voice Call Identiﬁcation switch Qualiﬁers: S, R, Q This command is used to turn ON/OFF the voice call number validation performed by the unit on incoming voice calls. It defaults to ’ON’, meaning that the calling-party’s number has to be deﬁned on any of the Telephone- type destinations in order for the unit to accept the call .
Page 222: Xavm) Microphone Gain
6.61. (XAVM) MICROPHONE GAIN 6.61 (XAVM) Microphone gain Qualiﬁers: S, R, Q This command is used to change the microphone gain for voice calls. Chars Item Format Value Meaning Action/value 0-9, +, - Gain value (0-9) or gain action: + to increase, - to decrease.
Page 223: Xavs) Speaker Volume
6.62. (XAVS) SPEAKER VOLUME 6.62 (XAVS) Speaker volume Qualiﬁers: S, R, Q This command is used to change the speaker volume for voice calls. Chars Item Format Value Meaning Action/value 0-9, +, - Volume value (0-9) or volume action: + to in- crease, - to decrease.
Page 224: Errors List
6.63. ERRORS LIST 6.63 Errors list The following table contains a list of the errors returned by the unit with the ER message. See the ER message for more information.
Page 225 6.63. ERRORS LIST Description Unrecognized command The message is not delimited by and/or ID miss match on incoming postﬁx “;ID= ” KY miss match on incoming postﬁx “;KY= ” Not a valid set message. Missing parameter. TAIP console is restricted for this DP. See the locking parameters on the XADP message. Queries resulting on multiple answers are not supported over the air.
Page 226 6.63. ERRORS LIST Continued from the previous page. Description Length exceeded for TX message. See the TX message. Invalid event index when using the XATM message. See the XATM message. Invalid XATM message format. See the XATM message. Invalid reset option. See the RT message. Can not modify a DP using the TAIP console from the same DP.
Page 227: Appendix A - Quick Start Guide
Appendix A - Quick Start Guide The next two pages are a quick guide for installing and conﬁguring the unit. You can print these two pages and have them at hand.
Page 230: Appendix B - Getting Started Script
Appendix B - Getting Started Script Select the following script and paste it on any plain-text editor to create the GettingStarted.tmf script ﬁle. #Antares SB script #Getting Started example #Delete any previous configuration >SRT;CONFIG< >SXADP**U< #Unit’s ID >SIDEXAMPLE< #configuring the SIM’s PIN >SRFI1234<...
Page 231: Appendix C - Signals' Table
Appendix C - Signals’ Table For more information on signals refer to the Conﬁguration chapter, Event Machine section. The available signals for the Antares SB are presented in the next table on the next page.
Page 232 Signal Description A00 - A09 Destination Points’ state True when the IP address/port deﬁned on the corre- sponding Destination Point’s index is accepting a TCP connection or when using UDP (i.e. the TCP/UDP socket is open). See the XADP message. B00 - B04 Battery Levels(+) True when the unit’s back-up battery level is above the...
Page 233 (*) Antares SB does not have GPIOs. These signals are maintained for backwards compatibility with scripts from other versions. Instead, Antares SB has 4 inputs and 4 outputs. Signals G00-G03 are the same as IP1-IP4 signals and G04-G07 signals are the same as XP1-XP4 signals. The user is encouraged to use IP and XP signals instead of G signals.
Page 234: Appendix D - Quick Taip Reference
This chapter presents quick examples of the most commonly used TAIP commands. Refer to the Unit’s TAIP reference chapter for detailed infor- mation on a command. 10.1 Setting the Antares SB To set the unit’s ID to AbcD-1234, send: SIDAbcD-1234 10.2 Setting the APN To set the APN to internet.carrier.com, send:...
Page 235: Reseting The Gprs Connection
10.6. RESETING THE GPRS CONNECTION 10.6 Reseting the GPRS connection To reset the GPRS connection, send: SXAGP1 The until will close the GPRS session and will automatically start it again after approximately 1 minute . 10.7 Conﬁguring a host address/type To set IP address 192.168.0.1 working on TCP port 8000 on Destination Point 00, send: SXADP0001192.168.0.1;8000...
Page 236: Querying Hosts/Ports And Telephones
10.9. QUERYING HOSTS/PORTS AND TELEPHONES 10.9 Querying hosts/ports and telephones To get a list of hosts, ports with working protocol (TCP, UDP), mode (ACK, no-ACK), and telephones, as well as authorization ﬂags for each host and telephone, send: QXADP 10.10 Grouping AVL servers on DAs To make Destination Address (DA) 4 represent only host address (Destina- tion Point) 00, send:...
Page 237: Creating A Turn-By-Turn (Heading Change) Report
10.13. CREATING A TURN-BY-TURN (HEADING CHANGE) REPORT The letter X on the command indicates to generate event reporting mes- sages only to the serial port. 10.13 Creating a turn-by-turn (heading change) report To deﬁne a heading-delta change of 45 degrees, send: SXAGH001045 To deﬁne event 44 so that it sends a message to the serial port every time the vehicle’s heading delta changes by more than 45 degrees, send:...
Page 238: Querying The Analog To Digital Converter
10.18. QUERYING THE ANALOG TO DIGITAL CONVERTER 10.18 Querying the Analog to digital converter To query the voltage value at the ADC input, send: QXAAC 10.19 Querying the Internal back-up battery level To query the voltage value and charge level of the internal back-up battery, send: QXABS 10.20...

DCT Antares SB User Manual

1 About the Antares SB

2 Installation

3 Operation

4 Conﬁguration

5 Scenarios and Examples

6 Unit's TAIP Reference

7 Appendix A - Quick Start Guide

8 Appendix B - Getting Started Script

9 Appendix C - Signals' Table

10 Appendix D - Quick TAIP Reference

Quick Links

Need help?

Questions and answers

Related Manuals for DCT Antares SB

Summary of Contents for DCT Antares SB
