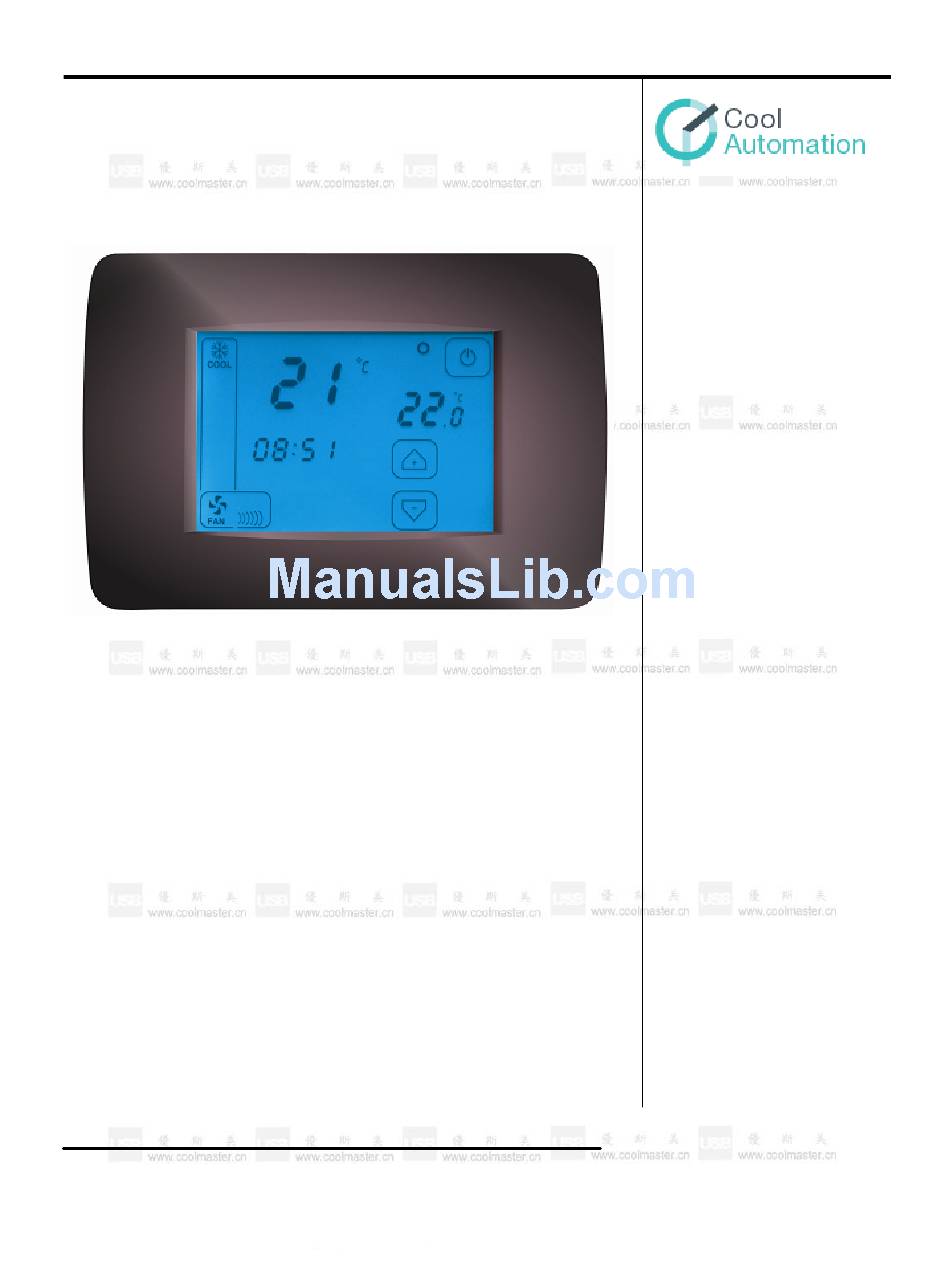

- Page 1 ThermoPad User Manual ThermoPad Touch Screen Control Panel For HVAC Applications ThermoPad Revision 1.00 25/10/2010 © 2008 Cool Automation www.coolautomation.com...
-
Page 2: Table Of Contents
ThermoPad Operation Instructions Contents Table of Contents Foreword General ...........................3 Product description ...........................3 LCD explanation Functions and Operation ...........................4 On/Off ...........................5 Set Point Temperature ...........................5 Fan Speed ...........................6 Operation Mode ...........................7 Swing Timer Functions ...........................8 Time and Date Settings ...........................8 Timer Settings ...........................10... -
Page 3: General
General Product description ThermoPad is a control panel for air conditioning and heating of the space, it is installed in. The operation is performed by touching the signs on the LCD screen. When touching the screen, the back light will be lit for a few seconds to provide a more clear view of the signs. During this time a desired function should be selected by touching the screen at the appropriate zone. -
Page 4: Functions And Operation
When the ThernoPad is turned off, the screen will look as shown in the picture below. When the appearance of clock and room temperature is disabled from settings it won't be shown also on the screen when the ThermoPad is off. Turning the unit "on" is performed by pressing the button (6): www.coolautomation.com... -
Page 5: Set Point Temperature
The current Fan Speed is shown at (18). The selection of the desired fan speed is performed by pressing the button (18). Each press selects the next fan speed. ThermoPad allows to select 4 fan speeds: High, Medium, Low and Auto, as shown on the pictures below. -
Page 6: Operation Mode
ThermoPad Operation Instructions Functions and Operation Operation Mode ThermoPad supports 6 operations modes: Cool, Heat, Auto, Dry, H_Aux (Auxiliary heat), Fan. The current operation mode of the system is shown on (19) and can be selected by the following procedure: 1. -
Page 7: Swing
ThermoPad Operation Instructions Functions and Operation Swing www.coolautomation.com © 2008 Cool Automation... -
Page 8: Timer Functions
After setting the "hours", pressing on "minutes" will make "minutes" blinking. c. At this stage, navigation arrows (11) are used for setting "minutes". 5. Pressing the "Menu" button (10) will save the settings and move ThermoPad back to the timer setting screen. - Page 9 ThermoPad Operation Instructions Timer Functions 3. The operation status (On/Off) is selected by pressing the button (8). When the timer programmed to turn the unit "On", the operation mode appears on the screen. When the timer is programmed to turn the unit "Off", the operation mode disappears, as shown in the pictures below.
-
Page 10: Weekly Schedule Settings
Weekly Schedule Settings ThermoPad allows up to 50 "operations", based on a weekly timer. One "operation" can occur once (at one day) , or it can occur up to 7 times (if all days are selected). In each "Operation" the user can choose the operation status (on/off), operation mode (Cool, Heat, Dry, Auto, HAUX, Fan), Fan speed (Low, Medium,High, Auto), Set point temperature, and the occurrence (day of the week and time). -
Page 11: Indications
ThermoPad Operation Instructions Indications Indications Indication explanation www.coolautomation.com © 2008 Cool Automation...
