Summary of Contents for VisualGate SVP-1000

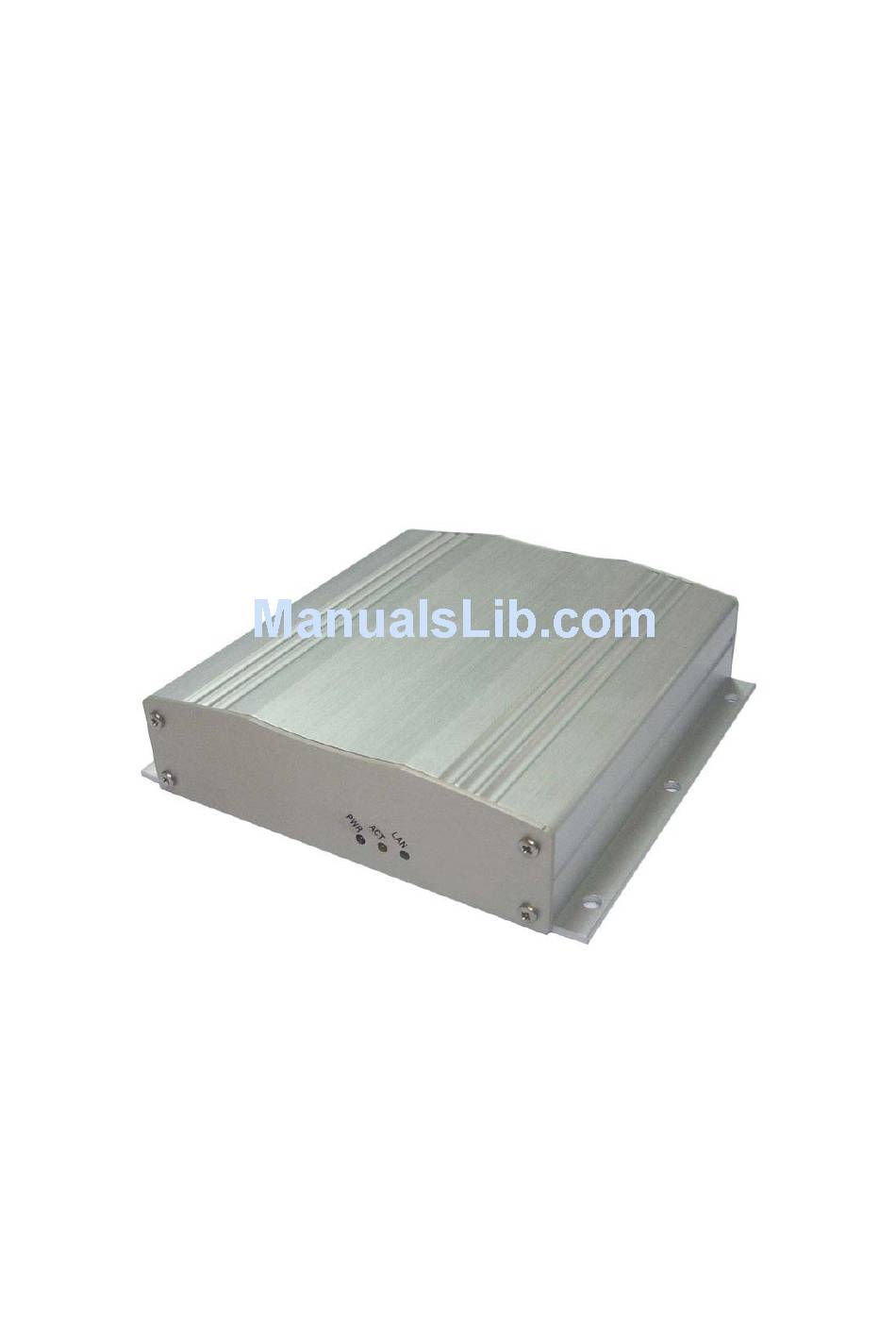

- Page 1 Network Video Decoder SVP-1000 Full Manual NETWORK VIDEO DECODER MODEL: SVP-1000 Full Manual (English) Version 1.0...
- Page 2 Network Video Decoder SVP-1000 Full Manual Warning The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 Network Video Decoder SVP-1000 Full Manual Warning This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Network Video Decoder SVP-1000 Full Manual Precautions 1. HEED WARNINGS Adhere to all warnings on the appliance and in the operating instructions. 2. POWER SOURCES Operate this equipment only from the type of power source indicated on the label. If you are not sure of the type of power being used, consult your dealer or local power company.
- Page 5 Network Video Decoder SVP-1000 Full Manual 12. IMPORTANT NOTE TO THE INSTALLER This installation should be made by a qualified service person and should conform to all local codes. In order to provide this product with protection against risk of unintentional operation by...
-
Page 6: Table Of Contents
4. Display Mode ........................23 4.1. Initial Login Screen....................23 4.1.1. Installation of the Web Viewer ..............23 4.1.2. Initial Log-in Screen of SVP-1000 ............. 24 4.2. SVP-1000 Setting Page ..................25 5. Admin Setting Mode....................... 26 5.1. General Setting...................... 26 5.2. -
Page 7: Introduction Of Svp-1000
In some applications the footprint and expense of a PC is impractical to decode the network video streams. In these cases, the embedded NETWORK VIDEO DECODER (SVP-1000) is a much more efficient and cost effective solution. Video output of SVP-1000 is connected to a TV or a monitor directly. -
Page 8: Packing Contents
Network Video Decoder SVP-1000 Full Manual 1.3. Packing Contents NETWORK VIDEO DECODER Cross LAN Cable CD-ROM with manual and software DC Adapter(12V/1A) Power Cable * Separate Sale +Terminal Block 2p Terminal Block 5p 1.4. System Requirements Operating System : Microsoft Windows® 2000 or Windows® XP CPU : Intel®... -
Page 9: System Configuration
Network Video Decoder SVP-1000 Full Manual 1.5. System Configuration... -
Page 10: Physical Description
Network Video Decoder SVP-1000 Full Manual 1.6. Physical Description 1.6.1. Front View POWER : Power Supply status displays (Red LED on) LAN: When data is transmitted and received through the LAN port, the LED blinks. OPER: 1Channel Video Server is in operation (Orange LED blinks) - Page 11 Network Video Decoder SVP-1000 Full Manual 1) VIDEO OUT : 1Vp-p Composite, 1Channel 2) AUDIO IN : MONO Audio Input, 1Channel 3) AUDIO OUT : MONO Audio Output, 1Channel 4) POWER : DC12V /1A 5) ALARM IN/OUT : Port for alarm input, output 6) RS-485 : Port for P/T/Z control.
-
Page 12: Basic Setup Of Svp-1000
Cross LAN Cable provided in the package. • On the assumption that both the user PC and SVP-1000 are used under static IP, and SVP-1000 is directly connected with the user PC or Local Network, the installation procedure is to be:... -
Page 13: Network Setting Of A Pc
4) Supply power on SVP-1000 ( Be sure to use Exclusive Power Adapter) (④) 5) Wait about 2 minutes after power is on the SVP-1000 decoder. The light on LINK LED shows that the system is booted successfully. 2.2. Network Setting of a PC 2.2.1. - Page 14 Network Video Decoder SVP-1000 Full Manual 2) Click Local Area Connection 3) Check the properties of Internet Protocol [TCP/IP]...
- Page 15 255.255.255.0 and 192.168.1.1 as it is shown in the picture above. • Caution - To activate SVP-1000, the user PC must have the same network setup status as it is preset in the SVP-1000 decoder. But when you assign the IP address, please be careful not to use the default IP written on the back side of the video server (192.168.1.10), since the same default IP address...
-
Page 16: Operation Of The Web Viewer (Url 192.168.1.10)
Network Video Decoder SVP-1000 Full Manual • After network setting of a PC, you can verify the network status as following: 1) Go to ’ Start’ -> ‘Run’ ->input ‘cmd’ 2) When a DOS window appears as above, input 'ipconfig'. - Page 17 Network Video Decoder SVP-1000 Full Manual 3) Click ‘Install’. 4) When installation of vg3xview_viewer' is completed, the User Log-in (Auth) Page appears. User Log-in (Auth) Page 5) When the Log-in Page appears, input User name and Password and click ‘OK’.
- Page 18 Network Video Decoder SVP-1000 Full Manual 5) The Web Viewer appears .
-
Page 19: Configuration Of Network Environment
In a huge complex such as Company, University, Research center, public IP addresses are generally used. Under this environment, the user must set a Static IP Address for the SVP-1000 decoder. If DHCP server is available on the network, select ‘Dynamic IP Address’. You can get the required information (IP address, subnet mask, gateway, DHCP server) from the network administrator. -
Page 20: Installation
3.2. Installation 3.2.1. IP Address Setup 1) After checking Video, connect SVP-1000 to a PC with a Cross LAN Cable 2) Cable connection and Network Setup should be done as it is instructed in ‘ 2.1. Installation and 2.2 network setting ’. - Page 21 Network Video Decoder SVP-1000 Full Manual 10) And then click ‘Information Setting’ on the right side of the screen. 11) Input IP, Port, Log-in ID, Log-in PW of the Video Server. 12) Click ‘Apply’ to save setting values.
- Page 22 - When Video of connected SVG-3010 is seen, SVP-1000 is correctly set up. - When Video of connected SVG-3010 is not seen, check whether there might be IP confliction in Network, and - re-check the network set values of SVP-1000 and the video server and of the user PC.
-
Page 23: Display Mode
Network Video Decoder SVP-1000 Full Manual 4. Display Mode 4.1. Initial Login Screen 4.1.1. Installation of the Web Viewer 1. Internet Explorer browser starts. 2. When the ActiveX Code pops up, click ‘yes’, then a message window shows as below. -
Page 24: Initial Login Screen Of Svp-1000
Network Video Decoder SVP-1000 Full Manual 4.1.2. Initial Login Screen of SVP-1000 ▶ Admin/User Login When the Login Page appears, input User name and Password and click ‘OK’. Initial Login setting is: - User name: admin - Password: admin Caution: Only the Administrator is authorized to reset the 'Setting Values'. -
Page 25: Svp-1000 Setting Page
Network Video Decoder SVP-1000 Full Manual 4.2. SVP-1000 Setting Page The User can change the setting values: ▶ To set up or modify the Decoder Setting Go to ‘General’ and Click ▶ To set up or modify the Password Go to ‘Registration’ and Click ▶... -
Page 26: Admin Setting Mode
Network Video Decoder SVP-1000 Full Manual 5. Admin Setting Mode 5.1. General Setting General setting • Date/Time ▶Date Type: It shows the structure of date Indication. ▶Time Type: It shows the type of time indication ▶Current Date: It shows the date of operation ▶Current Time: It shows the time of operation... -
Page 27: Registration Setting
Network Video Decoder SVP-1000 Full Manual ▶Brightness: It shows the Brightness of operation (0~100 value) 5.2. Registration Setting Registration Setting • Registration User ID: Input a user ID New Password: Type a new Password Confirm: To confirm, please type the New Password again. -
Page 28: Language Setting
Network Video Decoder SVP-1000 Full Manual 5.3. Language Setting Language Setting • Language setting Webpage Language: User can select the language of operation. -
Page 29: Information Setting
Network Video Decoder SVP-1000 Full Manual 5.4. Information Setting Remote VisualGate Setting • Remote VisualGate Setting : Following information should be correctly given. ▶IP: Input the IP address of the Video Server ▶Port: Input Port numbers of the Video Server ▶Login ID: Input the Login ID of the Video Server... - Page 30 (Usually, the format is selected automatically: PAL/NTSC, according to the type of camera,) • VisualGate Audio Setting ▶ Audio: It shows the status of audio of the VisualGate product which is in connection VisualGate RS-485 Setting ▶Bitrate: It shows Bitrates of the RS-485 which is in connection ▶Databit: It shows Databit of the RS-485 which is in connection...
-
Page 31: Network Setting
Network Video Decoder SVP-1000 Full Manual 5.5. Network Setting Network Setting • Decoder Network Setting : Following information should be correctly given. ▶IP ▶Gateway ▶DNS1 ▶DNS2 ▶Netmask ▶MAC Address • Decoder Firmware Information : I t shows Firmware Version. • Decoder Configuration Upload / Download :... - Page 32 Network Video Decoder SVP-1000 Full Manual 1) Download the newest Software from the web site which provides the firmware update file and save it in a PC. 2) Click 'Browse' and select the update firmware file in the search window.
-
Page 33: Appendix A. Video Server Connection Diagram
Network Video Decoder SVP-1000 Full Manual APPENDIX A. DECODER CONNECTION DIAGRAMS • Connection with an LED as visual Indicator • Relay Connection... - Page 34 Network Video Decoder SVP-1000 Full Manual • Other Connection...
-
Page 35: Appendix B. Troubleshooting
Network Video Decoder SVP-1000 Full Manual APPENDIX B. TROUBLESHOOTING Q. Video not displaying A. No electrical power: Check electrical connections A. Incorrect Video Server(SVG-3110) IP address and Decoder IP address: Check and correct the IP address of the Video Server in information setting (5. -
Page 36: Appendix C. Technical Specification Of Svp-1000
Network Video Decoder SVP-1000 Full Manual APPENDIX C. Technical Specification of SVP-1000 Video Decompression Standard: MPEG-4 Bit Rate: Max. 2Mbps Frame Rate: Max. 25/30 fps Output: Analog Composite, 1Vp-p, 75 Ohms, PAL or NTSC Audio Decompression Standard: G.711, G.726 Bit Rate: 64Kbps, 32Kbps...
