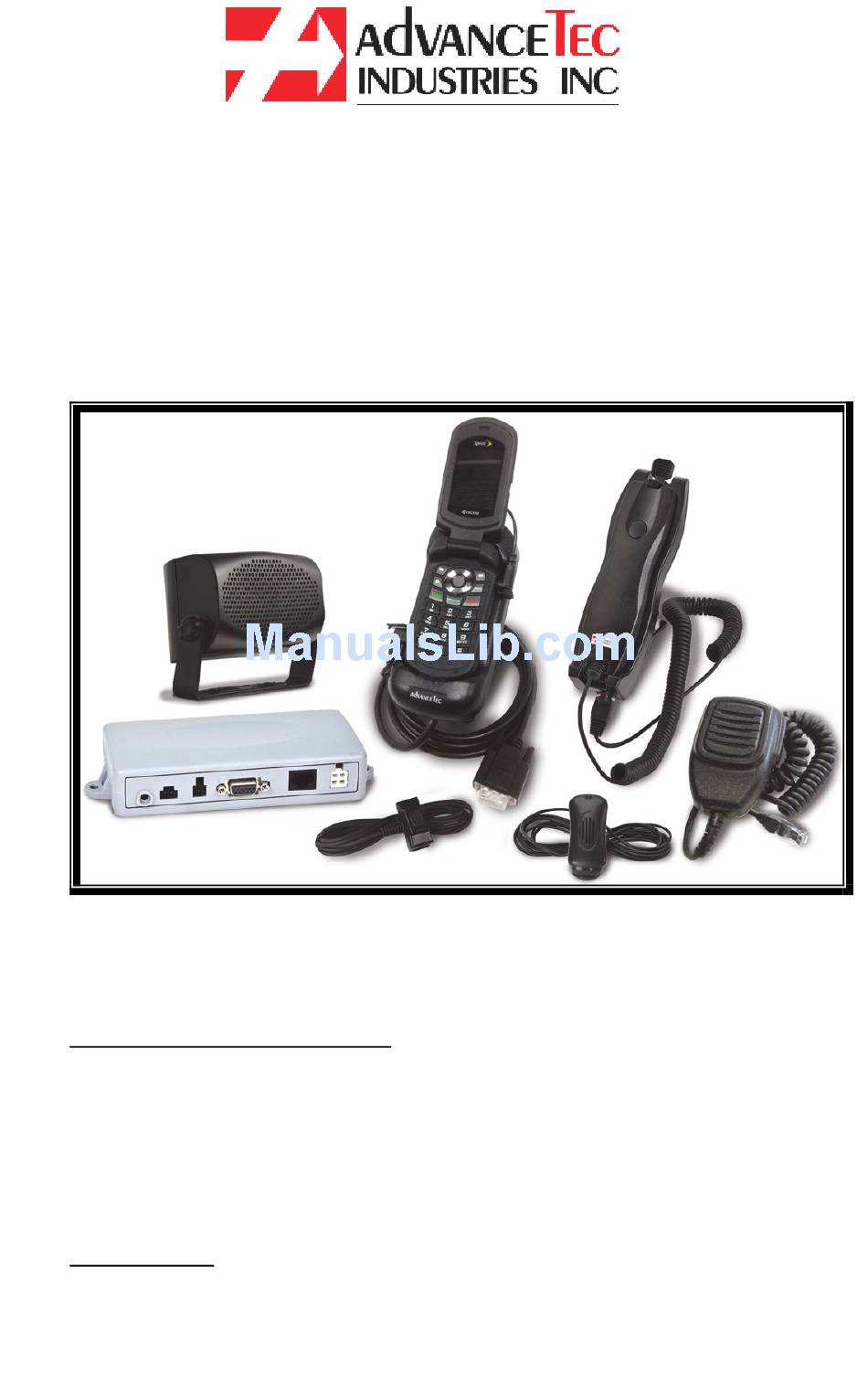

Pro Install Hands-Free Car Kit for
Kyocera™ DuraMax E4255
Car Kit Part # AT6697A consists of:
1. Part # AT8231A
2. Part # AT8256A
3. Part # AT8230A
4. Part # AT8232A
5. Part # AT9299B
6. Part # AT6696A
Optional Extras
1. Part #AT7107A
2. Part # AT8428A
User Manual
*Handset with Cradle and Palm
Mic. are Optional Extras
Speaker
Junction Box
Visor Microphone.
Power cable
PTT
Hands-free cradle
Privacy Handset
Palm Mic.
Advertisement
Related Manuals for DuraMax E4255
Summary of Contents for DuraMax E4255
- Page 1 User Manual Pro Install Hands-Free Car Kit for Kyocera™ DuraMax E4255 *Handset with Cradle and Palm Mic. are Optional Extras Car Kit Part # AT6697A consists of: 1. Part # AT8231A Speaker 2. Part # AT8256A Junction Box 3. Part # AT8230A Visor Microphone.
- Page 2 Index Page Details Important PHONE Settings Warnings 3 - 4 Speaker Installation 4 - 5 Microphone Installation 5 – 6 Mounting PTT 6 – 7 Power Cable Installation Connecting Cables to Junction Box Inserting and removing handset from cradle Car Ignition connection Making Dispatch Call Making/Receiving Hands-free call Call Waiting...
-
Page 3: Important Phone Settings
IMPORTANT PHONE SETTINGS The following are phone settings that are needed for operation with the AdvanceTec hands free : 1. Press > Settings > DC Settings > Direct Connect ON 2. Press > Settings > DC Settings > Headset Mode > Headset button starts DC calls. [DC button]. 3. Press > Settings > Others > Accessibility > TTY >TTY Off. 4. Increase or Decrease the hands free volume must be done while phone is connected to the hands free and is on an active call. Hands‐free Installation Before beginning the installation process, determine the best locations for the mounting of the Mounting Bracket, Hand‐free Cradle, Push‐To‐Talk (PTT) button, Visor Microphone, Speaker and Junction Box. Consider the following guideline when planning the installation: DO use all mounting hardware provided. DO ensure that cables are not placed under stress. DO follow proper + and ‐ connections. DO crimp connectors securely. DO NOT attach components to any part of the vehicle that is not rigid or is subject to excessive vibration. DO NOT install components in areas where rain or snow can easily get into them, such as next to a vehicle window, which may be left open. ... - Page 4 vehicle manufacturer's corporate headquarters, if necessary, for specific air bag information for the vehicle make, model, and front compartment configuration involved in your communication equipment installation. A. Speaker Installation 1. Mount the Speaker beneath the dashboard, on the passenger's side of the vehicle, out of the way of the passenger. Do not mount the Speaker on the dashboard or the rear window shelf. 2. The Speaker should be located more than four feet from the junction box. 3. The Speaker includes a mounting bracket, permitting it to be mounted in a variety of ways. Loosen the thumbscrews on the side of the speaker and using the mounting bracket as a template, drill the necessary mounting holes and secure the bracket with the self‐tapping screws provided. ...
- Page 5 2. The Microphone should be mounted either on the sun visor directly above and facing the driver, or on the headliner just above and facing the driver. Facing the driver Diagram 2 3. The visor microphone has a noise canceling feature and must be mounted facing the driver as shown in the picture above. 4. To avoid visual or physical obstruction, route the microphone cable down ...
- Page 6 2. To attach the PTT to a flat surface, remove the 2 screws from the bottom of the PTT, which holds the Velcro strip in place. Remove the strips and replace the small plastic part that held the strips in place with the larger flat plastic part supplied with the PTT. Screw the new plastic part in place. 3. Feed the cable out of sight to the location where you intend to mount the junction box. Caution: Make sure there is sufficient slack in the cable to allow the free movement of the gear lever without stretching the PTT cable. D. Installing the Power Cable Caution! The Car kit should be used with a negative ground electrical system only. Reverse polarity (positive ground) will trigger protection circuits which cause the cable fuse to open. Check the ground polarity before you begin the installation to prevent wasted time and effort. 12V ...
- Page 7 3. Cut the black lead to the desired length. 4. If the connection is being made under the dash or in the vehicle cabin, connect the black lead directly to the chassis of the vehicle. 5. If the connection is being made in the engine compartment, connect the in‐line fuse holder between the black lead of the power cable and the desired chassis connection point. Note! Do not connect the black lead to the negative (‐) battery terminal. The Car Kit could be damaged if there were a malfunction in the vehicle’s electrical system. 6. Cut the red lead to the desired length. This lead will be connected such that it has positive supply voltage at all times, even when the vehicle is turned off. 7. If the connection is being made under the dash or in the vehicle cabin, connect the red lead to a positive supply voltage point. 8. If the connection is being made in the engine compartment or directly to the battery, connect the in‐line fuse holder between the red lead of the power cable and the desired positive voltage connection point. ...
- Page 8 Connecting cables to Junction Box. 1. Locate a position for the junction box beneath the dashboard on the passenger's side of the vehicle or on the center side post between the front seats. It must be protected from dirt and moisture and must be afforded adequate space for cooling. There must be sufficient space to allow for connection of all cabling. ...
- Page 9 Press button on top of cradle to release phone Insert side audio cable Insert Micro USB connector Insert portable behind ridge on the cradle Diagram 7 3. Insert the bottom of the handset behind the ridge on the cradle and press the top of the handset back into the Cradle as shown in Diagram 7 above until it snaps into place. 4. Turn the Handset on. 5. To remove the handset from the Cradle, press the release button on the top of the cradle. The Handset will snap forward out of the cradle. ...
- Page 10 Making or receiving a hands‐free telephone call 1. To receive an incoming hands‐free telephone call, press the Green phone key, on the handset’s keypad or the PTT button for a short period. A confirmation tone that the call has been answered will be heard through the speaker NOTE! If the PTT button is pressed for more than 2 seconds it will reject and end the call. 2. To make a hands‐free telephone call, place the handset into the cradle and dial the desired number on the handset's keypad and press the phone key. ...
-
Page 11: Optional Extras
Optional Extras AT7107A – Handset with Cradle Part # AT7107A – Privacy Handset with Cradle 1. To use the Privacy Handset, plug the connector on the end of the coil cord into the corresponding RJ45 receptacle on the Junction Box. See Diagram 6 above 2. An active call can be terminated and an incoming call can be rejected by pressing the PTT button on the back of the Privacy handset for more than 2 seconds. 3. To switch from an active call with the Privacy handset to hands‐free operation, place the Privacy handset into its cradle. Audio will then be routed to the speaker. If the PTT is pressed for more than 2 seconds, it ... - Page 12 AT8428A – Palm Mic. Part # AT8428A – Palm Mic 1. To use a Palm Mic. plug the connector on the end of the coil cord of the Palm Mic. into the corresponding RJ45 receptacle on Junction Box. See Diagram 6 above. 2. Once connected, the pressing of the switch on the Palm Mic. will deactivate the Visor Mic. and activate the Palm Mic. ...
