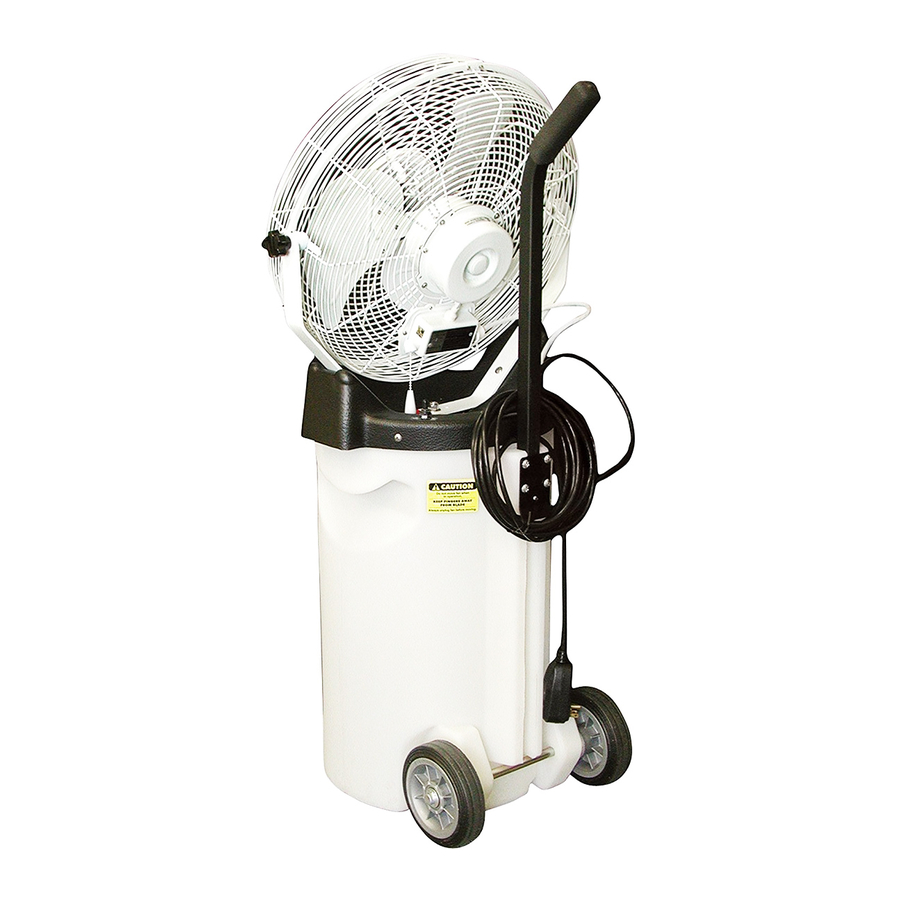

Self-Contained Power Mister
IMPORTANT SAFETY INFORMATION INSIDE
• Serious injury or death is possible.
• Retain these instructions for future reference.
actoolsupply.com
actoolsupply.com
USER'S MANUAL
PVM18
WARNING
actoolsupply.com
• Read, understand and follow all safety information
and instructions in this manual before using or
servicing this product.
PVM18C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schaefer VersaMist PVM18 Series
Summary of Contents for Schaefer VersaMist PVM18 Series
- Page 1 actoolsupply.com actoolsupply.com Self-Contained Power Mister USER'S MANUAL PVM18C PVM18 WARNING IMPORTANT SAFETY INFORMATION INSIDE • Read, understand and follow all safety information • Serious injury or death is possible. • Retain these instructions for future reference. and instructions in this manual before using or servicing this product.
- Page 2 Schaefer VersaMist PVM18C-B Portable Misting Fan Schaefer VersaMist PVM18C Portable Misting Fan Schaefer VersaMist PVM18LC-B Portable Misting Fan Schaefer VersaMist PVM18LC Portable Misting Fan Schaefer VersaMist PVM18-B Portable Misting Fan Schaefer VersaMist PVM18 Portable Misting Fan actoolsupply.com actoolsupply.com...
-
Page 3: Table Of Contents
actoolsupply.com Index SPECIFICATIONS ........................2, 3 CART ASSEMBLY ........................4 SET-UP / OPERATION ......................5, 6 MAINTENANCE ..........................7 REPLACEMENT PARTS........................7 WARRANTY ..........................8 Thank You! Thank you for selecting our self-contained power misting equipment for your comfort conditioning needs. These products have been engineered with the most reliable components and materials available, are are equipped with features to assure ease of mobility, use and maintenance. -
Page 4: Specifications
actoolsupply.com Specifications (continued) PVM18LC • One 18" fan head with white powder-coated guard mounted on a yoke attached to the pump enclosure. • An integral ground fault circuit interruptor (GFCI) is attached to the power cord. • Equipped with a power cutoff tip switch. •... -
Page 5: Cart Assembly
actoolsupply.com PVM18C Cart Assembly Remove all items from cartons, remove packing material and place on a level surface. The fan is mounted on the bracket and the pump assembly is contained in the lid, so please remove carefully. STEP 1 - ASSEMBLE CART TOOLS REQUIRED: Two 1/2"... -
Page 6: Set-Up / Operation
actoolsupply.com Set-Up / Operation Always operate the power mister on a level surface. In the WARNING event the unit is tipped over or tilted more than 35 degrees, a built-in tip switch will shut off power to the pump and fan. Power will be restored when unit is returned to the upright ELECTRICAL SHOCK position. - Page 7 actoolsupply.com Set-Up / Operation (continued) CAUTION • Never operate pump without water supply. • If leaks are observed, turn pump off and tighten fittings by hand. • Excessively hard water (high solids) can plug nozzles. • A plugged filter caused by poor water quality can restrict flow to pump and cause permanent damage. •...
-
Page 8: Maintenance
actoolsupply.com Maintenance NOZZLES WARNING The fog or spray pattern exiting from the nozzles should have an even cone shape. If this is not the case, the nozzle should be cleaned or replaced. Nozzle function should be ELECTRICAL SHOCK checked regularly to assure best misting and evaporation HAZARD performance. -
Page 9: Warranty
Schaefer Ventilation Equipment, LLC Schaefer Limited Warranty Policy Schaefer Ventilation Equipment, LLC (SVE) provides the following limited warranty from the date of purchase to the original purchaser of our products: Two-year coverage (unless otherwise indicated below) applies to all products, components and assemblies provided by SVE that prove to be defective in material or workmanship.
