Pre-Installation Manual

SkyVision Linx 300

Integration Control System

TEC-R-0049 REV2

08/05/2015

Table of Contents

Need help?

Do you have a question about the Linx 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for SkyVision Linx 300

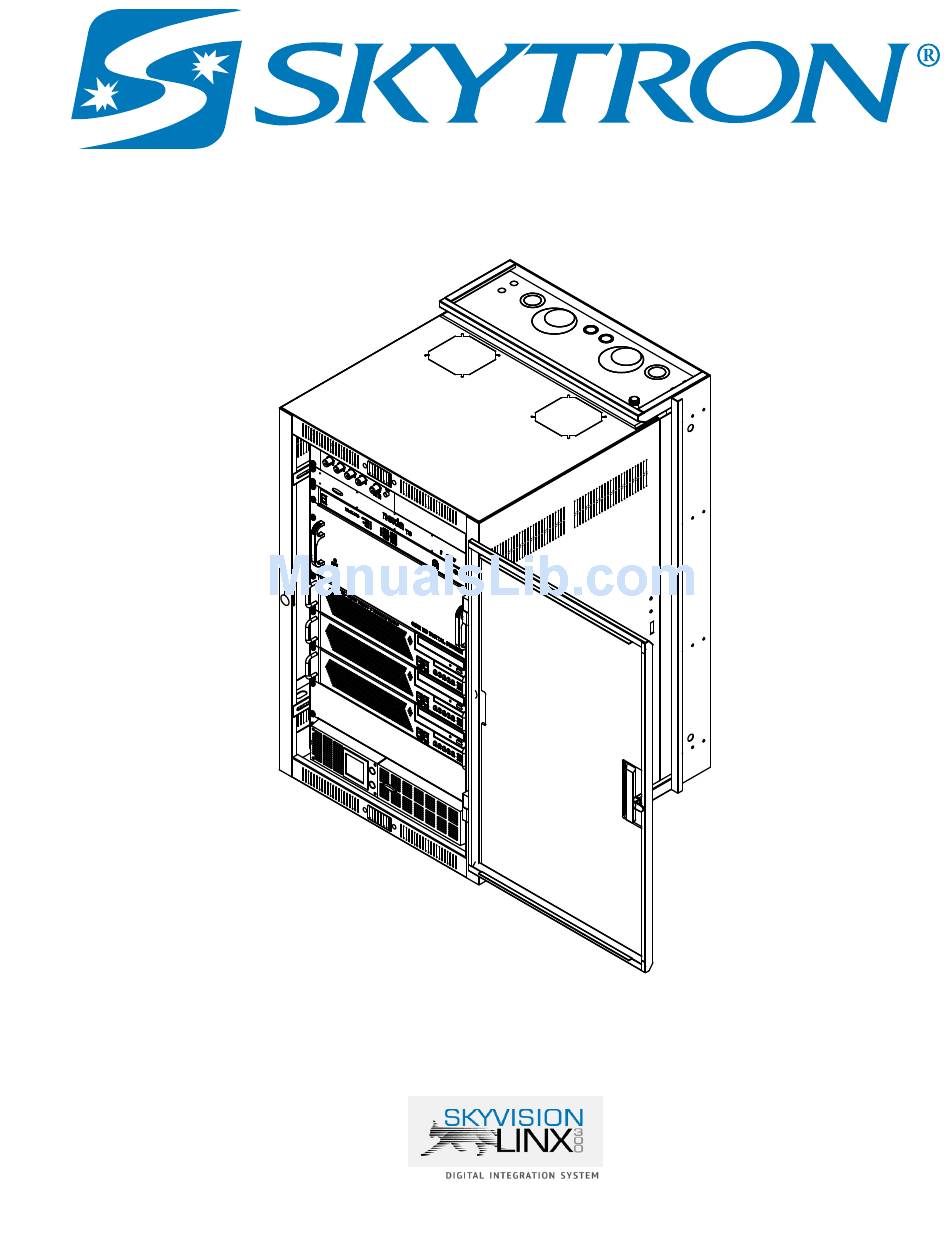

Page 1 Pre-Installation Manual SkyVision Linx 300 Integration Control System TEC-R-0049 REV2 08/05/2015...
Page 2 Distributed by: US - SKYTRON 5085 Corporate Exchange Blvd. S.E. Grand Rapids, MI 49512 (616) 656-2900 www.skytron.us The base language for this document is ENGLISH. Any translations must be from the base language document. Printed copies are not controlled documents. Although current at the time of publication, SKYTRON'S policy of continuous development makes this manual subject to change without notice.
Page 3: Table Of Contents
2-7. Remote Rack Locations......................11 2-8. Connections ..........................12 2-9. Network ..........................16 SECTION 3. Installation RESPONSIBILITIES ................18 3-1. SKYTRON Responsibilities ....................18 3-2. Customer Responsibilities ...................... 18 SECTION 4. REVISION HISTORY ....................23 SkyVision Linx 300 Pre-Install• REV2...
Page 4 Page 2 SkyVision Linx 300 Pre-Install • REV2...
Page 5: Section 1. Introduction
Page 3 SECTION 1. INTRODUCTION The SKYTRON SkyVision Linx 300 Integration Control System installation can vary according to the specific equipment needs of the OR facility. What is common in all installations is that video and data input sources are routed to various outputs such as displays, video recorders, or networks providing communication and video conferences.
Page 6: Section 2. Requirements
60˚ and 75˚ Fahrenheit with non-condensing humidity between 20% to 50%. The SkyVision Linx 300 system components will generate up to 2900 BTU's/hr. when fully equipped and under maximum load during peak operating times. Mechanical and HVAC designs of the SKYTRON...
Page 7: Rack Mounting

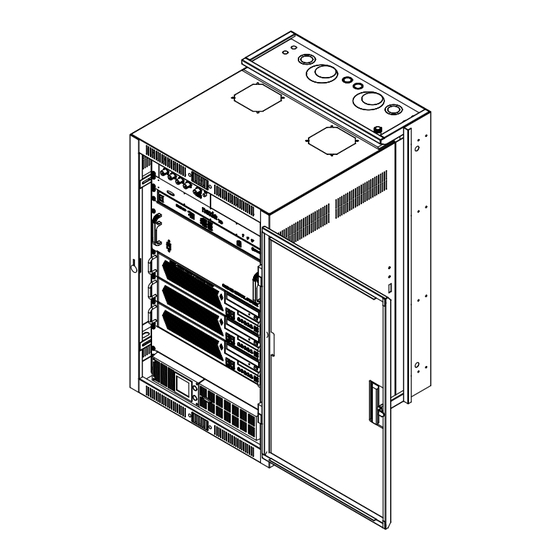

Page 5 2-4. Rack Mounting The SKYTRON SkyVision System is offered in a single 18U wall mounted rack, that does NOT stand on the floor, or as part of a NDC in two (2) 12U racks. NOTICE For Siesmic mounting specifications, refer to the Middle Atlantic Products letter for "Seismic Certification of the DWR Series Wall Mounted Electronics...
Page 8 Dimension 38-1/2" 12-1/2" 22-3/4" CONDUIT 1-3/8" BOXES 16" 5-3/8" (4) MOUNTING HOLE LOCATIONS 2-11/16" 13" 4" B x B 33-1/4" 5-7/8" 4-3/8" RACK Figure 1. Rack Mounting and Junction Box Location (Left-Hand Swing Cabinet) SkyVision Linx 300 Pre-Install • REV2...
Page 9 (4) MOUNTING Letter Dimension HOLE LOCATIONS 38-1/2" 12-1/2" 22-3/4" CONDUIT 1-3/8" BOXES 16" 5-3/8" 2-11/16" 13" 4" B x B 33-1/4" 5-7/8" 4-3/8" RACK Figure 2. Rack Mounting and Junction Box Location (Righ-Hand Swing Cabinet) SkyVision Linx 300 Pre-Install• REV2...
Page 10 JUNCTION BOX (PROVIDED BY CUSTOMER) TO BE ROUGHED IN BY THE CONTRACTOR. MOUNT THE POWER OUTLETS IN BOX AS SHOWN. 10 AWG GREEN STRANDED WIRE Figure 3. Left-Hand Swing Installation with Junction Box Termination SkyVision Linx 300 Pre-Install • REV2...
Page 11 AIR SYSTEM (DUCTS) IF THE JUNCTION BOX MUST BE LOCATEDD ON THIS SIDE, THE CONTENTS OF EACH RACK MUST BE SWITCHED. THE CONDUITS MUST EXIT AT THE DIGITAL MATRIX SWITCH. Figure 4. NDC Junction Box Location SkyVision Linx 300 Pre-Install• REV2...
Page 12: Display Power Management
The appropriate cable between the camera and the capture device must be provided by the equipment vendor. The SkyVision system will process the capture device output signal, rather than the camera output signal (to maximize functionality), and route the output signal, as limited by the technology of the capture device unless specified otherwise on the OPI document.
Page 13: Remote Rack Locations
This method is limited to capturing only the camera source as the surgeon would need to have the camera in hand when capturing. This is not a standard option to integrate with SkyVision because of the many endoscopic vendors. Additionally, the SkyVision foot pedal option (SVIS-FTSW or SVIS-WFTSW) can be used to capture any source that is set as the "Capture Source"...
Page 14: Connections
Low voltage power lines are the only other type of connection utilized to and from the SkyVision system. Copper wiring is only employed between components at the rear of the SkyVision control rack. See Figure 7 and for a typical system build drawing set (plan and elevation views) that shows a layout of the affected room(s), equipment, and cable routing.
Page 15 Page 13 4” x 4” x 3-1/2” DEEP DOUBLE-GANG ELECTRICAL WALL BOX RACO MODEL 256 OR EQUIVALENT GARVIN 52181-S RAC0 256 SINGLE-GANG MUD RING Figure 6. Electrical Boxes SkyVision Linx 300 Pre-Install• REV2...
Page 16 Page 14 Figure 7. Typical System Build Drawing (Plan View) SkyVision Linx 300 Pre-Install • REV2...
Page 17 Page 15 Figure 8. Typical System Build Drawing (Elevation View) SkyVision Linx 300 Pre-Install• REV2...
Page 18: Network
Printer Location Standard provided Printer Network Printer b. Analog Phone Line Drop One anlog phone line is required for the audio conference option Required or w/Option Device Drop Location SVIS-AUD Audio DSP (Nexia) Rack SkyVision Linx 300 Pre-Install • REV2...
Page 19 10000 Kb/s 30 fps 65 min. 7 min. 3 sec. d. VPN and Remote Diagnostics The following ports must be open for remote VPN and diagnostics: • 5900 - Remote VNC • 3000 - Remote Diagnostics SkyVision Linx 300 Pre-Install• REV2...
Page 20: Section 3. Installation Responsibilities
Customer will provide SKYTRON with the dates for cable installation, boom and light installation, and agree on specific dates for SkyVision system installation. Notices for cable installation and system installation must be given no less than 21 days prior to start of work.
Page 21 SKYTRON to complete system installation and testing. If customer provided systems are not in place and working during the SKYTRON installation, delays in the SkyVision installation may occur and result in additional daily charges of $1900.00 per day, per technician, to be added to the final invoice.
Page 22 $1900.00 per day, per technician. Pre-Install Inspection The inspection must be performed by one Skytron SkyVision Technician, the local Skytron Account Representative, the on-site customer contact and pertinent contractor representatives. Pre-install site evaluation The evaluation consists of a review of the project documentation during a “walk through”...
Page 23 INCOMPLETE INSTALLATION VERIFICATION ARE SUBJECT TO BILLING Printed Name: Date: Skytron Representative : Signature: ____________________________________________________ Hospital Representative: Signature: ____________________________________________________ Contractor Representative: Signature: ____________________________________________________ Other Representative (A): Signature: ____________________________________________________ Other Representative (B): Signature: ____________________________________________________ Page 2 of 3 SkyVision Linx 300 Pre-Install• REV2...
Page 24 Page 22 FDA 0900-36 REV0 Are there any changes or additions not addressed by this list? Notes: Page 3 of 3 SkyVision Linx 300 Pre-Install • REV2...
Page 25: Section 4. Revision History
Page 11 and 16, changed "VIS" to "SVIS" in several places as a correction. • Page 18, changed "dedicated and isolated electrical supply" to "GFCI protected electrical supply" in Section 3.2 (Customer Responsibilities). 08/05/2015 Corrected the REV number from TEC-R-0047 to TEC-R-0049 SkyVision Linx 300 Pre-Install• REV2...
Page 26 Page 24 NOTES SkyVision Linx 300 Pre-Install • REV2...
Page 27 Page 25 NOTES SkyVision Linx 300 Pre-Install• REV2...
Page 28 5085 Corporate Exchange Blvd. S.E. Grand Rapids, MI 49512 • 616.656.2900 • FAX 616.656.2906...
