- Page 1 Gozinta User Manual...

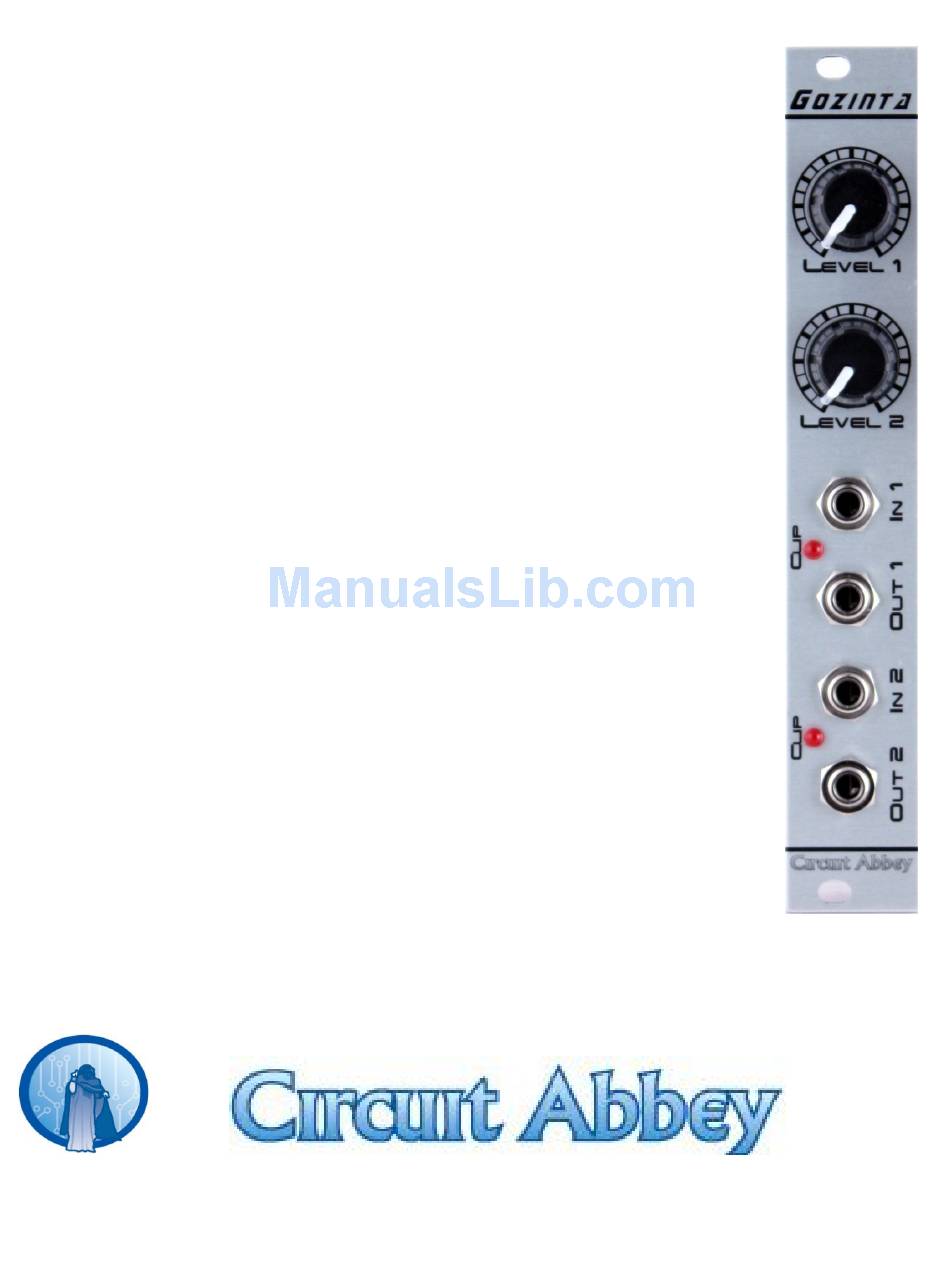

- Page 2 Gozinta Description The Gozinta is an input module capable of amplifying line level signals to Eurorack levels. The 2 independent channels have nominal 24dB gain and include front panel attenuators. Ultra- modern amplifier ICs give this module excellent performance characteristics. Clip LEDs show when output levels are about to clip.
- Page 3 Front Panel Interface: Gozinta Level 1 & 2: Adjusts the gain of their respective channels, from 0 to max gain In 1 & 2: Inputs for each amplifier Out 1 & 2: Outputs for each amplifier Clip LEDs: Shows when the amplifiers have reached maximum output...
- Page 4 Jumper locations – Gozinta Rev B Channel 1 jumpers Place jumper here for DC operation (LFOs, etc) Max gain jumpers: ‘low’ for 12dB gain ‘med’ for 24dB gain No jumper for 36dB gain Channel 2 jumpers Power connector...
- Page 5 Jumper locations – Gozinta Rev A Channel 1 jumpers Max gain jumpers: Place jumper here for Channel 1 DC operation ‘low’ for 12dB gain (LFOs, etc) ‘med’ for 24dB gain No jumper for 36dB gain Channel 2 jumpers Place jumper here for...
- Page 6 Module Width 4HP (20mm) Module Depth 37mm Power Connector Standard Doepfer 16 pin Power Requirements ± 12 Volts at 20mA Max Input Impedance 20K Ohms Output Short circuit protected...
