INSTRUCTION MANUAL

CS184-A

1500W

184mm (7 1/4")

Circular Saw

Table of Contents

Need help?

Do you have a question about the CS184-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Automatic CS184-A

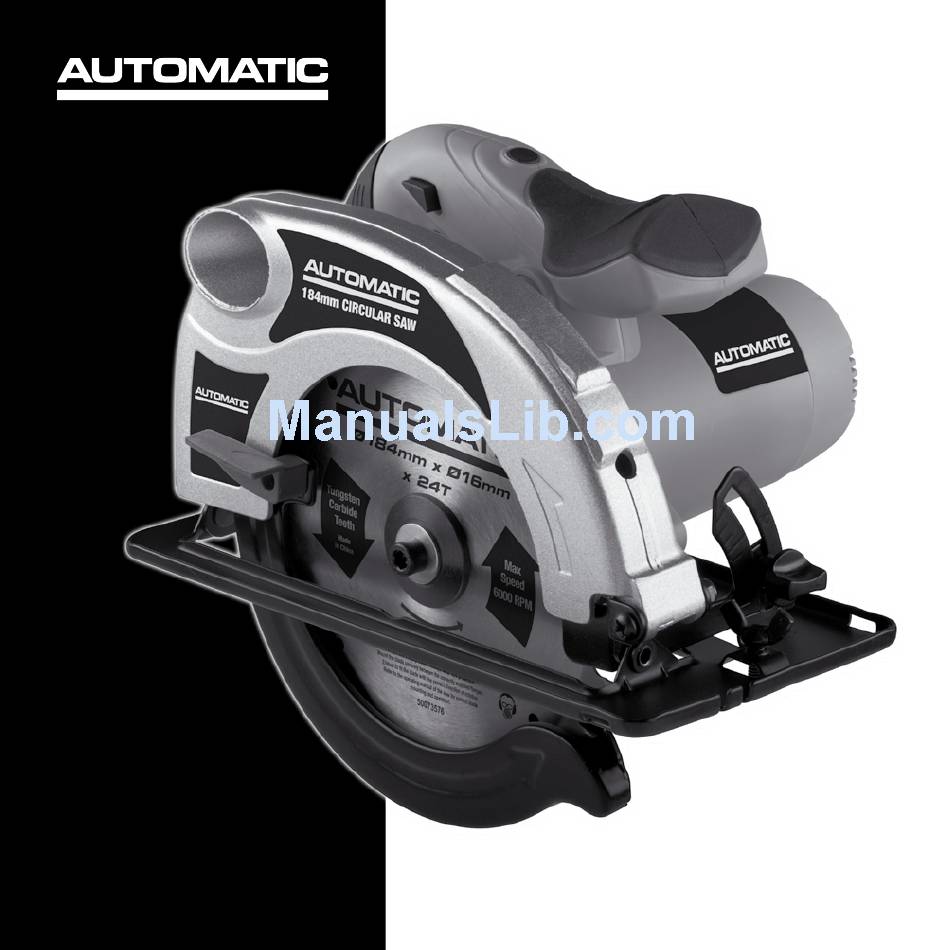

Page 1 INSTRUCTION MANUAL CS184-A 1500W 184mm (7 1/4”) Circular Saw...
Page 2: Table Of Contents
Contents Warranty Warranty Power Tools Introduction 1 Year Repair Warranty. Register your warranty at www.automatictools.com.au Environmental protection All warranty conditions can be found on the Description of symbols www.automatictools.com.au website or email Specifications help@globalpowerbrands.com or call 1800 909 909 General safety rules Additional safety rules for circular saws Accessories Unpacking...
Page 3: Introduction
Introduction Regulatory Compliance Mark. Appliance complies with requirements of electrical Your new AUTOMATIC power tool will more than satisfy approval & EMC in Australia your expectations. It has been manufactured under Do not throw the electronic waste products into stringent AUTOMATIC Quality Standards to meet the domestic waste refuse.
Page 4: General Safety Rules
General safety rules f) To reduce the risk of electric shock, the manufacturer recommends the use of a residual current device WARNING. Read all safety warnings and all instructions. with a rated residual current of 30mA or less at Failure to follow the warnings and instructions may result in all times.
Page 5: Additional Safety Rules For Circular Saws
4) Power tool use and care i) Children should be supervised to ensure that they do not play with the appliance. a) Do not force the power tool. Use the correct power 5) Service tool for your application. The correct power tool will do the job better and safer at the rate for which it was a) Have your power tool serviced by a qualified repair designed.
Page 6 f. When ripping always use a rip fence or straight edge c. When restarting a saw in the workpiece, centre the guide. This improves the accuracy of cut and reduces saw blade in the kerf and check that saw teeth are not engaged into the material.
Page 7: Accessories
Due to modern mass production techniques, it is unlikely cuts.” Raise lower guard by retracting handle and as that your Automatic Power Tool is faulty or that a part is soon as blade enters the material, the lower guard missing. If you find anything wrong, do not operate the tool must be released.
Page 8: Know Your Product
Know your product 1. On/Off Trigger switch 2. Lock-off button 3. Motor housing 4. Main handle 5. Front handle 6. Bevel adjustment knob 7. Bevel scale 8. Parallel fence locking wingnut 9. Parallel fence 10. Blade guard lever 11. Lower blade guard 12.
Page 9: Overview
The correct blade depth setting for all cuts should not be more than (6.35mm) 1/4” below the material being cut. You have purchased an Automatic Circular Saw. Allowing more depth will increase the chance of kickback Please refer to the safety instructions given earlier in this and result in a rough cut.
Page 10: Switching On And Off
Note. Always make a trial cut in a scrap piece of material 5. Rest the front edge of the along a guideline to determine how much you should offset base on the work piece the blade from the guideline to make an accurate cut. (Fig.
Page 11: Making A Pocket Cut
Making a pocket cut Using the parallel fence 1. Adjust the depth of cut as required. The parallel fence allows you to make parallel cuts in a sheet of wood, all at the same width. 2. Adjust the bevel setting to 0°. CAUTION.
Page 12: Changing The Blade
Changing the blade 8. Mount the new saw blade onto the spindle and against CAUTION. Always ensure that the saw is switched off the inner flange. Check the and unplugged from the power supply before making any direction of rotation of the adjustments.
Page 13: Maintenance
Maintenance CAUTION. Do not use cleaning agents to clean the plastic parts of the tool. A mild detergent on a damp cloth is WARNING. Always ensure that the tool is switched off and recommended. Water must never come into contact the plug is removed from the power point before making any with the tool.
Page 16 DISTRIBUTED BY: Global Power Brands International Pty. Ltd. PO Box 413 Mooroolbark VIC 3138 ABN. 39 131 999 914 Ph. 1800 909 909 help@globalpowerbrands.com...
