Summary of Contents for Valencia Euro EV6004WH

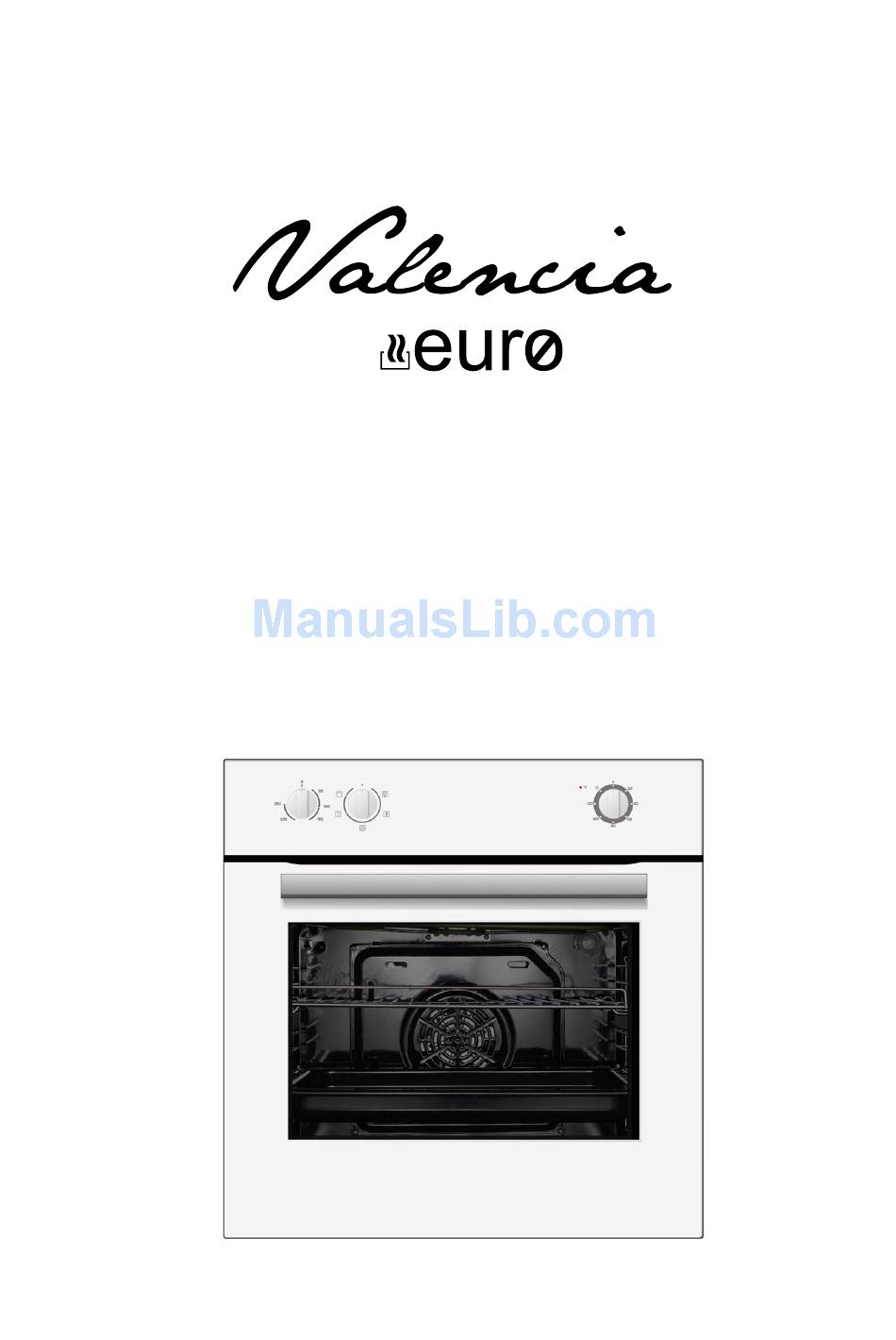

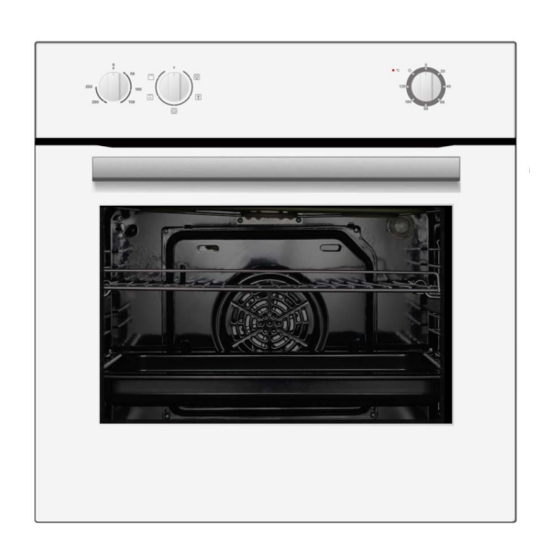

- Page 1 EV6004WH Built-In Electric Oven User Manual...
- Page 2 ACKNOWLEDGMENT Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.
-
Page 3: Safety Hints
SAFETY HINTS Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet. For oven: Oven door should not be opened often during the cooking period. The appliance must be installed by an authorized technician and put into use. -
Page 4: Product Description
HOW TO USE Stay on: For the oven to be used in the " ". the food may catch fire if the cooking time is set too long. Close supervision is necessary during toasting and the time should not be set too long. NOTE: For cooking times which are under sixty minutes, first set to a longer time and then turn the switch back to the time you require. -
Page 5: Shelf Placement Warning
ACCESSORIES Wire shelves : For grill .dishes, cake pan with items for roasting and grilling. Slider bracket : These shelf support rails on the right and left sides of the oven can be removed for cleaning oven walls. Universal pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc,or for collecting fat/ spillage and meat juices. - Page 6 This s door is re emovable do oor, also in ner glass is s removable e constructio on, the rem moval proc cedure is as below: 1、 F Firstly as sho own in figure 1-1, open the e oven door to maximum position, stir r the toggle c...
- Page 7 3、As shown in Figure 3-1, there are two layers between the door bracket and the rubber bumper, the middle glass can be inserted into the empty area between the two layers. For removal of the middle glass, user can refer to step 1 and step 2 shown in Figure 3-2, remove the middle glass in layer 1 first, then follow the step 1 and step 2 shown in Figure 3-3 to remove the middle glass in layer 2.
-
Page 8: Bulb Replacement
BULB REPLACEMENT The bulb in the light is a special bulb, and has high temperature resistance (240V~25W). For replacement, proceed as follows: 1>.Disconnect power from the mains outlet or switch off the circuit breakerof the unit's mains outlet. 2>.Unscrew the covering glass and replace the bulb with a new one of the same type. -
Page 9: Cleaning And Maintenance
CLEANING AND MAINTENANCE For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly. - Page 10 Table and tips Time Cooking Shelf Temp. 1st side 2nd side Food Weight Dish Method position (min.) (min.) Baking tray Beef 10-15 8-10 Pork 90-100 ------ wire shelves 1.2kg ------ Chicken 50-60 wire shelves Small cakes ------ wire shelves 0.3-0.4kg 20-25 wire shelves 1.2kg...
Need help?
Do you have a question about the EV6004WH and is the answer not in the manual?
Questions and answers
My oven will not heat. is there a heating element which might need replacement?
The Valencia Euro EV6004WH oven may require a heating element replacement if it will not heat. However, other factors such as electrical connections, thermostat settings, or a faulty timer could also cause the issue. It is recommended to check these components before replacing the heating element.
This answer is automatically generated
