Summary of Contents for Life Fitness LCR7i

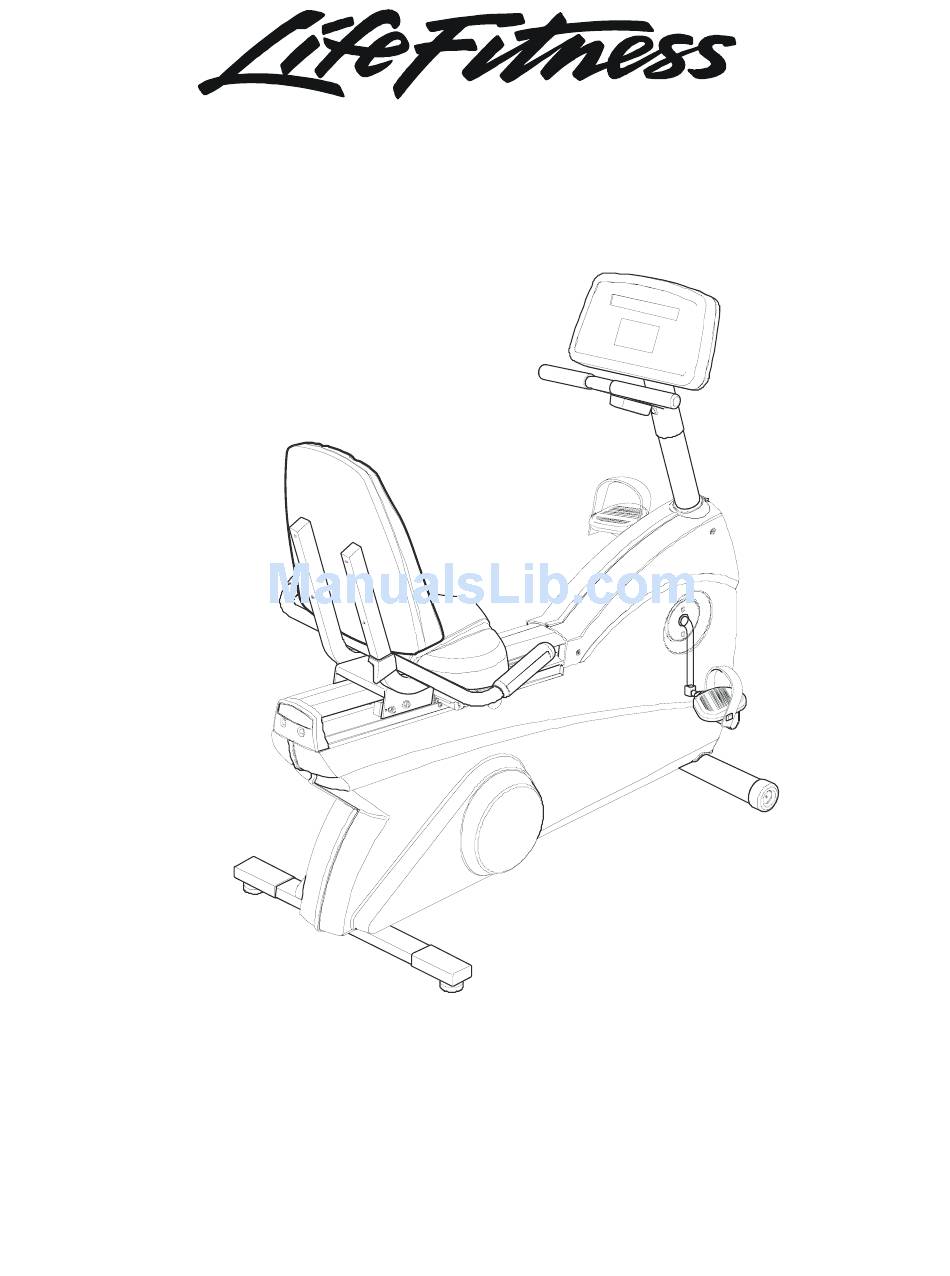

- Page 1 LCR7i Exercise Bike Customer Support Services PARTS MANUAL revised 29 Feb 2008...
- Page 2 LCR7i Exercise Bike Battery Cover(Black) OK36-01035-0006 Console Case(Black) OK36-01187-0006 Seat Back Assembly OK51-01055-0000 End Cap Assembly AK52-00027-0000 End Cap Decal 0K51-01048-0002 Stabilizer Bar SK18-00070-0000 Display Console AK52-00021-0001Eng/Met AK52-00021-0003 Ger/Met AK52-00021-0007 Frn/Met Polar HR Kit SK40-00045-0001 Pedal w/Strap(L) AK17-00189-0002 Seat Bottom...
- Page 3 LCR7i Exercise Bike Bearing w/ Cranknut (LT) AK18-00029-0001 Tabbed Lockwasher 0K18-01280-0000 Left Cranknut 0K18-01032-0008 Extruded Tube Assembly AK51-00036-0000 Alternator Control Board AK51-00052-0000 Alternator Pulley Assembly AK17-00106-0000 Alternator Cable Assembly AK51-00061-0000 Crank Bearing Kit GK51-00002-0001 Idler Arm Bracket 0K51-01022-0000 Grip 0K14-01124-000...
- Page 4 LCR7i Exercise Bike End Cap 0K19-01208-0000 Seat Assembly w/o Back AK51-00027-0000 Locking Mechanism AK51-00053-0000 Roller Guard 0OK51-01059-0000 Shroud w/ Decal(RT) SK52-00023-0001 Shroud Screw(11) 0017-00101-0991 HR Wire Harness AK19-00081-0001 Wheel Assembly SK51-00054-0000 Wheel Bearing Assembly Insert Screw SK18-00016-0000 0017-00101-1611 Wheel Inserts...
