INSTRUCTIONS MANUAL
INTRODUCTION
Thank you for purchasing the R2 Finder, the world's most advanced tracking system.
Please read this instruction manual carefully and place close attention to the operating instructions and the
"tracking tips" section.
PARTS OF THE RECEIVER MENU ITEMS

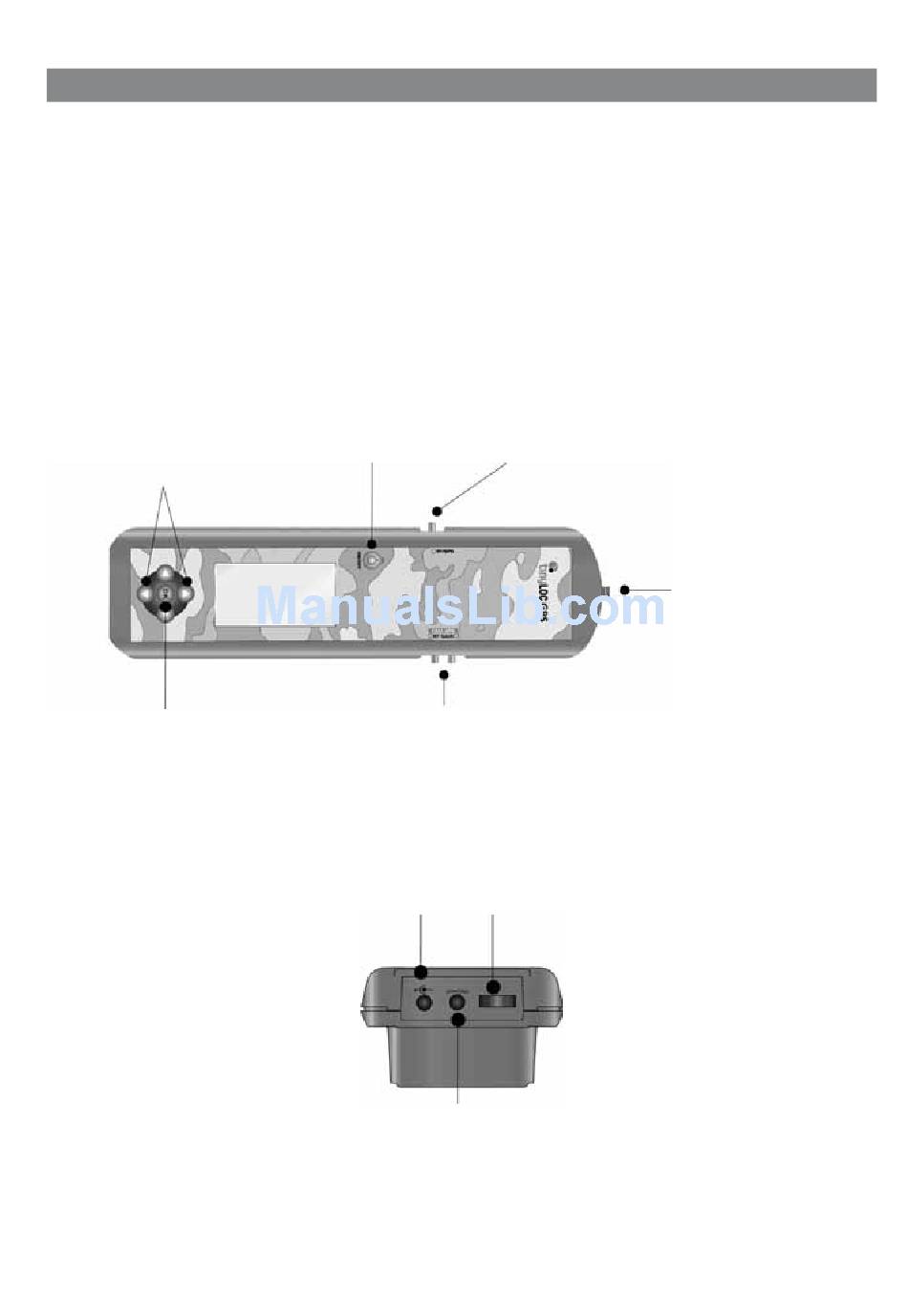

Figure 1
Change the TAG
On/off button / "Back"
you are tracking
menu button
Switch to go between GPS and radio-tracking mode
Connector for external
antennas
Go to "Menu" / OK
Buttons to increase and decrease the gain
(i.e., the radio-tracking signal receiving power) /
GPS position request
USB slot
Power jack
Headphone jack
