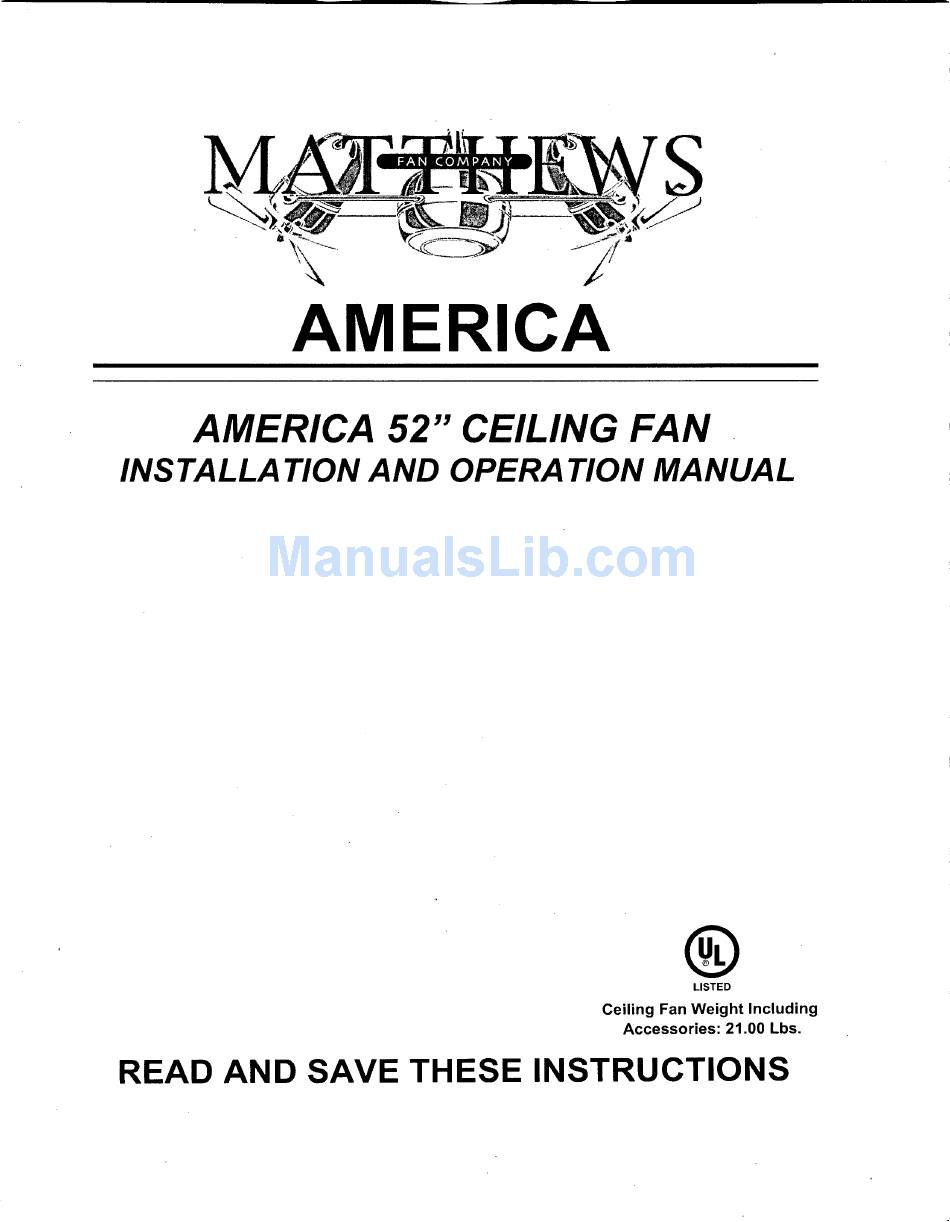

AMERICA 52" CEILING FAN INSTALLA TION AND OPERA TION MANUAL LISTED Ceiling Fan Weight Including Accessories: 21.00 Lbs. READ AND SAVE THESE INSTRUCTIONS... -
Page 2: Table Of Contents
TABLE OF CONTENTS Tools and Materials Required Package Contents Safety Rules Mounting Options Hanging the Fan Make the Electric Connections Finishing the Installation Attaching the Fan Blades Operating Your Fan Care of Your Fan Troubleshooting... -
Page 3: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED • Philips screwdriver \ \ \1\ ~ • Blade screwdriver • 11 mm wrench • Step ladder • Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Blade set (5) Hanger bracket Canopy... -
Page 4: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. To avoid personal injury or damage to the fan electricity has been turned off at the circuit and other items, be cautious when working breaker or fuse box before beginning. around or cleaning the fan. -
Page 5: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 6: Hanging The Fan
5. HANGING THE FAN REMEMBER to turn off the power. Follow the steps below to hang your fan properly. NOTE: This ceiling fan is supplied with two types of hanging assemblies; the standard ceiling installation using the down rod with ball and socket mounting "close-to-ceiling"... - Page 7 ClOSE-TO-CEILING INSTAllATION 1. Remove the decorative canopy bottom cover '"'.' from the canopy. (Fig. 8) 2. Pass the 120-volt supply wires through the =~=~ center hole in the ceiling hanger bracket as ____ Canopy bottom cover shown in Fig. 5. Figure 8 3.
-
Page 8: Make The Electric Connections
CHANGING THE DOWN ROD (Optional) NOTE: Your fan comes with a 3" downrod attached to ..- Cross pin the hanger ball. In addition, a 9" downrod has )een a;:::::::::> provided to be used in case the ceiling is higher, Perform the following steps for correct installation: Hanger"'---'~ ball 1. -
Page 9: Finishing The Installation
7. FINISHING THE INSTAllATION Outlet box --. ---- ..• +- Screws Hanger STANDARD CEILING INSTAllATION bracket Slide canopy up to the ceiling as shown in Figure Canopy 13. Make sure you place the wires safely into the outlet box. Secure the canopy to the hanger bracket with the four screws with your fan. -
Page 10: Attaching The Fan Blades
8. ATTACHING THE FAN BLADES Caution: Remove 5 rubber packing mounts and discard before installation. Step 1 Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 15. Start screw into bracket. Repeat for the two remaining screws. - Page 11 9. ATTACHING THE LIGHT (Optional) Lock washer _Switch -.IS Plug housing 1. Remove the switch housing cover from the _---_ cover ..•..switch housing. Remove the plug from the switch housing cover, attach the light kit to the switch housing cover by feeding the light kit wires (black and white) through the hole of switch housing cover and then screw it onto the switch housing cover by nut...
-
Page 12: Operating Your Fan
10. OPERATING YOUR Turn on the power and check the operation of your fan. The pull chain controls the fan speed as > follows:. < 1. 3-speed pull chain- it controls the fan speed as follows: 1 pull- High, 2 pulls- Medium, 3 pulls- Low, and 4 pulls- Off. -
Page 13: Care Of Your Fan
11. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2.
