Digium IAXy Configuration Manual

IAXy Configuration Guide
Hello! and thank you for purchasing the Digium IAXy ATA Device! The IAXy is a single-port Ethernet-to-telephone adapter,
speaking the Asterisk-native IAX protocol, and designed for use with Asterisk, The Open Source PBX. This document covers
layout, power requirements, booting and provisioning of the IAXy. If you have any questions, please feel free to send an
e-mail to <support@digium.com>.
Physical Layout

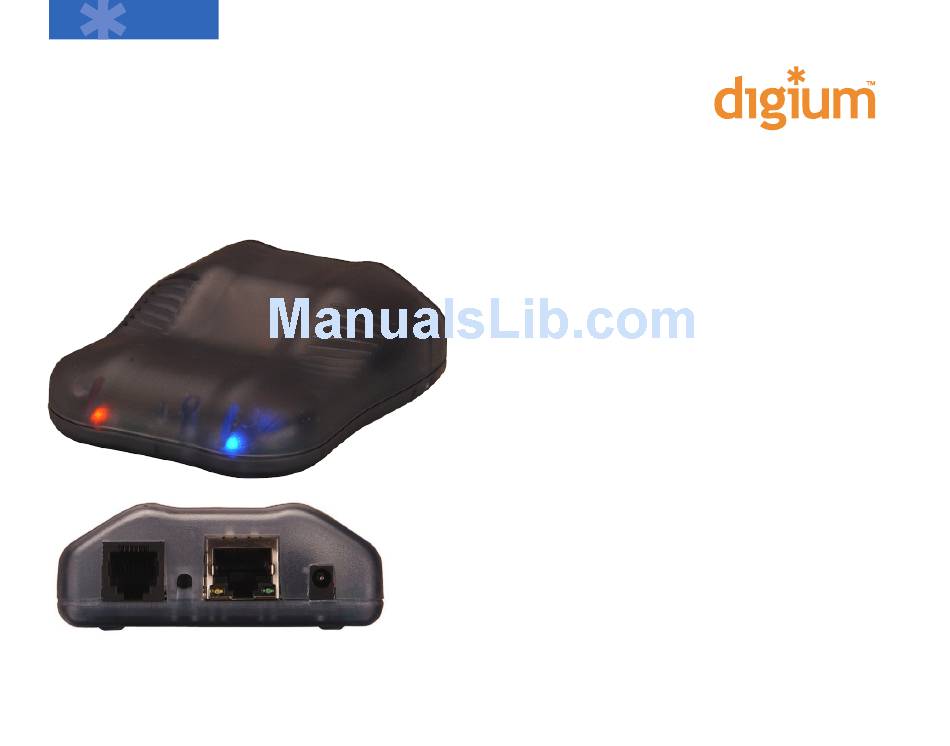

The back side of the IAXy features four components.
From left-to-right they are: RJ11 telephone interface, a small
recessed Reset button, 10baseT Ethernet interface, and Power
interface.
The IAXy measures 65mm x 65mm x 28mm (w x d x h).
Power Requirements
(If you purchased your IAXy with a Digium power supply, you may
skip this section.)
The IAXy has specific power requirements. You will need a 9-volt
switched or regulated Power Supply outputting at a minimum
of 800mA with tip positive, and a plug measuring 5.0mm outer
diameter and 2.5mm inner diameter to power the IAXy. A regulated
power supply is preferred, as a switched power supply may cause an
audible hum to be present on the line on lower quality analog handsets.
CAUTION: Do not use an unregulated or unswitched power supply with
the IAXy. Doing so will cause the unit to function unreliably and may
cause it to fail.
