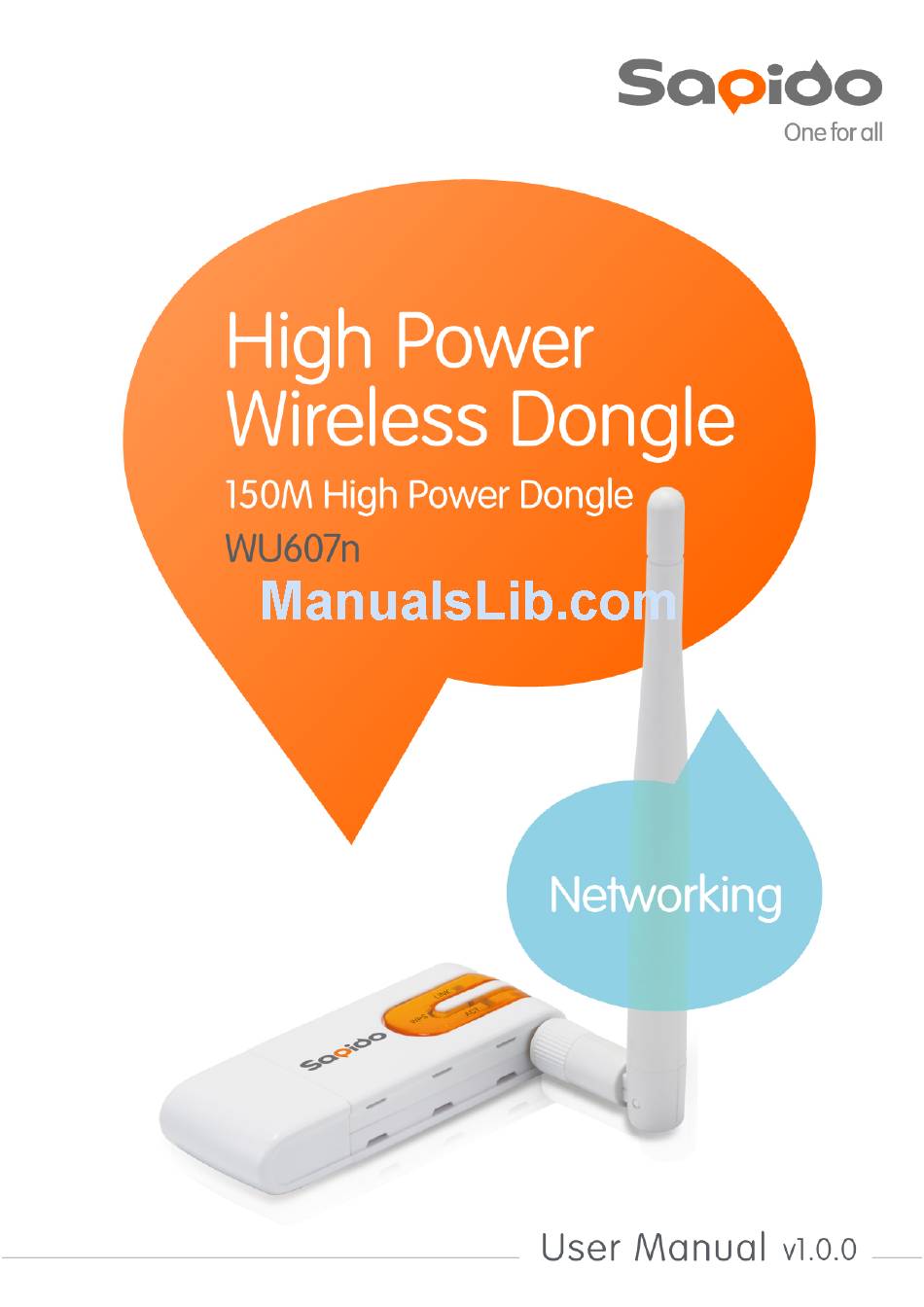

Sapido WU607n User Manual

150m high power wireless dongle
Hide thumbs

Advertisement

Quick Links

Download this manual
1

Advertisement

loading

Summary of Contents for Sapido WU607n

  • Page 2: Table Of Contents

    WU607n user manual WU607n utility OS support ..................5 Installing the software of USB Adapter ............... 5 Configuring your wireless network (with Wireless Utility) ......8 Pin Input Config (PIN) ..................11 Push Button (PBC)..................13 SoftAP ........................16 Uninstalling the software ..................22...
  • Page 3 FCC Part 15.19 Caution: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation 2.
  • Page 4 -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

  • Page 5: Wu607N Utility Os Support

    WU607n utility OS support WindowsXP(32/64bit)、Vista(32/64bit)、Windows7(32/64bit) 、 Windows8(32/64bit) Installing the software of USB Adapter 1. The setup program will install the driver and utility to computer. Please click the “Next” button to continue. 2. Select the software to be stored in the path.
  • Page 6 3. The software installation should begin. This may take a few minutes.
  • Page 7 4. Once the installation success, click “Yes” to restart your system (recommended). Otherwise, click “No” to restart your system later. 5. Once the installation complete, you may now configure your wireless network.

  • Page 8: Configuring Your Wireless Network (With Wireless Utility)

    Configuring your wireless network (with Wireless Utility) Double click on the computer with wireless signal icon in your taskbar or the shortcut icon on the desktop. Status：Status page shows connection status. Available Network：It display available wireless network. The “Refresh” button can scan the area for wireless network(s).
  • Page 10 Profile：User can add、remove、edit, duplicate wireless connection profile in this page.

  • Page 11: Pin Input Config (Pin)

    Wi-Fi Protect Setup (WPS) WPS is an easy and secure setup solution for Wi-Fi network. Please click the Wi-Fi Protect Setup tab. WU607N has two methods, PIN (Pin Input Config) and PBC (Push Button Config), to setup the network. Pin Input Config (PIN) 1.
  • Page 12 Every time you click the tab to change the page, the PIN code will be changed.  The PIN function in AP should be started before the WPS setup in WU607N times out. 2. WU607N is waiting for the other AP to start the PBC function. The other AP starts...

  • Page 13: Push Button (Pbc)

    PBC function should be before WU607N WPS times out. 3. Once the WPS connected successfully, wireless utility will show the connection status. Push Button (PBC) 1. Click on the “Push Button Config (PBC)” button.
  • Page 14 Note: The PBC button can click the visual button on the page or push the physical button on AP. 2. WU607N is waiting for the other AP to start the PBC function. The other AP starts the PBC function should be before WU607N WPS times out.

  • Page 16: Softap

    Setting Internet Connection Sharing（ICS） Mouse click one interface for network sharing IP Address WU607n will assign IP address to other wireless client which connect to it. SSID Give a SSID to shared network. Channel Select a channel for shared network.
  • Page 17 How to WU607n SoftAP share PPPoE：  Setup PPPoE...
  • Page 20  Setup WU607n SoftAP Enable SoftAP and select PPPoE connection...
  • Page 21 Select PPPoE connection The wireless client can search WU607n softAP SSID and connect to WU607n，after get IP address from WU607n，the wireless client can surf internet by WU607n softAP which share PPPoE connection...

  • Page 22: Uninstalling The Software

    Uninstalling the software 1. Click on your start menu. Next go to “Programs” or “All Programs”. Next go to the folder “Wireless”. Next select “Uninstall”. 2. The uninstall window should pop up. Click on “Yes” button. 1. The uninstall process should begin and may take a few minutes. Once completed, click “Finish”...
