Summary of Contents for Seeworld S680

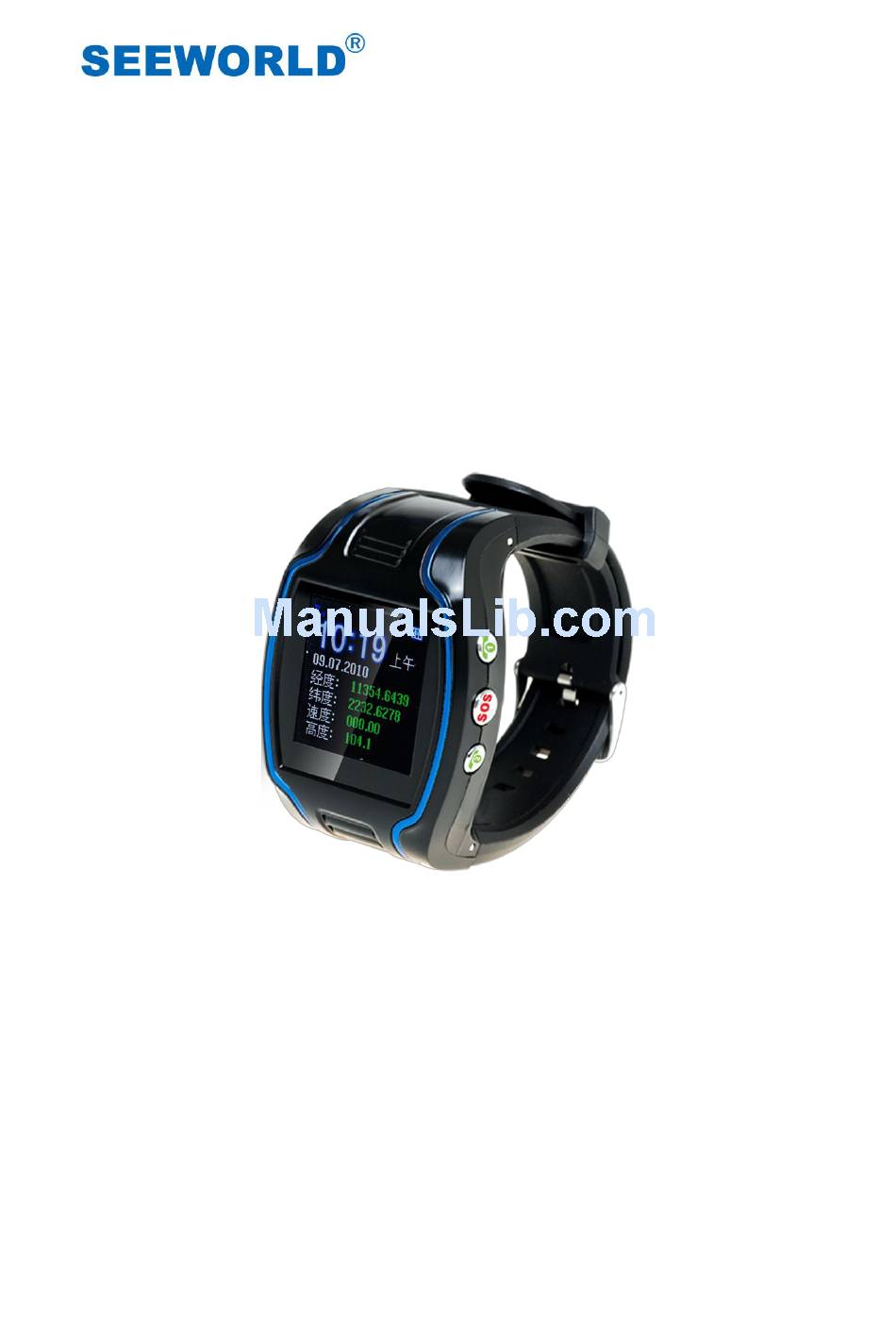

- Page 1 SEEWORLD S680 GPS Watch User’s Manual...
-
Page 2: Table Of Contents
Table of Contents Chapter I Preface……………………………………………………..4 I．General……………………………………………………………...4 II．Notices……………………………………………………………..4 Chapter II about the Device………………………………………….5 1. Appearance…………………………………………………………..5 2. Product Features…………………………………………………….5 3. Product Specification……………………………………………….6 (1).Technical Specifications…………………………………………6 (2).Others……………………………………………………………7 Chapter III Usage Preparation………………………………………8 I.Accessories…………………………………………………………..8 II.Appearance and Interface………………………………………...8 1. Appearance and Buttons…………………………………………...8 2. Interface Definition………………………………………………...9... - Page 3 III.Charge the Battery……………………………………………….9 IV.Installation of SIM Card………………………………………...11 Chapter IV Commands Corresponding to and Operation Method of Basic Functions…………………………………….11 1. Location Inquiry………………………………………………….12 (1) SMS Inquiry……………………………………………………12 (2) Platform Inquiry………………………………………………..13 2. Setup of Centre Number………………………………………….13 3. Bi-directional Call Function……………………………………...13 4. Adjust Receiver Volume…………………………………………..14 5.
-
Page 4: Chapter I Preface
Notices…………………………………………………………………..22 Chapter I Preface I. General S680 represents the perfect combination of GSM and GPS technologies. This model, with its precise dimensions and compact appearance, expresses the advanced workmanship in the GSM and GPS field. It is a typical design combing communication products and GPS services. -
Page 5: Notices
3. The defaulted password of this product is 0000. Chapter II about the Device S680, as a personal remote positioning device made up of GPS module and GSM/GPRS module, is compact in dimensions with high accuracy. On the basis of GPS satellites and under dynamic conditions, it can provide you with accurate and correct location information. -
Page 6: Appearance
1 Appearance 2 Product Features ● Inbuilt GPS Module ● Internet positioning service center, used to receive and send positioning information ● GSM /GPRS modem supports Quad frequency bands, i.e. 850/900/1800/1900 MHz ● High-sensitivity, new workmanship and the most advanced GPS chip ●... -
Page 7: Product Specification
● Supports fast dial button ● Supports the location information inquiry by SMS and Internet ● May monitor without disturbing the tracked person and realizes real-time tracking; ● Can position the holder by call or SMS ● In emergency, press the SOS button to have an accurate positioning 3 Product Specifications (1). -
Page 8: Others
Warm start < 38s Max. altitude 18000m Max. speed 515m/s Gravitational ﹤4g acceleration (2). Others Operating temperature -20---65℃ Humidity 5%---95% Dimensions 64.5mm×45.5mm×17.5 mm (main unit) Voltage Rechargeable 450mAh battery Power supply DC5V Standby time >48h Buttons SOS button for emergency aid; Call 1, Call 2, Switch on / off buttons, interface switch button Chapter III Usage Preparation... -
Page 9: Ii.appearance And Interface
3. Charger 4. Headset cable (optional) 5 Battery II. Appearance and Interface 1. Appearance and Buttons Five buttons are equipped with this watch, the upper left button serves for switch-on and hold-on, the bottom left button serves interface switch, while the upper right button for predetermined number 1, middle right button for emergency aid (SOS button) and... -
Page 10: Iii.charge The Battery
Bottom left button is for interface switch as showed in picture 3: III. Charge the Battery Please use up the battery and discharge it for 2-3 times and then charge the battery for at least 12 hours for initial use, in order to keep the quality of the battery. - Page 11 When the battery is fully charged, the power indicator will stop strolling; if the battery is charged on switch-off mode, the following picture 3-2 indicates the charging is finished: ( picture 3-2 ) Notes: Please always use the charger offered by the supplier. Dangers damages of the product caused by usage of any unconfirmed charger will not be compensated and repaired.
-
Page 12: Iv.installation Of Sim Card
IV. Installation of SIM Card Open the back cover, then you will see the place where the SIM card is placed. Then push the SIM card into the slot until it comes into its proper position completely and consolidate it with the dome sheet nearby. Choose SIM card: ... -
Page 13: Platform Inquiry
successful sending, the guardian’s mobile phone will receive a piece of message. See the flow as follows: ① Send command to the terminal. ② The terminal return confirmation message to the mobile phone. By the same means, send the command 987 plus password to the terminal, then the terminal will return a piece of website message. -
Page 14: Setup Of Centre Number
get the platform address). Step 2: Click the terminal of the ward, then the location of the ward will be displayed on the map. 2. Setup of Centre Number Set the centre number by SMS through the mobile phone, after the setup is successful, then the mobile phone that sending the SMS will receive the “&710&successful setting&&”... -
Page 15: Bi-Directional Call Function
3. Bi-directional Call Function Incoming calls can be rejected by pressing upper left button or received by pressing middle right button. Send the command in form of SMS to the terminal via mobile phone. After the setup is successful, the mobile phone will receive the “&710&successful setting&&”... -
Page 16: Sos Function
5. SOS Function If a ward number (predetermined number in item3) is set, when the ward encounters emergency and presses the SOS button, the terminal will send alarming information to the center number and dial the three ward numbers in turn. Picture 5 is SOS alarming interface: SOS button for emergency aid interface SOS SMS format: IMEI number: SOS (information about latitude and longitude or base station) -
Page 17: Regular Upload Interval Setup
ward, then the ward terminal will automatically call back to the mobile phone of the guardian and the guardian may hear the sound of the surroundings within 10m around the ward. SMS format: 5550000 Remarks: 0000 is the initial defaulted password and in practice the password could be set by the user. -
Page 18: Function Of Changing Password
8. Function of Changing Password Send the SMS “#770# User new password # User old password ##” by mobile phone to the terminal number, after successful sending, the mobile phone with such setup will receive one piece of ‘&770&successful setting&&’ response information or ‘&770&PASSWORD ER&&’ if the password is wrong, as shown in the following picture: ①... -
Page 19: Set Apn Command
Example: #801#13900139000#0000## Notes: After executing this command, the user name of the terminal on GPRS mode is required to be set up according to actual demand. After the setup is successful, the terminal will send reply with ‘&801&successful setting&&’ or ‘&801&PASSWORD ER&&’ if the password is wrong. 10. -
Page 20: Low Voltage Alarming Function
password## This command is used to set GPRS center server address, which could be fixed IP number, like IP1, IP2, IP3, IP4……as well as domain name with the length less than 64. After the setup is successful, the module will send a reply with ‘&803&successful setting&&’ or ‘&803&PASSWORD ER&&’... -
Page 21: Method To Set Time Zone
13. Method to Set Time Zone Command Format: 896xxxxDnn Notes: xxxx stands for a 4-digit password, D depends on E,W, while E representing eastern time zone and W representing western time zone, nn is a two-digit number, meaning time zone number. For example, given the current time is 09:30:08, after sending the command 8960000E08, the time will add with 8 and change into 17:30:08. -
Page 22: Fence Reading Function
After the setup is successful, the mobile phone will receive a piece of ‘&751&succeful setting&&’. Then, each time when the ward leaves this area, the terminal will send the alarming information of being out of the fence to the center number. (2) Fence Reading Function Send commands to the terminal: # command number (752) # user password 4 digits ##;... -
Page 23: Function Of Canceling Fence
status: 1, fence open, but there are no valid satellite data have been received; status: 0, no electronic fence is set. (3) Function of Canceling Fence Command name: # command number (760) # user password 4-digits ## Example: #760#0000## After the terminal receiving this command, all fence settings will be cancelled. - Page 24 6. Please use this device in a legal area, any illegal consequence will be borne by the user. Notes: due to the high sensitivity of the GPS module adopted by this product, it is normal to be drifting with weak GPS signal. Tenson sales06@seeworld.hk...
