Summary of Contents for boytone BT-17DJ

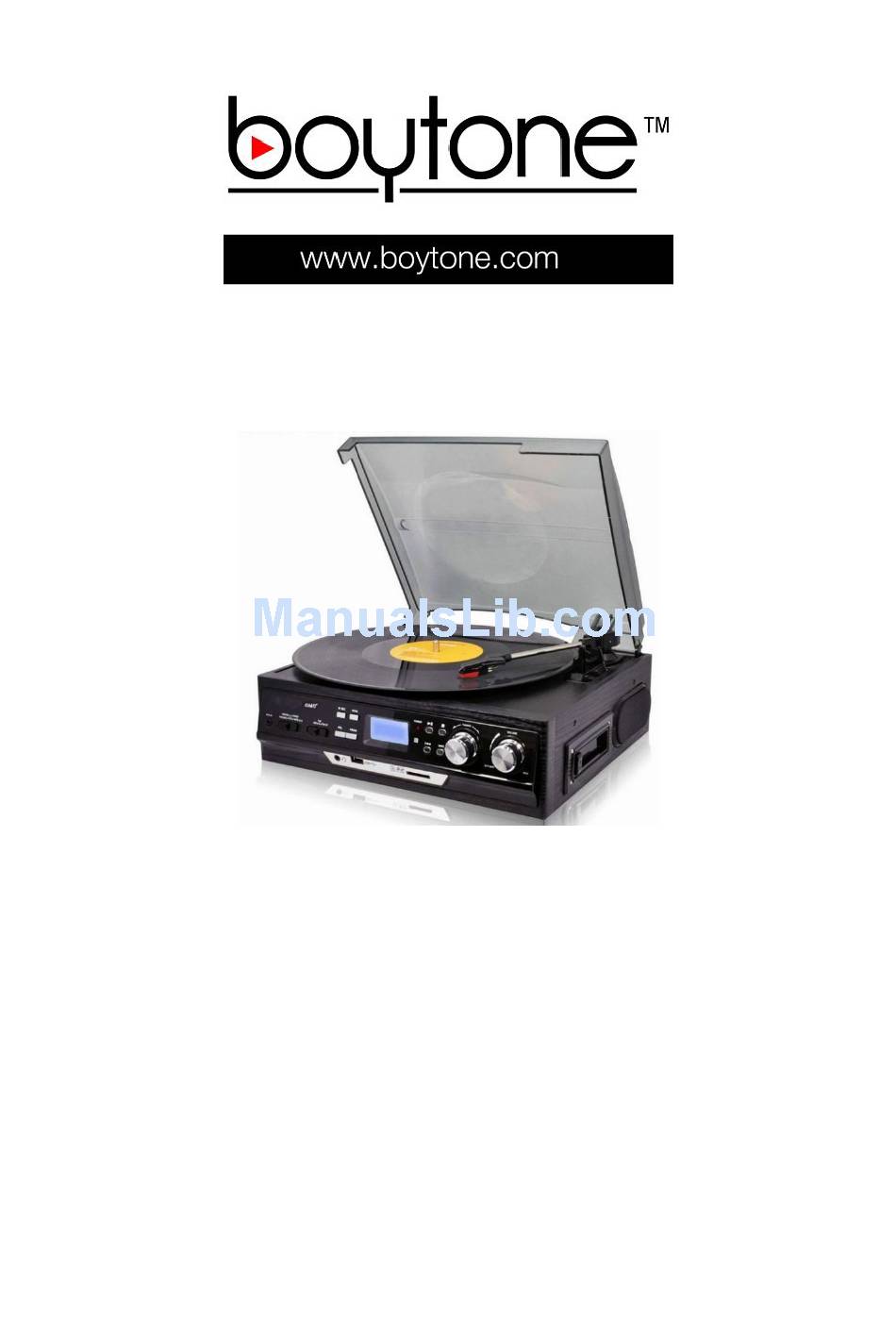

- Page 1 MODEL: BT-17DJ Operating Instructions Manual...
-
Page 2: General Safety Instructions
Contents Warranty Details Welcome General Safety Instructions Parts List Getting Started Features Instructions FAQs General Safety Instructions Read this manual thoroughly before first use and keep it in a safe place for future reference, along with the completed warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. -
Page 3: Parts List
• Do not let the cord hang over the edge of a table or counter, or touch any hot surface. Do not allow anything to rest on or roll over the power cord, and run any cords so that no one steps on or trips over them. - Page 4 1 Dust cover 15 Volume knob 2 Mode (USB/SD) 16 Tuning knob 3 Record button 17 Skip up button 4 Radio band selector (AM/FM/FM-Stereo) 18 Skip down button 5 Function selector 19 SD/MMC card slot 20 Right speaker 6 Auxiliary input 21 45 rpm adaptor 7 Delete button 22 Lift lever...
-
Page 6: Getting Started
Getting Started Before first use • Remove all packaging and protective materials from the appliance and dispose of them responsibly. Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach. •... - Page 7 • Copying files/tracks from USB to SD • Deleting files/tracks on USB and SD • Digital read-out analog AM/FM radio • 45 rpm adaptor included • LCD display with blue backlight • RCA line-out • Built-in speaker with 2 x 1.5W output Instructions Listening to radio Radio tuning...
- Page 8 IMPORTANT! When using the turntable: • Make sure to remove the stylus protector, as illustrated on the right. (It should easily slide off the stylus assembly.) • Make sure to unclip the tone arm lock before use and to secure it again after use. Playing a record 1.
- Page 9 power supply if you are not going to use it for a while. NOTE: Should your record stop before the last track finishes, set the auto stop control to OFF. Your record will now play to the end, but you will have to stop the turntable rotation manually. (Return the tone arm to its rest manually and if the turntable is still rotating, switch off the unit by the volume control knob.
- Page 10 Playing a cassette 1. Turn the volume knob clockwise to turn the equipment on. 2. Use the function selector to select TAPE/AUX mode. 3. Insert a cassette with the tape facing away from you, as illustrated on the right. The EJECT/FAST FORWARD button will pop out and the system will start playing the tape automatically.
- Page 11 The auxiliary input Listening to a CD (or other auxiliary input) 1. Turn the volume knob clockwise to turn the equipment on. 2. Use the function selector to select TAPE/AUX mode, then connect the external audio device (such as a CD player) to the AUX IN socket at the front of the equipment. The audio signal from the external audio device will now be played through the system.
- Page 12 3. Set the function selector to USB/SD mode. (If you have both a USB device and a memory card inserted, press the MODE button to toggle between USB and SD mode.) The system will start reading the storage medium automatically after mode selection and will display the total number of folders and MP3/WMA files.
- Page 13 2. Press the program PROG button, MEM will be flashing on the LC display, and it will indicate the program number and digits for the track number to be programmed. 3. Press the SKIP UP or SKIP DOWN button to select a desired track. 4.
- Page 14 1. Insert the USB storage device or SD card, then select USB/SD mode (as described previously). 2. Press the delete DEL button during the playback of the track you want to delete: “ONE” will be flashing on the display. Press the delete DEL button again to confirm. 3.
- Page 15 the CD player are properly set, the disc tray is closed and the disc is clean and undamaged. • When playing music from a USB device (or SD/MMC card), make sure the memory device is properly inserted in the USB port (SD/MMC card slot) and the correct MODE is selected. Problems with radio reception •...
