ALPHA 1500

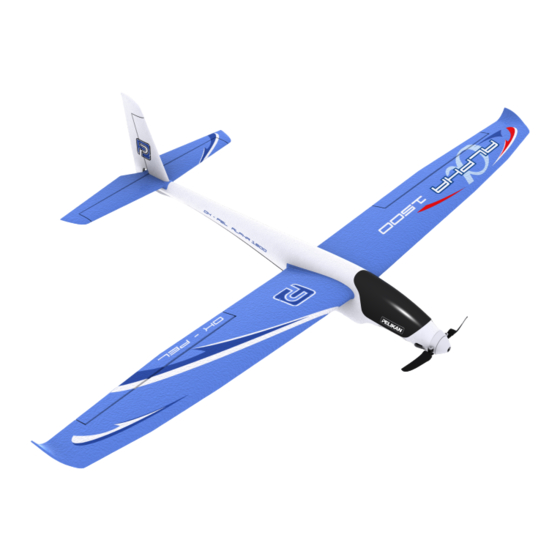

Ready to radio model with the brushless motor, ESC and servos installed
Ready to fly model with a 4-channel 2.4GHz RC set, brushless motor, ESC and servos installed,
PRECAUTIONS:
This R/C model is not a toy. Use it with care and stricktly following the instructions in this manual.
Assemble this model following stricktly these instructions. DO NOT modify or alter the model, failure to do so, the
warranty will lapse automatically.
Children under the age of 14 must operate the model under the supervision of an adult.
Assure that the model is in perfect conditions before every flight, taking care that all the equipment works correctly and
that the model is undamaged in its structure.
Fly only in days with calm wind or light breeze and in a place away from any obstacle. Follow the instructions in order
to obtain a safe and solid model at the end of the assembly.

Instruction Manual

ALPHA 1500 ARF
ALPHA 1500 RTF Set
with Li-po flight pack and DC charger

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHA 1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pelikan ALPHA 1500

  • Page 1: Instruction Manual

    ALPHA 1500 Instruction Manual ALPHA 1500 ARF Ready to radio model with the brushless motor, ESC and servos installed ALPHA 1500 RTF Set Ready to fly model with a 4-channel 2.4GHz RC set, brushless motor, ESC and servos installed, with Li-po flight pack and DC charger PRECAUTIONS: • This R/C model is not a toy. Use it with care and stricktly following the instructions in this manual.
  • Page 2: Specification

    Li-po batteries will help to become an experienced pilot in no time! ALPHA 1500 is not just an entry level plane but actually a high performance thermal glider that will please any Sunday pilot - a newcomer as well as...
  • Page 3: Transmitter Controls

    Charging the Flight Battery Your ALPHA 1500 is to be powered by a 2-cell Li-Po battery pack. The Li-Po battery supplied in the RTF Set has two connectors: one is for the balanc- ing charge of the cells (JST-XH type) and the other one is dedicated to the discharge (Deans-T, RCM Pelikan #7949).
  • Page 4: Model Assembly

    MODEL ASSEMBLY 1. The Tail Feathers The horizontal stabilizer and the fin are to be attached to the fuselage using a dou- ble sided tape. This is a solution suitable for beginners who would probably have to replace some parts damaged during heavy landings or crashes sooner or later. Ad- vanced pilots should glue the tail permanently using a good medium CA. It increases the strength of your model and allows to fly aerobatic manoeuvres like loops, barrel rolls etc. and also experience slope flying on calm days.
  • Page 5: Range Check

    C) Return the elevator stick to the centre (neutral) - the elevator will return to the neutral position. Note: If the elevator is moving in the opposite direction, you will have to reverse the direction by flipping the elevator reverse switch (CH2) on your transmitter. 6. Electronic Speed Controller (ESC) The ESC supplied with your ALPHA 1500 can be programmed to brake the motor after the throttle stick had been pulled down to the lowest position in order to allow a folding prop to fold - this is required for gliders with a folding prop. Or the motor and prop may rotate freely - this is the set-up required for aerobatic models. Checking the current set-up A) Be sure the throttle stick is in its lowest position.
  • Page 6: The First Flight

    It is not enough to just “put” your model in the air. If everything is OK ALPHA 1500 will climb gently. If your ALPHA loses altitude, pull the elevator stick very slightly towards you (just a little!) to achieve a steady climb.
  • Page 7: Repairs And Maintenance

    Although the ALPHA 1500 is manufactured of the extra tough and virtually unbreakable extruded polypropylene (EPP) foam, damage or broken parts may occur. A minor damage can be repaired simply gluing the parts together with a cyanoacrylate (CA) glue or with a clear sticky tape. In a case of a major damage it is always better to purchase a brand new spare part.
  • Page 8: Transmitter And Receiver Binding

    RCM Pelikán work carried out late, incorrectly or not at all, or by unauthorised personnel, use of other than genu- ine RCM Pelikan accessories, modifications or repairs which were not carried out by RCM Pelikan or Doubravice 110 an authorised RCM Pelikan, accidental or deliberate damage, defects caused by normal wear and Pardubice tear, operation outside the Specification, or in conjunction with equipment made by other manufac- 533 53 turers.
