Summary of Contents for Alternate Energy Technologies DX DRAINBACK
- Page 1 INSTALLATION OPERATION MAINTENANCE MANUAL DX DRAINBACK Alternate Energy Technologies PO Box 61326 Jacksonville, FL 32236 904-781-8305...
-
Page 2: Table Of Contents
CONTENTS Introduction Basic Tools and Materials 1. Collector Location 2. Collector Orientation 3. Collector Dimensions 4. Mounting Hardware 5. Mounting Hardware Spacing 6. Pitch Pan 7. Array Mounting 8. Collector Piping 9. Collector Piping Detail 10. Sensor Mounting at Collector 11. -
Page 3: Collector Location
1. COLLECTOR LOCATION Proper location and orientation of the solar when the collectors are facing due south and tilted collectors is important for maximum system at an angle from the horizontal of latitude + 10 efficiency. The collectors should be unshaded for Figure 1 below shows many alternatives for the middle six hours of the day in each month of the collector mounting. -
Page 4: Collector Dimensions
LATITUDE COLLECTOR TILT FLAT 1/12 2/12 3/12 4/12 5/12 ROOF 6/12 PITCH 7/12 8/12 9/12 10/12 11/12 12/12 VERTICAL Table 1. All Lengths in inches 3. COLLECTOR DIMENSIONS Collector Gross Area (ft Dimensions (in) Transparent Area (ft Weight (lb) AE-21 20.87 x 85 19.22... -
Page 5: Mounting Hardware
4. MOUNTING HARDWARE Provided in the Eagle Sun package is specially designed mounting hardware to speed collector installation. This hardware consists of four LOCK- TIGHT hinge sets, four roof brackets, two rear struts, and bolts (Figures 3, 4,and 5). (a) After locating the mounting points from Table 1, the mounting bracket holes should be drilled. - Page 6 Figure 6. Spanner Mounting In lag bolt mounting you must locate the center of Then the attic man can call of the distance to the the rafters along the top and bottom chalk lines. next rafter while the roof man drills corresponding One method is to have one man on the roof and pilot holes.
-
Page 7: Mounting Hardware Spacing
J-bolt mounting is done very similar to lag screw Fit the bolt through the mounting brackets and insert mounting except instead of drilling into the center the bolt (J side first) through the hole in the roof. of a rafter, a hole must be drilled directly beside a Work the J underneath the rafter. -
Page 8: Pitch Pan
MSC-26 4 x 6.5 47.8750 x 78.1250 82.5 79.375 49.125 MSC-28 4 x 7 47.8750 x 86.1250 90.5 87.375 49.125 MSC-32 4 x 8 47.8750 x 98.1250 102.5 99.375 49.125 MSC-40 4 x 10 47.8750 x 122.1250 126.5 123.375 49.125 Table 3. -
Page 9: Array Mounting
7. ARRAY MOUNTING Tile roofs are a little more difficult to mount d) Screw lag portion of the 3/8” hanger bolt into solar collectors on but following this procedure will the rafter. render a leak free installation. e) Cut strips of the lead flashing about 1 ½” long The solar panels are mounted on two rails and wide enough that when you fold it into a located at the top and bottom of the solar collectors. -
Page 10: Collector Piping
8. COLLECTOR PIPING All collectors and piping must be sloped a minimum The piping of the system should be considered of ¼” per foot for drainage. All piping must drain before a final decision is made on how the without any fluid “traps.” Soldered connections collectors are mounted. -
Page 11: Sensor Mounting At Collector
10. SENSOR MOUNTING AT COLLECTOR The controller heat sensor is mounted to the nipple outlet of the collector (Figures 14). A stainless steel screw clamp should be used. The entire nipple should be wrapped thoroughly with insulating tape so that the sensor is isolated from the outside air. Figure 14 11. -
Page 12: Sensor Mounting At Storage Tank

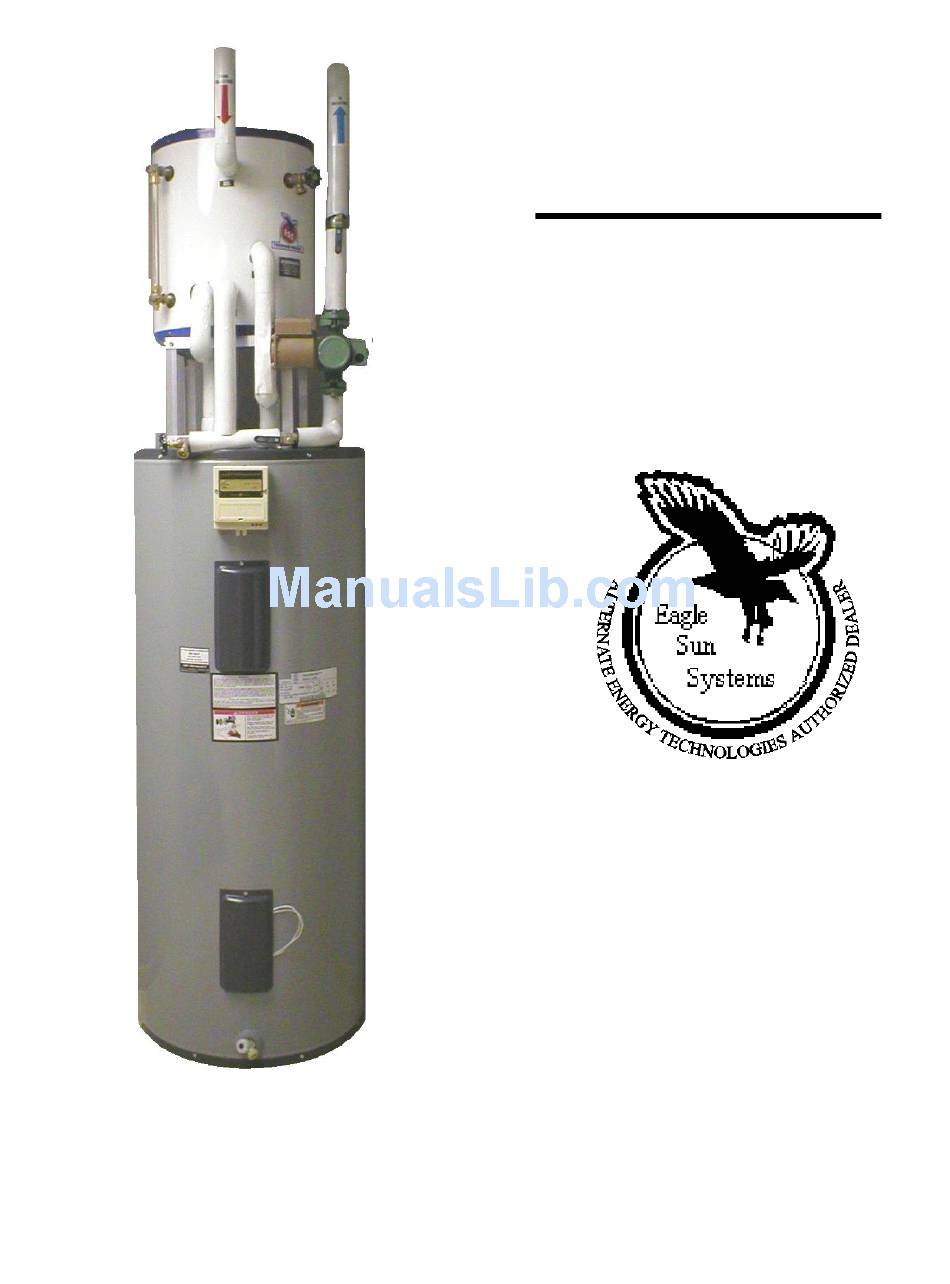

When the differential control turns the pump on, water is pulled from the reservoir and circulated up The “Sav’n Sun ” DX Drainback System through the solar collectors and back. This circulated water heats the heat exchanger, which in (Figure 16) turn heats the water in the solar storage tank. - Page 13 Figure 16. Drainback System with DX Reservoir.
-
Page 14: Drainback Dx Differential Temperature Controller
15. DRAINBACK DIFFERENTIAL TEMPERATURE CONTROLLER See instructions provided with controller in box. ALL CONNECTIONS SHOULD BE MADE IN ACCORDANCE WITH LOCAL ELECTRICAL CODES! Specifications: OPERATING VOLTAGE 105 to 125 vac, 60 Hertz CONTROL RELAY CONTACT RATING One third HP inductive load. TURN-ON DIFFERENTIAL F (+1 F) for Storage Sensor at 135... -
Page 15: Operational Checklist
19. OPERATIONAL CHECKLIST Before the system is turned on, the piping and If no excessive demands are put on the system and electrical systems should be evaluated to see if they ample solar radiation is available, the system should match the supplied drawings. If you are satisfied operate properly.
