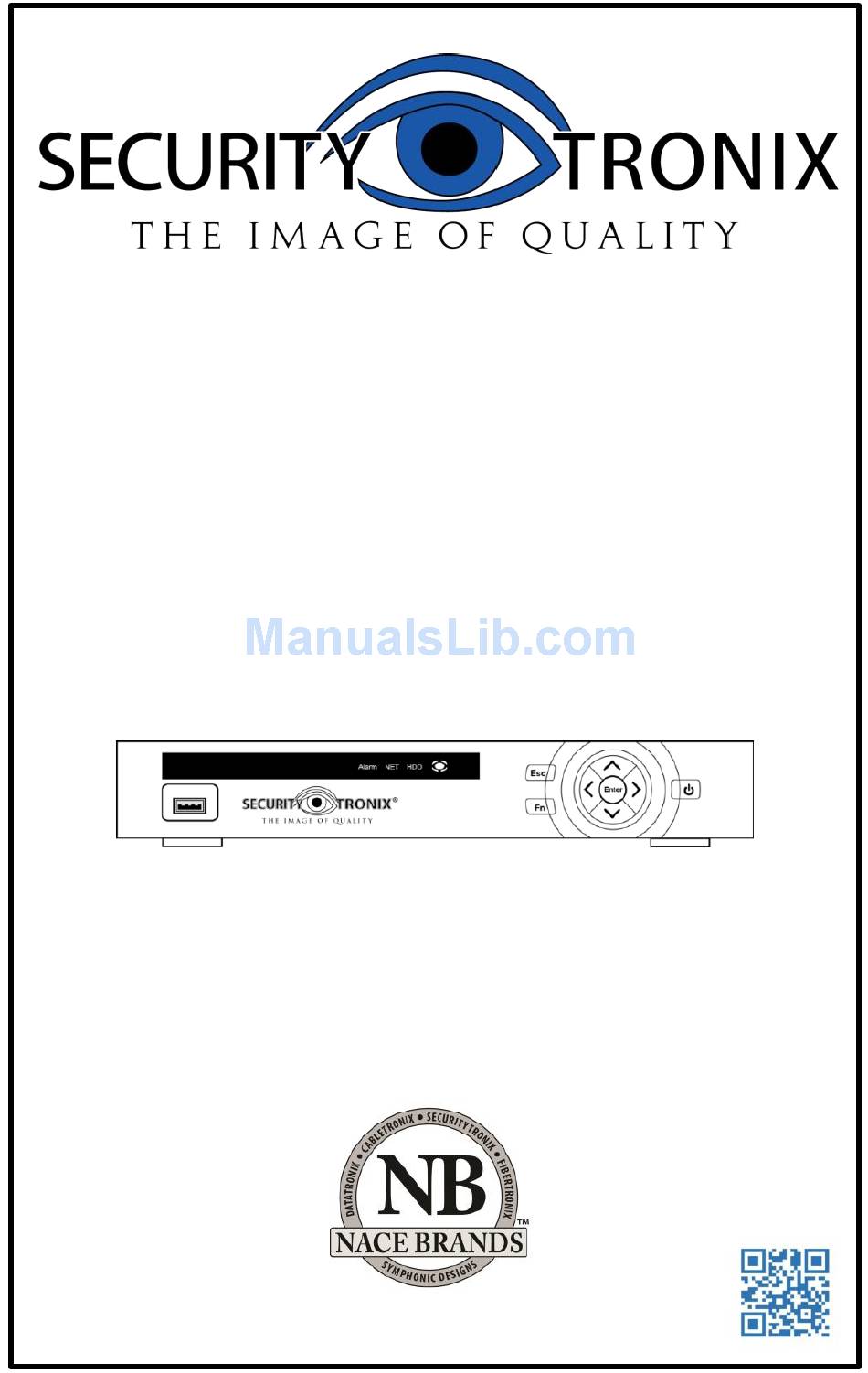

Page 1: Quick Start Guide
Professional Digital Video Recorders Remote Connection QUICK START GUIDE www.nacebrands.com www.securitytronix.com... -
Page 2: Table Of Contents
CVR/NVR’s functions, the full manual is available in PDF format http://www.securitytronix.com/products Introduction WHAT IS P2P?..........pg. 1 COMPATIBLE CVR/NVRS........pg. 1 CVR/NVR Configuration NETWORKING THE DVR........pg. 2 HOW TO ENABLE P2P........pg. 4 Remote Connection MOBILE APPS...........pg. 5 SOFTWARE............pg. 8 Troubleshooting CONTACTING SUPPORT........pg. 9... -
Page 3: Introduction
In traditional DVR systems, you need to forward ports and set up a DDNS account but this is not nessesary any more. When you enable P2P on your DVR, it connects to a centralized server and registers it’s IP address in a reverse DVR-to-server style connection. -
Page 4: Cvr/Nvr Configuration
CVR/NVR Configuration NETWORKING THE CVR/NVR In order for P2P to work, you need to make sure the CVR/NVR is connected to your network and eventually connected to an internet connection. (CVR/NVR directly connected to your Modem/Router or CVR/NVR connected to a switch/router which is then connected to your modem). -
Page 5: How To Enable P2P
P2P connection process. From the MAIN MENU, select NETWORK in the SETTING or SETUP section (depending on your model), then select P2P on the bottom left side of the window: Make sure the box next to ENABLE is checked. If you have a good... -
Page 6: Remote Connection
If the STATUS shows “Disconnected”, try restarting your CVR/NVR after you click the ENABLE checkbox. If you are still disconnected after restarting, please check to make sure your network is connected to the internet and check that you have a good network cable from the CVR/NVR to your switch/router. - Page 7 To add your CVR/NVR, you need to go to our Device Manager. Click on icon at the top left of the app and select Device Manager. Click on the + icon at the top right of the screen to Add a new device and you will see the screen below:...
- Page 8 You now have two options to connect to your CVR/NVR: You can scan the QR CODE by pressing the SCAN QR CODE button on the app and scan the code found on your CVR/NVR under NETWORK -> P2P (see image on pg. 4) or you can input the CVR/NVR’s SERIAL NUMBER (SN) found under INFO ->...
-
Page 9: Software
DEVICES. Click on the MANUAL ADD button at the bottom of the page and you will see the screen below: The REGISTER MODE needs to be set to SN (FOR DEVICE WITH P2P). The DEVICE NAME can be whatever you’d like to use. Just input the CVR/NVR’s SN (see the image on pg. -
Page 10: Troubleshooting
From the SmartPSS HOMEPAGE, click on the LIVEVIEW button: Once you are at the LIVEVIEW tab, you will see a DEVICE LIST on the right hand side. Select the DEFAULT GROUP and you should see your newly added Device. Right click on your device’s name and then click MAIN STREAM to connect to the highest quality video or SUB STREAM to connect to the lower quality video.
