Audio Pole CDT 7 User Manual

Audio pole cdt 7 multi-source audio player
Hide thumbs

Advertisement

Quick Links

Download this manual
CDT 7
MULTI-SOURCE AUDIO PLAYER
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CDT 7 and is the answer not in the manual?

Questions and answers

Summary of Contents for Audio Pole CDT 7

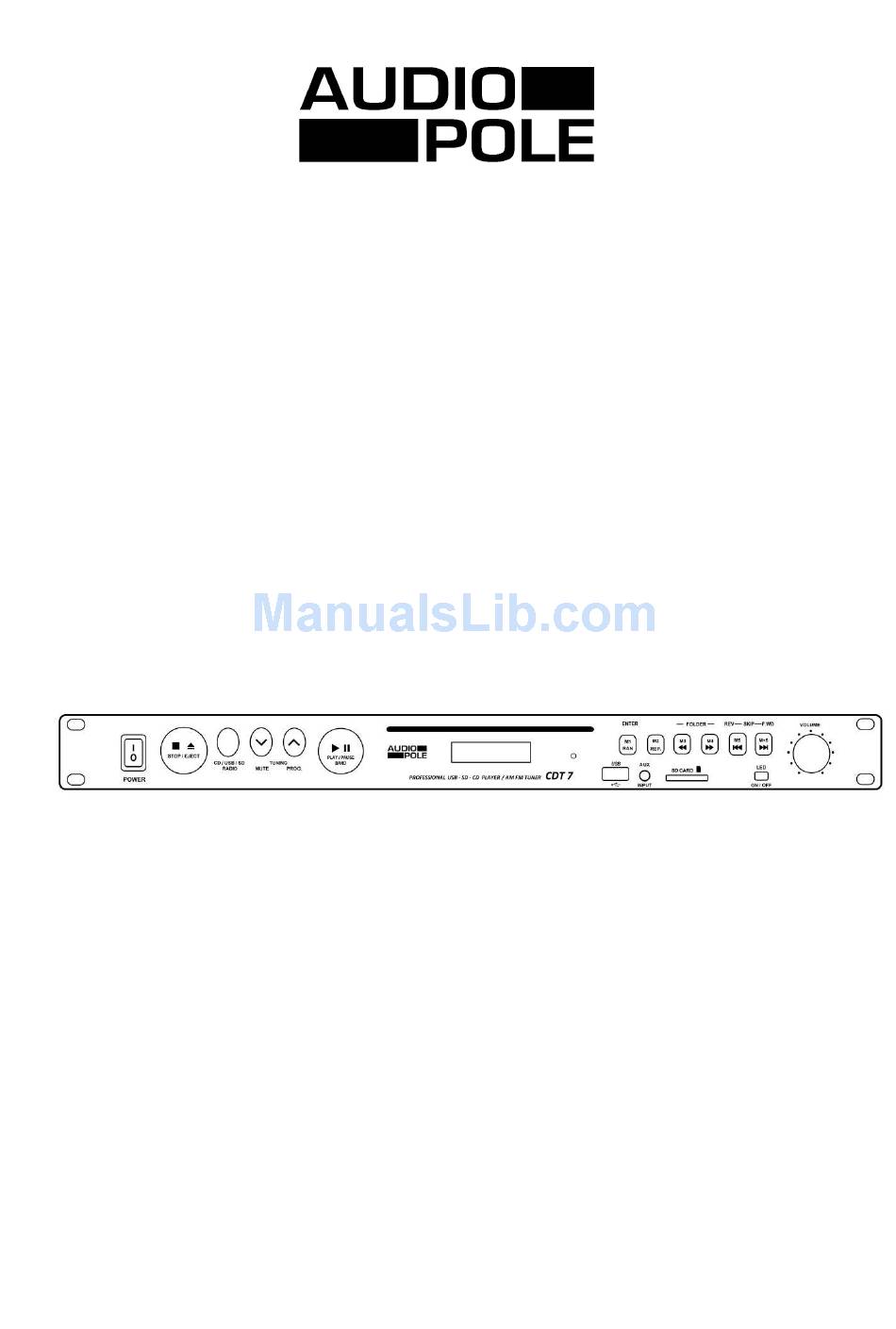

  • Page 1 CDT 7 MULTI-SOURCE AUDIO PLAYER USER’S MANUAL...

  • Page 2: Important Safety Instructions

    Important Safety Instructions This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you to important operating and maintenance instructions. POWER SUPPLY Ensure that the insource voltage (AC outlet) matches the voltage rating of the product.

  • Page 3: Table Of Contents

    Index Introduction …………………………………………………………………….….. Features …………………………………………………….……………………… Controls …………………………………………………………………………….. RS 232 ……………………………………………………...……………….…….. Technical Specifications……………………………………………………...…… Warranty ……………………………………………………………………….…… 11...

  • Page 4: Introduction

    Introduction Thank you for purchasing the AUDIOPOLE CDT 7. The device combines a CD player, a SD / SDHC card and a USB key MP3 reader, as well as a FM / AM Tuner. The panel control buttons are lighted and can be manipulated easily in a dark environment.

  • Page 5: Controls

    Controls Front Panel 1 – POWER Power On/Off switch. 2 – STOP / EJECT Stop playing and eject the CD. A single press stops the playback, the display indicates how many tracks are available. A double pressure ejects the CD. A new pressure reloads the CD. When the CD is inserted into the drive or ejected from it, it is imperative not to force and hinder the movement at risk of damaging the mechanism.
  • Page 6 Controls 7 – LCD Screen Display: Source containing MP3 / WMA files Compact Disc containing non MP3 / WMA CD files Play Pause REPEAT 1 Track repeat REPEAT ALL All tracks repeat REPEAT FOLDER Folder content repeat RANDOM Random PROGRAM Playlist programming memories FM band AM band...
  • Page 7 This input is used to connect a MP3 player or an analogue stereo source without using an additional equipment. The signal becomes priority and switches the CDT 7 internal source off, the output is adjustable trough the master volume knob (18) level.
  • Page 8 Controls BACK PANEL 19 – RS 232 RS 232 Port for CDT 7 remote control . (see chapter 4) 20 – ANT FM Wire antenna socket for FM radio stations 21 – ANT AM Framework antenna binding post for AM radio stations.
  • Page 9 Controls REMOTE CD eject Memories programming PROG PROG Random Repeat Folder FOLDER FOLDER Play / Pause Stop Previous Next Fast back Fast forward Source USB/SD USB/SD Mute Enter BAND FM / AM Band TUNING Tuning Down / Up Reminder / Memories recording MEMORY AUTO SCAN Auto Scan Down / Up...
  • Page 10 The RS 232 interface allows the remote control of the CDT 7 functions. Thus, a computer, a tablet, a smart phone or a touch screen device can be used to trigger one or more commands to the CDT 7. The list of...

  • Page 11: Technical Specifications

    Technical specifications 87,5 MHz – 108 MHz Tuner Frequency Range 522 KHz – 1.611 KHz Read Format MP3 / WMA USB memory devices - SD/SDHC card, up to 16 Gb Media Format Compact Disc 12 cm CD, CD-R, CD-RW S/N @ 1 kHz >...
