840 N. Old World Third Street, Suite 600 Milwaukee, WI 53203, (414)289-3121, FAX (414) 289-3129

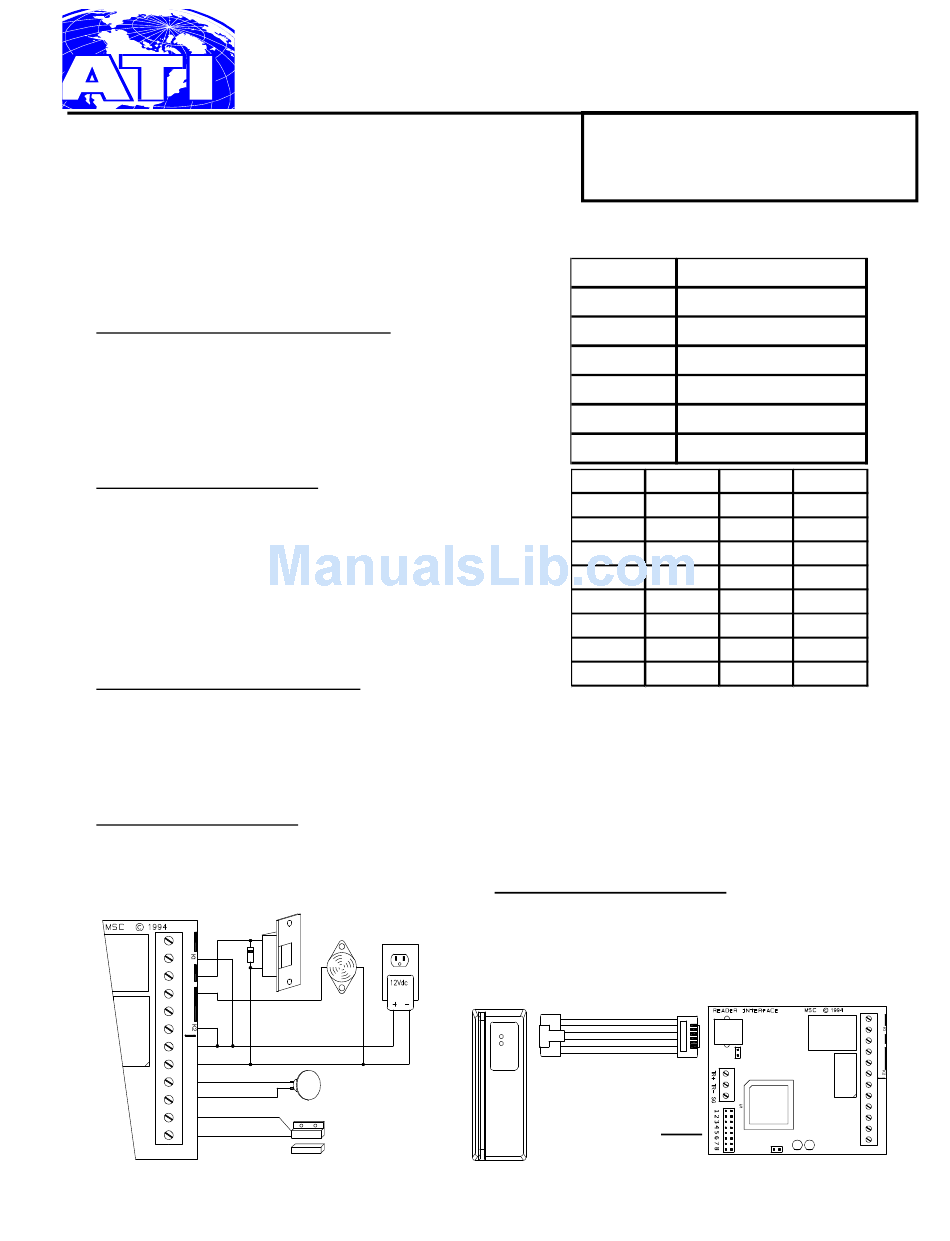

SA-ATM-2 Stand-Alone Access Control System
The
SA-ATM-2 is designed to read a specified number of digits from a magnetic stripe card and can
accept up to 100 combinations of those digits.
Setup
Step 1: Decide How Many Digits to Read
The first step is to tell the reader how many digits to read
from the card. This is done by using J2 jumpers 1-3. Using
the table on the right, set J2 jumpers 1-3 to the appropriate
setting. Remove J2 jumpers 1 through 3 for "ATM" mode,
grants access to any card with data on track 2.
Step 2: Set Door Strike Timing
There are two door strike durations that are selectable by J2
jumper 4. When the J2 jumper 4 is "IN", the strike duration
is 5 seconds. When J2 jumper 4 is "OUT", then the duration
is 1 second.
Now the reader is ready to accept card information.
Card Maintenance
Enrolling New Card(s) to the System
To enroll a new card into the SA-ATM-2, first remove J2 jumper 6. Once removed, the LED on the reader flashes
green. Now swipe each card to be enrolled, the reader will beep two times. When finished enrolling card(s), just
replace J2 jumper 6. The LED on the reader will turn red and the reader will deep three times. The reader is now
ready to be used.
Deleting the Card Database
To delete the cardholder database, just remove power from the unit and install J2 jumper 8. Apply power for 5
seconds and then remove power. Remove J2 jumper 8 and reconnect power. The card database is now
empty. You must then re-enroll your cards.
Door Strike
NC
C
NO
NO
NC
C
+
12V
GND
I2
I2
I1
I1
CONFIDENTIAL: For installation and maintenance use only. DO NOT distribute.
Access Technologies International, Inc.
Reader Configuration Settings
The reader has a four dip switch block which
must be configured. All four switches must be in
the OFF position. When looking into the back of
the reader, all switches should be pushed away.
ATI
Exit Button
Door Contact
©
2005
SA-ATM-2
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.
J2 Jumper # Description
1-3
Select Number of Digits
4
Strike Relay Duration
5
Not Used
6
Enroll Cards
7
Not Used
8
Delete All Cards
Jumper 1
Jumper 2
OUT
OUT
IN
OUT
OUT
IN
IN
IN
OUT
OUT
IN
OUT
OUT
IN
IN
IN
J2 Jump-
Doc. TDM000100 rev. 1.01 07/05
www.atiaccess.com
Jumper 3
# of Digits
OUT
0
OUT
1
OUT
2
OUT
3
IN
4
IN
5
IN
6
IN
7
NC
C
NO
NO
NC
C
+
12V
GND
I2
I2
I1
B
A
I1
Page 1
