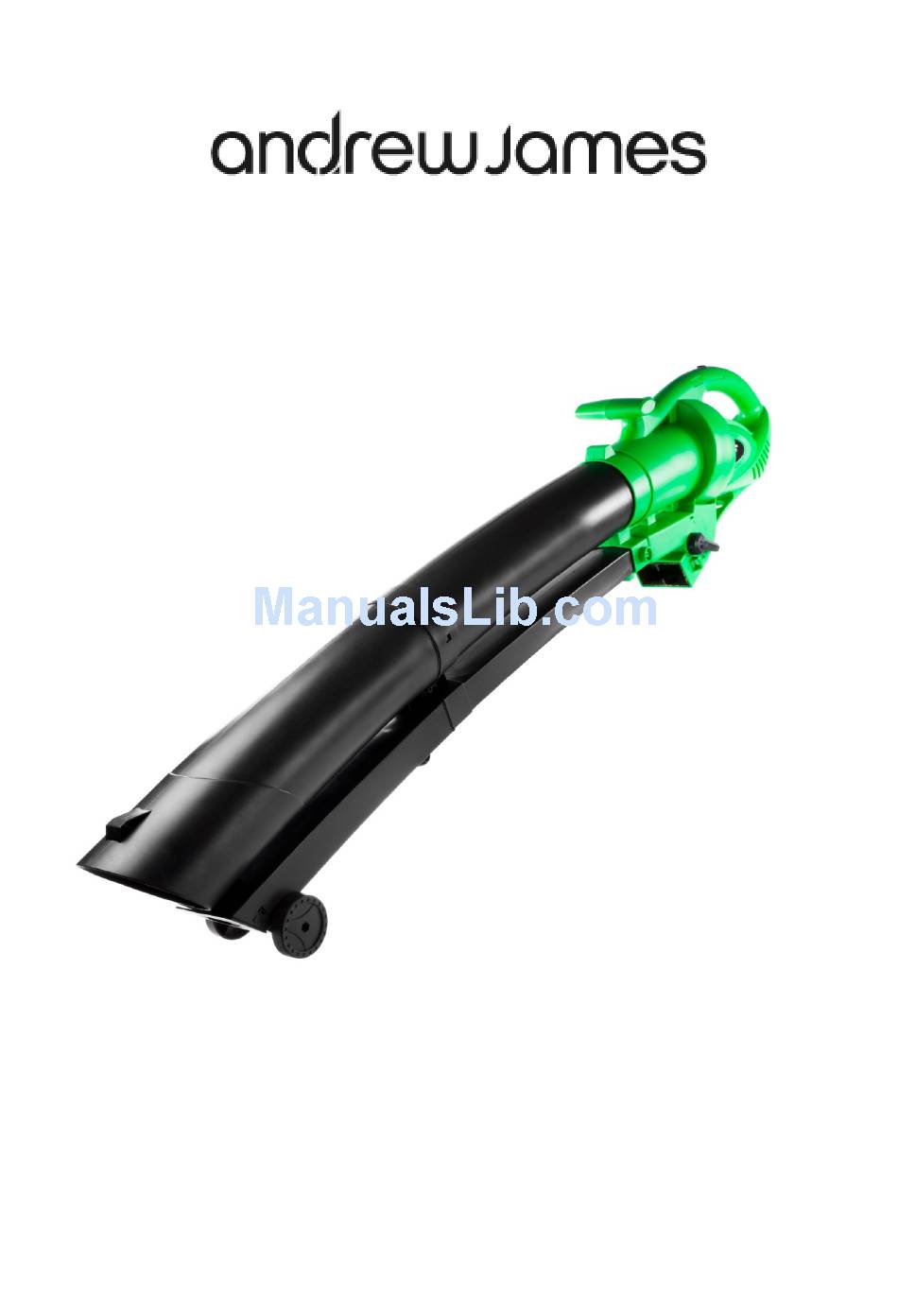

Electric Leaf Blower and Vacuum
Please read the manual fully before using the appliance and keep the
manual safe for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leaf Blower And Vacuum and is the answer not in the manual?

Questions and answers

Related Manuals for Andrew James Leaf Blower And Vacuum

Summary of Contents for Andrew James Leaf Blower And Vacuum

  • Page 1 Electric Leaf Blower and Vacuum Please read the manual fully before using the appliance and keep the manual safe for future reference.

  • Page 2: Table Of Contents

    Contents Page Standard Safety Instructions Page 3—4 Specific Safety Instructions Page 4—5 Warning Symbols Page 6 Technical Data Page 7 Appliance Components Diagram Page 8 Preparing the blower vac prior to use Pages 9—12 Operating the blower vac Page 13 –14 Emptying the bag Page 15 Helpful hints and tips...

  • Page 3: Standard Safety Instructions

    General Safety Instructions When using any electrical power tool, basic safety precautions should always be followed including:  Always ensure the voltage on the rating label corresponds to the voltage in your home.  Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by a qualified electrician or a service repair centre.

  • Page 4: Specific Safety Instructions

    Specific Safety Instructions Work Area  Keep the work area clean and well lit.  Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.  Keep children and bystanders away whilst operating a power tool. Electrical Safety ...
  • Page 5 Power tool use and care  Do not force the power tool. Use the correct power tool for the job you are doing.  Do not use a power tool if the switch cannot turn it on or off.  Disconnect the plug from the power source before making any adjustments, changing accessories or storing power tools.

  • Page 6: Warning Symbols

    Warning Symbols Symbol WARNING! This warning symbol is displayed on the garden vacuum to remind you of the safety precautions you should take whilst using it. WARNING! The garden vacuum should only be used by those persons who have read and understood all the safety and operating instructions contained in the Instruction Manual.

  • Page 7: Technical Data

    Technical Data Voltage 240 V Frequency 50Hz Input power 2500 W Insulation Class ll Maximum air speed 270 km/h Idle speed 14000r/min Net weight 3.4kg Mulching ratio 10:1 Sound pressure level; LPA 95dB (A), KpA:3.0 dB (A) Sound power level; LWA 107dB(A) Vibration 4.95m/s2...

  • Page 8: Appliance Components Diagram

    Components Diagram 1. Shoulder harness 8. Collection bag 2. Trigger 9. Hook for collection bag 3. Strap 10. Wheel assemble 4. Power cord and plug 11. Blower head 5. Label stick location 12. Front tube 6. Selection knob 13. Middle tube 7.

  • Page 9: Preparing The Blower Vac Prior To Use Pages

    Preparing the Leaf blower prior to use The leaf blower vacuum requires some assembly prior to first time use. This includes the fitting of the blow/vac tube to the housing, the fitting of the collection bag and the fitting of the wheel. Assembly of the tubes (Fig.
  • Page 10 Assembly of the wheels (Fig. B) Put the nut into the hexagon shaped hole on the wheel. Insert the wheel axes into the front tube. Insert the other wheel axes into the second side of the front tube. Place the screw into the screw hole on the wheel and tighten firmly. Insert the wheel bracket from the end of the lower tube until it reaches the rib position and cannot move any further.
  • Page 11 Assemble the blower head (Fig.C) Insert the blower head into the front tube until the groove on the blower head aligns with the rectangular hole. Fig.C Blower head Fitting the collection bag (Fig.D) Attach the push on collection bag connector (7) to the housing. Push the fitting of the collection bag directly onto the underside hook of the front tube.
  • Page 12 Assemble the shoulder harness and strap (Fig.E) Connect the latch on the shoulder harness (1) to the column hole in the main housing. Tighten the column nut firmly. Adjust the strap to a comfortable position. Fig E. latch strap column nut...

  • Page 13: Operating The Blower Vac

    Operating the leaf blower vacuum  Prior to using the leaf blower vacuum, ensure you have read and understood the instruction manual.  Ensure you are wearing suitable clothing and safety equipment.  Ensure the attachments have been fitted correctly. ...
  • Page 14 Selecting the vacuum operation (Fig I) Rotate the blower/vacuum selection knob (7) forwards. When the vacuum operation is selected, air and debris are drawn up through the large vacuum tube and forced through the mulching impellor. The debris is then mulched and blown down into the collection bag.

  • Page 15: Emptying The Bag

    To empty the collection bag The collection bag is attached to the blower tube and housing in 2 places. It is not necessary to remove the collection bag from the machine when the bag needs to be emptied. Locate the zip at the rear of the bag. Open the zip and empty the contents.

  • Page 16: Troubleshooting

    Troubleshooting Problem Possible cause Solution   Motor won’t start No mains power Check fuse   Connection lead Contact Customer defect Services to have the lead checked or replaced.  To solve the problem  Motor or switch contact Customer defect services.

  • Page 17: Maintenance And Storage

    Maintenance and storage Prior to cleaning or any maintenance, always ensure the power plug has been removed from the power supply. When you have finished using the blower vacuum, always check to make sure the product is clean and free of dirt and debris. Remove the collection bag and check the area inside the outlet tube is clear from debris and dirt.

  • Page 18: Disposal

    Disposal of the appliance Please note that this Andrew James product is mark with this Symbol: This means that this product must not be disposed of together with ordinary household waste, as electrical and electronic waste must be disposed of separately.
  • Page 19 Warning: If the appliance is double insulated indicated by the double insulated symbol: it should not have an earth wire or earth connection. Plug The plug must be protected by the correct AMP fuse; this will be indicated on the case of the plug.

  • Page 20: Uk And Eu Guarantee

    UK and EU Guarantee Your new Andrew James product comes with a 24 month guarantee and a 2 year fixed warranty, effective from receipt confirmation. Your receipt or order number is required as proof of purchase date so it is imperative that you keep it safe. This guarantee only applies if the item has been used solely for the use intended, and all instructions have been followed accordingly.
