TrioCode KPX-6 Installation Instructions

Roll Up Door Opener Lock Kit Installation Instructions
TrioCode® Wireless Digital Keypad is designed for use
with automatic garage door and gate openers. The
TrioCode® format provides unparalleled security with
more than 99 million different codes. To operate, the
user enters their unique pin code on the KPX-6 keypad
(4 to 8 digits long) followed by the hash (#) key. The user
then presses one of the eight available channels.
Familiarise yourself with the following instructions prior
to commencing set up. Store this information including
your new pin code in a safe place for future reference.

Initial Set Up

The Keypad is supplied with a factory preset code (1111)
which must be changed to a new pin code before the
Keypad will operate. The pin code can be any 4-8 digits
number except 1111.

Storing your pin number

Note: There is a timeout of approximately 5 seconds
after the last button is pressed.
a. Enter 1111 followed by the hash (#) key.
b. Press and hold the hash (#) key again. The keypad
will beep for approximately 5 seconds. Once the
beeping stops, release the hash (#) key. Enter the
new pin code followed by the hash (#) key. Re-enter
the new pin code followed by the hash (#) key to
confi rm. A short string of beeps will be produced to
confi rm the acceptance of the new pin code.
c. Test operation using the new code. Enter the
new code followed by the hash (#) key. Press and
hold any button from 1-8 and you should hear a
continuous string of beeps.
NOTE: If you lose or forget a code, you will need
to return the Keypad to Automatic Technology for
reprogramming. A charge will apply for this service.

Coding The Keypad Into The Opener

a. Press and hold the Door Code button on the control
panel of your Automatic Technology TrioCode®
garage door opener (Fig. 02) or SW1/SW2 on the
TrioCode® receiver board (Fig. 03).
b. Enter your pin code on the Keypad of the KPX-6
followed by the hash (#) key then press one of the
eight (channel) buttons you wish to use to operate
the door or gate etc.
c. Pause for a second and press the same button
again on the Keypad of the KPX-6.
d. Release the Door Code or SW button. The Keypad
code should now be stored into the opener's
memory.
e. Test the operation of the Keypad by entering your
pin code followed by the hash (#) key and the stored
channel button (1-8). The door or gate should start
to move.
Part # 13259 Manual v1.02
Wireless Digital Keypad
INSTALLATION INSTRUCTIONS | OWNERS COPY
TrioCode® KPX-6
Star( * ) key Hash(#) key
LED
SW1 SW2
JP2
JP1

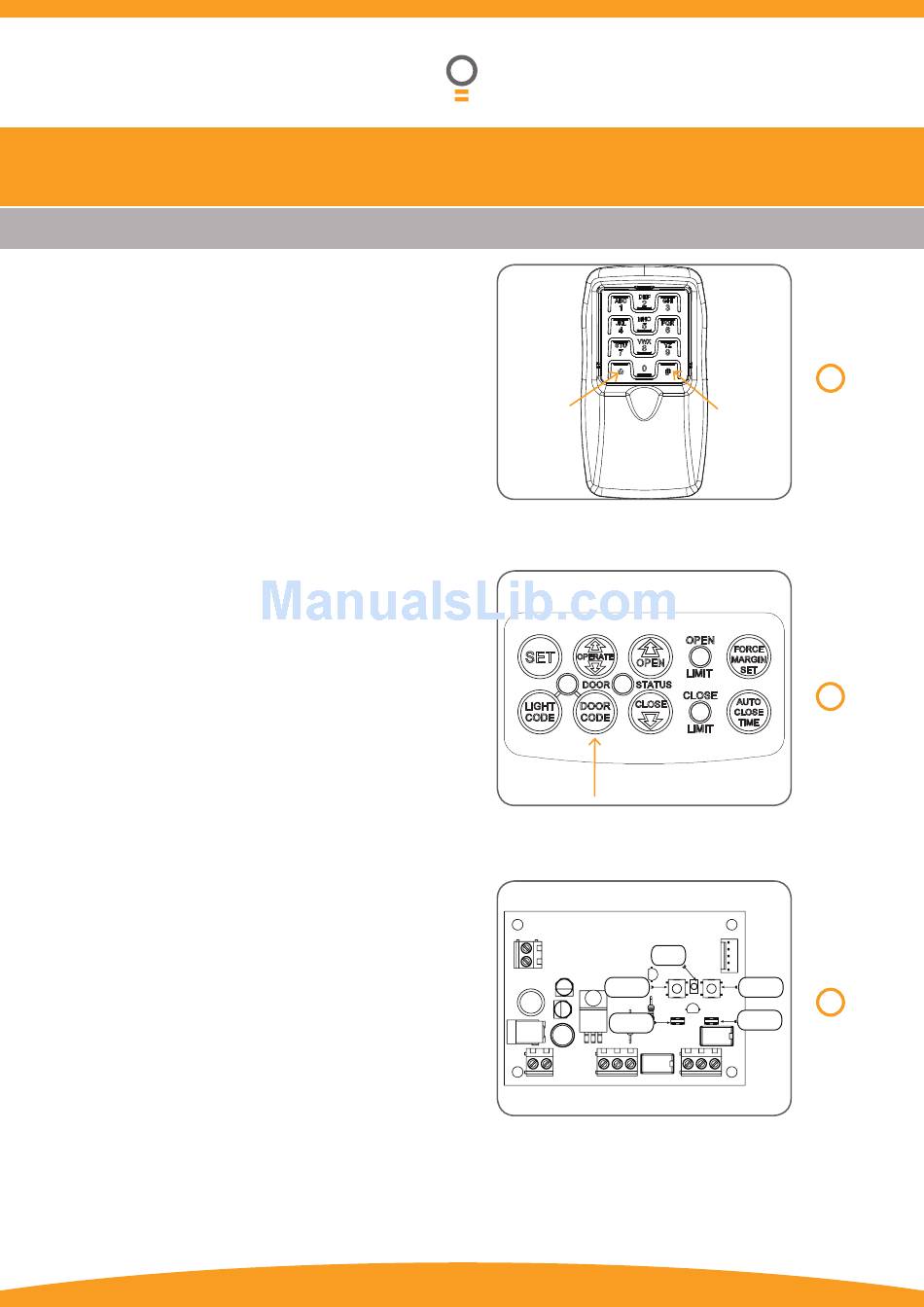

fi g 01
