Installation, Operation, Repair and Parts Manual

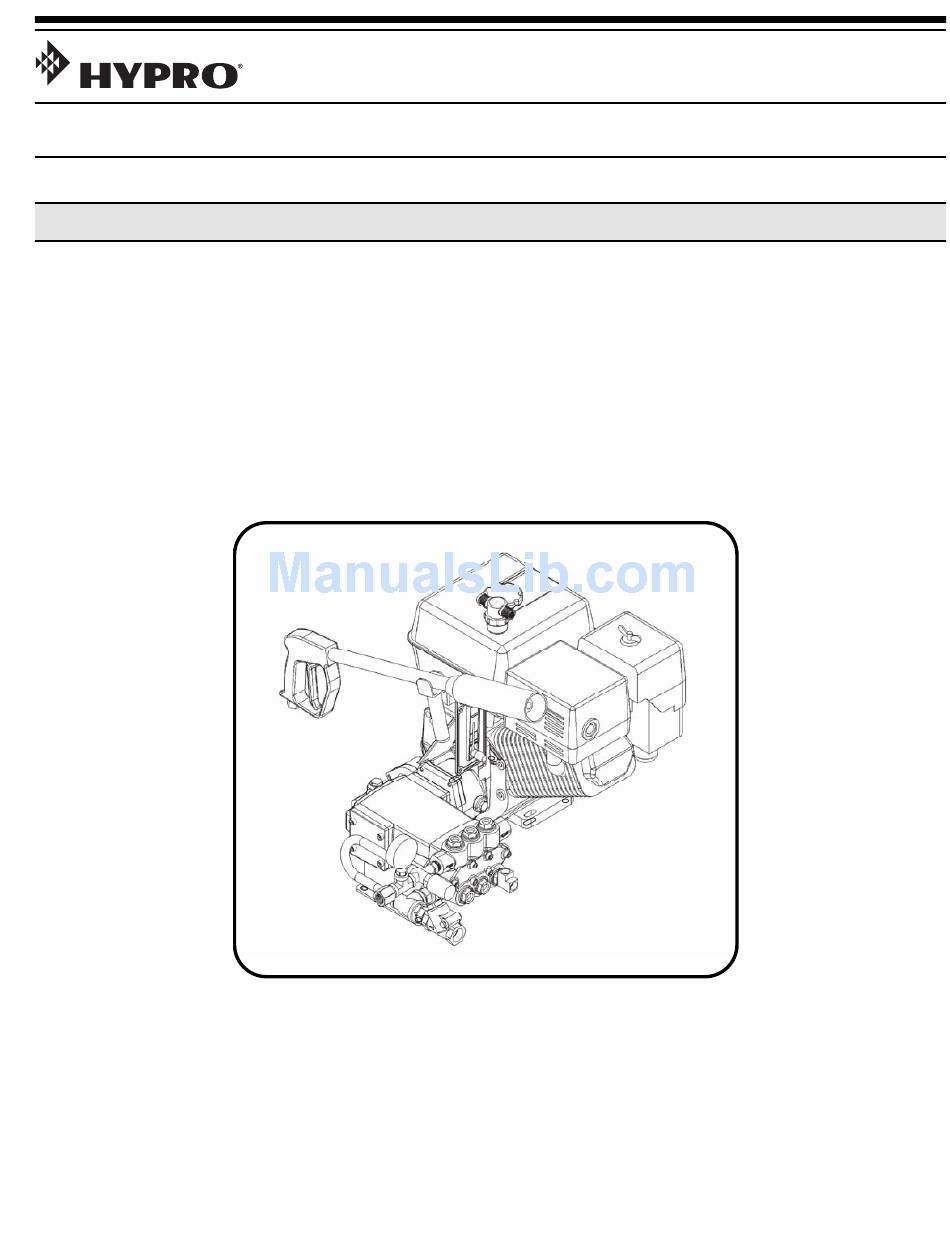

The Hypro High Pressure System is a gas motor-driven,
flow-based proportioning system that injects foam concen-
trate at a desired percentage at a fixed water flow rate. The
basic Hypro High Pressure System is shown below. The
system will accurately deliver from 0.3% to 3.0% foam con-
centrate at the rated system pressure and flow rate. The
system will accurately inject foam concentrate while the
system is running at recommended operating speed and
pressure. Foam percentage indication is instantaneously
given on the foam monitoring panel supplied.
Turbo Stream
Description
The foam concentrate is directly injected into the system at
the head of the pump. It is then fed as foam solution into
the adjustable foam spray gun.
The pump inlet is equipped with a check valve to prevent
contamination of the water supply.
The Hypro High Pressure Foam System is designed for
Class A foam concentrate (per NFPA 1150) applications
and calibrated for viscosity ranges up to 60 CPS.
Model No. 1508B-130EFS
®
Form L-1530
5/11 Rev. B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Hypro Turbo Stream 1508B-130EFS
- Page 1 5/11 Rev. B Installation, Operation, Repair and Parts Manual Description The Hypro High Pressure System is a gas motor-driven, The foam concentrate is directly injected into the system at flow-based proportioning system that injects foam concen- the head of the pump. It is then fed as foam solution into trate at a desired percentage at a fixed water flow rate.
-
Page 2: General Safety Information
4. Do not run the system at greater than recommended 18. CAUTION: The components shipped with each capacity. Hypro unit are tested at the factory. Improper 5. Do not permanently remove or alter any guarding handling and forcing connections can damage the... -
Page 3: System Component Description
System Component Description The following components are packaged with the Model 1508B-130EFS Hypro High Pressure System: Control Panel Pump/Motor Assembly Foam Concentrate Strainer Inlet Water Strainer Foam Spray Gun/Wand L-1530 (5/11 Rev. B) -
Page 4: Installer Supplied Parts
CAUTION: Always disconnect ground before electrical water priming operations. The pump must be positioned to arc welding on any Hypro equipment. Failure to do so allow gravity feed from the foam tank and water source or a will result in a power surge through the system that net positive suction head (NPSH) is required. -
Page 5: Installation Planning
Place the exactly how each Hypro unit can best be installed onto a foam tank where refilling with 5 gallon [19 liter] containers particular apparatus. - Page 6 High Pressure pump/motor base assembly. Flexible hose Flushing System is required to make the hose connections to the Hypro High Pressure System. DO NOT hard pipe the system. Depending on the corrosiveness of the foam concentrates...
-
Page 7: Calibration & Setup
7) Measure the amount of concentrate injected over time and compare to the level indicated on the display panel during this time. The output of the Hypro High Pressure System must be set at a constant 8 GPM + 0.20 GPM/ -0.5 GPM. -
Page 8: Operating Instructions
NOTE: DO NOT FILL perature is achieved. FUEL TANK WHEN ENGINE IS RUNNING. 2) CAUTION: Do not run the Hypro High Pressure 2) Engine Oil: Before checking or refilling with engine oil, System for long periods during unloading. Long periods... -
Page 9: Maintenance
Maintenance 1. Daily: Inspect wiring, hoses, pump, gear case, engine Note: Water quality, flushing and storage techniques, and connectors for tightness, corrosion, leaks and/or environment and usage may have an effect on your damage. maintenance schedule. To ensure equipment longevity, 2. -
Page 10: Installation Drawings
Installation Drawings 18.25 3.75 7.68 .44 Dia (6 Holes) 2.63 5.62 2.25 6.69 5.31 Pulse Hose Connection Foam Concentrate Inlet Solution Outlet 3/8-18 NPT 1/2-14 NPT Water Inlet Port .22 Dia (4) 3/4-14 NPT 17.94 21.44 31.31 L-1530 (5/11 Rev. B) -10-... - Page 11 Notes L-1530 (5/11 Rev. B) -11-...
-
Page 12: Return Procedures
Contact Hypro Service Department at 800-468-3428 to receive a Return Merchandise Authorization number (RMA#). Returns are to be shipped with the RMA number clearly marked on the outside of the package. Hypro shall not be liable for freight damage incurred during shipping. Please package all returns carefully. All products returned for warranty work should be sent shipping...
