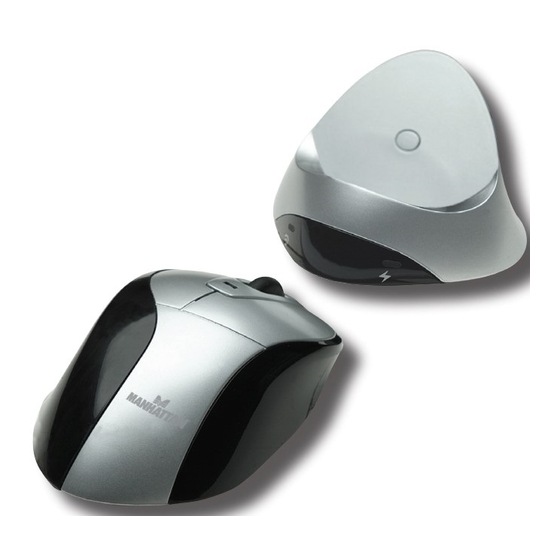

Manhattan 77221 mxd wireless optical desktop mouse

Advertisement

Quick Links

MXD
Wireless
Optical
DesktOp
MOuse
user
Manual
Model 177221
MAN-177221-UM-0708-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the 77221 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Manhattan 77221

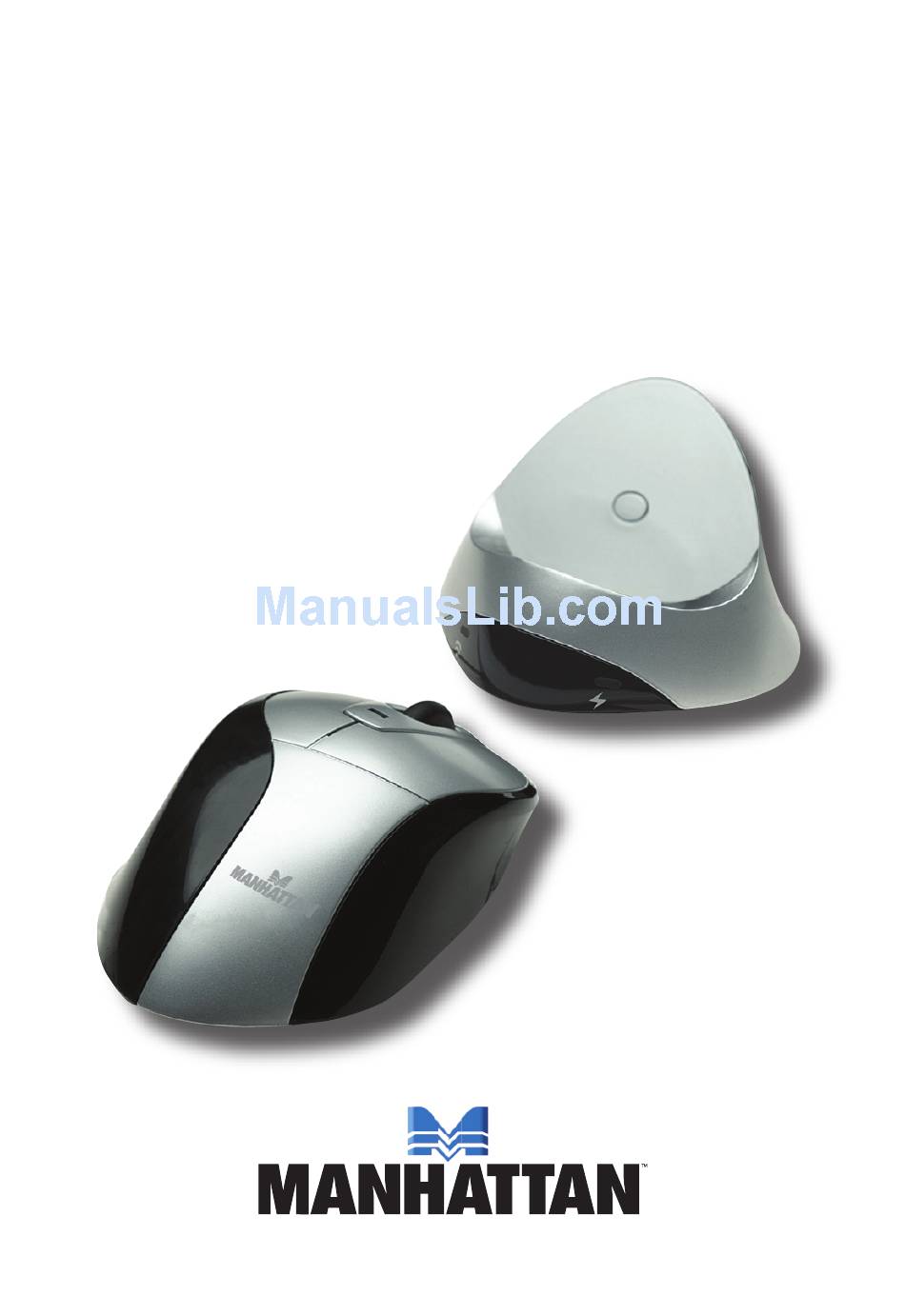

  • Page 1 Wireless Optical DesktOp MOuse user Manual Model 177221 MAN-177221-UM-0708-01...
  • Page 3 Thank you for purchasing the MANHATTAN MXD Wireless Optical ® Desktop Mouse, Model 177221. With 256 IDs and a compact USB cradle receiver/recharger, this mouse provides secure, stable connections in busy environments. Plus, the convenient six-button configuration (with scroll wheel) provides direct access to essential commands with minimal wrist movement.
  • Page 4: Hardware Installation

    • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your MANHATTAN dealer or an experienced radio/TV technician for help. harDWare installatiOn...
  • Page 5: Software Installation

    sOftWare installatiOn 1. Insert the enclosed driver CD in the CD-ROM drive Mouse Driver of the computer. AutoRun will launch the application. Ensure that the mouse’s receiver is connected, then click “Install now.” 2. The program will search for the mouse and display the welcome screen once it’s found.
  • Page 6 3. Once installation is complete, you will see a “Do you want to reboot now?” prompt. Click “Yes, reboot now.” 4. Once the reboot is complete, the Office Mice Center icon will appear in the system tray, or dock. This application allows you to reprogram your mouse buttons and configure the Magic Jump button.
  • Page 7 Each drop-down Left-Click Right-Click Middle-Click menu programs Back Forward Scroll Left the buttons with Scroll Right Button Off one of the Ctrl Delete Enter selections listed Shift Copy (Ctrl + C) Cut (Ctrl + X) in the table Paste (Ctrl + V) Redo (Ctrl + Y) Undo (Ctrl + Z) Show/Hide Desktop...
  • Page 8 Speed The Speed screen lets you manage pointer control and movement. Speed, Acceleration and Smart Move are available to make using your mouse easier.
  • Page 9 Scrolling The Scrolling screen lets you enable/disable the scrolling function and set the speed and direction of the scrolling. Also, you can adjust the clicking speed to act as a double-click.
  • Page 10 Magic Jump The Magic Jump screen lets you map multiple shortcuts with the click of a single button. A list of the default applications displays on the left- hand side of the screen. To add an application or file to your Magic Jump application, click “Add.” When the list of available applications displays, simply check the box to the left of the application.
  • Page 11 Click “Add URL/File” to add an application or file not listed. Enter the path to the file or Web site, then click “OK” when the application, site or file is highlighted. • Magic Jump remains on the top of all active windows.
  • Page 12: Operation

    To recharge the mouse when the computer is shut down, connect the receiver/recharger base to a MANHATTAN powered USB hub. NOTE: The actual charging time depends on the degree of the discharge.
  • Page 13 Operating Tips • Operate the mouse within 1.5 m (5 ft.) of the receiver. • Place the mouse on a white or light-colored surface for optimal performance. The optical mouse may not perform properly on highly polished, dark or glass surfaces or 3D mouse pads. •...
  • Page 14: Specifications

    specificatiOns Standards and Certifications • USB 1.1 • FCC • CE • WEEE General • USB 1.1 receiver • RF 27 MHz with 256 IDs • Recharge time: 8-10 hours to fully charge • Mouse: optical, 800 dpi resolution • Automatic power save/power off mode •...
  • Page 16 ® of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
