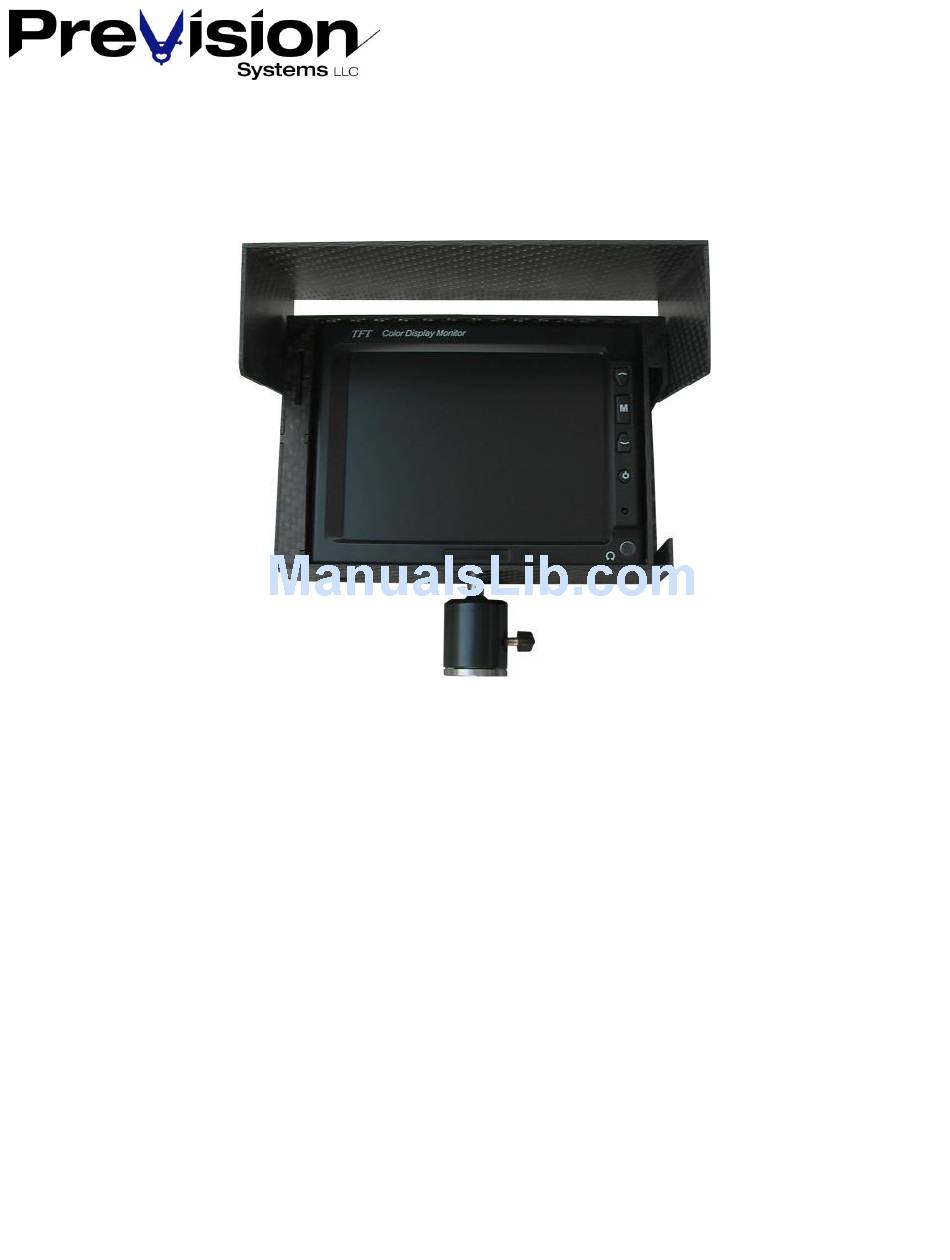

Digital Storage Monitor
PN 145168
o 5.6"TFT LCD Monitor DVR in a carbon-fiber
housing, attached to the reel with a lockable
swivel
o Store videos and images on a SD card (max.
16GB)
o Video: MPEG4 WMP file , *.AVI
o Image: Loss-less Bitmap, *.BMP.
354 US Highway 46 W, Suite 1C, New Jersey 07840-5335
Tel: 1 908 850 8998 Fax: 1 973 404 8560
E-mail: info@previsionsystems.com Web: previsionsystems.com
Advertisement
Table of Contents
Summary of Contents for Prevision 145168
- Page 1 Digital Storage Monitor PN 145168 o 5.6”TFT LCD Monitor DVR in a carbon-fiber housing, attached to the reel with a lockable swivel o Store videos and images on a SD card (max. 16GB) o Video: MPEG4 WMP file , *.AVI o Image: Loss-less Bitmap, *.BMP.
-
Page 2: Table Of Contents
Contents Quick Start Guide..........................3 Setup ............................3 Recording a video ........................5 Saving a Snapshot ........................5 Saving a Snapshot while video is recording ................5 How to store a video ........................6 How to store a Snapshot ......................... 7 Remote Control Unit ........................ -
Page 3: Quick Start Guide
Protect the DVR/Monitor unit from dirt and moisture. For optimal storage performance, format the SD-card device regularly. Should you need service, please contact Prevision Systems or an authorized dealer. Setup Be sure that the SD-card is inserted fully in the correct way. - Page 4 Note: Point the remote control unit at the IR receiver for best performance. To operate the remote control, press the remote Button for a short time, you will hear a beep, wait 2 seconds till the unit reacts. Select one of two modes of video monitor Live Mode Video signal directly passed to the monitor, results in best image &...
-
Page 5: Recording A Video
Recording a video Press REC to start recording. The red square indicates that video is recording. Saving a Snapshot Press OK to save a Snapshot. The yellow square indicates that the Snapshot is stored. Saving a Snapshot while video is recording Press OK to save a Snapshot. -
Page 6: How To Store A Video
How to store a video Press Button to toggle to DVR mode, you will see the image with the black bars on the left and right side. Press Button to start recording. As soon as recording starts, the red square will appear near the upper left edge. -
Page 7: How To Store A Snapshot
How to store a Snapshot Press Button to toggle to DVR mode, you will see the image with the black bars on the left and right side. Press Button press to save a Snapshot. When the Snapshot is stored a yellow square is displayed in the middle of the screen. Storing Snapshot Storing Snapshot while video is recording. -
Page 8: Remote Control Unit
Remote Control Unit Not Used System Settings Playback Left Right Snapshot / Enter Down Back / Pause Rec Start/Stop Recording Toggles Button Beep Not Used Toggle Live / DVR Mode 145196B Page 8 of 15... -
Page 9: File System Of The Stored Images And Videos
File system of the stored images and videos Filename of image or video Images and videos will be stored with the filename “TYYYYMMDDhhmmss“ YYYY year month hour minute second File extensions Images have the extension *.BMP Videos have the extension *.AVI File folder Images are stored sequentially in the folder “PICTURES“... -
Page 10: File Navigation
File Navigation Press Buttons to go to prior or next image. Press Buttons to go to top or bottom of list. Confirm with Selecting a Video file To navigate to the videos, you have to select the HVR folder, then 2 levels of sub folders first. Folder date, then folder time, then the video file. -
Page 11: System Menu
System Menu Press the MENU Button to access the 3 submenu items; Mic.Gain Storage System Settings Microphone Gain This selection turns the audio microphone on and off. 145196B Page 11 of 15... -
Page 12: Storage
Storage This selection allows SD Card stopping for Eject and SD Card formatting. 145196B Page 12 of 15... -
Page 13: System Settings
System Settings Control of Date, Time, Language, Display, Factory Reset, Firmware Update Setting the date and time clock. Setting the Date format. Setting the Date/Time Position. Setting the Date Color. 145196B Page 13 of 15... - Page 14 Language Selection Display of Status On, Off or only when recording Factory Default Resets to original settings 145196B Page 14 of 15...
-
Page 15: Specifications
Specifications Video Compression MPEG4, WMP compliant Video System NTSC/PAL Video Resolution 800x600 / 720x480 Frame Rate 1, 2, 3, 5, 13/15, 25/30fps Video Quality Best / Better / Fair Snapshot Image 640 x 480 pixel x 24 bit BMP file Clock Battery Lasts for 3 months w/o power supply Power Supply...
