Summary of Contents for Optoma WDC200 nu FORCE

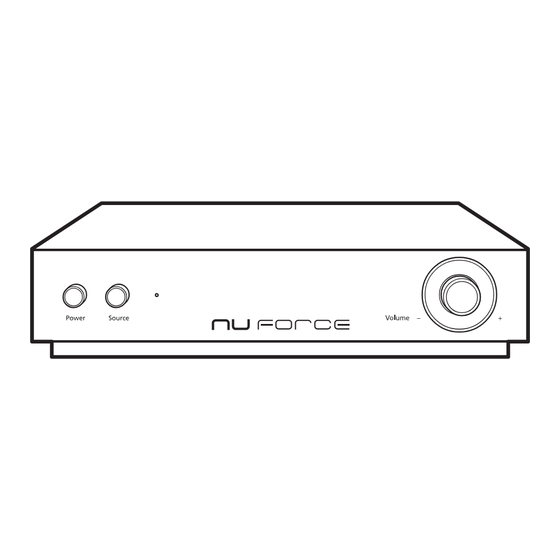

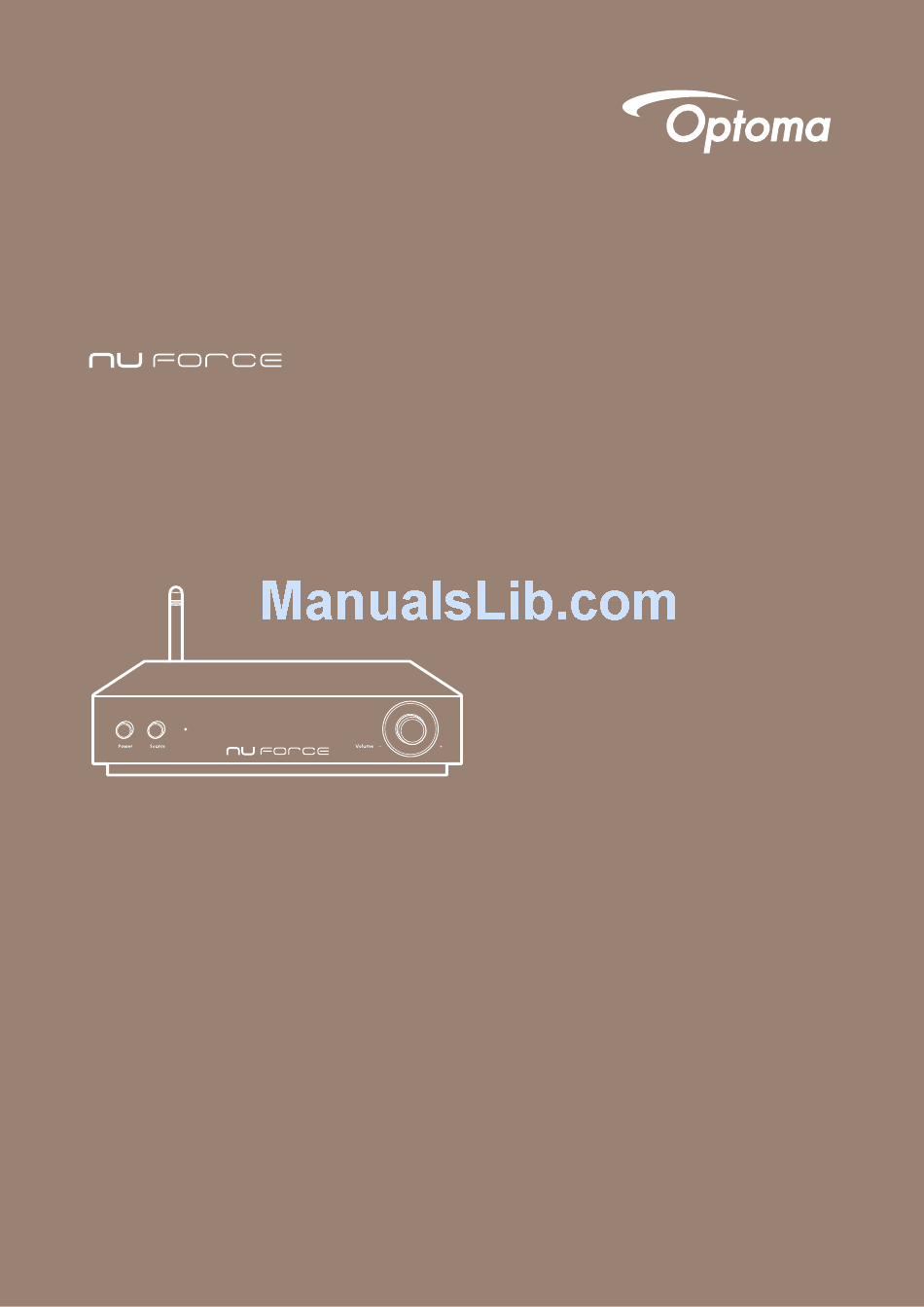

- Page 1 WDC200 High resolution wireless DAC User manual ALWDCNZZ...
-
Page 2: Safety Precautions
NuForce WDC200 Wireless DAC FCC STATEMENTS This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Table Of Contents
NuForce WDC200 Wireless DAC TABLE OF CONTENTS INTRODUCTION ......................... 3 Package Contents ................................3 Product Overview ................................3 Front View ..................................................3 Rear View ...................................................3 SETTING UP YOUR WIRELESS DAC ..................4 Installing the Antenna ..............................4 Connecting the Power Adapter ..........................4 Power on Your Wireless DAC .............................5 CONFIGURING WIRELESS CONNECTION ................6 Direct Connection (AP mode) ...........................6 Client Mode (STA) ................................9... -
Page 4: Introduction
NuForce WDC200 Wireless DAC INTRODUCTION Congratulations on your purchase of the Optoma NuForce WDC200 Wireless DAC. The WDC200 Wireless DAC is a high quality WiFi digital-to-analog converter that enables you to enjoy high quality music playback from your mobile devices. It also has a Toslink input that can accept optical digital output from your other digital source devices such as gaming consoles and CD players. -
Page 5: Setting Up Your Wireless Dac
Connect the power adapter to your device, and plug it into an electrical outlet. Note: When used with the Optoma NuForce STA200 amplifier, the WDC200 can be powered from the STA200’s DC output via the umbilical cord (supplied with the STA200) and thus benefits from... -
Page 6: Power On Your Wireless Dac
NuForce WDC200 Wireless DAC Power on Your Wireless DAC IMPORTANT! Make sure all cables are properly connected before turning the device on. Press the Power button to turn on your DAC. The Power LED lights up and the system starts warming up for 30 seconds. -
Page 7: Configuring Wireless Connection
1. Please download and install an appropriate player into your android device. 2. Enable Wi-Fi function on your portable device. 3. Tap Optoma-XXXXXX from the list of available networks to connect to the WDC200. 4. Open BubbleUPnP application and set the RENDERER setting to Optoma-XXXXXX. - Page 8 NuForce WDC200 Wireless DAC iOS/MAC 1. On your iPhone/iPad, enable the Wi-Fi function. 2. Tap Optoma-XXXXX from the list of available networks to connect to the WDC200. 3. Swipe up from the bottom of the screen to open Control Center. 4. Select Optoma-XXXXX.
-
Page 9: Client Mode (Sta)
NuForce WDC200 Wireless DAC Client Mode (STA) IMPORTANT! Make sure your portable device and WDC200 are connected via Direct Connection Mode before starting to set up Client Mode (STA) at the first time. Refer to the steps of setting up Direct Connection mode in previous page. -
Page 10: Wi-Fi Protected Setup (Wps)
To change the on-screen display language or configure other advanced settings, perform the following: 1. Enable Wi-Fi function on your portable device. 2. Tap Optoma-XXXXXX from the list of available networks to connect to the WDC200. 3. Open Browser on your portable device. -
Page 11: Configuring Wired Connection
NuForce WDC200 Wireless DAC CONFIGURING WIRED CONNECTION Connecting to Optical Input Source To connect to Optical input source, perform the following: 1. Connect the digital source to the optical input connector of the device by using a S/PDIF cable as shown in the illustration. - Page 12 NuForce WDC200 Wireless DAC In this mode, you can use the Volume knob to adjust the volume level. By default, the volume level is set to 30% of maximum output.
-
Page 13: Appendix
AP mode, select Direct Connection or press the Reset button to reset the device. Note: If you have further questions about WDC200 and NuForce products, please visit nuforce.optoma.com or call our local authorized disturbers for technical support. - Page 14 www.optoma.com...
