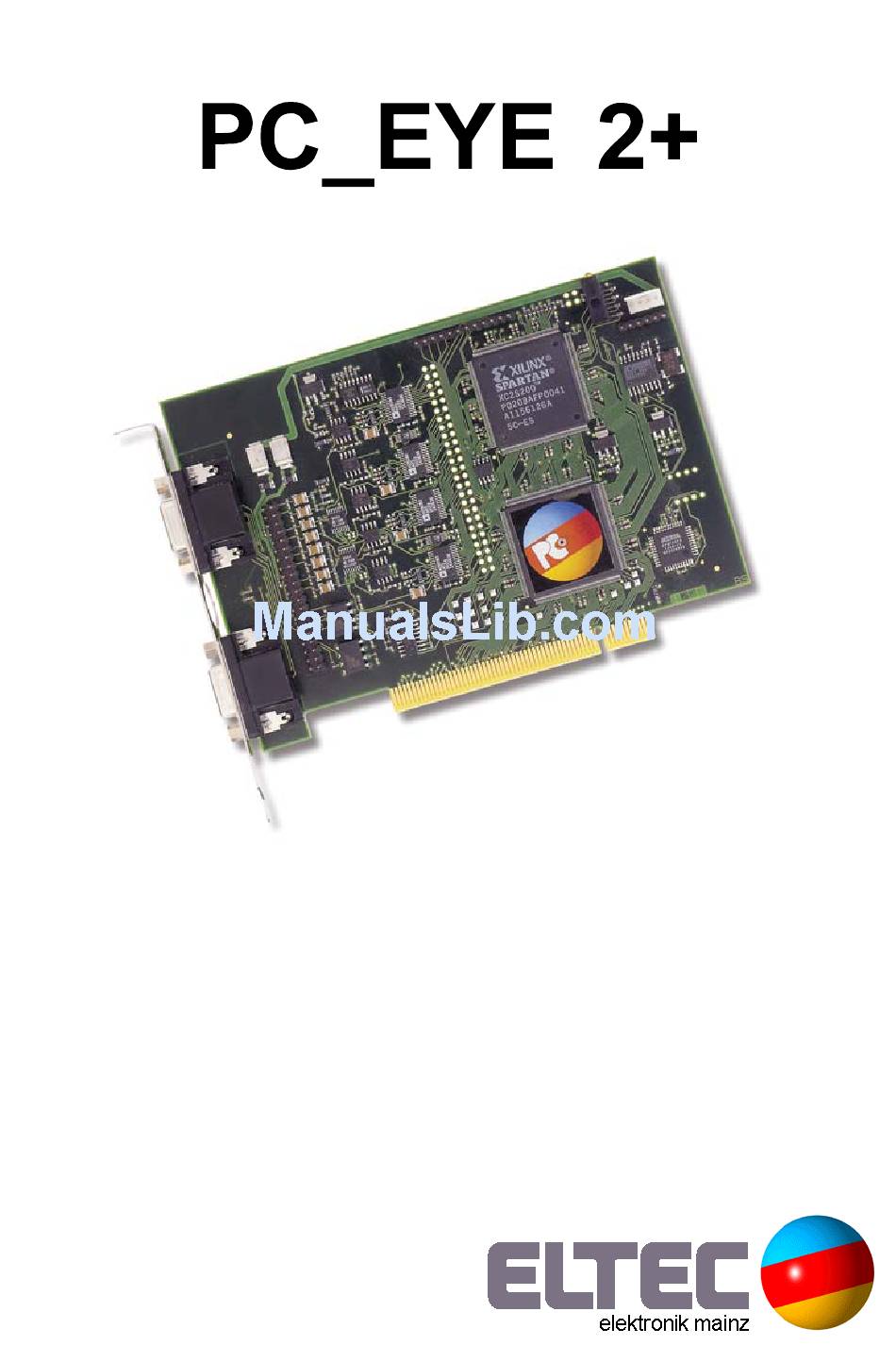

- Page 1 ® Hardware Manual Revision 2C...
-
Page 2: Revision History
ELTEC products are not authorized for use as components in life support devices or systems intended for surgical implant into the body or intended to support or sustain life. Buyer agrees to notify ELTEC of any such intended end use whereupon ELTEC shall determine availability and suitability of its product or products for the use intended. -
Page 3: Table Of Contents
User's Manual Table of Contents Table of Contents 1 Introduction................1—1 1.1 Technical Highlights..............1—1 1.2 Technical Details ..............1—4 1.2.1 Video Input................1—5 1.2.2 Sync Input................1—5 1.2.3 Clock Input................1—5 1.2.4 Trigger Input ................1—6 1.2.5 Sync / Camera Control Output ..........1—7 1.2.6 Power Supply out..............1—7 1.2.7 Data Transfer...............1—8 1.2.8 Packing Modes ..............1—9 2 Hardware Installation ............2—1... - Page 4 Table of Contents User's Manual 2.6.2 Jumper J100 ..............2—14 2.6.3 Jumper J101 ..............2—14 2.6.4 Jumper J102 ..............2—15 2.6.5 Jumper J103 ..............2—15 2.7 Status-LEDs................2—16 3 Specifications ................3—1 3.1 Electrical Specifications ............3—1 3.2 Environmental Conditions............3—2 4 Software Installation .............4—1 4.1 Getting started ................4—2 PC_EYE®2+...
- Page 5 User's Manual Table of Contents List of Tables Table 1—1: Possible Input Selections.......... 1—5 Table 2—1: Layout 15-pin VGA-Type Connector X100 (only PC_EYE 250) ..........2—5 Table 2—2: Layout 15-pin VGA-Type Connector X101 ....2—6 Table 2—3: Layout Hirose Connector X102......... 2—8 Table 2—4: Layout Hirose Connector X103.........
- Page 6 Table of Contents User's Manual List of Figures Figure 1—1: Block Diagram PC_EYE 250 ........1—2 Figure 1—2: Block-Diagram PC_EYE 260 ........1—3 Figure 1—3: Opto-coupled Trigger Input Schematic....1—6 Figure 2—1: Jumpers and Connectors Placement PC_EYE 250 2—4 Figure 2—2: Jumpers and Connectors Placement PC_EYE 260 2—4 Figure 2—3: PC_EYE 250/260 LED...........
-
Page 7: Introduction
User's Manual Introduction 1 Introduction 1.1 Technical Highlights · Frame grabber for 4 simultaneous mono-chrome channels or one RGB and one mono-chrome channel · Digitizes up to four parallel, separate images from synchronized cameras · Restart cameras supported · Real-time acquisition of images or image sequences directly into main memory ·... -
Page 8: Figure 1-1: Block Diagram Pc_Eye 250
Introduction User's Manual Figure 1—1: Block Diagram PC_EYE 250 10 pin GPO (12..15) Header GPO (0, 1, 3, 4) PCI- FPGA-2 FPGA-1 Sync0 DMA- PCI-Core Sync- Input Controller detect Frontend 15 pin I0/R(0..7) Sync1 Sync- detect I1/G(0..7) EE-Prom Sync2 Sync- Input detect 15 pin... -
Page 9: Figure 1-2: Block-Diagram Pc_Eye 260
User's Manual Introduction Figure 1—2: Block-Diagram PC_EYE 260 GPO (12..15) 10 pin GPI (0..3) Header GPO (0..11) PCI- FPGA-2 FPGA-1 Sync0 DMA- PCI-Core Sync- Controller detect Frontend I0/R(0..7) Hirose Sync1 Sync- detect X102 I1/G(0..7) EE-Prom X103 Sync2 Sync- detect I2/B(0..7) X104 Sync3 Sync-... -
Page 10: Technical Details
Introduction User's Manual 1.2 Technical Details ® The PC_EYE 2+ is intended for applications where up to four parallel channels are digitized, such as RGB data with additional alpha channel or four monochrome synchronous cameras are used ("quadro", analogous to stereo). -
Page 11: Video Input
User's Manual Introduction 1.2.1 Video Input The eight video inputs are AC-coupled and terminated with 75 Ohm resistors. Four independent Multiplexes distribute the signal to the four A/D converters. Table 1—1: Possible Input Selections Converter 0 Converter 1 Converter 2 Converter 3 Video0 Video1... -
Page 12: Trigger Input
Introduction User's Manual 1.2.4 Trigger Input The trigger inputs are opto-decoupled for optimum noise immunity (250 V isolation voltage). TRIGIN+ is connected to the anode of a LED, TRIGIN- to the cathode of the LED via an internal 220-Ohm resistor. Since the LED needs about 10..20 mA for full drive, a 5 V voltage source or a TTL output is able to drive sufficient current through the circuit. -
Page 13: Sync / Camera Control Output
User's Manual Introduction 1.2.5 Sync / Camera Control Output For sync and camera control are up to 16 General-Proposes-Outputs available. The first 12 GPOs are more flexible then the other 4 outputs. 1.2.5.1 Sync / Camera Control Output 0..11 Each Output can be mapped to one of 8 available signals: ·... -
Page 14: Data Transfer
Introduction User's Manual 1.2.7 Data Transfer Since the PC_EYE-2+ is a Busmaster card, the video data from a Frame or a whole sequence is moved to memory per DMA-transfer. No need for the CPU to support this process. The maximum transfer rate in a system is 105 Mbytes/s, but this is a best case. -
Page 15: Packing Modes
User's Manual Introduction 1.2.8 Packing Modes There are 8 different modes handle several combinations of cameras 1.2.8.1 Mode Mono Four individual monochrome channels, each 8 bit per Pixel. 1.2.8.2 Mode RGB24 One 24 bit RGB channel, packed in 32 bit. 1.2.8.3 Mode RGB32_Z One 24 bit RGB channel stored as 32 bit, the 8 unused high order bits are... - Page 16 Introduction User's Manual 1.2.8.7 Mode RGB555M One monochrome channel, stored as 15 bit RGB. In a 16 bit word the MSB is zero. Two 8 bit monochrome channels. 1.2.8.8 Mode RGB565M One monochrome channel, stored as 16 bit RGB. Two 8 bit monochrome channels. 1—10 PC_EYE®2+...
-
Page 17: Hardware Installation
User's Manual Hardware Installation 2 Hardware Installation What you need for installation and use of the PC_EYE family member boards: · PC with free PCI slot and Pentium (I -III) CPU. · The PC_EYE board. · PC_EYE2+: video camera appropriate for the PC_EYE2+ (monochrome). -
Page 18: Cable
2.2 Cable PC_EYE 250 To connect a RGB-Camera, use a standard PC-Monitor cable HD15 to BNC. To connect four monochrome cameras with BNC-Output use the ELTEC cable V-CABL-183A. PC_EYE 260 To connect four monochrome cameras with Hirose-Output use a standard Hirose-Cable. -
Page 19: Trouble Shooting - If It Does Not Work
User's Manual Hardware Installation 2.3 Trouble Shooting - if it does not work Check if the driver and the user mode software are installed properly. See chapter 3. Grabber is not found by software: Make sure the grabber is correctly plugged into the PCI-connector. If mechanical problems can be excluded refer to the driver installation guide to see if the driver has been installed correctly. -
Page 20: Connectors
Hardware Installation User's Manual 2.4 Connectors The 15-pin female D connector is used to input video signals and several other I/Os. 2.4.1 Jumpers and Connectors Placement Figure 2—1: Jumpers and Connectors Placement PC_EYE 250 S500 X106 X700 D601 X100 J104..6 X101 Figure 2—2: Jumpers and Connectors Placement PC_EYE 260 S500... -
Page 21: Connector X100
User's Manual Hardware Installation 2.4.2 Connector X100 Table 2—1: Layout 15-pin VGA-Type Connector X100 (only PC_EYE 250) Front view Pin5 Pin1 Pin10 Pin6 Pin15 Pin11 Signal Direction Description Level Video0 Input Video Red or BW0 0.7 Vpp Video 0.3 Vpp Sync Video1 Input Video input Green or BW1... -
Page 22: Connector X101
Hardware Installation User's Manual 2.4.3 Connector X101 Table 2—2: Layout 15-pin VGA-Type Connector X101 Front view Pin5 Pin1 Pin10 Pin6 Pin15 Pin11 Signal Direction Description Level Video4 Input Video Red_B or BW0_B 0.7 Vpp Video 0.3 Vpp Sync EXTTRIG+2 Differencial Trigger high TTL high EXTTRIG2 Trigger... - Page 23 User's Manual Hardware Installation All signals with 1.0 Vpp level are AC-coupled and terminated with 75 Ohm to GND. The connector case of all connector X100 and X101 is connected to shield potential which is separated from signal ground. If only the video inputs are required a standard VGA monitor cable with BNC connectors on the monitor end may be used.
-
Page 24: Connector Hirose X102
Hardware Installation User's Manual 2.4.4 Connector Hirose X102 Table 2—3: Layout Hirose Connector X102 Signal Direction Description Level Signal Ground PVcc0 Output Fused Supply for Cameras 12 V, 1100 mA Signal Ground Video0 Input Video Input 0 0,7 Vpp Video, 0,3 Vpp Sync Signal Ground GPO0 Output... -
Page 25: Connector Hirose X103
User's Manual Hardware Installation 2.4.5 Connector Hirose X103 Table 2—4: Layout Hirose Connector X103 Signal Direction Description Level Signal Ground PVcc1 Output Fused Supply for Cameras 12 V, 1100 mA Signal Ground Video1 Input Video Input 1 0,7 Vpp Video, 0,3 Vpp Sync Signal Ground GPO3 Output... -
Page 26: Connector Hirose X104
Hardware Installation User's Manual 2.4.6 Connector Hirose X104 Table 2—5: Layout Hirose Connector X104 Signal Direction Description Level Signal Ground PVcc2 Output Fused Supply for Cameras 12 V, 1100 mA Signal Ground Video2 Input Video Input 2 0,7 Vpp Video, 0,3 Vpp Sync Signal Ground GPO6 Output... -
Page 27: Connector Hirose X105
User's Manual Hardware Installation 2.4.7 Connector Hirose X105 Table 2—6: Layout Hirose Connector X105 Signal Direction Description Level Signal Ground PVcc3 Output Fused Supply for Cameras 12 V, 1100 mA Signal Ground Video3 Input Video Input 3 0,7 Vpp Video, 0,3 Vpp Sync GPO9 Output Sync or Camera Control 9... -
Page 28: Connector 10-Pin Header X106
Hardware Installation User's Manual 2.4.8 Connector 10-Pin Header X106 Table 2—7: Layout 10-Pin Header X106 Signal Direction Level GPIO Output TTL 3.2 V @ 75 Ohm GPIO13 Output TTL 3.2 V @ 75 Ohm GPIO14 Output TTL 3.2 V @ 75 Ohm GPIO15 Output TTL 3.2 V @ 75 Ohm... -
Page 29: Jumpers
User's Manual Hardware Installation 2.6 Jumpers Default Jumpering PC_EYE 250 2.6.1 Jumper J104 Jumpering for X101 Pin on Used Signal Jumper HD15 Closed X101 Video Input 4 * 10A - 11A External Trigger 2 TTL 11A - 12A Video Input 5 * 10C - 11C GPO2 10B - 10C... -
Page 30: Jumper J100
Hardware Installation User's Manual 2.6.2 Jumper J100 Default Jumpering left open all Jumpering for X102 Pin on Used Signal Jumper Closed Hirose X102 GPO0 10A - 10B GPO1 9A - 9B External Clock 0 8A - 8B GPO2 7A - 7B External Clock 0 6A - 6B Video Input 5... -
Page 31: Jumper J102
User's Manual Hardware Installation 2.6.4 Jumper J102 Default Jumpering left open all Jumpering for X104 Pin on Used Signal Jumper Closed Hirose X104 GPO6 10A - 10B GPO7 9A - 9B External Clock 2 8A - 8B GPO8 7A - 7B External Clock 2 6A - 6B Video Input 7... -
Page 32: Status-Leds
Hardware Installation User's Manual 2.7 Status-LEDs They are 4 LEDs for several status information: Figure 2—3: PC_EYE 250/260 LED LED 1: Board selected - when the Configuration-Program is started, the LED make a flash LED 2: Capture - Acquisition in progress LED 3: FiFo overrun - The FiFo run full LED 4: FiFo Write Enable - valid data is written into the FiFo 2—16... -
Page 33: Specifications
User's Manual Specifications 3 Specifications 3.1 Electrical Specifications Table 3—1: Electrical Specifications Description Min. Typ. Max. Unit Composite Video Input video input Voltage sync input Voltage 0.15 Offset input Voltage Clock Offset+AC Trigger Input differential input voltage common input voltage Sync / Camera Control Output @ 75 Ohm output high voltage... -
Page 34: Environmental Conditions
Specifications User's Manual 3.2 Environmental Conditions Storage Temperature: -20° C - 70° C Operating Temperature: 0° C - 45°C (2 m/s forced air cooling) Maximum Operating Humidity: 85 % relative 3—2 PC_EYE®2+... -
Page 35: Software Installation
4 Software Installation The software consists of a development files setup and a hardware driver setup. The software can be downloaded at http://www.eltec.com in the "support" menue under "Driver and Updates" or can be obtained as a CD on demand. -
Page 36: Getting Started
Software Installation User's Manual 4.1 Getting started First the platform specific driver has to be installed . Please have a look to the "drvinstall.pdf" help file. After that, by calling "app_setup.exe" the PC_EYE 2+ Basic Tools and Configuration Program will be installed. The Grabber Configuration Program is now ready to use. - Page 37 Problem concerns: Hardware Software System Documentation Pr oduct: __________________________________ Revision Level : _________________ ELTEC Seri al No. (barcode): _____________________________________________________ Other : ________________ O perating System: Wi ndow s 98 Windows NT System Configur ation (Hardwar e/Softwar e): Motherboar d: ________________________________...
