Getting Started

Parts & Functions

1 Pressure Vent

2 Earpiece

3 Display

4 Mic

5 External Device Port

6 Notification Lamp

7 Sub-display

8 Strap Eyelet

9 Charging Terminals (for Desktop Holder)

a Internal Antenna Area

b Infrared Port

c Camera (Lens Cover)

d Speaker

e Battery Cover

Internal Antenna Area

. Do not cover or place stickers, etc. over

Internal Antenna area.

External Device Port

. Close External Device Port Cover

(hereafter "Port Cover") after use.

Strap Eyelet

. Remove Battery

Latch Strap on the peg

Cover before

attaching Straps.

. Avoid metal

Straps; may affect

signal reception.

Handset Positions

Handset Closed

Keep handset closed when not in use.

Handset Open

Open handset to place or answer calls,

enter text, etc.

Feed Strap loop

through Strap Eyelet

Handset Parts

Table of Contents

Need help?

Do you have a question about the Softbank 202SH and is the answer not in the manual?

Questions and answers

Summary of Contents for Pantone Softbank 202SH

Page 1: Handset Parts

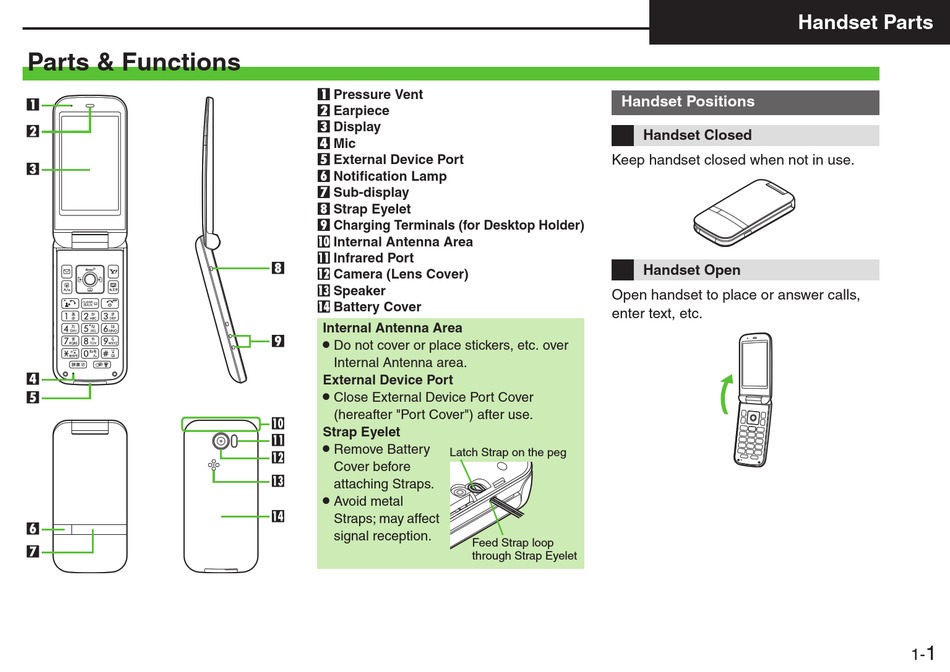

Handset Parts Getting Started Parts & Functions 1 Pressure Vent Handset Positions 2 Earpiece 3 Display Handset Closed 4 Mic 5 External Device Port Keep handset closed when not in use. 6 Notification Lamp 7 Sub-display 8 Strap Eyelet 9 Charging Terminals (for Desktop Holder) a Internal Antenna Area b Infrared Port Handset Open...
