Summary of Contents for Crypto Free Time 100
-

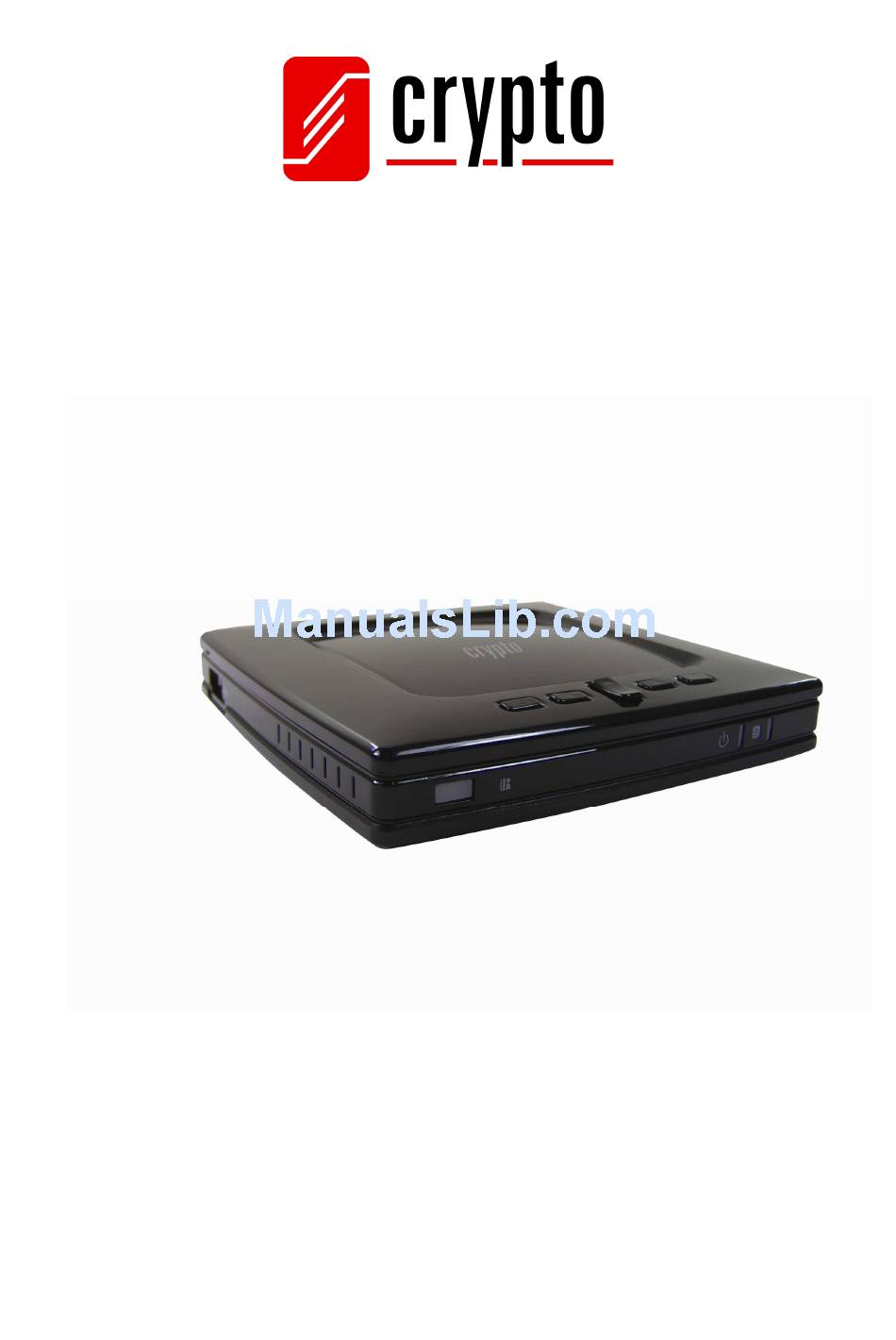

Page 1: User Manual
HDMI Media Player Free Time 100 USER MANUAL... -
Page 2: Table Of Contents
Table of Content Table of Content ············································································································································· 2 Safety Information ··········································································································································· 3 Notes Recycling Information ····································································································································· 4 Package Content ············································································································································ 4 Features ························································································································································· 5 Quick Start Guide ··········································································································································· 5 Main Unit ························································································································································ 6 Remote Control Insert battery and operation range ···················································································································· 6 Buttons ·····························································································································································... -
Page 3: Safety Information
12. Take care that nobody can trip over the power supply cable. Card Reader The Card Reader off the Free Time 100 support SD, MS and MMC memory cards. SD, MS and MMC can recognizes up to a size of 16 GB. -
Page 4: Notes
The “Grüne Punkt” denotes that the MAS Elektronik AG pays a duty to the “Gesellschaft für Abfallvermeidung und Sekundärrohstoffgewinnung“. Package Content When opening the package of this Portable-DVD player please make sure that the following accessories are included: ● Free Time 100 ● Remote Control ● AC/DC power adapter ●... -
Page 5: Features
Free Time 100. By first time starting of the device the Free Time 100 appears the setup settings .Here you can choose the OSD Language, the Aspect Ratio and the TV System (the kind of video outputs). -
Page 6: Main Unit
Main Unit The elements of the front side Remote control indication light Power indication light, Infra red receiver Hard disk indication light The button of the top side return to main menu Navigation button left Navigation button up and down Navigation button right Start of playback or confirm the settings The elements of the rear side... -
Page 7: Buttons
Buttons Buttons of the Remote Control POWER button TV MODE button OSD button SETUP button Navigation Cross ( STOP button AUDIO button Next button (>>|) SUBTITLE button Previous button (|<<) PHOTO selection button Background Music button during picture slideshow MUSIC selection button Mute button ROTATE button ZOOM button... -
Page 8: Connecting
Connecting Connecting with a HDMI cable HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transmitting uncompressed digital data. It supports, on a single cable, any TV or PC video format, including standard, enhanced, and high-definition video, up to 8 channels of digital audio, and the Consumer Electronics Control signal. -
Page 9: To A Sound System Or Av Receiver/Amplifier
Gently push the card in all the way until the card is fixed in place. Notes: The Card Reader off Free Time 100 supports SD and MMC cards. SD and MMC can be recognizes up to a size of 16... -
Page 10: Playback
Playback After the start of the Free Time 100 you player enters to the Home menu. There you can find the entering to the setup settings. If you connect external storages like USB-Stick or Card Memory, then the HOME menu expanded with the symbols for USB and SD. - Page 11 If you press in the SELECT MEDIA menu the PICTURE button on the remote control than the slideshow starts directly. Playback a Picture After the selection of the picture in the thumbnail view you can playback the picture one by one or start the slideshow. PLAY/PAUSE Starts the slideshow ENTER Playback of a single picture In the setup setting you can define some parameters for the slideshow.
-
Page 12: Movie
Movie Free Time 100 can playback movie files from external storages in different formats. The supported formats are: MPEG-1, MPEG-2, MPEG-4 and Real Media. MPEG-x limitations and restrictions for the player: Available resolution size of the MPEG-4 file is under 720x576 (W x H) pixel. - Page 13 the MOVIE button on the remote control. The file browser appears on the screen. Operation in the file browser Press the ▲ or ▼ button on the remote control or on the device to select a folder or a movie file. If many files are inside the storage or in a folder you can press >>| or |<<...
-
Page 14: Music
full screen Displays every movie in full screen mode Control bar If you press during the playback of a picture the OSD or ENTER button, than a control bar appears on the screen. With the control bar you have access to the important playback functions. Music To start the MUSIC selection, please navigate to the music icon and press the ENTER button. -
Page 15: Text Files
Text Free Time 100 has a E-Book Reader inside. The device can display files in the format TXT. Please pay attention to the different format options by creating the test file. Not every option is by displaying them optimal. To start the TEXT selection, please navigate to the text icon and press the ENTER button. The file browser appears on the screen. -
Page 16: Copy Of Files
File Management Please choose a file in the file browser and press the button. The file is now marked with symbol. Press the OSD button on the remote control and on the right side of the file browser window appears an option menu with ●... -
Page 17: Setup
The device returns to the normal file browser view. The delete procedure can be cancelled by the confirmation prompt. Please press the ENTER button on the X field. The device returns to the normal file browser view. Of course, you can delete more than one file at once. Please choose each file and mark them with the button. - Page 18 4:3 For 4:3 TV sets TV system Here you can define the video output mode of the device. PAL Composite CVBS video out for PAL TV system PAL Interlace YUV video out for PAL TV system PAL Progressive YPbPr video out for PAL TV system NTSC Composite CVBS video out for NTSC TV system NTSC Interlace...
-
Page 19: Troubleshooting
Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Symptom Correction ● No power Check if AC adapter of power is connected securely. ● Press the POWER button on the remote control ● No playback Condensation had formed, please wait 1 or 2 hours to allow the player dry out. -
Page 20: Specification
on the screen. ● False color Connect the phone jack of the YUV adapter cable complete into the YPbPR connector. ● Pay attention to the color coding on the cable and the connection to the TV set. displaying by YUV ●... -
Page 21: Optional Assembling Of Internal Hard Disk
Put the rear cover back to the unit, and put inside the whorl. For technical information and support contact with as: Website: www.cryptoelectronics.gr E-mail: support@crypto.gr CRYPTO Address: V. Ipirou 45, 15125 Marousi, Greece Telephone: +30 210 8098700 Fax: +30 210 6122512...
