SET UP GUIDE
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the orcongenius and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orcon orcongenius

Summary of Contents for Orcon orcongenius

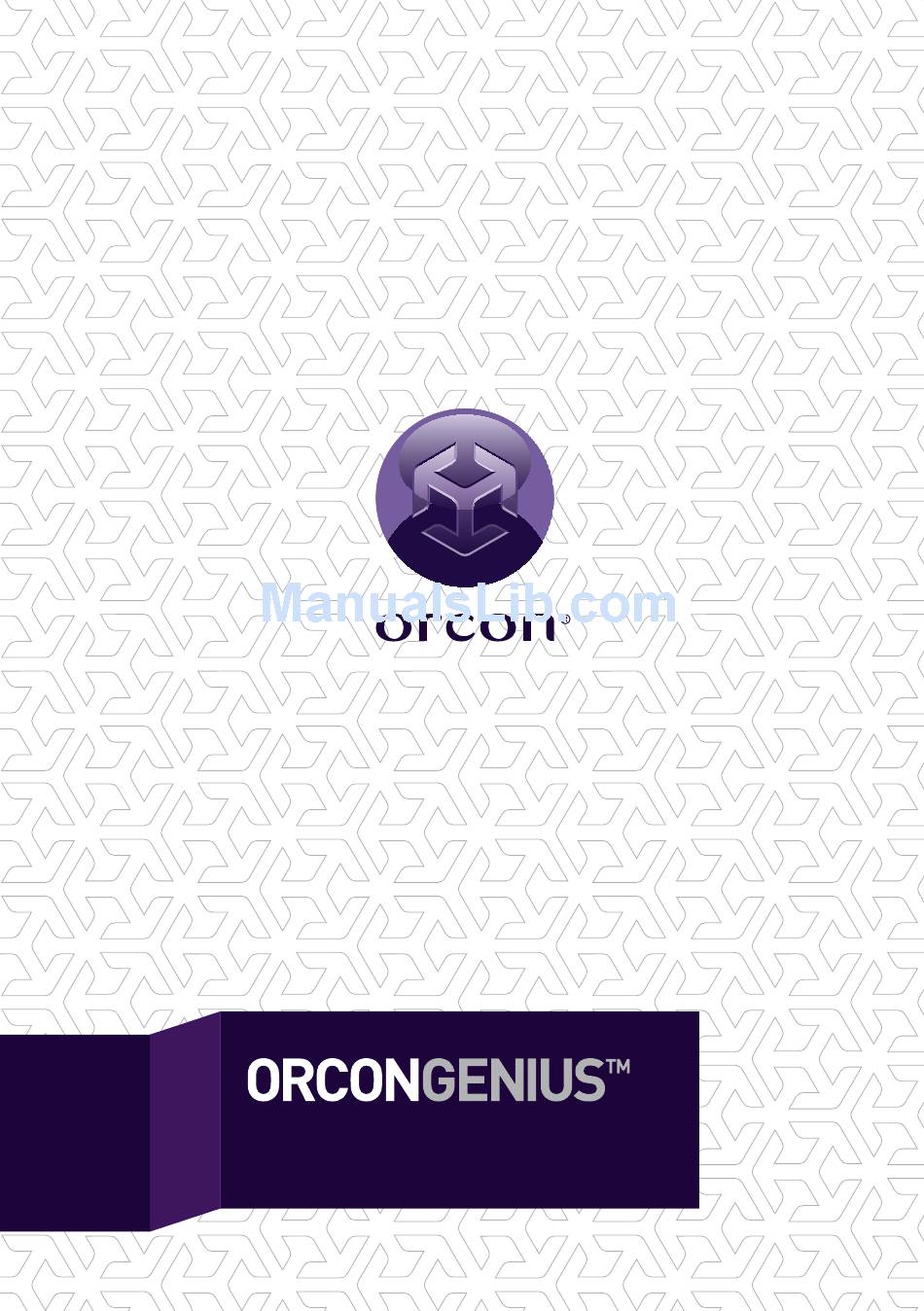

  • Page 1 SET UP GUIDE...
  • Page 2 IMPORTANT: You will know that your service is active when you receive a text and/or email telling you that your Orcon Genius connection is complete. This will be sent to the email and/or mobile entered during sign-up. This is when you can install your Orcon Genius (not before).
  • Page 3 POWER ADSL JACKPOINT SOCKET 2. PHONE CABLE 3. ETHERNET CABLE 1. POWER CABLE 4. Orcon Genius will now communicate with our systems to finish setting up your broadband connection. To connect wirelessly use the wireless setup guide on page 9.
  • Page 4 2. Plug one of the yellow Ethernet cables (which can be found in your Orcon Genius box) into the WAN socket located on the back of the device. Plug the other end of the same cable into port 1 of the newly installed UFB ONT.
  • Page 5 GETTING ORCON GENIUS CONNECTED Hooray! You have successfully completed the physical set up process for Orcon Genius. This is the first time you connect so you will need to wait 3-5 minutes to allow Orcon Genius to download its configuration settings for broadband and voice.
  • Page 6 Orcon Genius phone. • Plug the RJ11-RJ11 (narrow plugs at both ends) phone cable from the Orcon Genius box into the grey Telephone 1 socket on the back of your Orcon Genius modem. • Connect the other end of the cable into the matching socket on your phone.
  • Page 7 ORCON GENIUS – MORE DETAILED INFO Note: we recommend you follow steps 3-5 to make sure your Orcon Genius is super secure and safe. CONTENTS 1. GET TO KNOW GENIUS 2. HOW TO SET UP WIRELESS 3. HOW TO DRIVE ORCON GENIUS MANUALLY 4.
  • Page 8 6. Wi-Fi 2. DSL The wireless status light shows you The DSL light indicates an active DSL when the Orcon Genius Wi-Fi network is service on the line. This light will not be enabled. illuminated on a UFB connection. 3. Internet 7.
  • Page 9 CHAPTER 2 HOW TO SETUP WIRELESS The Orcon Genius wireless signal is on by default and secured using a unique password printed on the base of the modem. Please note: if you want a different password you can change this, see Chapter 4.
  • Page 10 2. A menu will appear with the wireless networks currently in range. Look for the name of your network and click on it (in this case it’s Orcon-Wireless). 3. Ensure the Connect Automatically option is ticked and then click on the connect button.
  • Page 11 2. A menu will appear with the wireless networks currently in range. Look for the name of your wireless network and click on it (in this case it’s Orcon-Wireless). 3. Ensure the Connect Automatically option is ticked and then click on the Connect button.
  • Page 12 1. On the top menu bar, click the AirPort icon and select the Turn AirPort On option. 2. After a moment, your computer will list the available wireless networks. Select your wireless network. In this case it’s Orcon-Wireless. 3. Next you’ll be required to enter your wireless network password (this is the serial number of the modem device, located on the bottom of your device by default).
  • Page 13 (default = admin) This allows you to access the modem’s interface. 4. In the modem’s interface there are various menus regarding the modem’s settings and other various options. We recommend that you do not alter any of these settings, to ensure a smooth Orcon Genius experience.
  • Page 14 CHAPTER 4 - HOW TO CHANGE YOUR SSID & WIRELESS PASSWORD HOW TO CHANGE YOUR SSID To change the SSID (Wireless network name) for your Orcon Genius wireless network follow the steps below: 1. Open your preferred browser. 2. In your browser, enter 192.168.20.1 into the URL bar to browse to access your modem’s interface.
  • Page 15 HOW TO CHANGE YOUR WIRELESS PASSWORD To change the password on your Orcon Genius’s wireless network follow the steps below: 1. Open your preferred browser. 2. In your browser, type in 192.168.20.1 into the URL bar to browse to access your modem’s interface.
  • Page 16 The default password is ‘admin’. We do suggest you personalise this password to ensure that your Orcon Genius is more secure. Note: this is the password to the modem and won’t change your Orcon username and password for account details and webmail login.
  • Page 17 NOTES...
  • Page 18 For additional information please refer to the support section of our website at www.orcon.net.nz/support...
  • Page 20 orcon.co.nz...
