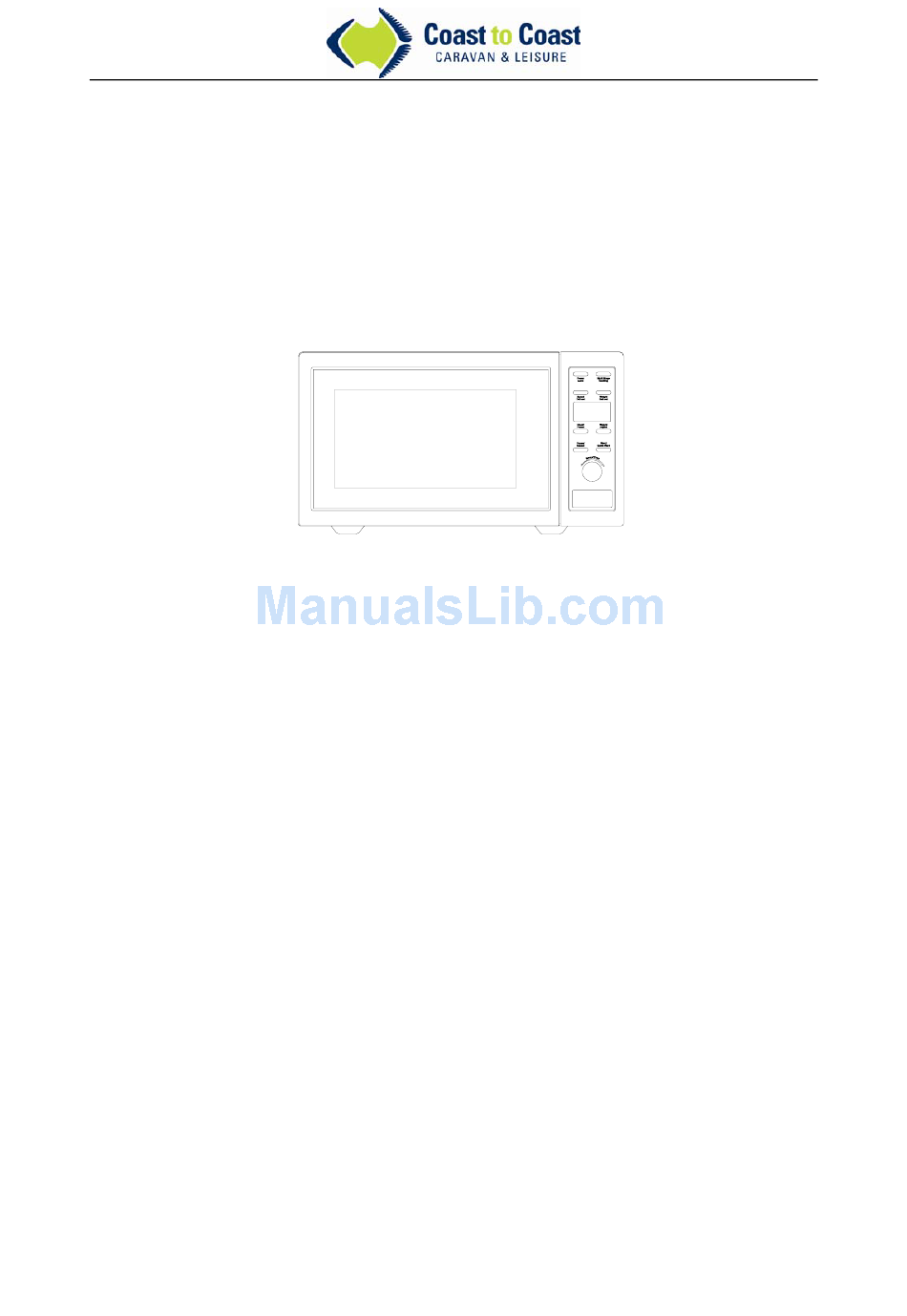

O w n e r ' s M a n u a l

MODEL: 700-06050

(P90D25EP-YX)

Please read these instructions carefully before installing and operating the oven.

Record in the space below the SERIAL NO. found on the nameplate on your oven and retain

this information for future reference.

SERIAL NO.:__________________________

Table of Contents

Need help?

Do you have a question about the 700-06050 and is the answer not in the manual?

Questions and answers

Summary of Contents for Coast to Coast 700-06050

Page 1 O w n e r ' s M a n u a l MODEL: 700-06050 (P90D25EP-YX) Please read these instructions carefully before installing and operating the oven. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.
Page 2: Table Of Contents
CONTENTS ................................1 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ..... 2 SPECIFICATIONS..............................2 IMPORTANT SAFETY INSTRUCTIONS ......................3 INSTALLATION ..............................4 RADIO INTERFERENCE ............................. 4 GROUNDING INSTRUCTIONS ........................... 5 MICROWAVE COOKING PRINCIPLES ......................
Page 3: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
Page 4: Important Safety Instructions
When using electrical appliance basic safety precautions should be followed, including the following: WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: Read all instructions before using the appliance. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapours in this appliance.
Page 5: Installation
(Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
Page 6: Grounding Instructions
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.
Page 7: Before You Call For Service
If the oven fails to operate: Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
Page 8: Part Names
1. Door Safety Lock System 2. Oven Window 3. Shaft 4. Roller Ring 5. Door Release Button 6. Control Panel 7. Wave Guide (Please do not remove the mica plate covering the wave guide) 8. Glass Tray...
Page 9: Control Panel
DISPLAY SCREEN Cooking time, power, indicators and present time are displayed. POWER LEVEL Touch this button to set microwave cooking power level. MULTI STAGE COOKING Use to set a multi stage cooking program. SPEED DEFROST Touch to set defrost program by time. WEIGHT DEFROST Use to defrost food by weight.
Page 10: How To Set The Oven Controls
SETTING THE CLOCK This is a 12 and 24 hour clock. To check the time while the oven is operating, press CLOCK/PRESET. Suppose you want to set the oven clock time at 8:30. In standby mode, press CLOCK/PRESET once or twice to choose 12 or 24 hour clock. Turn MENU/TIME to set 8 o’clock.
Page 11: Quick Start
QUICK START Use this feature to program the oven to start at 100% power conveniently. The max time can be set is 10minutes Open the door and place the food into the oven, close it. Press START/QUICK START button in quick succession to set the cooking time. The oven will auto-start immediately.
Page 12: Weight Defrost
WEIGHT DEFROST The oven can be used to defrost food based on the weight you entered. The defrosting time and power level are automatically set once the food category and the weight are programmed. The frozen food weight ranges from 100g to 1800g. Suppose you want to defrost 600g of meat.
Page 13: Multi-Stage Cooking
MULTI-STAGE COOKING Your oven can be programmed for up to 2 automatic cooking sequences. Suppose you want to set the following cooking program: ① 80% Microwave cooking; ② 60% Microwave cooking Steps: Open the door and place the food into the oven, close it. Input 80% microwave cooking program.
Page 14: Cleaning And Care
Turn off the oven and remove the power plug from the wall socket before cleaning. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
Page 15 Non-Domestic, Rental Services, Educational, Business & like use) will NOT be covered by this warranty. b) If a replacement is required at a time where the same model is no longer available, then at the discretion of Coast to Coast RV Services, a model of equivalent or higher specifications will be offered as a replacement.
