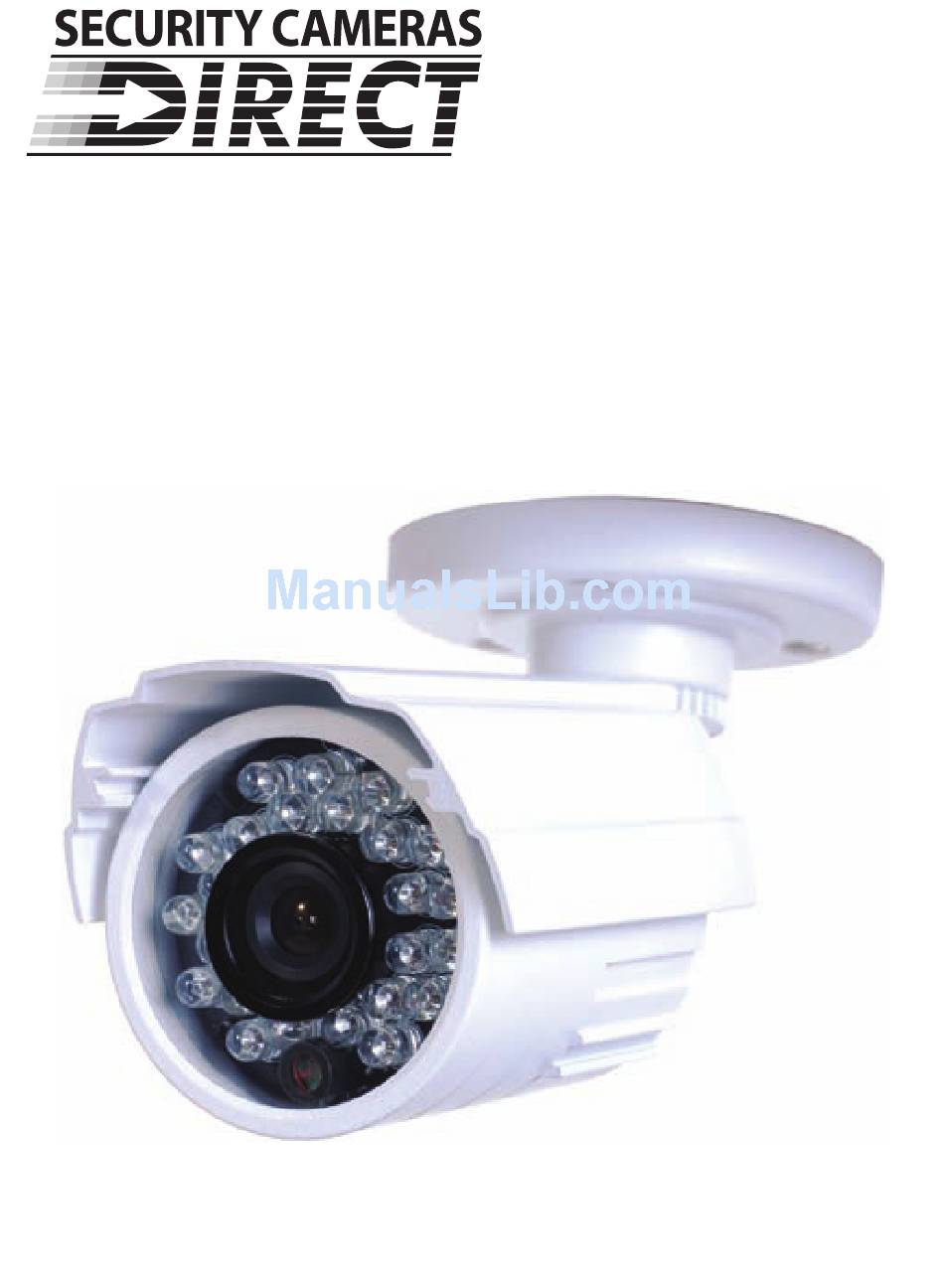

- Page 1 420 TVL Weatherproof IR Camera Product: CFC2016IR Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. CFC2016IR_CM...
-
Page 2: Legal Notice
No part of this document may be reproduced or distributed in any form or by any means without the express written permission of Security Cameras Direct © 2010 Security Cameras Direct. All rights reserved. - Page 3 WARNINGS & CAUTIONS Do not use the camera if fumes, smoke or a strange odor is emitted from the unit, or if it seems to not function correctly. Disconnect the power source WARNING immediately and consult your supplier. Do not adjust or modify the camera’s internal circuits or power supply modules.
- Page 4 WARNINGS & CAUTIONS Do not install the camera or route video cables near a TV, radio transmitter, magnet, electric motor, transformer, or audio speaker. Magnetic fields CAUTION generated by these devices may distort the video image. Use the camera only in areas where the temperature ...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Table of Contents Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SECTION 1 1 .1.Camera.components . -
Page 6: Features
SECTION 1: FEATURES Features SECTION 1 The CFC2016IR is a weatherproof, highly durable, CCTV camera with a built-in IR array. This camera includes: 23 IR LEDs for a 65’ range • Vandalproof 3-axis cable concealing bracket • Removable weather shield •... - Page 7 SECTION 1: FEATURES Connect Connect Single camera system with monitor Multiple camera system with DVR and monitor 420 TVL Weatherproof IR Camera...
-
Page 8: Installation
SECTION 2: INSTALLATION Installation SECTION 2 2.1 What’s in the box The camera package contains: Camera assembly • Mounting screws and wall inserts (3 each) • Hex key • Instruction manual • 2.2 What you need To install the camera, you will need: Tools to attach the mounting bracket to the mounting surface •... - Page 9 SECTION 2: INSTALLATION Drill holes into the mounting surface for the mounting screws, wall inserts, or other attachment hardware as needed. If you are routing the drop cable through the mounting surface, drill a ¾” hole centered between the mounting screw holes. Hole for drop cable...
- Page 10 SECTION 2: INSTALLATION Connect the camera drop cable connectors to the video and power extension cable routed to the monitor or DVR, and the power source. Video Connect connector to monitor or DVR Power connector to 12 VDC power source Cable to monitor, DVR and power...
-
Page 11: Aiming.the.camera
SECTION 3: AIMING THE CAMERA Aiming the Camera SECTION 3 Use the hex key provided to loosen the pan adjustment set screw, and turn the tilt adjustment lock ring counter-clockwise until the camera bracket can be rotated within the mounting base. During this procedure, only loosen the adjustment screws –... - Page 12 SECTION 3: AIMING THE CAMERA Tighten the pan adjustment set screw and tighten the tilt adjustment lock ring to lock the camera in place. Loosen the horizontal adjustment set screw. Correct the horizontal alignment of the picture, and then tighten the set screw. www.scdlink.com...
-
Page 13: Cleaning
SECTION 4: CLEANING Cleaning SECTION 4 Clean the camera lens and IR lamp shield with an approved glass cleaning solution and a lint free cloth. Remove all foreign particles, such as plastic or rubber materials, • attached to the camera housing. These may cause damage to the surface over time. -
Page 14: Specifications
SECTION 5: SPECIFICATIONS Specifications SECTION 5 Table 1. Specifications Model CFC2016IR Image Sensor ¼” Sharp CCD Resolution 420 TV Lines Lux Rating 0.0 Lux @ F2.0 IR on Pixels 811(H) x 508 (V) NTSC Clock Frequency NTSC: 19.0699 MHz Video output 1 Vp-p, 75Ω, composite... - Page 15 SECTION 5: SPECIFICATIONS Model CFC2016IR IR Control CDS Auto Control S/N ratio > 48 dB (AGC off) Operating temp 14˚F ~ 122˚F, RH 95% max Weatherproof Rating IP66 Power 12 V DC @ 300mA Size 4.9”(W) x 2.7” (H) x 2.6” (D) Weight 1.54 lbs...
-
Page 16: Troubleshooting
If it still does not perform adequately, please consult your supplier or contact Security Cameras Direct at 800.316.6027. No picture on the monitor screen: Check that all connected devices are powered on. - Page 17 SECTION 6: TROUBLESHOOTING Check the monitor display for ripple on other video channels. Check cable routing for proximity to high electrical or magnetic fields. The picture is not clear. Check the camera zoom and focus adjustments. Check that your monitor is correctly adjusted. Confirm that the glass in front of the lens is clean.
- Page 18 SECTION 6: TROUBLESHOOTING The camera doesn’t operate at night. Your cable run may be too long and you are experiencing a drop in voltage. This camera is a precision instrument and when treated with care, will provide years of satisfactory ...
