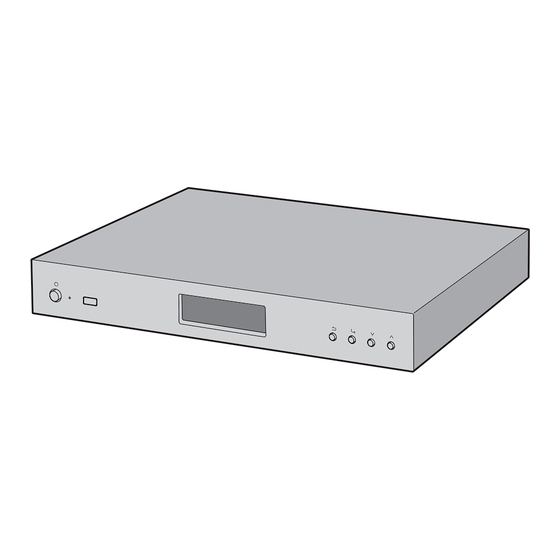

  • Page 1 HA-N1 User Manual HA-N1Z HA-N1A www.melco-audio.com 35020638-01 2014.10...

  • Page 2: Table Of Contents

    Contents Chapter 1 Getting Started ..........4 About MELCO ..................4 Diagrams ...................4 Installation ..................7 Turning the HA-N1 On and Off ............8 Chapter 2 Basic Usage ............9 Displaying the Home Screen ............9 Importing ..................9 Importing Music Files from USB Devices ..........9 Importing Music Files from a Computer ..........10...
  • Page 3 Erase Data on the HA-N1 Completely .......... 20 Changing the IP Address .............. 21 Changing Friendly Name (Hostname) ......... 22 Configuring Date and Time ............23 Time Zone Settings ............... 24 Display and LED Settings.............. 24 Changing Display Brightness ..............24 Changing Power LED Brightness ............25 Turning Off Rear-Side LED ..............25 Auto Power Save ................
  • Page 4 Chapter 5 Regulatory Compliance Information ..35 For Customers in Europe .............. 35 EU Declaration of Conformity ..............35 CB ......................35...

  • Page 5: Chapter 1 Getting Started

    Melco was established by Makoto Maki in 1975 in Japan. Maki, an enthusiastic audiophile, established the company to design and manufacture the finest audio components of the time - the undoubted masterpiece of the Melco line being the turntable, introduced into the UK in 1980, which set new standards in music reproduction.
  • Page 6 Rear HA-N1Z DC 5V OUT USB 3.0 EXPANSION BACKUP PLAYER AC IN AUTO RANGING HA-N1A USB3.0 EXPANSION BACKUP PLAYER AC IN AUTO RANGING AC100V-120V AC100V-120V 50/60Hz 1.20A 50/60Hz 1.20A AC220V- 240V AC220V- 240V 50/60Hz 0.68A 50/60Hz 0.68A Press to turn the power on and off.
  • Page 7 Grounding terminal. USB 3.0 For importing music files from compatible USB devices. EXPANSION *, ** Connect a compatible USB hard drive or USB flash drive to expand the storage capacity for audio streaming. BACKUP *, ** Connect a compatible USB hard drive here to back up or restore the contents or settings of the HA-N1. Use an Ethernet cable to connect this port to a wireless router, hub, or switch on your network.

  • Page 8: Installation

    Installation HA-N1Z 2. On PLAYER 1. On 3. On Router Network Audio Player HA-N1A 2. On PLAYER 1. On 2. On 3. On Router Network Audio Player Note: Give the HA-N1 plenty of space for airflow. Do not stack it with other devices that get hot.

  • Page 9: Turning The Ha-N1 On And Off

    It will take about 20 seconds to complete. To power off the HA-N1, press the power button. After 10 seconds, the power indicator will extinguish and the device will be powered off. HA-N1Z HA-N1A Notes: • Do not disconnect the power cable without properly powering the device off first. You may lose music files or the HA-N1 may malfunction.

  • Page 10: Chapter 2 Basic Usage

    Turn on the HA-N1. The home screen is displayed when the HA-N1 is booted. Connect the USB device which contains the music files to the port that is not labelled "BACKUP" or "EXPANSION". HA-N1Z HA-N1A Notes: • Use only the compatible USB devices listed at www.melco-audio.com.

  • Page 11: Importing Music Files From A Computer

    • Connect only NTFS-formatted or FAT32-formatted USB devices. When the following screen is displayed on the display panel, press the button on the front. If you connect the USB device to the front USB port (HA-N1A only), the message will change to indicate importing from the front USB device.
  • Page 12 Press and select "Settings", then press the button. Note: This manual describes using the HA-N1 firmware version 1.05. Depending on the firmware version, the screen layout may be different. Press and select "SMB File Sharing", then press the button. Press and select "On", then press the button.

  • Page 13: Streaming Music

    Importing from Mac computer is finished. Streaming Music Imported music files can play from the Network Audio Player. Refer to your Network Audio Player's manual for detailed information on how to play music. HA-N1Z HA-N1A Network Audio Player Display Panel While Streaming When the HA-N1 starts streaming the music files, the display panel will show the music information.
  • Page 14 The backup is now finished. Notes: • Use only the compatible USB devices listed at www.melco-audio.com. • Connect only NTFS-formatted or FAT32-formatted USB devices. • Do not disconnect the USB device connected to "BACKUP" port until the HA-N1 is powered down.

  • Page 15: Restoring

    ".Anas.bak"-"MAC address"-"backup date and time"-"disk1" Restoring To restore the backup data, follow the procedure below. Restroring from backup will delete all current data on the drive. If needed, back up any data before continuing. Turn on the HA-N1. When the home screen is displayed, press the button.

  • Page 16: Deleting The Imported Music Files

    When "Finished." is displayed, press the button. The HA-N1 will automatically restart. The restoration is finished. Notes: • To display the backup history, navigate to Backup - Backup History. • To restore settings, select "Restore Settings" from step 6 above. "All settings will be initialized. Continue?" message will be displayed.

  • Page 17: Chapter 3 Advanced Usage

    • In direct mode, the HA-N1 will be the DHCP server that assigns an IP address to the Network Audio Player. Routers cannot be used. • Files cannot be copied to the HA-N1 from the computer via the network in direct mode. Use USB devices for file copying instead. HA-N1Z 1. On PLAYER 2. On...
  • Page 18 HA-N1A 1. On PLAYER 2. On Network Audio Player Note: Give the HA-N1 plenty of space for airflow. Do not stack it with other devices that get hot. Connect the Network Audio Player to the HA-N1's "PLAYER" port (not "LAN" port) using an Ethernet cable. Connect the power cable.

  • Page 19: Playing Music Files From Usb Devices

    HA-N1A EXPANSION Notes: • Use only the compatible USB devices listed at www.melco-audio.com. • Do not disconnect the USB device connected to "EXPANSION" port until the HA-N1 is powered down. Changing RAID Mode The HA-N1 series are configured with a spanned array by default.

  • Page 20: Formatting Drives

    Press and select "Settings", then press the button. Press and select "Drive", then press the button. Press and select "Format Internal Drives", then press the button. Select the RAID mode to configure and press the button. Notes: • Spanned Combines 2 drives in the HA-N1 into a single array. The usable disk space is the total space of all drives used. Data is written to the first drive, then the second drive once the first drive becomes full.

  • Page 21: Erase Data On The Ha-N1 Completely

    delete all data on the drive. If needed, back up any data before continuing. Turn on the HA-N1. When the home screen is displayed, press the button. Press and select "Settings", then press the button. Press and select "Drive", then press the button.

  • Page 22: Changing The Ip Address

    Press and select "Settings", then press the button. Press and select "Drive", then select the button. Press and select the drive for complete format, then press the button. Press and select "Erase All Data", then press the button. The message "All (backup/expansion drive) data will be lost. Continue?" will be displayed. Make sure that all files on the drive can be erased before proceeding.

  • Page 23: Changing Friendly Name (Hostname)

    Press and select "LAN Port", then press the button. Select whether to automatically acquire the IP address from the DHCP server or manually configure it and press the button. Notes: • To obtain the IP address from the DHCP server automatically, the DHCP server on the router should also be enabled.

  • Page 24: Configuring Date And Time

    Enter the new friendly name (hostname) using the buttons, then press the button. Notes: • Friendly name may contain 0–9, A–Z, and hyphens (-). • When you press the button, the entered characters are deleted from the right side. To change the friendly name, press the button and delete all characters except for the first, then enter the new friendly name.

  • Page 25: Time Zone Settings

    automatically configure the time settings, the HA-N1 should be able to connect to the Internet. Follow the instructions on the display. Time Zone Settings Turn on the HA-N1. When the home screen is displayed, press the button at the front. Press and select "Settings", then press the button.

  • Page 26: Changing Power Led Brightness

    display. Press the button to change the brightness. Press if it's done. The display settings is finished. Changing Power LED Brightness Turn on the HA-N1. When the home screen is displayed, press the button at the front. Press and select "Settings", then press the button.

  • Page 27: Auto Power Save

    Press and select "Settings", then press the button. Press and select "Rear Side LED", then press the button. Select "Off", then press the button. The rear-side LED will extinguish. Auto Power Save If auto power save is enabled, the HA-N1 will automatically power off after music stops playing and a specific amount of time passes.

  • Page 28: Changing Display Language

    Select "Off", then press the button. Auto power save is now disabled. Changing Display Language To change the display language, follow the procedure below. Turn on the HA-N1. When the home screen is displayed, press the button at the front. Press and select "Language", then press the button.

  • Page 29: Updating From Usb Device

    Follow the instructions on the display. The system version is now updated. Updating from USB Device Download the latest firmware from www.melco-audio.com. Extract the downloaded file and copy "audionas_ha_n1_updater.bin" file from the extracted folder to USB device (root directory). Connect the USB device to the USB 3.0 port at the rear.

  • Page 30: Restoring Factory Defaults

    To initialize the HA-N1 to its factory default settings, follow the procedure below. Turn on the HA-N1 while pressing the button. After the "MELCO" logo disappears, let go of the button. The setting initialization screen will be displayed. Note: If you go to Settings - Initialize Settings on the display panel, the same screen will be displayed.

  • Page 31: Chapter 4 Appendix

    Chapter 4 Appendix Menu List From the front display panel, the following options are available. Status Displays the total capacity, used capacity, and usage percentage of the Internal Drives internal drives. Displays the total capacity, used capacity, and usage percentage of the External Drives connected external drive.
  • Page 32 Update Music Database Updates the music database of the imported music files. If the music files are not listed properly on the Network Audio Player, update the music database. Power LED Brightness Changes the brightness of the power LED at the front. Rear Side LED Configure whether to turn off the rear "LAN"...

  • Page 33: System Update

    Drive Formats the internal drives of the HA-N1. When formatting, you can change the current RAID mode to a spanned, RAID 0, or RAID 1 array. Format Internal Drives If you select "Erase All Data", all data on the drives will be completely erased.
  • Page 34 USB device. Updater not found. 042–044 The updater file may be corrupted. Try the update again, or download a new updater file from www.melco-audio.com. Update error. Make sure the USB device is connected to the HA-N1. No external drive available.

  • Page 35: Default Settings

    If a hard drive in the HA-N1 malfunctions, contact Buffalo technical support Internal Hard Drive for assistance. HA-N1Z: 350 x 65 x 370 mm; 13.8 x 2.4 x 14.6 in Dimensions (W x H x D) HA-N1A: 435 x 62 × 352 mm; 17.1 x 2.4 x 13.8 in Weight Approx.

  • Page 36: Chapter 5 Regulatory Compliance Information
