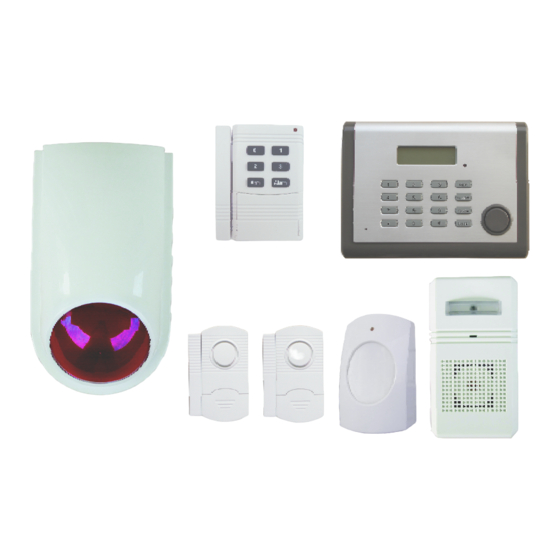

Intelligent Auto Dialed Alarm System
(dial automatically the number saved by householder)
MODEL:RL-0503CD

USER MANUAL
