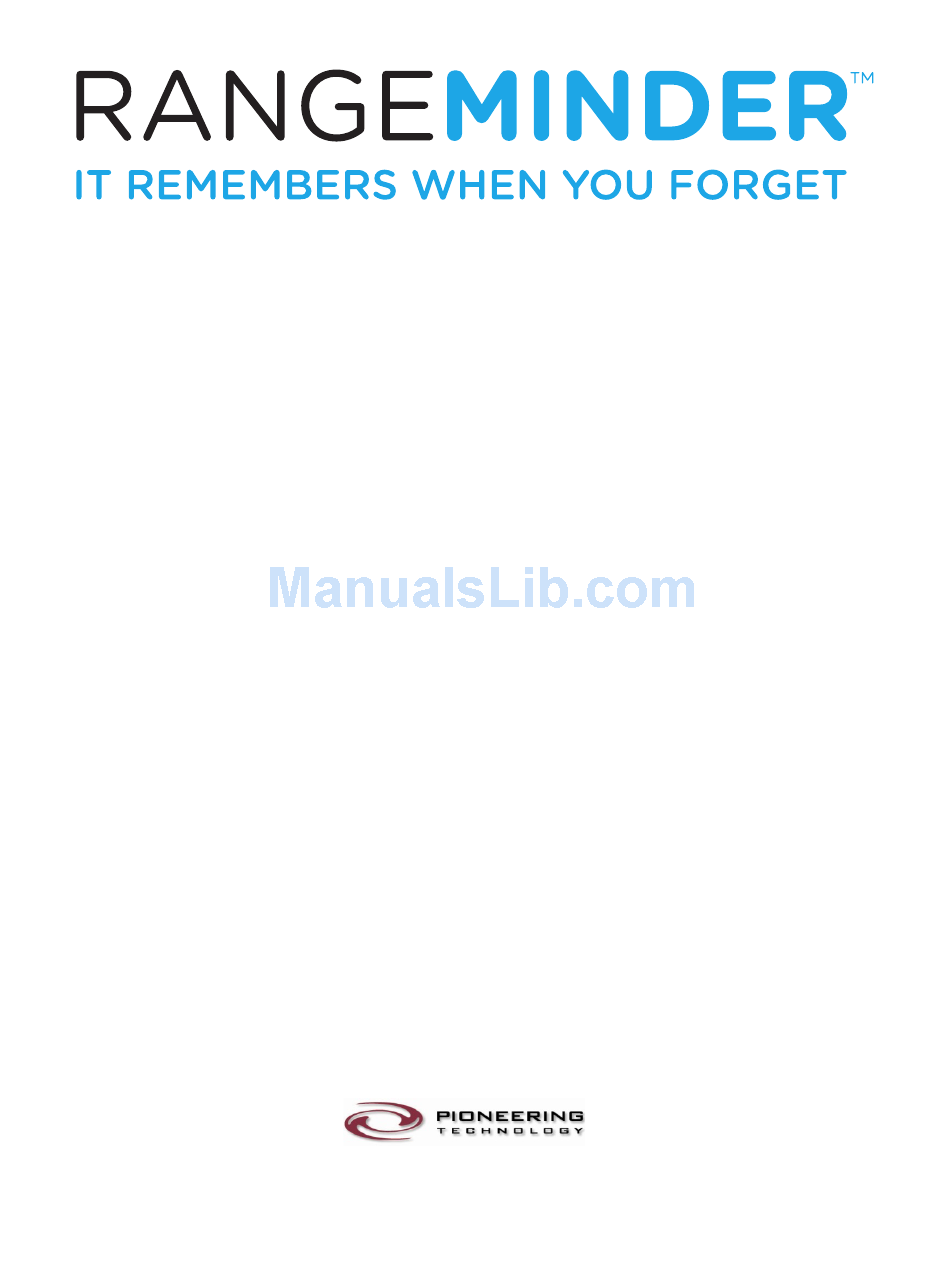

- Page 1 Installation Guide IMPORTANT! READ ALL INSTRUCTIONS INCLUDING THE “CARE AND USE MANUAL” BEFORE INSTALLATION KEEP THIS GUIDE FOR FUTURE REFERENCE NEVER LEAVE COOKING UNATTENDED Another innovative product from Pioneering Technology Corporation pioneeringtech.com ...
-
Page 2: Table Of Contents
CONTENTS WHAT IS IN THE BOX? ……..………………………...……………………………2 COMPATIBILITY: WILL RangeMinder WORK ON MY STOVE? …….………3 ™ See also “Setting the ‘Default Mode’” ……………..………………….…13 Quick Compatibility Check ……………….……………………………3 Pre-Installation Check ………………………….…………………………5 Magnetized Sensor Ring Check …………………………….5 Shaft Adaptor Check …………………………………………….5... -
Page 3: What Is In The Box
CONTENTS: WHAT IS IN THE BOX? • Four (4) replacement dials • Four (4) magnetized sensor rings • Eight (8) labeled dial rings (Note: Four rings have been factory installed on the dials.) • A sheet of dial adaptors •... -
Page 4: Compatibility: Will Rangeminder Work On My Stove
Compatibility Database. You can also perform your own compatibility check. Quick Compatibility Check By following these simple steps you can quickly determine if your stove is compatible with RangeMinder ™ Step 1 Pull off one of the existing knobs (Picture 1) and measure the length of the shaft from the face of the stove panel to the end of the shaft (Picture 2). - Page 5 With the knob still removed, check to see if the shaft opening (hole) normally hidden by the knob is more than 1 inch (25 mm) in diameter. If the shaft opening (hole) is greater than 1 inch (25 mm) in diameter then unfortunately your stove is not compatible with RangeMinder ™ ...
-
Page 6: Pre-Installation Check
Quick Compatibility Check referenced above, you are now ready to proceed with the pre-installation check. With one of the magnetized rings and the sheet of adaptors from your RangeMinder box, please follow ™ these two quick steps. -
Page 7: Installation
In some cases more than one type of adaptor will seem to fit but only one type will have the proper distance between the flange and the stove face. Having the correct distance is important to ensure that each RangeMinder dial will function properly with each magnetized sensor ™ ring. -
Page 8: Installing The Rings And Adaptors
Installing the Rings and Adaptors Once the stove face is dry, it is time to attach each magnetized sensor ring onto the stove. Carefully remove the paper backing from the magnetized senor ring. Ensuring that the arrow on the magnetized sensor ring is pointing up, slide the magnetized sensor ring over the dial shaft and press firmly. -
Page 9: The Base Unit
For best results, plug the Base Unit into a wall outlet that is within 15 to 20 feet (5-7 meters) from the stove/range. This helps to ensure a strong wireless connection between the Base Unit and the RangeMinder dials. ™... -
Page 10: The Dial Rings
The Dial Rings Dial Selection Two sets of dial rings have been included in your RangeMinder box. The ™ set of rings installed at the factory is compatible with most electric stoves. The extra set of rings is for use with gas stoves. Each set of rings has two options. -
Page 11: Calibrating The Dials
Calibrating the Dials It is now time to install the dials. This should be done one dial at a time. Installing the Battery First, install a battery into a dial by separating the two halves of the dial (Picture 1) and inserting the battery into the battery holder. Make sure that the positive side is pointing towards the centre of the dial (Picture 2). - Page 12 Unit will beep twice to indicate that it recognizes this as the HI (HIGH) position. Calibrating the LO Position Now, it’s time to teach RangeMinder where LO (LOW) is. Once again, ™ holding the grip portion of the dial turn it slowly to the LO (LOW) position.
-
Page 13: Default Mode
Either direction will work. Once all 4 dials have been calibrated, simply touch the “Learn Button” on the Base Unit to take it out of Learn Mode. RangeMinder is now ready to ™... -
Page 14: See Also "Setting The 'Default Mode
Once the RangeMinder dial has been attached to the shaft simply ™ release the dial and wait for approximately 25 seconds and the Base Unit will beep five (5) times to indicate that RangeMinder has been set to ™ Default Mode. -
Page 15: Calibration Signals
OFF and will continue to assist in ensuring that the range remains attended while cooking. Congratulations! You can now start cooking with peace of mind. RangeMinder ™ remembers when you forget. And don’t forget to read your Use and Care manual! - Page 16 ABOUT PIONEERING TECHNOLOGY CORPORATION Pioneering Technology Corporation is an innovation company focused on designing, engineering and producing state‐of‐the‐art technology that protect people and their property from cooking fires. We offer a range of high quality products that provide effective cooking fire prevention solutions for both the residential and commercial market.
