Summary of Contents for Socam Ultimate

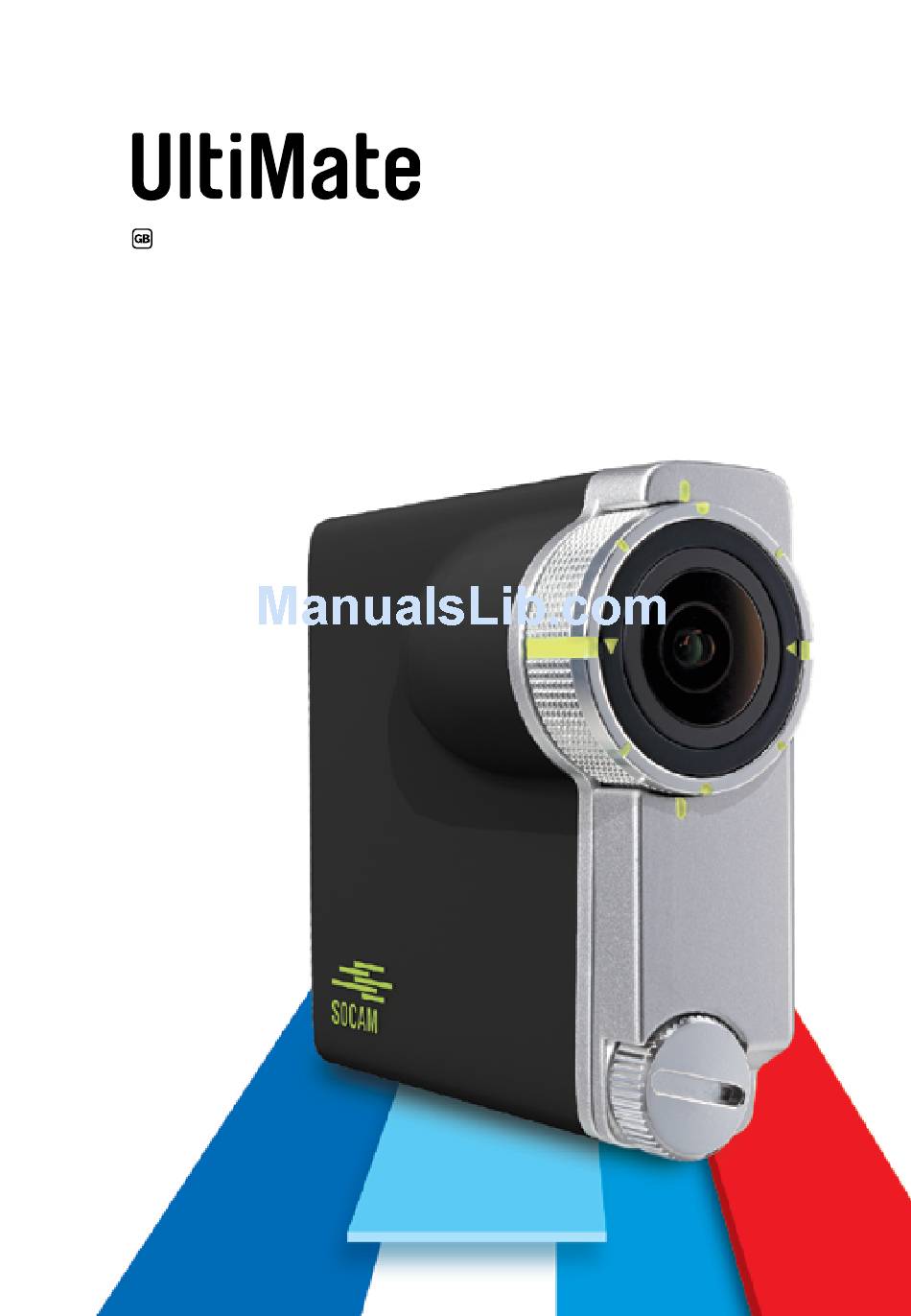

Page 1 Operating Instructions...
Page 2 2...
Page 3 These Operating Instructions accompany this product. They contain important information on setting up and using the device. You should refer to these instructions, even if you are buying this product for someone else. Please retain these Operating Instructions for future use!
Page 4 4...
Page 5: Welcome
Please keep these instructions for further reference! All company names and product designations contained herein are trademarks of the respective owners. All rights reserved. We wish you a great deal of enjoyment with your new SOCAM ® product! » WELCOME 5...
Page 6: Table Of Contents
TABLE OF CONTENTS WELCOME ..............5 TABLE OF CONTENTS ..........6 INTENDED USE ............9 DELIVERY CONTENTS ..........10 ACCESSORIES ............11 SAFETY INSTRUCTIONS ..........12 (Rechargeable) batteries ........13 Miscellaneous ............14 PRODUCT TIPS ............15 First steps ..............15 Keeping the product in good shape ......15 Maximizing the battery life ........15 OPERATINg ELEMENTS ..........
Page 7 RECORDINg ............35 Switching modes ..........35 Default settings ............. 35 Photo mode ............36 Video mode ............36 Time lapse mode ............37 WI-FI SOCAM APPLICATIONS ........38 ® Use Wi-Fi .............. 39 Change SSID/Password......... 39 SOCAM ON TV ............40 ®...
Page 8 PRODUCT SUPPORT..........45 FCC COMPLIANCE STATEMENT ........45 DISPOSAL ............... 46 Product ..............46 (Rechargeable) batteries ........46 TEChNICAL DATA ............. 47 Power supply ............47 Output ..............47 Wi-Fi ..............47 Lens ..............48 Video recording ............ 48 Photo recording ............ 48 Audio ..............
Page 9: Intended Use
INTENDED USE The SOCAM UltiMate is designed to be used as an action camera ® for private use. In combination with mounting accessories the product can be mounted on helmets, skiing goggles and regular tripod attachments, just to name a few.
Page 10: Delivery Contents
DELIVERY CONTENTS SOCAM Ultimate Rechargeable battery ® (1050 mAh Li-Ion) Splash proof case microUSB cable Universal clip Operating instructions Flat surface mount Curved surface mount 10 » DELIVERY CONTENTS...
Page 11: Accessories
ACCESSORIES 20001SC GPS Module 30001SC Universal Clip 30002SC Flat and Curved Surface Mounts 30003SC Micro USB Cable 30004SC HDMI Cable 30005SC Goggle Mount 30006SC Spare Battery (1050 mAh) 40001SC Splash Proof Case (Blue) 40002SC Splash Proof Case (Black) » ACCESSORIES 11...
Page 12: Safety Instructions
SAFETY INSTRUCTIONS Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.
Page 13: (Rechargeable) Batteries
• If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use. Safe operation can no longer be guaranteed if the product: » is visibly damaged, » is no longer working properly, »...
Page 14: Miscellaneous
• Charge the rechargeable battery regularly, even if you are not using the product. Due to the rechargeable battery technology being used, you do not need to discharge the rechargeable battery first. • Never charge the rechargeable battery of the product unattended. • When charging, place the product on a surface that is not heat- sensitive.
Page 15: Product Tips
PRODUCT TIPS First steps The SOCAM UltiMate has a learning curve, which means you need ® to practice for some time. Start by keeping it off the mount and familiarize yourself with the controls. Once you master the controls the transition between off-mount and on-mount operation is easy.
Page 16: Operating Elements
OPERATINg ELEMENTS 16 » OPERATING ELEMENTS...
Page 17 11 microUSB socket (hidden) 12 External microphone jack (hidden) 13 Still picture mode 14 Shutter button (hidden) 15 Video mode 16 Time lapse mode button/LED 18 microHDMI socket 19 SOCAM interface port (for connection of accessories) ® » OPERATING ELEMENTS 17...
Page 18: Mounting
MOUNTINg With the current delivery of contents the SOCAM can be mounted with the following configurations: Flat surface, curved (convex) surface, splash-proof case and standardized tripod attachment. Mounting the universal clip The universal clip is required for all mounting configurations except if the SOCAM is mounted directly onto a standard tripod attachment.
Page 19: Mounting Flat And Curved Surface Mounts
Prior to attaching the mount to the surface do the TIPS following: • Clean the mounting surface. Oil, grease, dirt and dust reduce adhesion. This may lead to the SOCAM falling off and being damaged. • Attach the mount at room temperature. • Avoid uneven and rough mounting surfaces.
Page 20 Slide the universal clip attached to the SOCAM into the surface mount until it clicks in place (»Fig. 4). To release, squeeze the two tongues of the universal clip and slide it out of the mount. Fig. 4 20 » MOUNTING...
Page 21: Goggle Mount (Not Included)
• The goggle mount (30005SC) is not included in delivery, however described here as an extention to the SOCAM. • The goggle mount (»Fig. 5) allows you to mount the SOCAM to a strap with a max. width of 40 mm (e.g. skiing goggles). Hook the goggle mount onto the strap.
Page 22: Splash-Proof Case
If splash water, dirt or mud is expected during use, the splash-proof case must be used. Use of the splash-proof case has the additional benefit of protecting the SOCAM from damage and dust. Proceed as follows (»Fig. 6): To open the splash-proof case, press the locks at the bottom of the splash-proof case and remove the cover.
Page 23 Fig. 6 » SPLASH-PROOF CASE 23...
Page 24: Tripod Attachment
ATTAChMENT The standard clip attachment thread is compatible with standard tripods or accessories featuring a standard camera thread. To attach the SOCAM via tripod attachment, remove the universal clip. For more mounting options refer to TIPS www.socam.me. 24 » TRIPOD ATTACHMENT...
Page 25: Battery
Lay the cable flat across the battery and put the front cover in place again. Make sure the cables are not pinched. Tighten the screw. To remove the battery follow the steps in reverse order. Before using the SOCAM for the first time fully charge the battery. » BATTERY 25...
Page 26: Battery Status
Fig. 7 Battery status A depleted battery has the consequence of the SOCAM shutting down automatically. The SOCAM will notify you of a depleted battery in two ways: • 10 minutes before shutdown: The (17) flashes with a 1 second interval (slow).
Page 27: Charging Battery
Charging battery When charging via computer turn the SOCAM off before connecting. The battery is charged via the supplied microUSB cable (G). Remove the protective cover (10) at the back to the SOCAM. Plug the microUSB plug into the microUSB socket (11). Plug the other end into a 5 V/DC USB power source (e.g.
Page 28: Sd Storage
SD STORAgE MicroSD card The SOCAM does not offer built-in storage. A microSD storage card is needed instead. The capacity of the microSD card is very much dependent on the recording duration. We recommend: » microSDHC 32 GB (max. 32 GB), Class 10 To insert the microSD card proceed as follows (»Fig. 8):...
Page 29 Looping mode: TIPS The looping mode overwrites first saved files on the microSD card when the storage capacity is reached. Looping mode can be activated via Wi-Fi SOCAM ® applications. See chapter (»Wi-Fi SOCAM ® applications) and the application’s help menu for details.
Page 30: Reading Sd Storage
• Turn the SOCAM off and connect it to a computer with the supplied microUSB cable. After turning the SOCAM on again it shows up as mass storage drive.
Page 31: Adjustable Lens
(vertical, horizontal or at an angle). To understand this feature, study the below diagram (»Fig. 9) together with your SOCAM. Mind the markings on the lens adjustment ring (3): Fig. 9 » ADJUSTABLE LENS 31...
Page 32: The Navigation Interface
ThE NAVIgATION INTERFACE Photo mode: Photo mode: Take photos (max. 16 MP), or photo burst with 10 images/ second. Video mode: Record video and slow motion video. Take still images while recording. Time lapse: Time lapse photo taking (max. 16 MP, common resolution setting).
Page 33: Turning On And Off
LED lights start flashing in the following sequence for 3 cycles with a 1 second interval (slow): Red > Off > Blue > Off > Purple > Off. The SOCAM is ready to use. To turn the SOCAM off, press and hold the button until all LED lights start flashing in the following sequence for 3 cycles with a 0.5...
Page 34: Microphone
MICROPhONE The SOCAM features a built-in microphone, which may suffice for regular sound recording. If you require more precision and quality you can connect an external microphone. Remove the protective cover (10) connect the microphone jack plug to the external microphone jack (12).
Page 35: Recording
PHOTO VIDEO TIME LAPSE Default settings Default settings apply when you turn on the SOCAM for the first time or the SOCAM is reset. Note the following default settings: • Photo mode: 16 MP • Burst mode: 16 MP, 10 photos/s • Video mode:...
Page 36: Photo Mode
1 second (Depending on free storage). The blinks in red for every image taken. Continuous photo burst is not possible. After each photo burst the SOCAM requires some time to save the images to the microSD card and prepare for the next photo burst.
Page 37: Time Lapse Mode
Repeatedly press the button until the lights up blue. The SOCAM has switched to time lapse mode. • 5 second interval: Press the shutter button to start shooting 1 image every 5 seconds at 16 MP. The LED and the blink in blue when a photo is taken.
Page 38: Wi-Fi Socam ® Applications
WI-FI SOCAM ® APPLICATIONS The Wi-Fi function of the SOCAM allows you to connect to end devices (e.g. smart phones) running SOCAM applications. ® If a SOCAM application exists for your end device you can find out by ® visiting the SOCAM website at: ®...
Page 39: Use Wi-Fi
Connect your end device to the established network (see below for default SSID and default password). » SSID: SOCAM, Default password: UltiMate 4. Once SOCAM and end device are connected the LED blinks in purple at a 1 second interval. To turn Wi-Fi off, press and hold and shutter button until all LED lights flash once and return to normal.
Page 40: Socam ® On Tv
SOCAM ON TV ® The SOCAM allows you to review recorded data on a TV with HDMI connection. Two modes are available: Preview and playback. Connection Check the instructions for use that came with your TV in regards to safety instructions and connection of external devices.
Page 41: Menu Navigation
Playback mode • Playback mode is activated upon connection of the SOCAM to the TV. • Press the shutter button to display previous photo/video. Press the button to display the next photo/video. • Press and hold the shutter button for 3 seconds. After releasing the video is played back.
Page 42: Firmware Update
Download the new firmware to the root level of the microSD card inserted in your SOCAM. Disconnect the SOCAM from your computer. Turn on the SOCAM. All LEDs turn on. Wait until all LEDs go out (approx. 40 s). The SOCAM will turn off by itself. This concludes the firmware update process.
Page 43: Factory Reset
FACTORY RESET It may happen that the SOCAM does not accept any user input or does not react to any form of input. A factory reset can help remedy this problem. Proceed as follows: Turn the SOCAM off. 2. Press and simultaneously hold the and shutter button until all LEDs light up.
Page 44: Cleaning And Care
• Never submerge the SOCAM in water. • Apart from occasional cleaning, the SOCAM is maintenance-free. To clean the SOCAM, use a dry, soft, anti-static and lint-free cloth. • Do not use alcohol, acid liquids, or abrasive cleaning agents. • Accessories can be cleaned with a damp cloth and must be dried thoroughly after.
Page 45: Product Support
PRODUCT SUPPORT • Visit www.socam.me or call +852 2559 2662 for product support. • Additionally visit our support forum at www.socam.me. FCC COMPLIANCE STATEMENT FCC ID: RF7-SC-UL-001 Statement according to FCC part 15.19: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and...
Page 46: Disposal
DISPOSAL Product Electronic devices are recyclable waste and must not be disposed of in the household waste. At the end of its service life, dispose of the product according to the relevant statutory regulations. Before disposing of the product have the battery removed by a professional.
Page 47: Technical Data
Charging ......via 5 V/DC USB (min. USB 2.0) Discharge time ....approx. 1 h (video recording) Output HDMI........microHDMI connector Storage ......microSDHC, max. 32 GB, Class 10 recommended USB .........microUSB Interface ......30 pin SOCAM connector (SOCAM ® ® interface) Wi-Fi Type .........802.11b/g/n Use ........Connect to SOCAM...
Page 48: Lens
Lens Field-of-view ....155° diagonal Aperture ......f/2.4 Rotation......330° Focus ......0.5 m – ∞ Digital zoom .....Yes Image stabilization ....Yes (Built-in gyro assistance) Video recording 1080p (1920 x 1080) ..30 fps 1080i (1920 x 1080) ..60 fps 720p (1280 x 720) ..60 fps / 60 fps (normal playback) WVGA (848 x 480) ...120 fps / 30 fps (playback) Video format ....MP4/MOV Photo recording...
Page 49: Audio
Audio Built-in microphone ...Yes External microphone ..3.5 mm stereo jack plug (Single channel recording) System requirements: ..Windows : XP, 7, 8 ® Mac: min. OS X 10.6.8 Operating, storage conditions Operating temperature ..-10 to +40 °C Operating humidity ....non-condensing Storage temperature ..0 to +35 °C Storage humidity ....45 –...
Page 50: Legal Notice
LEgAL NOTICE These operating instructions are published by CEI Conrad Electronic International (HK) Limited, 18th Floor, Tower 2, Nina Tower, No. 8 Yeung Uk Road, Tsuen Wan, New Territories, Hong Kong. All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor.
