Summary of Contents for ZoneVu ZSC-1000 plus

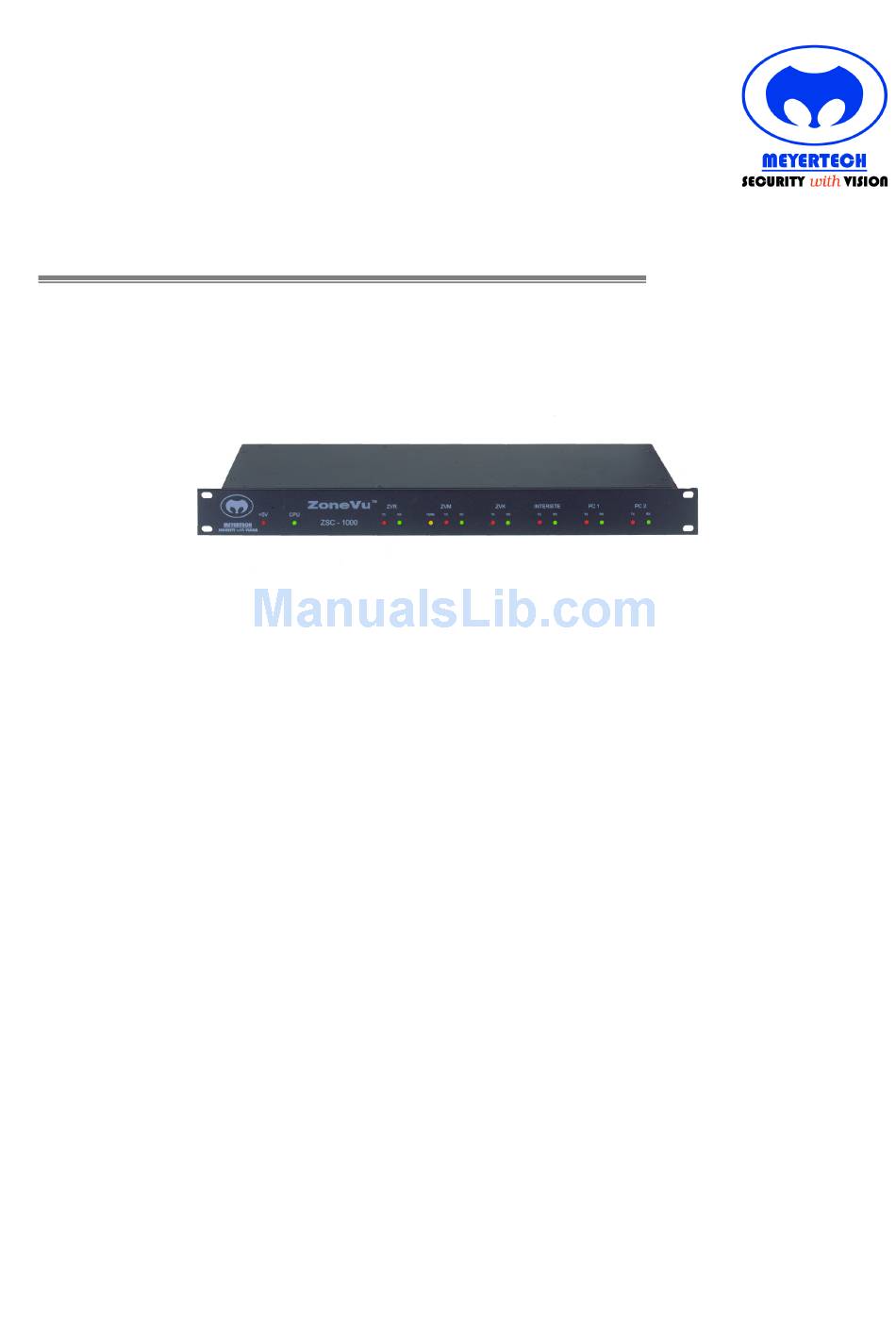

- Page 1 ZSC-1000 plus USER MANUAL USER MANUAL USER MANUAL USER MANUAL ZSC-1000 plus CCTV System Controller Issue 18...
-
Page 2: Table Of Contents
Sequences ..................................34 Global Alarm ................................36 Alarm .................................... 38 Alarm Events ................................39 Contact Alarms ................................40 Camera Barring ................................41 Maintenance ..................................43 Returns Procedure ................................. 43 Disposal .................................... 44 Support ..................................... 45 Warranty ................................... 46 MEYERTECH LIMITED... -
Page 3: Introduction
Version 3.35.0.0 of the ZSC-1000 firmware The information in this manual is believed to be accurate and reliable. However, Meyertech Limited assumes no responsibility or liability for its use, or for any infringement of patents or other rights of third parties, which may result from its use. -
Page 4: Overview
Examples of such equipment are Rugby Clocks, Alarm Panels and Help Points. PC2 Port This port is primarily used for communications with Meyertech diagnostic and configuration equipment. It has a number of secondary uses: An input for Meyertech Series 2 alarms. -
Page 5: Installation
ZSC-1000 User Manual.doc Issue 18 Page 5 of 46 Installation See also the Meyertech document ZSC-1000 Installation Manual. MEYERTECH LIMITED... - Page 6 ZSC-1000 User Manual.doc Issue 18 Page 6 of 46 MEYERTECH LIMITED...
- Page 7 ZSC-1000 User Manual.doc Issue 18 Page 7 of 46 MEYERTECH LIMITED...
- Page 8 ZSC-1000 User Manual.doc Issue 18 Page 8 of 46 MEYERTECH LIMITED...
- Page 9 ZSC-1000 User Manual.doc Issue 18 Page 9 of 46 MEYERTECH LIMITED...
- Page 10 ZSC-1000 User Manual.doc Issue 18 Page 10 of 46 MEYERTECH LIMITED...
-
Page 11: Features
Site Routing section of the • configuration as Route through PC1 Port or Route through PC2 Port. Sites integrated together using Meyertech dial-up equipment (such as the ZSI-320 ISDN interface) are connected and configured differently. See section below on Dialup sites. Video Video connections between sites are referred to as trunks and are managed transparently by the site controllers. -
Page 12: Multiple Matrixes
Camera Mapping can be used to re-number both camera selection and control. By re-numbering one without the other mismatches between the telemetry address of a receiver & the matrix input number it connects to can be corrected. However to ensure full functionality, Meyertech recommends that such offsets are not introduced into a system. Scope The camera mapping tables are applied to commands received from a local or remote operator. -
Page 13: Prioritised Camera Control
Sequencing allows one monitor to display several cameras by automatically cycling through different cameras. Note that a sequence operation is normally associated with a matrix. All Meyertech matrices support running sequences and this feature is intended for running sequences across sites or on 3 party equipment that doesn’t support this feature. -
Page 14: Timed Events
(EFD). The required EFDs should be specified at time of purchase. Due to the continual development of new EFDs the current range of supported equipment and features available can be obtained by requesting the following documents from Meyertech Sales. Alarm Products: ZSC-EFD Supported Alarm Protocols... -
Page 15: Alarm Handling
Camera: all alarms generated at a camera receiver Panel: alarms generated by contact alarm, or third party serial alarm panels Peripheral: alarm generated by various types of Meyertech peripheral equipment, e.g. Vcr interfaces, remote site interfaces. Alarm Device The alarm device usually indicates the address of the device generating the alarm, •... -
Page 16: Configuration
On networks with more than 16 sites, it is recommended to set the satellite sites to Medium or Low priority, to improve the performance at main control rooms when controlling cameras over the intersite network. Options : High, Medium or Low. Default = High MEYERTECH LIMITED... -
Page 17: Pc2 Port
Select Audit mode only when Fusion Audit ZVK is connected to this port. Default = Off ZVK Port Internal use only – MUST NOT BE MODIFIED Max address Unused Polling To enable or disable the polling of devices Default = On MEYERTECH LIMITED... -
Page 18: Zvk Extra
Default = Off Controller To indicate that the unit is to make the decision on telemetry control from operators. If set to off the unit will forward control request messages to the device on the ZVM port. Default = On MEYERTECH LIMITED... -
Page 19: Camera Telemetry
Valid values are 1200, 2400, 4800, 9600, 19200, 28800, 38400,57600 and 128000. Default = 9600 Protocol The port can be configured to control a number of third party protocols. Those required must be specified at time of order. Default = ZoneVu MEYERTECH LIMITED... -
Page 20: Pc1 Port
Monitor number listed. Station Number The number assigned to the operator’s call point. Default = 0 Monitor The matrix output to display the operator’s call on. Default = 0 MEYERTECH LIMITED... -
Page 21: Vcr Ports
ZVK port. However the ZSC-1000 can be configured to transmit these commands onto another port. For each MUX, in the range 1 to 90 Port The port used to transmit MUX commands onto. Default = Zvk MEYERTECH LIMITED... -
Page 22: Matrix
Similar to the ‘Monitor’ type, this allows trunk inputs to be directly controlled without a matrix. Input & Output size are not fixed as per the Monitor type Series 3 (duplex) • Standard Series 3 matrix; requires that the matrix be polled. MEYERTECH LIMITED... - Page 23 Default = 1024(matrix 0) 0(matrix 1 – 19) Output size Size of the matrix in terms of outputs Default = 256(matrix 0) 0(matrix 1 – 19) Address Used for addressable matrix types such as multiplexers Default = 0 MEYERTECH LIMITED...
-
Page 24: Series 2 Osd
Camera %043 : Camera 0220 Site %5 Camera %4 : Site 2 Camera 20 Osd On De-selecting this option will remove all text (both caption & clock) from the screen when this input is selected Default = On MEYERTECH LIMITED... -
Page 25: Input Trunks
Dialup address (alternative use of Trunk group) On older systems, remote sites may be designated as ‘Dialup’ (see Dialup Sites). For trunks from dialup sites, the Trunk group value is used as an address for the dialup device. Default = 0 MEYERTECH LIMITED... -
Page 26: Output Trunks
If this entry is anything other than 0, then the site controller attempts to connect to the remote site using the dialup device with this address. If the value is zero, the unit assumes that the connection is permanent. Default = 0 Local switch Not Used. This option should be left at it’s default value. Default = 0 MEYERTECH LIMITED... -
Page 27: Camera Mapping
This marks the end of the camera range presented to the operator. Default = 0 First Remote camera The first camera number in the mapped range. This marks the start of the range of actual matrix inputs and/or telemetry receivers addresses used. Default = 1 MEYERTECH LIMITED... -
Page 28: Dialup Sites
As well as dialup sites, this setting is also used more in a more generic sense to indicate that the site is dynamically routed (e.g. when it is dynamically routed over IP using a ZSI-450). Default = Off MEYERTECH LIMITED... -
Page 29: Site Routing
Indicates that the site is on a network capable of routing video from many sites through shared input trunks. Currently applies only to the TVNP network. Default = Off Reserved • Internal use only – MUST NOT BE MODIFIED Default = Off MEYERTECH LIMITED... -
Page 30: Site Control
If enabled the alarm handling is permanently enabled. An alarm disable command will effect only attached alarm panels Default = Off Disable ZVR Error Protection If enabled then this will allow increased flexibility on the operation of 3 party equipment attached to the ZVR port. Default = Off MEYERTECH LIMITED... - Page 31 This Proxy behaviour can be disabled using this option, whereby the controller simply forwards the request to the simplex site and assumes success. Default = Off MEYERTECH LIMITED...
-
Page 32: Time And Date
This defines the protocol of the time/date signal. This can be one of ZoneVu, Wharton, None or Wharton-old Default = ZoneVu Notes If Port is set to PC1 or PC2, selecting one of the Wharton formats under Clock automatically selects the correct protocol on that port. Wharton-old is only supported on PC1 port. MEYERTECH LIMITED... -
Page 33: Timed Events
Relinquish : Release control of (unlock) a camera • Field 1 = Camera Field 2 = (unused) Field 3 = Site Switch : Switch a matrix • Field 1 = Input Field 2 = Output Field 3 = Site MEYERTECH LIMITED... -
Page 34: Sequences
The ZSC-1000 will run a number of camera sequences. Running a sequence on the ZSC-1000 allows remote cameras to be included in the sequence i.e. the sequence could be switching multiple matrices. For each sequence in the range 1 to 32 the following can be independently configured MEYERTECH LIMITED... - Page 35 Default = Position + 1 Site Site address. Default = 0 Preset Where no preset is required (or the camera is static), the number should be configured as 255. For the Home position, the preset 0 should be entered. Default = 255 MEYERTECH LIMITED...
-
Page 36: Global Alarm
Default = Off Queue size The maximum number of items that can be held in the alarm queue, in the range 0 to 100. Setting the value to 0 effectively turns off the alarm handling. Default = 100 MEYERTECH LIMITED... - Page 37 Note : only alarms that have been configured using the Alarm section will be passed through, however this configuration will have no further effect. Default = off Cancel enable Automatically cancels the alarm if the alarm source clears itself Default = off MEYERTECH LIMITED...
-
Page 38: Alarm
An alarm can only belong to one group. Alarms that are listed for multiple events will take their group number from their first entry in the list. See Global Alarm section for further details on alarm monitors. Default = 1 MEYERTECH LIMITED... -
Page 39: Alarm Events
If enabled the action is carried out on the camera that is the source of the alarm (rather than configuring a specific camera). This way it is possible to have one event for a range of cameras and have the event carried out on the camera that is the source of the alarm. Default = Off MEYERTECH LIMITED... -
Page 40: Contact Alarms
The ZSC-1000 will poll ZoneVu Alarm cards for alarms. The ZSC-1000 can be configured for these alarms to be either normally open or normally closed. For each alarm card, in the range 0 to 14 Alarm card NO/NC Default = Off MEYERTECH LIMITED... -
Page 41: Camera Barring
The lowest priority user that can access these cameras Or : The exact priority required to access these cameras Default = 0 Exact Priority Only If enabled, the exact priority level specified is required to control the cameras Default = Off MEYERTECH LIMITED... -
Page 42: System Reset
1. The application has a number of check procedures built-in and will automatically reboot if it detects an inconsistency in its data. This will allow the unit to recover. An active operator would only detect a short delay and a momentary lag in operation MEYERTECH LIMITED... -
Page 43: Maintenance
Any repairs, attempted repairs or replaced components not carried out by the Meyertech Service Centre will void all Meyertech warranties and liabilities. If your ZSC-1000 has to be returned to our Service Centre please follow the returns procedure below, otherwise delays may be incurred in returning or replacing the ZSC-1000. -
Page 44: Disposal
Issue 18 Page 44 of 46 Disposal There are no additional requirements beyond safe working practice in the decommissioning of the Meyertech ZSC-1000. However the ZSC-1000 contains printed circuit boards populated with electronic components. The whole unit must be returned to Meyertech Service Centre for final disposal. Please follow the normal returns procedure. -
Page 45: Support
Meyertech Limited is a member of the CCTV User Group. Support At Meyertech our staff understand quality support is important to you, vital in fact, which is why we place such a high precedence on providing it. For all matters relating to support go to our website to find the information your require visit http://www.meyertech.co.uk/support.html... -
Page 46: Warranty
Page 46 of 46 Warranty Please refer to Meyertech Limited ‘Terms & Conditions of Sale of Goods & Services’ for interpretation. If the Buyer establishes to the Seller's reasonable satisfaction that there is a defect in the materials or workmanship of the...
