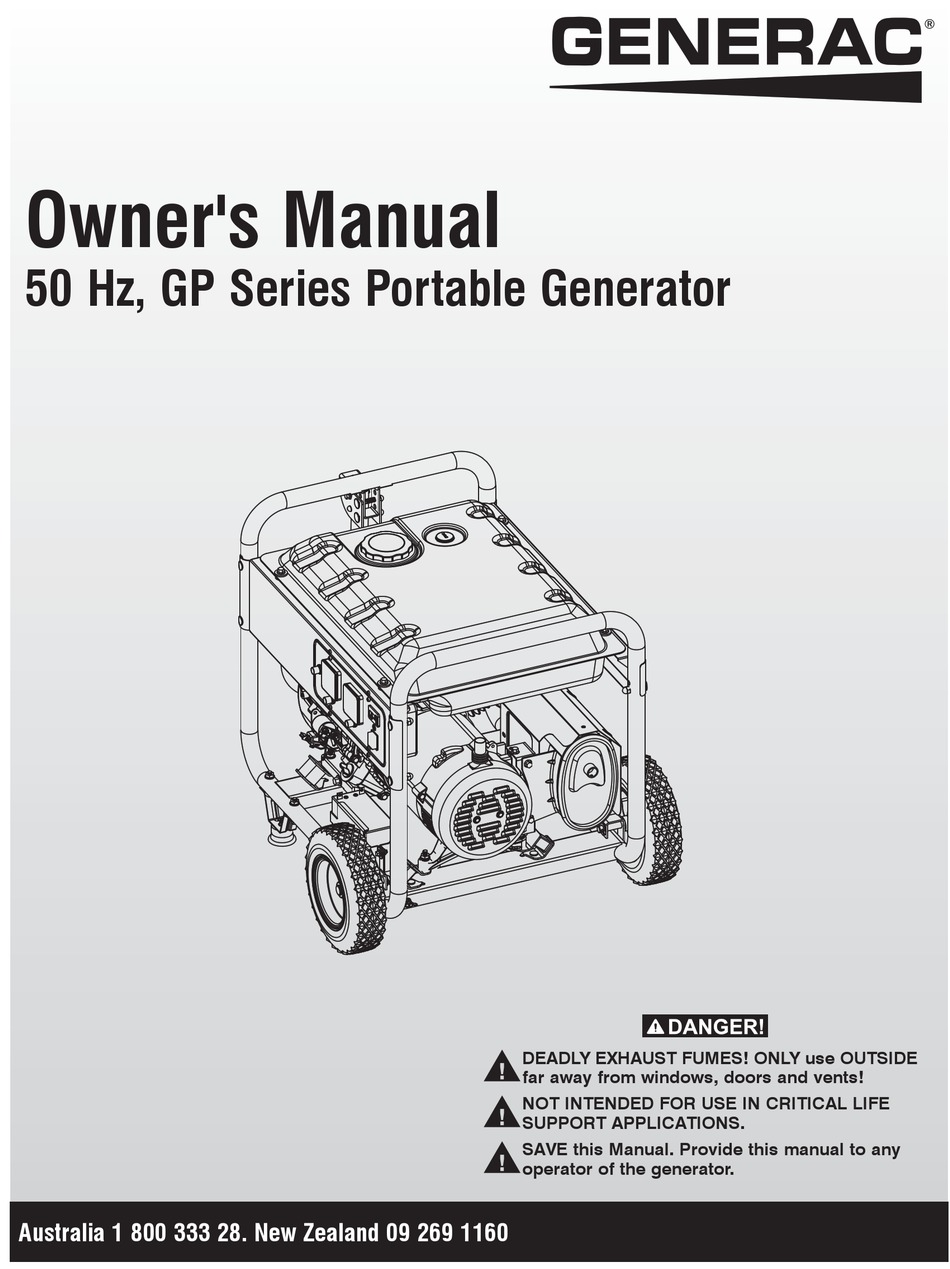

Owner's Manual
50 Hz, GP Series Portable Generator
Australia 1 800 333 28. New Zealand 09 269 1160
DEADLY EXHAUST FUMES! ONLY use OUTSIDE

far away from windows, doors and vents!
NOT INTENDED FOR USE IN CRITICAL LIFE
SUPPORT APPLICATIONS.
SAVE this Manual. Provide this manual to any

operator of the generator.
